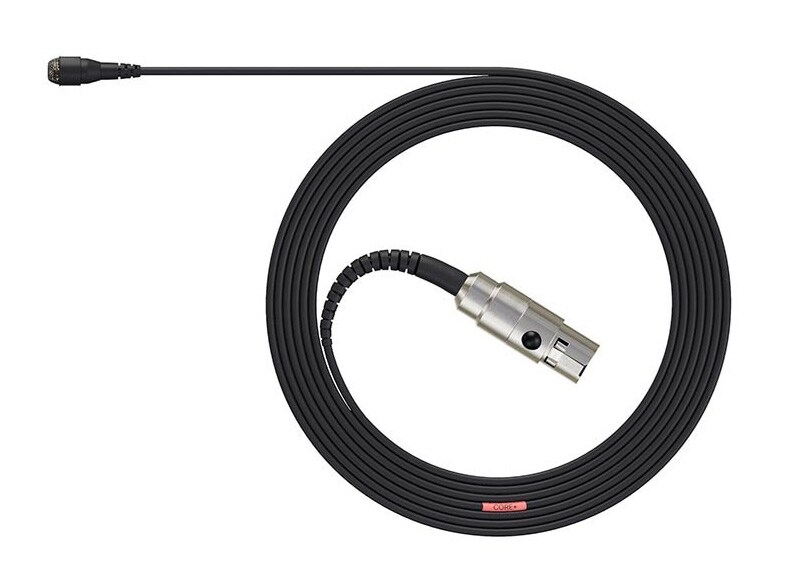

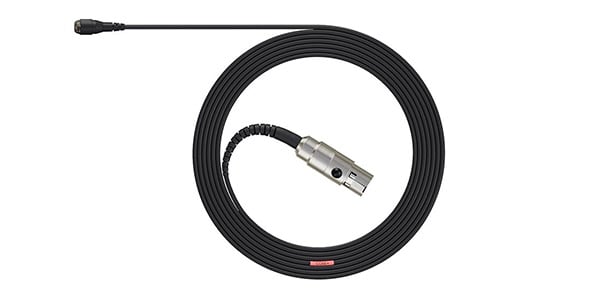

DPA / 4061-OP-C-B10

This model features CORE+ technology, which thoroughly eliminates noise and achieves extremely high clarity across the entire frequency range. [TA4F terminal] Black

The 4061 CORE+ is a low-sensitivity model with a maximum sound pressure level of 144dB SPL. It's ideal for capturing loud vocal situations, such as shouting, and instruments with high sound pressure levels, such as trumpets. Its compact design, measuring just 5.7mm in diameter, ensures the microphone itself is discreet and captures natural sound quality.

[Product Specifications]
Polar Pattern: Omnidirectional
Cartridge: Prepolarized Condenser
Frequency Range (±2dB): 20Hz–20kHz (Soft Boost 3dB Boost @ 8–20kHz)
*Miniature Grid (Soft Boost) is installed at factory
*10dB boost at 12kHz is possible with the included Miniature Grid (High Boost)
Sensitivity (±3dB): -44dB re 1V/Pa
Equivalent Noise Level (A-weighted): 26dB(A) re. 20μPa
Total Harmonic Distortion (THD 0.5% or less): 127dB SPL RMS 130dB SPL Peak
Total Harmonic Distortion (THD 1% or less): 134dB SPL RMS 137dB SPL Peak
Dynamic Range (Typical): 111dB
Maximum Sound Pressure Level: 144dB SPL
Output Impedance: 30-40Ω
Maximum Cable Length: 300m (when using DAD6001)
Power Supply:
Wireless System: 5V-10V (when using DPA conversion adapter)
When using DAD6001-BC: Phantom 48V (operates at 12V or higher)
Microphone Dimensions: Φ5.4 x 12.7mm
Cable Length: 1.8m
Temperature: -40°C to 45°C
Humidity: Maximum 90%
Accessories: Miniature Grid (High Boost) x 1
