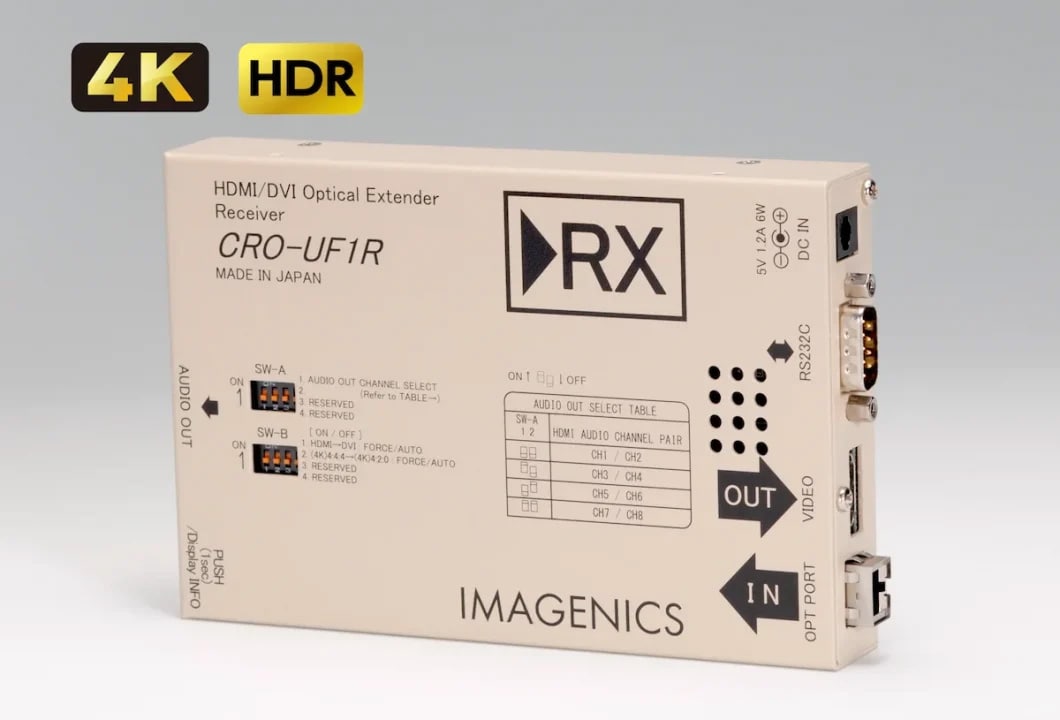

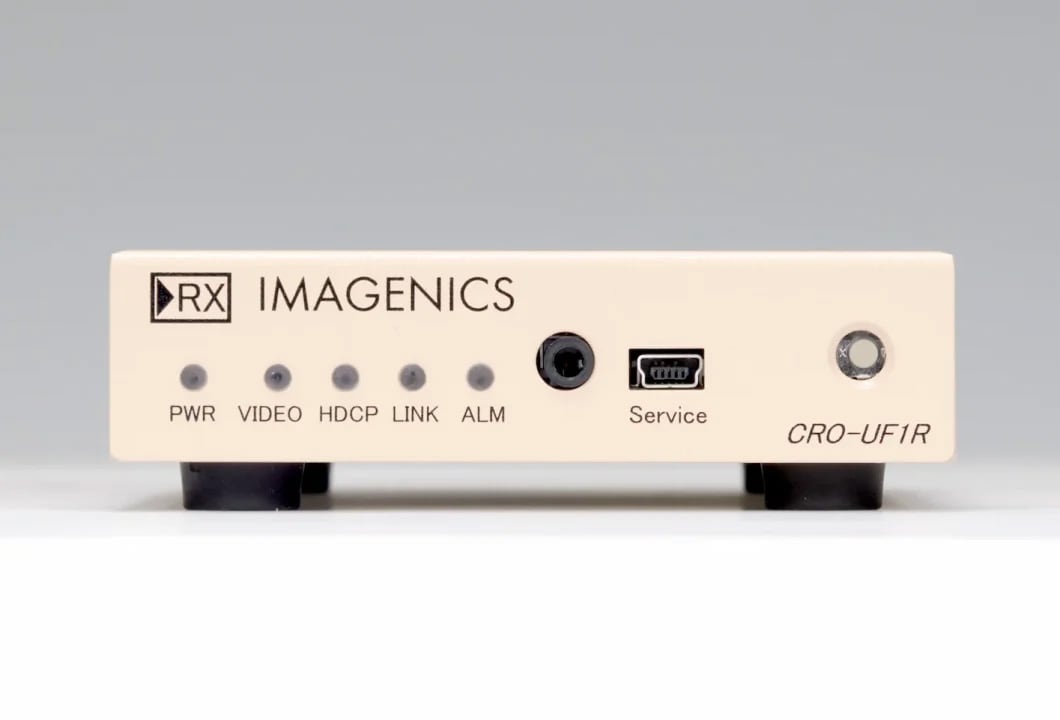

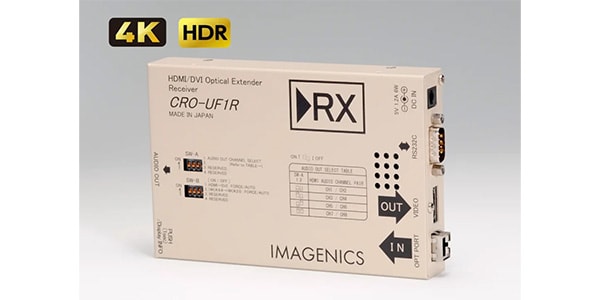

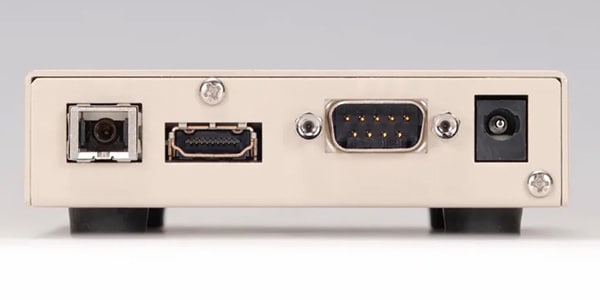

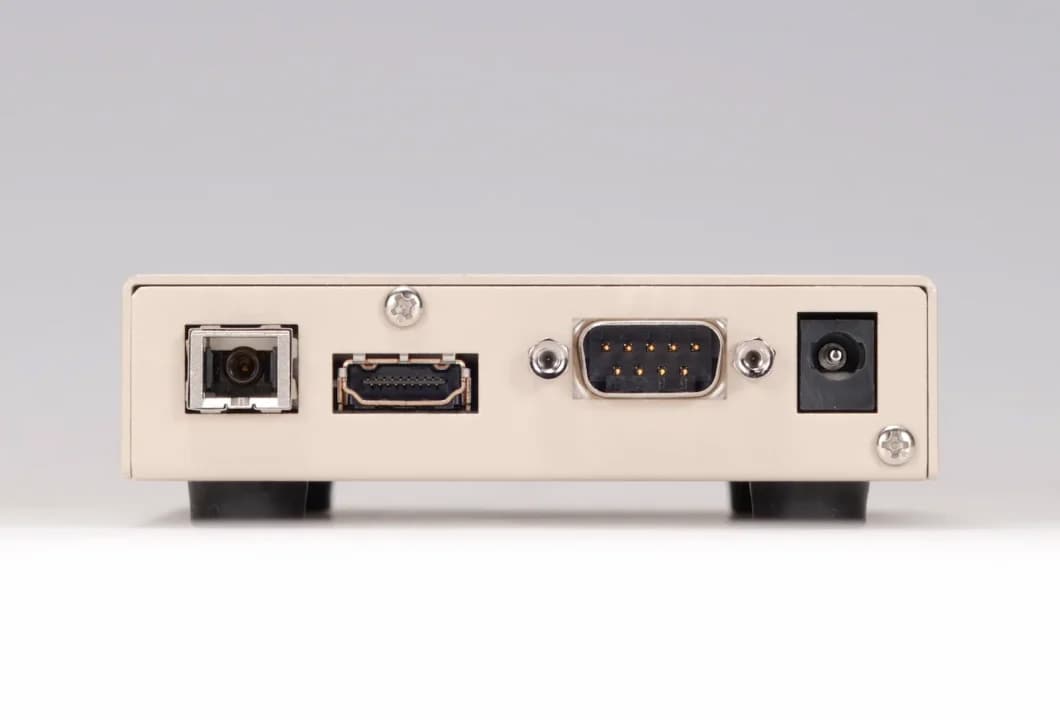

IMAGENICS / CRO-UF1R

This is an optical receiver that transmits HDMI 2.0 uncompressed 4K @ 60Hz (4:4:4) video up to 300m using a single multimode optical fiber cord.

■4K HDMI (DVI) Optical Extender (Multi-Mode) Receiver
■4K Signal Format
TMDS Clock: 25MHz to 340MHz
Pixel Clock: 25MHz to 600MHz
Data Rate: 0.75 to 18Gbps
HDCP: 1.4/2.2
Supported Resolutions: 4K60p4:4:24-bit, 4K60p4:2:236-bit, 4K30p4:4:36-bit, etc.
When the input signal is 4K60p4:2:236-bit or 4K30p4:4:436-bit (4K resolution Deep Color), the output will be 24-bit.
Video Input/Output
1x HDMI Type A 19-pin connector output
Automatically supports 4K, D1-D5 equivalent HDMI signals and PC signals from 640 x 480 to 4,096 x 2,160
Output cable length: 3m (when using an Imagenics HDMI cable)
■Compatible optical fiber and connector specifications
Fiber type: GI multimode fiber
Category, core diameter, cladding: 50 μm/125 μm for OM4, OM3, and OM2 equivalents (dimensions are for reference only)
Number of fibers: 1
Polishing: PC polishing
Connector: SC connector
■Optical Input/Output Optical Input Level: -12.5dBm to 12dBm (Average Power)
Laser Wavelength: 770nm to 990nm
Connector: SC Type
Connected Optical Fiber: Multimode Optical Fiber Cord (50/125μm) Category OM4, OM3, OM2 Equivalent
Laser Safety: Class 1M (JISC6902IEC60825-1)
Transmission Distance (Reference Value):
When using OM4 or OM3 multimode optical fiber
6Gbps, such as PC (VESA), D5 (FHD) Video up to 1000m
Video up to 10.2Gbps, such as 4K30, 60 (420) up to 500m
Video up to 18Gbps, such as 4K60 (422, 444) up to 300m
When using OM2 multimode optical fiber:
Video up to 6Gbps, such as PC (VESA), D5 (FHD) up to 400m
Video up to 10.2Gbps, such as 4K30, 60 (420) up to 200m
Video up to 18Gbps, such as 4K60 (422, 444) up to 100m
■Audio input/output Audio Frequency Response: -1dB to +1dB from 20Hz to 20kHz
Audio S/N Ratio: Over 80dB (passed through a 1kHz A-weighting filter, at a reference output of -10dBu)
Audio Distortion: Under 0.1%
Audio Sampling: 24-bit 48kHz Linear PCM
Maximum Input/Output Level: +10dBu (HDMI Embedded Audio Output at 0dBFS)
De-embedded audio output can be selected from HDMI signal pairs 1CH/2CH, 3CH/4CH, 5CH/6CH, and 7CH/8CH
Output Connector: -10dBu (into a 10kΩ load), low-impedance stereo mini jack φ3.5, unbalanced, 2-channel, 1 system
■RS-232C
Connector Type: D-SUB9 (male), full-duplex (bidirectional) communication 1 channel
Flow Control: Hardware, None / Data Bit Length: 8 bits / Stop Bit Length: 1 bit / Baud Rate: 9.6 kbps, 19.2 kbps, 38.4 kbps / Parity: None, Even
■ Built-in Features:
Plug and Play (built-in EDID emulation, external EDID pass-through or copy/retain function), analog audio embedding, de-embedded audio analog output, operating status information display
■ Power Supply/Power Consumption:

DC 5 V 1.2 A 6 W (max)
■ Size: 100 (W) x 25 (H) x 150 (D) mm (excluding protrusions)
■ Weight: Approximately 500 g
■ Accessories:
AC 100 V 27 VA 50 Hz/60 Hz (Japan-use only) AC adapter (5 V 2.3 A output with lock), HDMI locking bracket (CL-1) + cable ties The HDMI retaining bracket (CL-1) set may not function properly depending on the thickness of the HDMI connector being attached.
