IMAGENICS / CRO-UF1T

This optical transmitter transmits HDMI 2.0 4K @ 60Hz (4:4:4) uncompressed video up to 300m using a single multimode optical fiber cable. [LF] DVI signals can also be used with cable conversion. [LF]

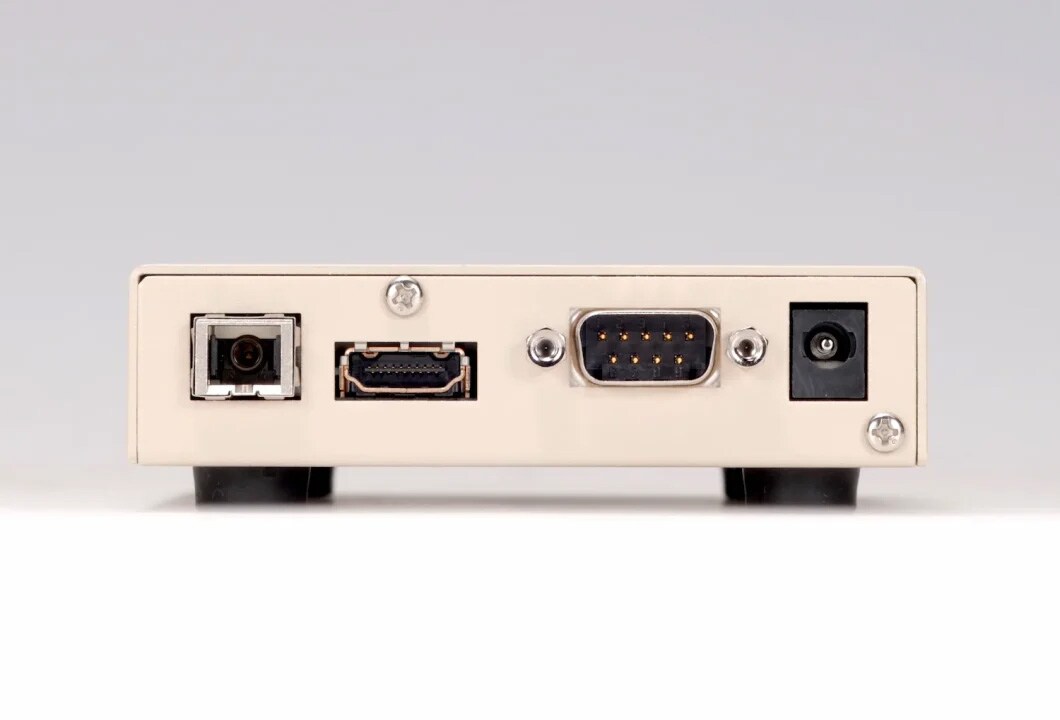

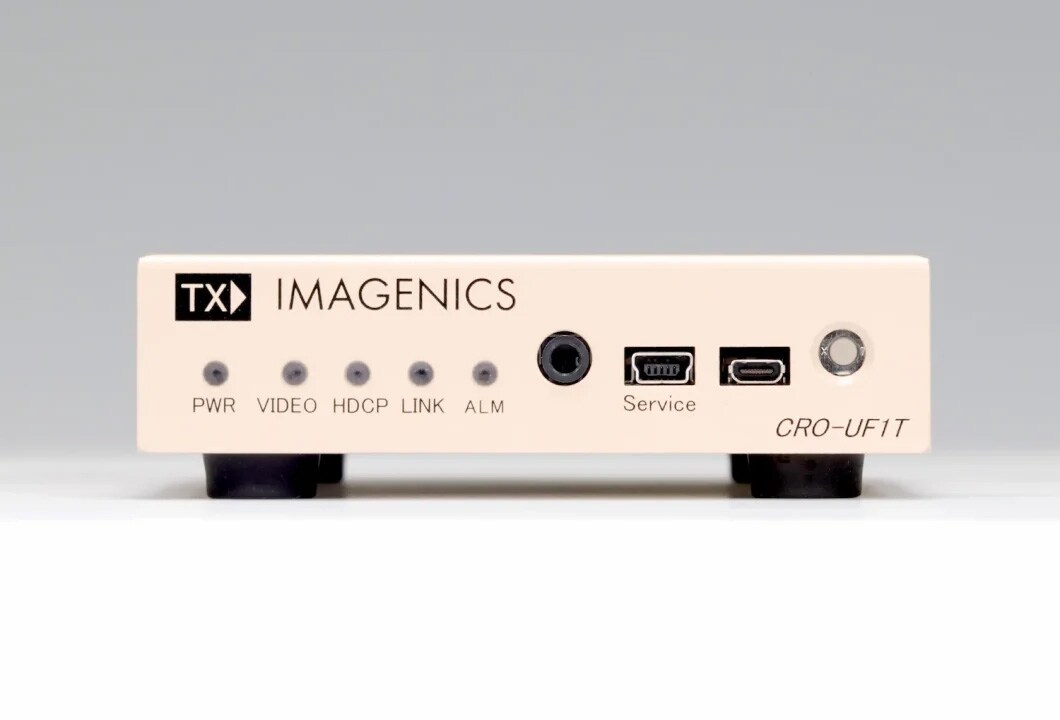

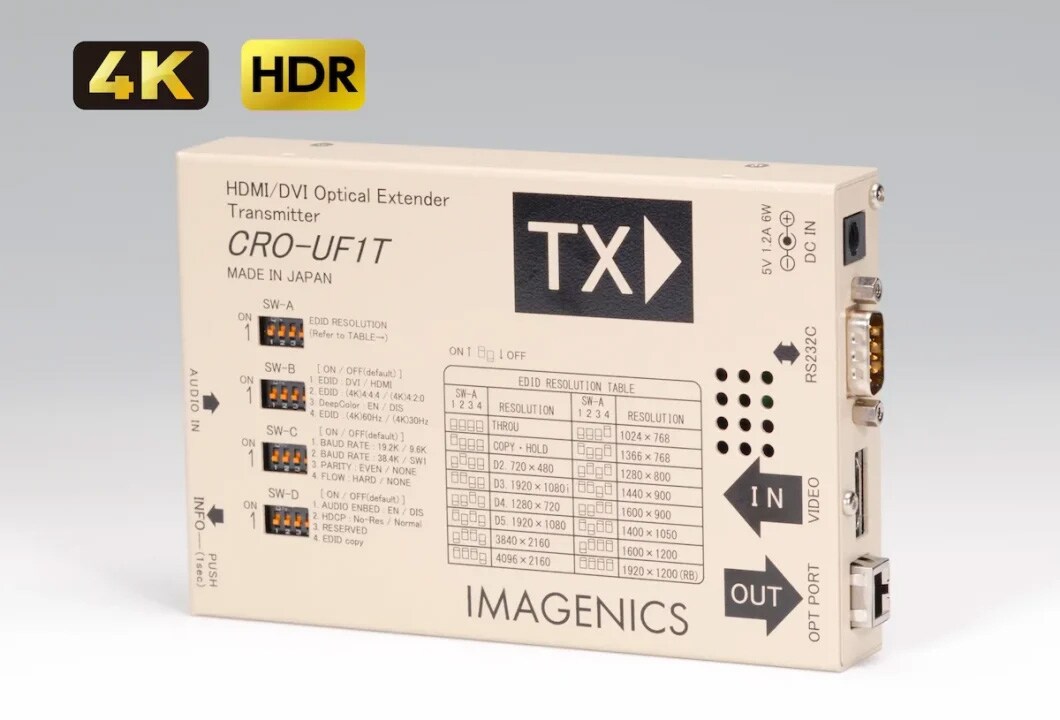

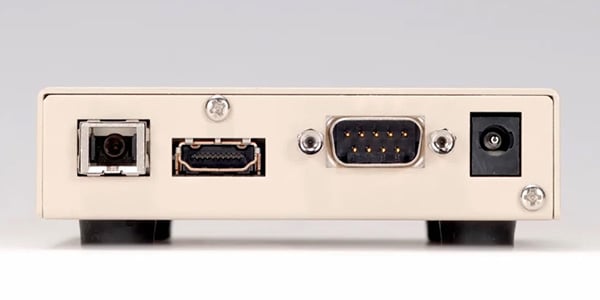

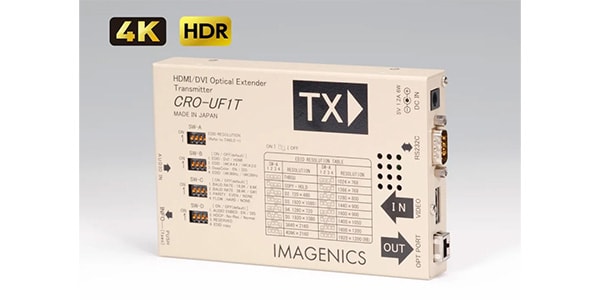

■4K HDMI (DVI) Optical Extender (Multi-Mode) Transmitter
■4K Signal Format
TMDS Clock: 25MHz to 340MHz
Pixel Clock: 25MHz to 600MHz
Data Rate: 0.75 to 18Gbps
HDCP: 1.4/2.2
Supported Resolutions: 4K60p4:4:24-bit, 4K60p4:2:236-bit, 4K30p4:4:36-bit, etc.
When the input signal is 4K60p4:2:236-bit or 4K30p4:4:436-bit (4K resolution Deep Color), the output will be 24-bit.
■Video Input/Output
HDMI Type A 19-pin connector - Input x 1
HDMI Type D 19-pin connector - Output x 1 (For information screen output only)
Automatically supports 4K, D1-D5 equivalent HDMI signals and PC signals from 640x480 to 4,096x2,160
Input cable length: 3m (when using an Imagenics HDMI cable)
■Compatible optical fiber and connector specifications
Fiber type: GI multimode fiber
Category, core diameter, cladding: 50μm/125μm for OM4, OM3, OM2 equivalent (dimensions are for reference only)
Number of cores: 1
Polishing: PC polish
Connector: SC connector
■Optical input/output
Optical output level: 12dBm maximum (average power)
Laser wavelength: 770nm-990nm
Connector: SC type
Connecting optical fiber: Multimode optical fiber cord (50/125μm) Category OM4, OM3, OM2 equivalent
Laser safety: Class 1M (JISC6902IEC60825-1)
Transmission distance (for reference only) :
When using OM4 or OM3 multimode optical fiber:
Up to 6 Gbps video, such as PC (VESA) or D5 (FHD), up to 1000m
Up to 10.2 Gbps video, such as 4K30, 60 (420), up to 500m
Up to 18 Gbps video, such as 4K60 (422, 444), up to 300m
When using OM2 multimode optical fiber:
Up to 6 Gbps video, such as PC (VESA), D5 (FHD), up to 400m
Up to 4K30, 60 (42 0) and other formats up to 10.2 Gbps (up to 200 m)
4K60 (422, 444) and other formats up to 18 Gbps (up to 100 m)
■Audio Input/Output
Audio Frequency Response: -1 dB to +1 dB from 20 Hz to 20 kHz
Audio S/N Ratio: 80 dB or greater (passed through a 1 kHz A-weighting filter, reference -10 dBu output)
Audio Distortion: 0.1% or less
Audio Sampling: 24-bit 48 kHz linear PCM
Maximum Input/Output Level: +10 dB Bu (HDMI embedded audio output at 0dBFS)
De-embedded audio output can be selected from pairs of 1CH/2CH, 3CH/4CH, 5CH/6CH, or 7CH/8CH within the HDMI signal.
Input Connector: -10dBu, approximately 30kΩ, stereo mini jack φ3.5, unbalanced, 2-channel, x1
■RS-232C
Connector Type: D-SUB9 (male), full-duplex (bidirectional) communication, x1
Flow Control: Hardware, None / Data Bit Length: 8 bits / Stop Bit Length: 1 bit / Baud Rate: 9.6kbps, 19.2kbps, 38.4kbps / Parity: None, Even
■Built-in Features
Plug-and-play functionality (built-in EDID emulation, external EDID pass-through or copy/retain function), analog audio embedding, de-embedded audio analog output, on-screen operating status information display
■Power Supply/Power Consumption:
DC 5 V 1.2 A 6 W (max)
■ Size: 100 (W) x 25 (H) x 150 (D) mm (excluding protrusions)
■ Weight: Approximately 500 g
■ Accessories:

AC100V 27 VA 50 Hz/60 Hz (Japan-use only) AC adapter (1 each) (5 V 2.3 A output with lock)
HDMI retaining bracket (CL-1) + cable tie (1 each)
The HDMI retaining bracket (CL-1) may not function properly depending on the thickness of the HDMI connector being attached.

""
