IMAGENICS / CRO-UF2R

An optical extender receiver that transmits HDMI 2.0 4K@60Hz (4:4:4) uncompressed video up to 2km using two single-mode optical fiber cables or one cable.

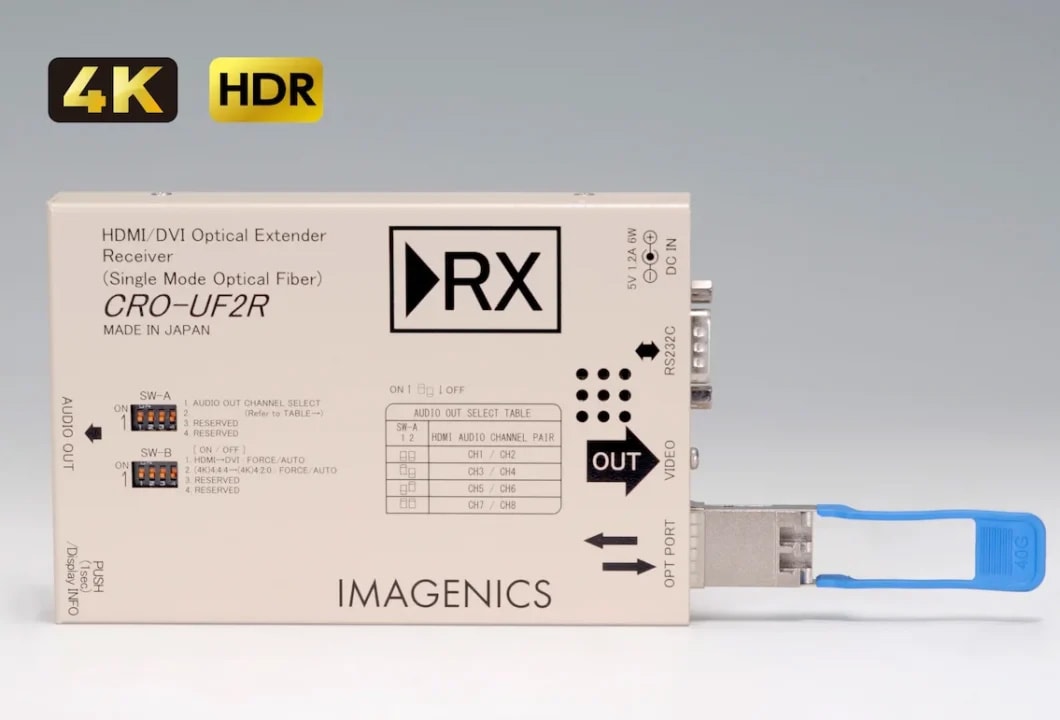

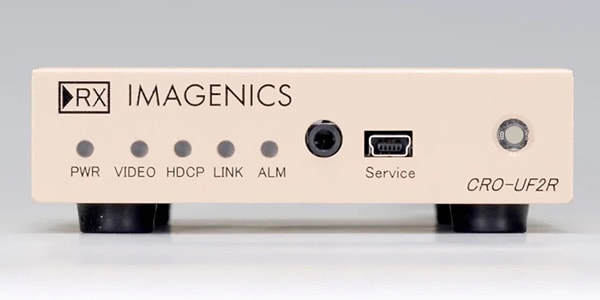

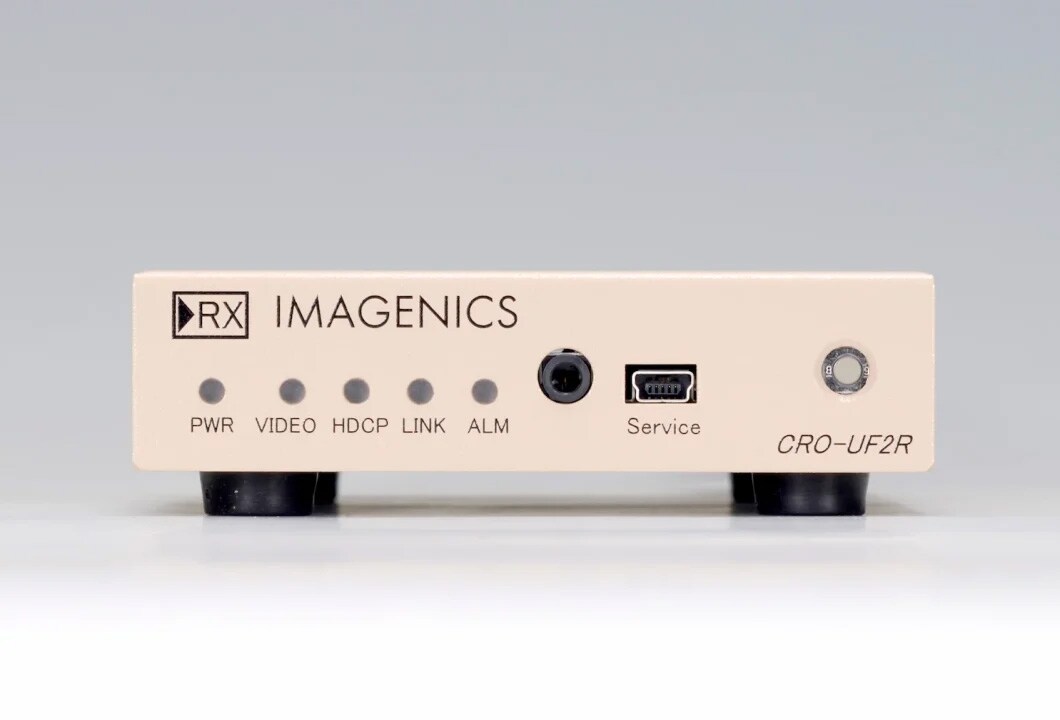

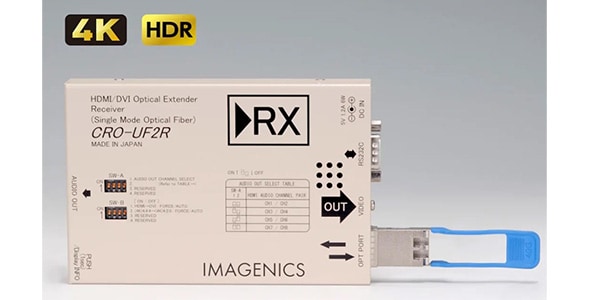

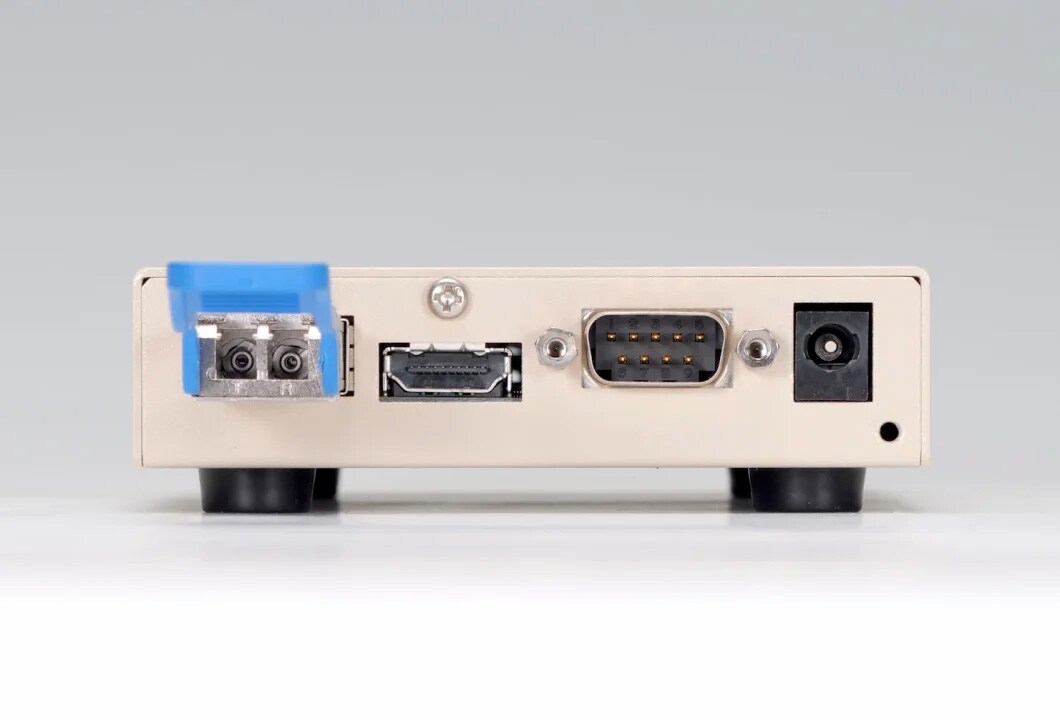

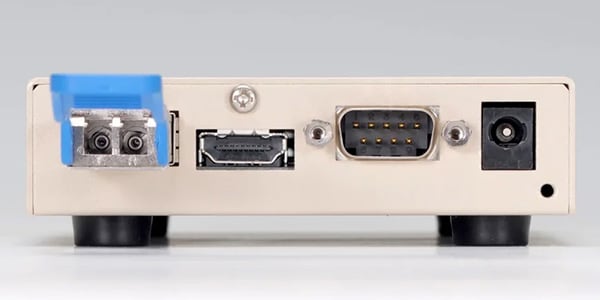

■4K HDMI (DVI) Optical Extender (Single Mode) Receiver
■4K Signaling System
TMDS Clock: 25MHz to 340MHz
Pixel Clock: 25MHz to 600MHz
Data Rate: 0.75 to 18Gbps
HDCP: 1.4/2.2
Supported Resolutions: 4K60p4:4 (24-bit), 4K60p4:2 (236-bit), 4K30p4:4 (36-bit), etc.
■Video Input/Output
One HDMI Type A 19-pin connector output
Automatically supports 4K, D1-D5 equivalent HDMI signals, and PC signals from 640x480 to 4,096x2,160
Output Cable Length: 3m (Imagenics (When using a HDMI cable from HDMI Corporation)
■Optical Input/Output
Optical Input Level: -7dBm to 8.5dBm (average power)
Optical Output Level: 2.5dBm maximum (average power)
Laser Wavelength: 1264.5nm to 1337.5nm
Connector: LC (Duplex)
Optical Fiber Connection: Single-mode optical fiber cord (9.5/125μm) Category OS1 equivalent
*Bend-resistant single-mode optical fiber cord (core diameter approximately 8μm) can also be used
Laser Safety: Class 1 (JISC6902IEC60825-1)
Transmission Distance (Reference Value): Maximum approximately 2km
■Audio Input/Output Output Terminal: -10 dBu (10 kΩ load), low impedance, stereo mini jack, φ3.5, unbalanced, 2 channels, 1 pair
Audio Frequency Response: -1 dB to +1 dB at 20 Hz to 20 kHz
Audio S/N Ratio: 80 dB or greater (passed through a 1 kHz A-weighting filter, at a reference output of -10 dBu)
Audio Distortion: 0.1% or less
Audio Sampling: 24-bit, 48 kHz, linear PCM
Maximum Input/Output Level: +10 dBu (HDMI embedded audio output at 0 dBFS)
De-embedded audio output supports 1CH/2CH, 3CH/4CH, 5CH/6CH, and 1CH/6CH of the HDMI signal. Select from 7-channel or 8-channel pairs.
■RS-232C:

D-SUB9 (male) connector, full-duplex (bidirectional) communication, 1 channel

Flow Control: Hardware, None / Data Bit Length: 8 bits / Stop Bit Length: 1 bit / Baud Rate: 9.6 kbps, 19.2 kbps, 38.4 kbps / Parity: None, Even
■Built-in Features

Plug-and-play functionality (built-in EDID emulation, external EDID pass-through or copy/retain function), analog output for de-embedded audio, operating status information screen display (press and hold the front PUSH button to switch from input video to the information screen).
■Power Supply/Power Consumption: DC5V 1.2A 6W (max.)
■Size: 100 (W) x 25 (H) x 1508 (D) mm
*Depth: 234 mm including the optical module pull tab. mm
*Do not remove the optical module by pulling the blue pull tab (operation is not guaranteed).
■Weight: Approximately 500g
■Accessories

AC100V 27VA 50Hz/60Hz (Japan-only) AC adapter (1 unit) (5V 2.3A output with lock), HDMI retaining bracket (CL-1) + cable tie (1 set each). The HDMI retaining bracket (CL-1) may not function properly depending on the thickness of the HDMI connector to be attached.
*When transmitting using a single cable, RS-232C transmission is only possible; the EDID through/copy function will be disabled.
