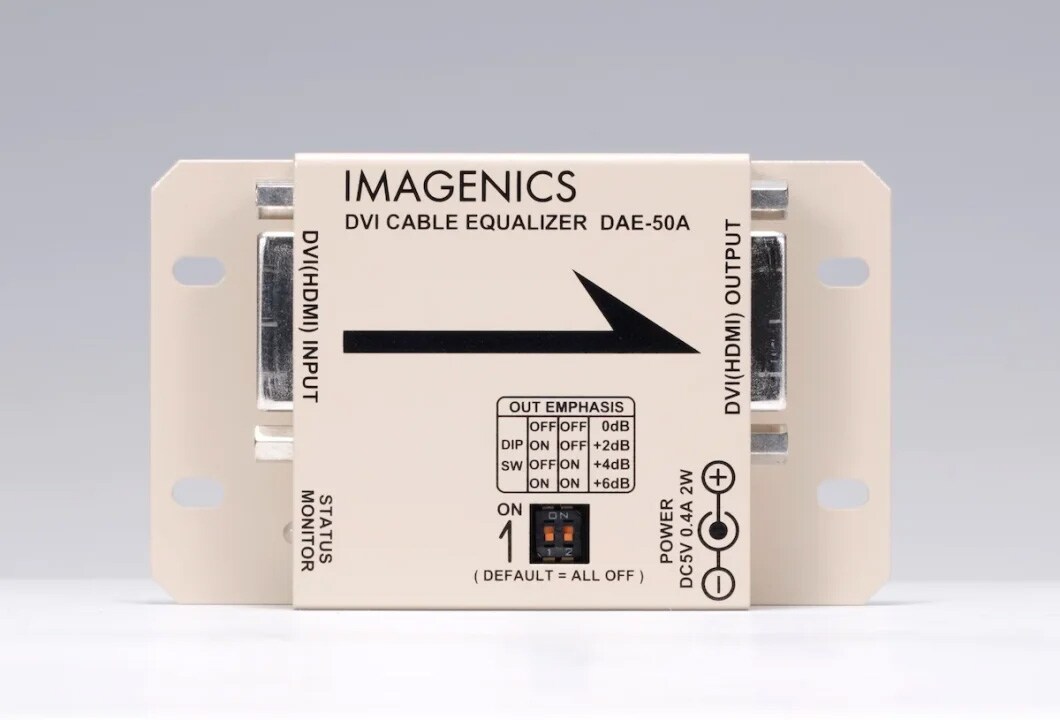

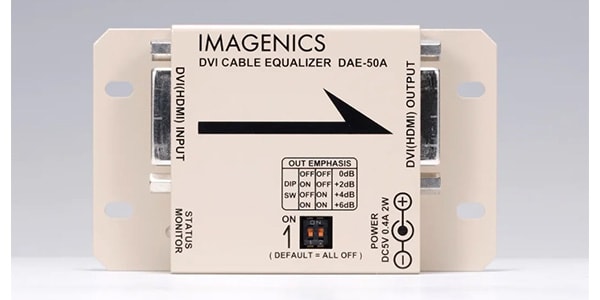

IMAGENICS / DAE-50A

This compact, lightweight, and low-power DVI cable compensator can transmit digital video and audio signals conforming to the DVI or HDMI standard up to 50 meters using long DVI cables manufactured by Imagenics. It also supports HDCP (copyright protection) video signals.

■DVI Cable Equalizer
■Video Signal Format
Video pixel clock 25MHz to 165MHz (TMDS clock 25MHz to 225MHz)
PC DVI signals such as VGA@60 to UXGA@60, WUXGA@60 (RB), and TV HDMI signals with audio equivalent to D1 to D5
24-bit full color DVI Rev 1.0 standard compliant

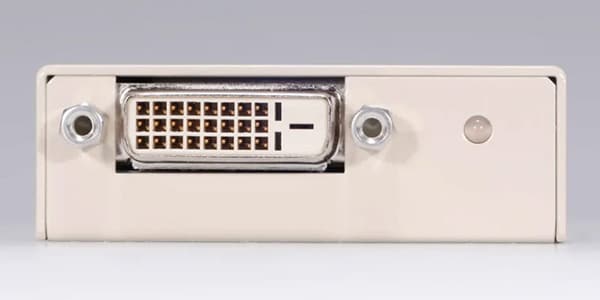

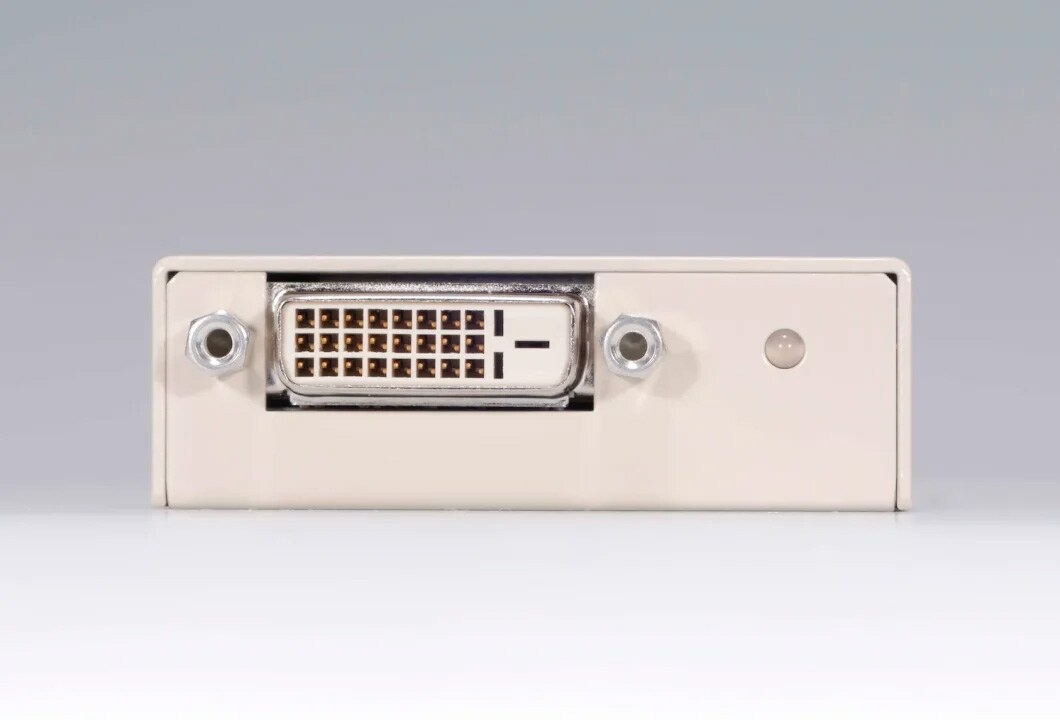

■Digital Input
DVI Rev 1.0 standard compliant DVI-D 24-pin connector (single link) x 1
※HDMI signal can be input using a conversion adapter or similar.

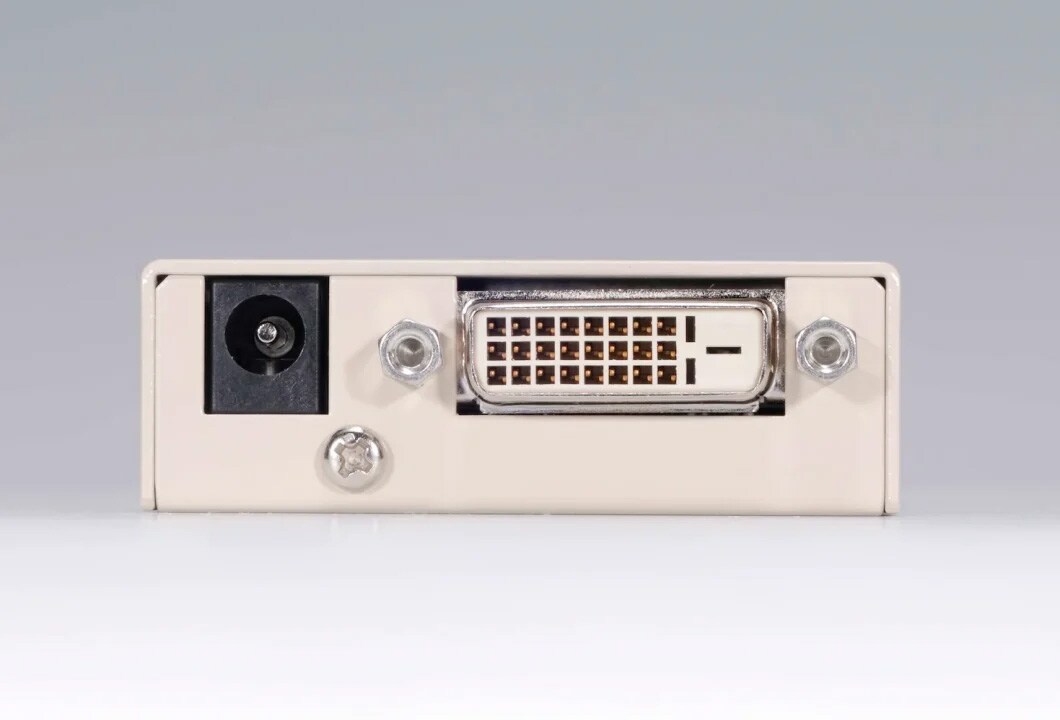

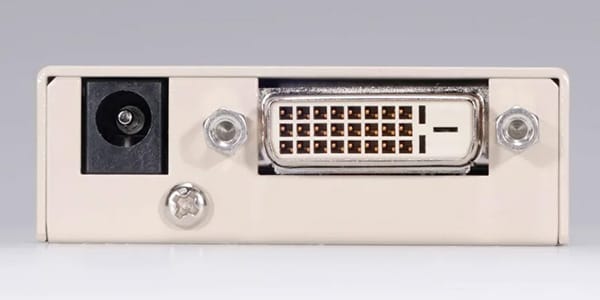

■Digital Output
DVI Rev 1.0 standard compliant DVI-D 24-pin connector (single link) x 1
※When an HDMI signal is input, it can be connected to the HDMI input of a display device using a conversion connector or similar.
■Plug and Play and HDCP (Copyright Protection) Control Support:
Full electrical pass-through (DDC+5V, HPD, DDC_SCL, (The DDC_SDA line is electrically connected directly.)
■Input Cable Compensation Range
Fully automatic equalization operation, 24-bit full color video at all resolutions
1m to 50m when using a long-length DVI cable manufactured by Imagenics, at all resolutions of DVI/HDMI signals output by Imagenics equipment (only models equipped with the output (pre)emphasis function).
The transmission distance may be significantly shorter when using DVI/HDMI signals output by other devices or long-length DVI cables made by other manufacturers.
*The transmission distance may be significantly shorter if the DVI/HDMI cable is extended using a JJ connector, etc.
■Output Cable Length Range 0.5m to 10m (when connecting to a standard display device using an Imagenics DVIP-DVIP cable)
* The cable length may be shorter for display devices with weak input sensitivity. (This depends on the input performance of the receiving device.)
* Increasing the emphasis setting more than necessary may result in noise in the image, depending on the display device.
■ Power Supply: DC 5V 0.4A
■ Power Consumption: 2W (Maximum)
■ Weight:
Approximately 150g (Main unit only, excluding the wing-shaped angle)
Approximately 200g (Including the wing-shaped angle)
■ Size: 60(W) x 20(H) x 60(D)mm (Main unit only, excluding protrusions)
■ Accessories
1 AC100V 27VA 50Hz/60Hz AC adapter for Japan
* 5V 2.3A output with locking mechanism
""
