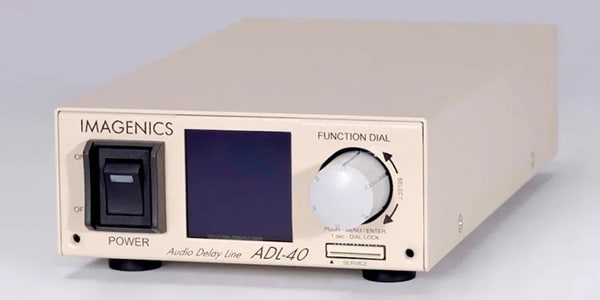

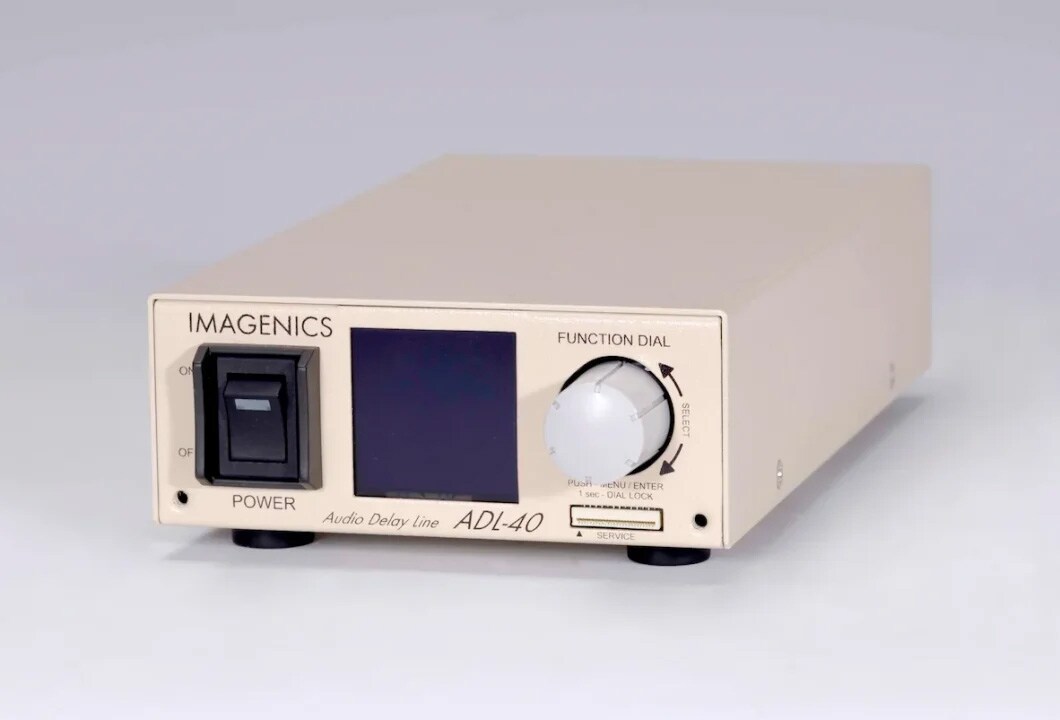

IMAGENICS / ADL-40

Audio delay device with analog audio 2CH (RCA unbalanced) input and output.

■Audio Delay Device
■Input Signal:
Unbalanced stereo high-impedance (50kΩ or greater) RCA x 1
Output Signal:
■Unbalanced stereo low-impedance (150Ω or less) RCA x 3
■Maximum Audio Input Level:
Switchable between +10dBu and +19dBu
■Audio Frequency Response:
+0dB to -1dB from 30Hz to 30kHz
■Audio Distortion: 0.04% or less
■Audio Crosstalk: 80dB or greater
■Audio Dynamic Range: 90dB or greater
■Audio Quantization: 24-bit, 100ksample/s
■Delay Setting: 0 to 40 seconds in 0.1-second, 1-msec, 1-frame, and 1-msecond increments
■Volume Adjustment: -∞, -95.5dB to +31.5dB (256 levels in 0.5dB steps)
■Functions: Delay settings for each output, backup memory, and user memory for switching between settings
■Power Supply: AC 100V 50Hz or 60Hz
■Power Consumption: Less than 10W
■Weight: Approximately 0.7kg
■Size: 100(W) x 408(H) x 180(D)
*Not including protrusions
■Accessories:
1 power cord, 1 power switch cover
