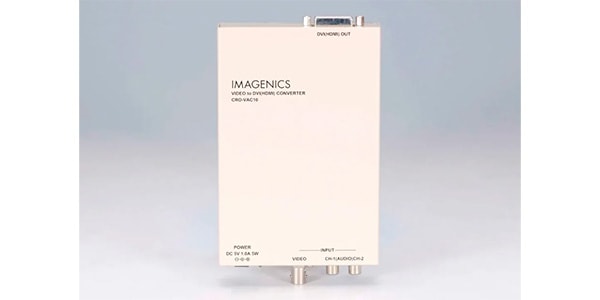

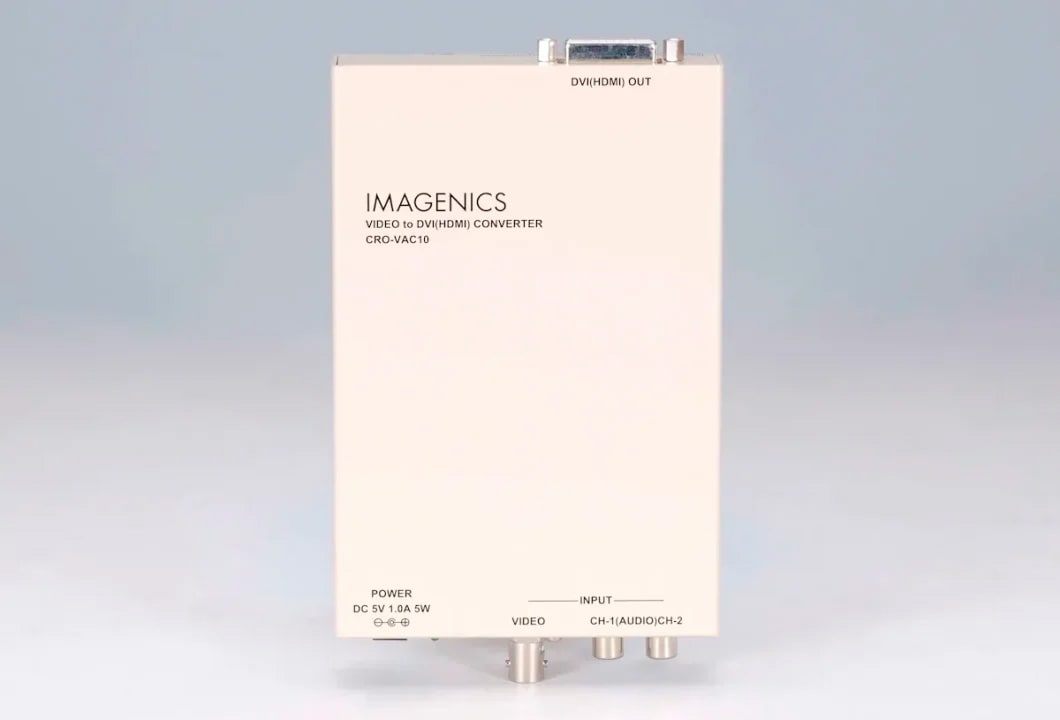

IMAGENICS / CRO-VAC10

This low-cost, space-saving video input/output converter is optimized for monitoring applications. It digitally converts NTSC composite signals to high-quality images using adaptive 3D Y/C separation and 10-bit processing.

■Video Input DVI (HDMI) Output Converter

[Input Signal Section]

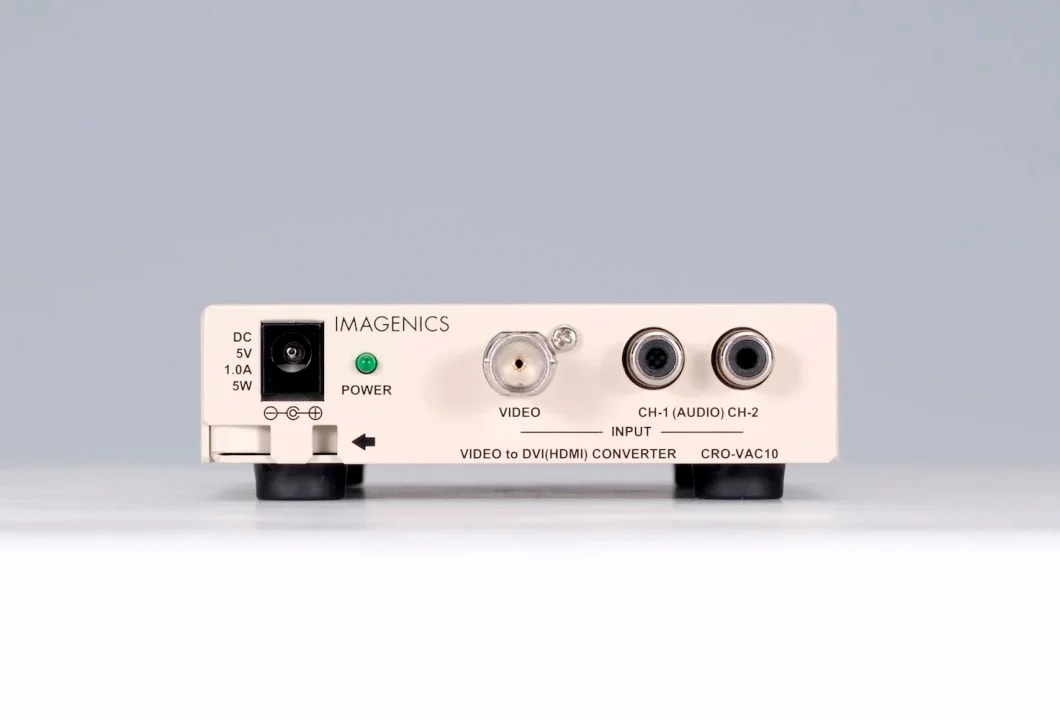

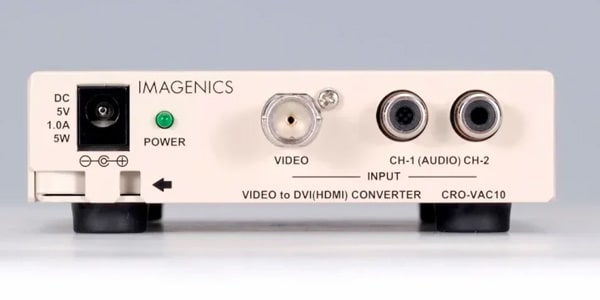

■Video Input Signal: NTSC composite video signal, 1.0V (p-p), 75Ω, x 1 (BNC x 1)
■Audio Input Signal: -10dBu, approximately 50kΩ, unbalanced, 2-channel, x 1 (RCA pin jack x 2)

[Output Signal Section]

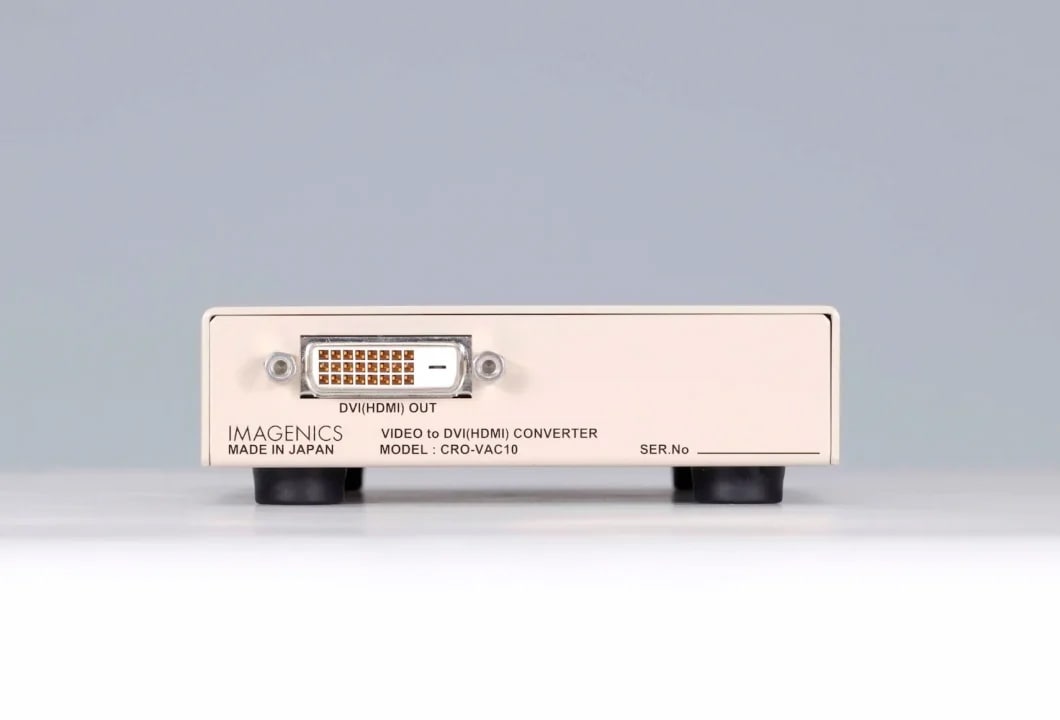

■DVI Output Signal: DVI Rev 1.0 compliant DVI-D 24-pin connector (single link), x 1 (HDMI compatible signal)
■Video Format: 480i@59.94 (YPbPr 4:2: 210-bit pixel repeat format)
■Embedded Audio: 48kHz 2-channel linear PCM, 24-bit

[Power Supply/Size/Accessories]
■Power Supply: DC5V 1.0A
■Power Consumption: 5W (Maximum)
■Weight: Approx. 550g
■Operating Temperature and Humidity Range: 0°C to 40°C, 20%RH to 90%RH (Non-condensing)
■Storage Temperature and Humidity Range: -20°C to 70°C, 20%RH to 90%RH (Non-condensing)
■Dimensions: 100mm W x 25mm H x 150mm D
■Accessories: 1 AC 100V 27VA 50Hz/60Hz AC Adapter (5V 2.3A Output)
1 DVI-D (Male) to HDMI (Female) Conversion Connector

We recommend using only Imagenics DVI/HDMI-related devices and cables. Mixing Imagenics products with other companies' products (including those manufactured overseas) may result in performance issues and unexpected malfunctions. In such cases, Imagenics products may not function properly.
""
