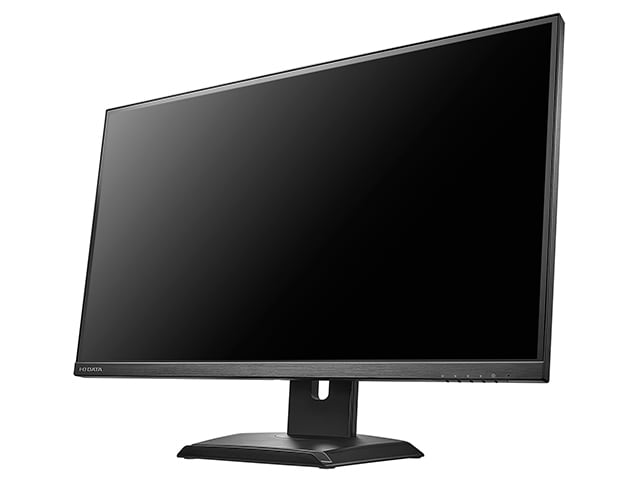

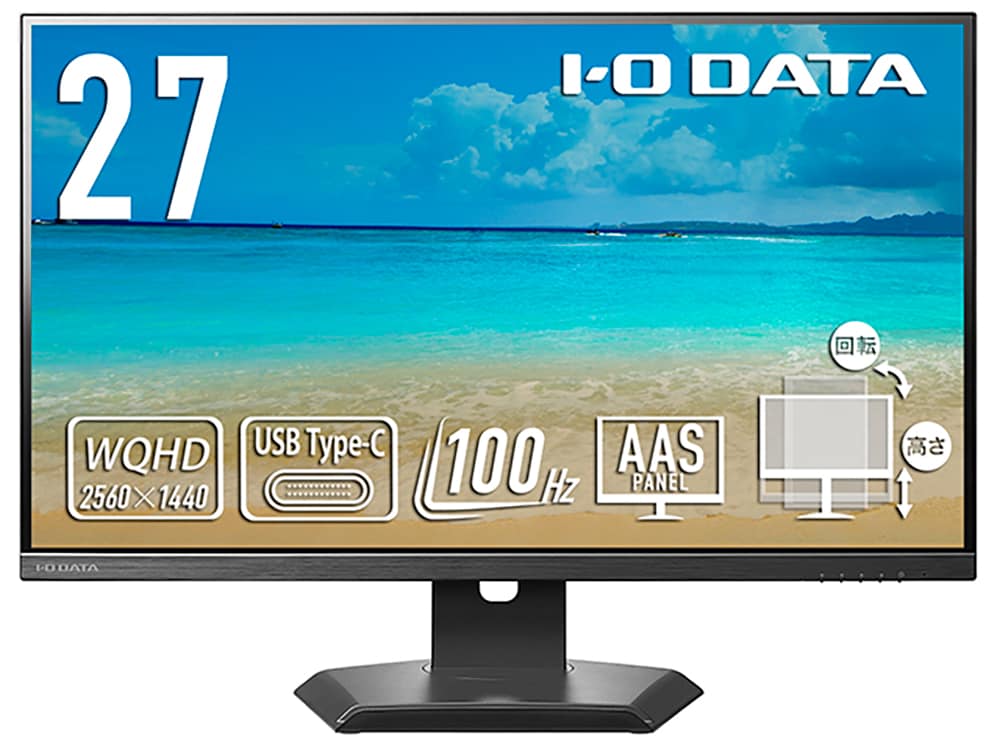

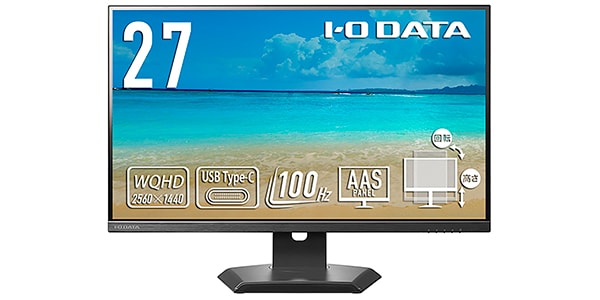

I-O DATA / LCD-CQ270SA-FX

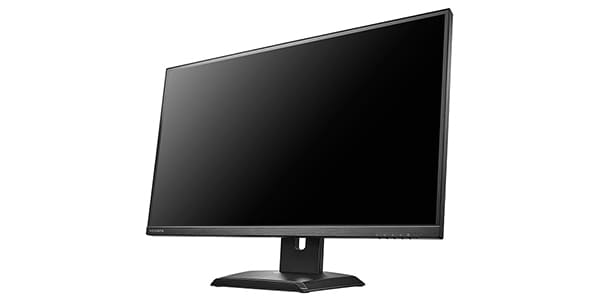

This 27-inch WQHD LCD monitor supports both video output and power to your laptop with a single Type-C cable. It also features a freestyle stand with adjustable height and angle, allowing you to position it at a comfortable, eye-friendly position for comfortable deskwork. It's perfect for desktop music, video editing, and other PC tasks, as well as for gaming with impressive graphics!

■Display Monitor
■Color: Black
■Panel Type/Display Method: 27-inch TFT Widescreen/AAS
■Panel Surface Treatment: Matte
■Maximum Display Resolution: 2560 x 1440
■Pixel Pitch: 0.2331 (H) x 0.2331 (V) mm
■Display Area: 596.736 (H) x 335.664 (V) mm
■Maximum Display Colors: 16.77 Million
■Viewing Angle: Vertical: 178°, Horizontal: 178°
■Maximum Brightness (Typical): 250 cd/m²
■Contrast Ratio (Typical): 1300:1
■Response Time: 4 ms [Gray to Gray] *100 Hz / Overdrive Level 2
■Horizontal Scan Frequency
HDMI: 31-151 kHz
DisplayPort rt: 31-151kHz
USB Type-C: 31-151kHz
■Vertical scan frequency
HDMI: 59.9-99.9Hz
DisplayPort: 59.9-99.9Hz
USB Type-C: 59.9-99.9Hz (USB setting 2.0) / 59.9-75.0Hz (USB setting 3.2)
■Maximum refresh rate: 100Hz

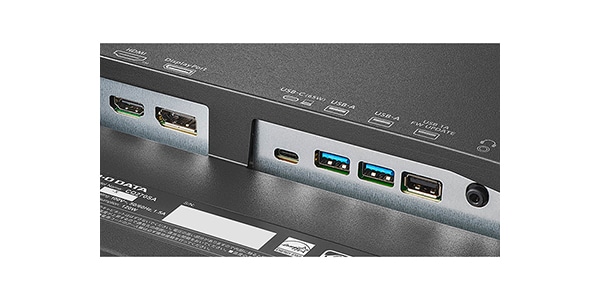

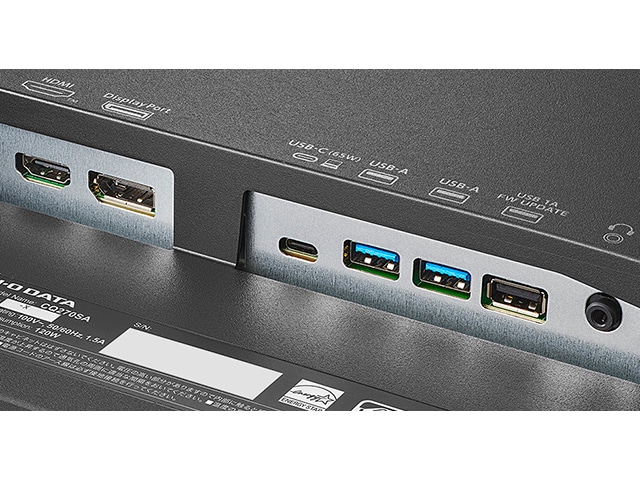

■Video input terminals: HDMI x 1, USB Type-C x 1, DisplayPort x 1
■Video output terminals: None
■RS-232C terminal: None
■LAN terminal: None
■USB hub port
・Upstream
USB Type-C x 1: USB 5Gbps (USB 3.2 Gen 1), DisplayPort Alt Mode, USBPD 5V=3A/9V=3A/15V=3A/20V=3.25A (Max. 65W)

Downstream
USB-A x 2: USB 5Gbps (USB 3.2 Gen 1) (Max. 5V/0.9A)
■Other USB Ports: USB-A x 1: USB 2.0 (Max. 5V/1A, for maintenance)
■Audio Input/Output
Audio Input: None
Speakers: 2W + 2W (Stereo)
Headphone Jack: 3.5mm Stereo Mini Jack
Audio Output: None
■Rated Voltage: AC 100V 50/60Hz (Built-in Power Supply)
■Power Consumption
Max.: 120W
Normal Use (On Mode): 16.7W
Annual Power Consumption : 56.4kWh
Power Consumption (Standby): 1.1W
■Plug & Play: VESADDC2B
■Dimensions
With Stand: Approx. 613 x 227 x 443-556mm (excluding protrusions)
Without Stand: Approx. 613 x 49 x 364mm (excluding protrusions)
■Weight
With Stand: Approx. 6.0kg
Without Stand: Approx. 4.1kg

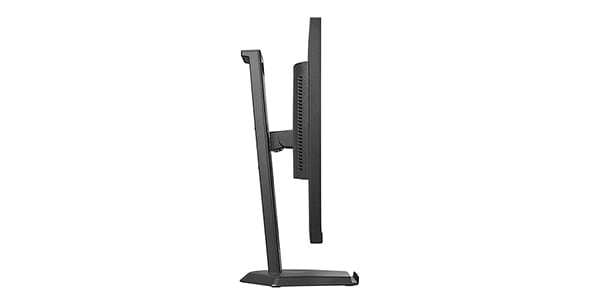

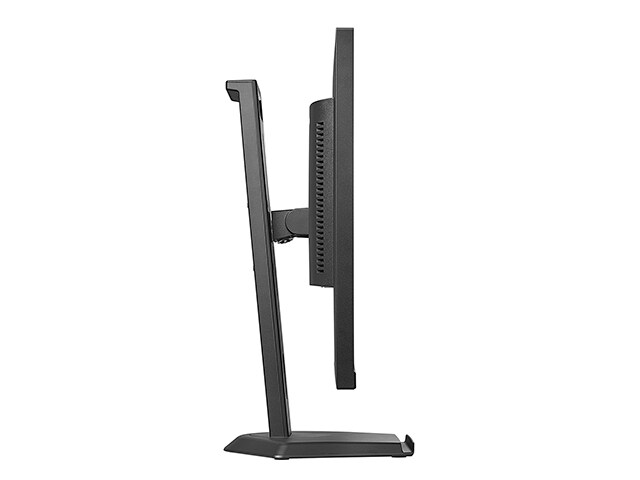

■Tilt Angle: Up: 23°, Down: 5°
■Swivel Angle: Left: 45°, Right: 45°
■Height Adjustment: 150mm

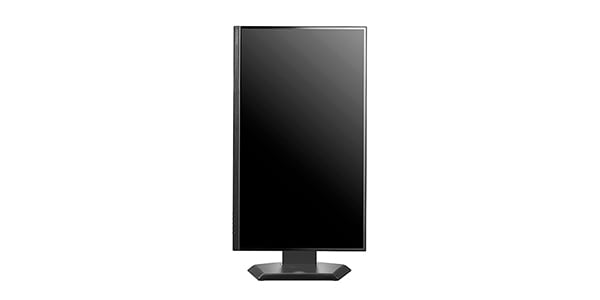

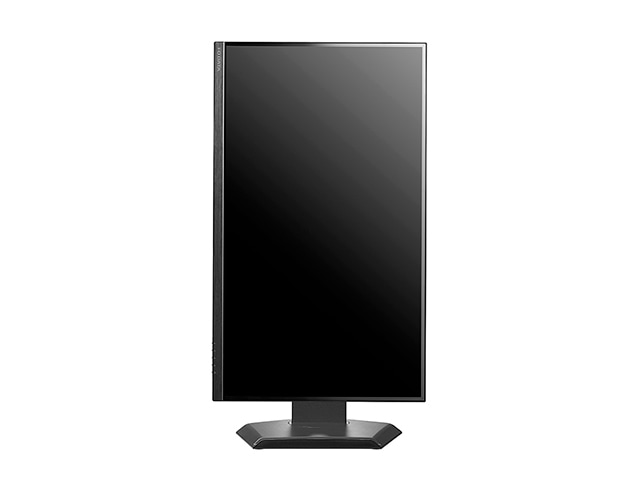

■Pivot (Rotation): Left: 90°, Right: 90°

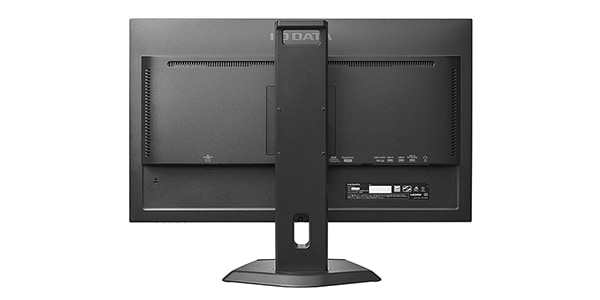

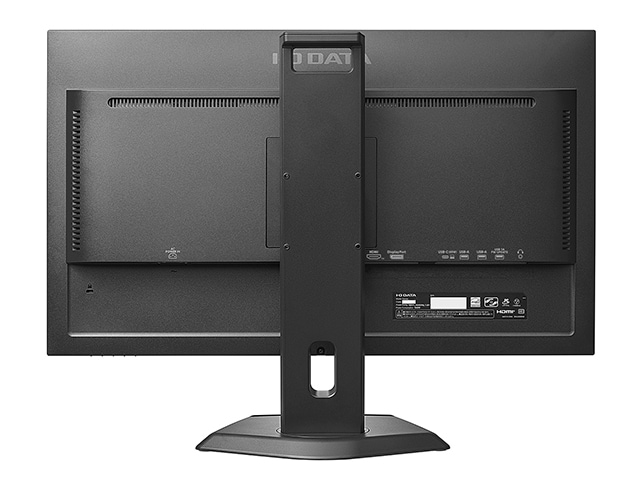

■VESA Mount Interface: Yes (100mm x 100mm) *The freestyle stand for this product is attached to the VESA mount interface.
■Mini PC Attachment Hole (PC Installation Requirements)
- VESA Mount Interface: 75mm x 75mm
- Total Mountable Weight (including PC, mounting bracket, cables, etc.): 1.5kg or less
- Screw Size: M4 x 30mm or larger (Varies depending on VESA mount thickness)
■Anti-Theft Hole: Yes
■Packaged Weight/Dimensions: Approx. 9.0kg / Approx. 701 x 144 x 442mm
■Operating Temperature: Operating: 0°C to 40°C (Stored) : -20°C to 60°C
■ Operating Humidity: 20%-80% (no condensation)
■ Features
HDR: None
Variable Refresh Rate: None
Flickerless: Yes
Blue Light Filter: Yes
■ Accessories: Power cord (PSE compliant), USB cable (C-CUSB 5Gbps (USB 3.2 Gen 1)), Please Read Before Use, Stand, Stand Neck, VESA Plate, miniPC Mounting Screws x 4, miniPC Mounting Nuts x 4
