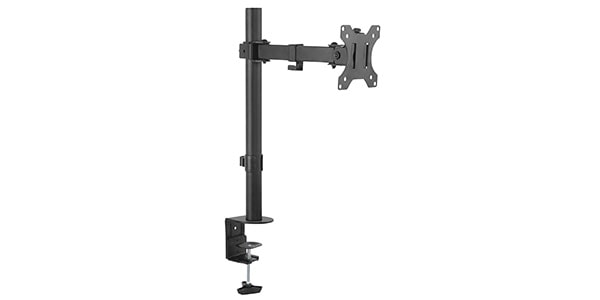

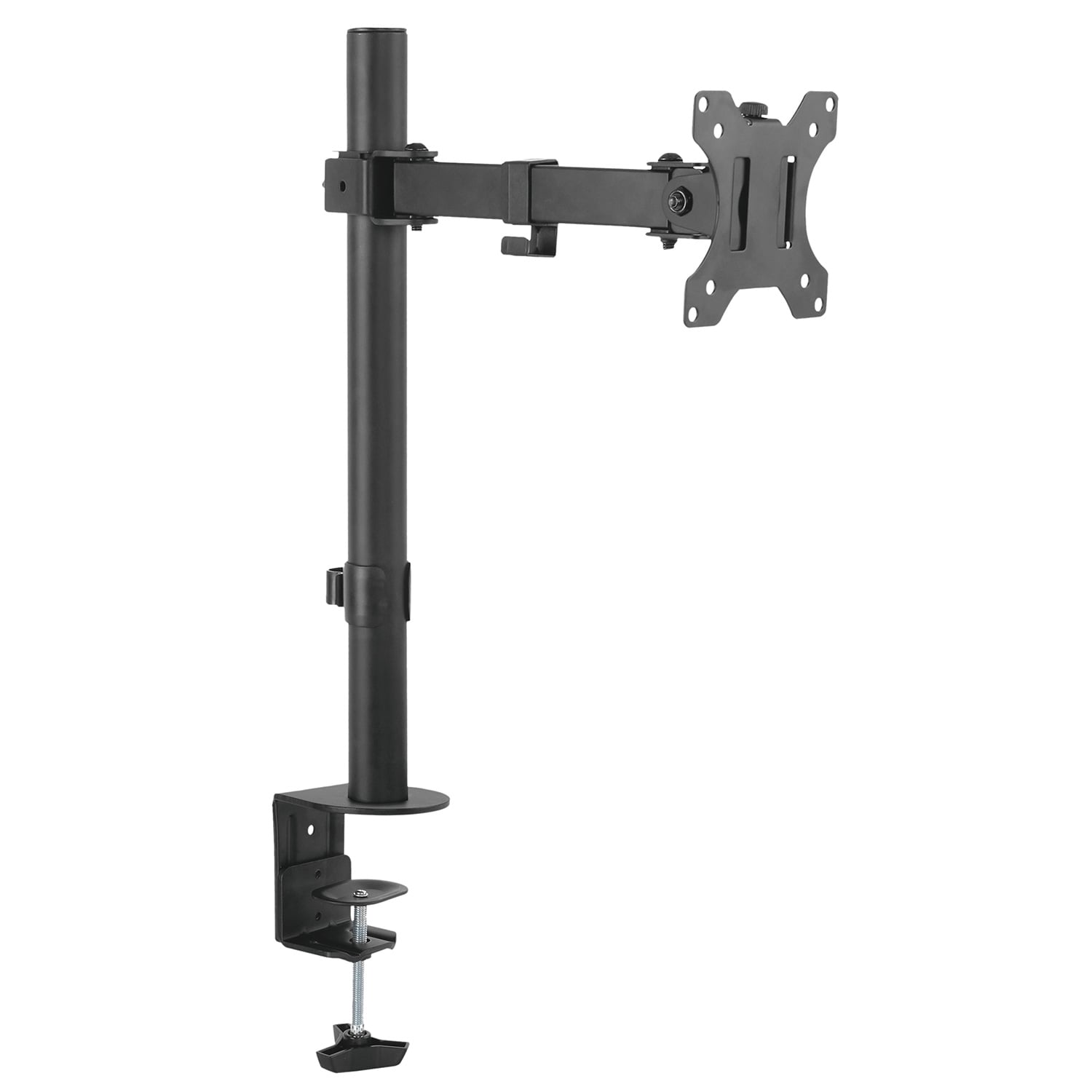

GOPPA / GP-DPAJ1S

The GP-DPA series is a display arm that allows you to freely move and fix LCD displays.

■Display Monitor Arm
■Color: Black
■Compatible Monitor Size: 13-32 inches
■Compatible Monitor Weight: 8kg
■Vertical (Tilt): +45° to -45°
■Horizontal (Swivel): +90° to -90°
■Rotation: +180° to -180°
■VESA Hole Dimensions: 75x75mm, 100x100mm
■Mounting Method (Tabletop): Clamp, Grommet
■Compatible Tabletop Thickness
Clamp: 10-88mm
Grommet: 10-75mm
■External Dimensions (Fully Expanded): 114x343x548mm
■Weight (including VESA attachment):
Clamp: Approx. 2.6kg
Grommet: Approx. 2.0kg
■USB Cable Cable:
■Material: Iron
■Operating temperature range: 0 to 40°C, Humidity: Up to 90% (non-condensing)
■Regulatory certifications: RoHS compliant (10 substances)
■Package contents:
VESA attachment x 1, arm x 1, clamp x 1, pole x 1, pole cap x 1, cable clamp x 1, grommet upper bracket x 1, rubber seals x 5, pole fixing screws x 3, grommet lower bracket x 1, VESA attachment fixing screw x 1, hex wrench (4mm x 1, 6mm x 1), VESA fixing screws (M4 x 10mm x 4, M4 x 12mm x 4, M4 x 16mm x 4, M5 x 12mm x 4, M5 x 16mm x 4), VESA fixing screws (washers x 4, spacers x 4), instruction manual x 1
