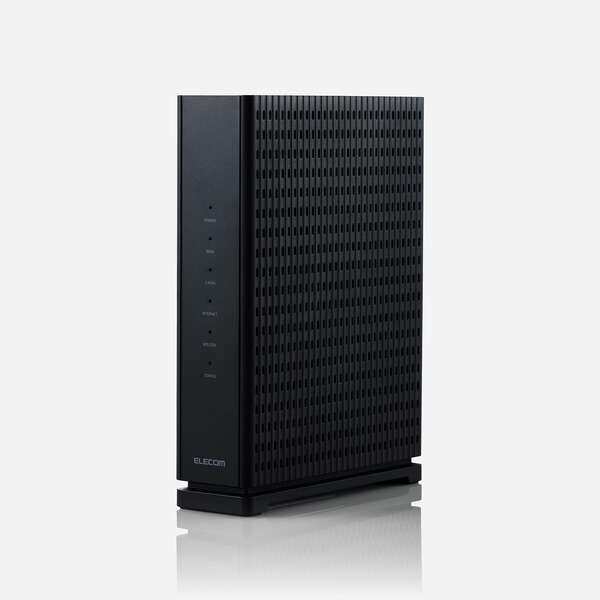

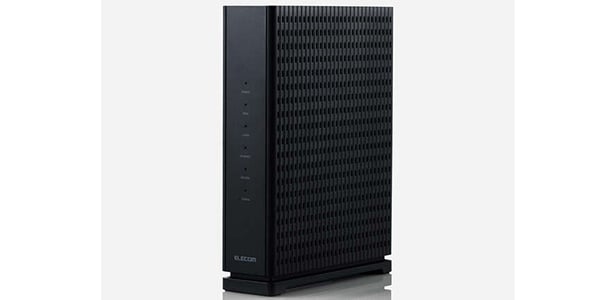

ELECOM / WRC-BE36QS-B

With Wi-Fi 7 support, you can easily achieve even faster speeds. This router provides a smooth online experience even when using content that requires faster speeds, such as watching videos or live streaming.

■Wi-Fi 7 2882+688Mbps Wi-Fi 2.5G Router
■Supported OS (Windows): Windows 11/10
■Supported OS (macOS):
macOS Sequoia 15/macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12/macOS Big Sur 11
■Supported OS (iOS): iOS 18/17/16/15
■Supported OS (iPadOS): iPadOS 18/17/16/15
■Supported OS (Android): Android 14/13/12/11/10
■Supported OS Notes:
*For operating systems for which manufacturer support has ended, operation guarantees and support beyond basic functions may not be available.
■Supported Browsers for Setup Tool:
Microsoft Edge, Google Chrome, Safari
*Only initial setup (Internet connection settings) using the built-in web browser is supported.
■Compatible Devices (Wireless LAN):
iPhone series, iPad series, Android devices, various game consoles (Nintendo 3DS series, PlayStation(R) Vita series, PlayStation(R) 5/4, Nintendo Switch(TM)), various wireless LAN-enabled devices
■Wired Standard:
IEEE 802.3bz (2.5GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3 (10BASE-T) compliant

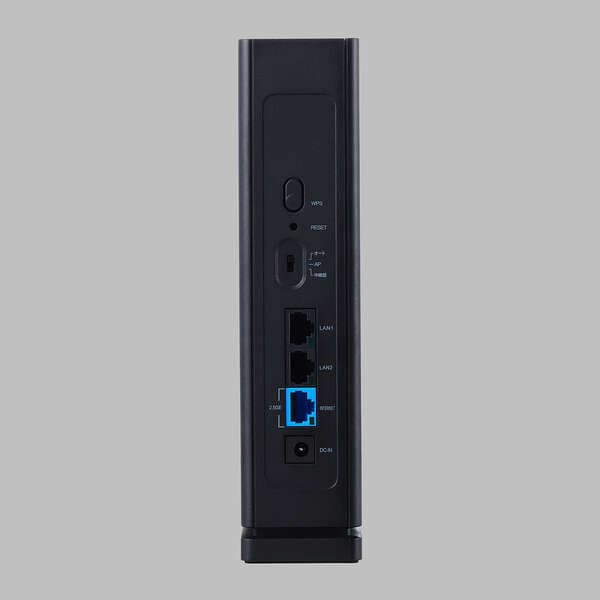

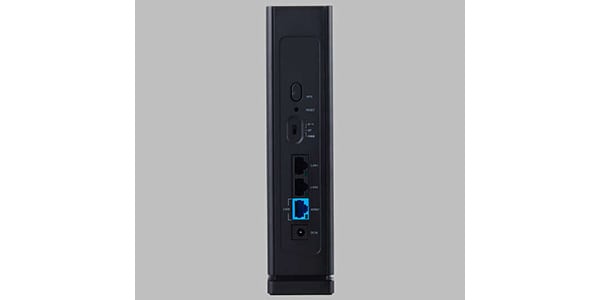

■Wired Connectors:
WAN: RJ-45 type (2.5Gbps) x 1 port
LAN: RJ-45 type (1Gbps) x 2 ports
*All ports are Auto Supports MDI/MDI-X and Auto-Negotiation
■Wired Transmission Speed ​​(WAN): 2.5Gbps, 1000Mbps, 100Mbps
■Wired Transmission Speed ​​(LAN):
1000Mbps, 100Mbps, 10Mbps
■Wired Settings (WAN): Automatic IP Address Acquisition, PPPoE Authentication (1 Session), Static IP Address, IPv4 over IPv6 (MAP-E), IPv4 over IPv6 (DS-Lite), IPv4 over IPv6 (IPIP), SLAAC, DHCPv6-PD
■Wired Settings (LAN):
DHCP Server (Max. 253 Devices), Static DHCP Assignment (Max. 60 Entries)
Hardware NAT Support
■Wireless Standards:
IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a compliant
■Wireless transmission method:
IEEE 802.11be: MIMO-OFDMA, IEEE 802.11ax: MIMO-OFDMA, IEEE 802.11ac: MIMO-OFDM, IEEE 802.11n: MIMO-OFDM, IEEE 802.11g: OFDM, IEEE 802.11b: DS-SS, IEEE 802.11a: OFDM
■Wireless transmission speed [802.11be] (theoretical value):
IEEE 802.11be: 5GHz band: up to 2882Mbps, 2.4GHz band: up to 688Mbps (*) *Up to 574Mbps reception, up to 688Mbps transmission when connected device supports 4096QAM communication
■Wireless transmission speed [802.11ax] (theoretical value):
IEEE 802.11ax: 5GHz band: up to 2402Mbps, 2.4GHz band: up to 574Mbps
■Wireless transmission speed [802.11ac] (theoretical value):
IEEE 802.11ac: 5GHz band: up to 1733Mbps, IEEE 802.11n: 5GHz band: up to 300Mbps, 2.4GHz band: up to 400Mbps (*) *Up to 400Mbps if connected device supports 256QAM communication
■Wireless transmission speed [802.11g/b/a] (theoretical value):
IEEE 802.11g: up to 54Mbps, IEEE 802.11b: up to 11Mbps, IEEE 802.11a: Up to 54Mbps
■Frequency Bands
2.4GHz Band: 2,400-2,484MHz, 5.2GHz Band (W52): 5,150-5,250MHz, 5.3GHz Band (W53): 5,250-5,350MHz, 5.6GHz Band (W56): 5,470-5,730MHz
■Channels:
2.4GHz Band: Channels 1-13, 5GHz Band (W52/W53/W56): Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140/144
■Wireless Security:
WPA2 Personal (AES), WPA3 Personal (AES), WPA2/WPA3 Personal (AES)
■ Parental Control: Supported
■ Beamforming:
Beamforming Z supported
*Connected devices must also support beamforming.
■ MU-MIMO: Supported
*Connected devices must also support MU-MIMO.
■Multiple SSIDs:
Supported (2.4GHz: up to 3, 5GHz: up to 3)
■Separator Function: SSID separator supported
■Other Wireless Features: MAC Address Filtering (up to 60 entries), SSID Notification On/Off, Multi-SSID Configuration, Auto Channel Configuration, Transmission Power Limit, WPS, WMM, Wi-Fi Configuration Copy, Band Steering, MLO (2.4GHz, 5GHz), Multi-RU, Preamble Puncturing, TWT
■Configuration Method: WPS Supported
■Access Method: Infrastructure
■Number of Devices Connected: Recommended 40
■Installed Modes: Auto Mode, AP (Access Point) Mode, Repeater Mode
■Antennas (Number of Antennas):
Built-in Antennas (5GHz: 2 Transmit x 2 Receive, 2.4GHz: 2 Transmit x 2 Receive)
■Supported Protocols:
TCP/IP (IPv6, IPv4)
■IPv6 Support IPoE Services:
v6 Plus, IPv6 Option, OCN Virtual Connect, transix, Cross Pass, v6 Connect, OCX Hikari Internet
■USB Port: None
■Automatic Firmware Updates: Supported
■Additional Services: None
■Other Features:
SPI, DoS Attack Protection, Rejection of Internet Settings/Ping Responses, Port Opening (up to 32) (*1), UPnP (*1), MTU Settings, NTP Client, IPsec Pass-Through (*2), PPTP Pass-Through (*2), PPPoE Pass-Through (*3), Automatic Line Detection
*1 Available in IPv4 Router Mode (Automatic IP Address Acquisition, Manual IP Address Configuration, PPPoE) and IPv4 over IPv6 (IPIP).
*2 Not available when using the IPv4 over IPv6 service. *3 Available only when using IPv4 over IPv6 (MAP-E) or IPv4 over IPv6 (DS-Lite).
■ Input voltage: AC 100V ±10% 50/60Hz
■ Power consumption: 13.2W (max)
■ Power connector: DC jack
■ Size: Approx. 50.0 (W) x 215.0 (H) x 160.0 (D) mm
*Excluding protrusions
■ Weight: Approx. 765g (main unit only)
■ Housing material (color): Plastic (black)
■ Operating environment

Temperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensing)
■ Certified standards:

VCCI Class B, TELEC, JATE, PSE
