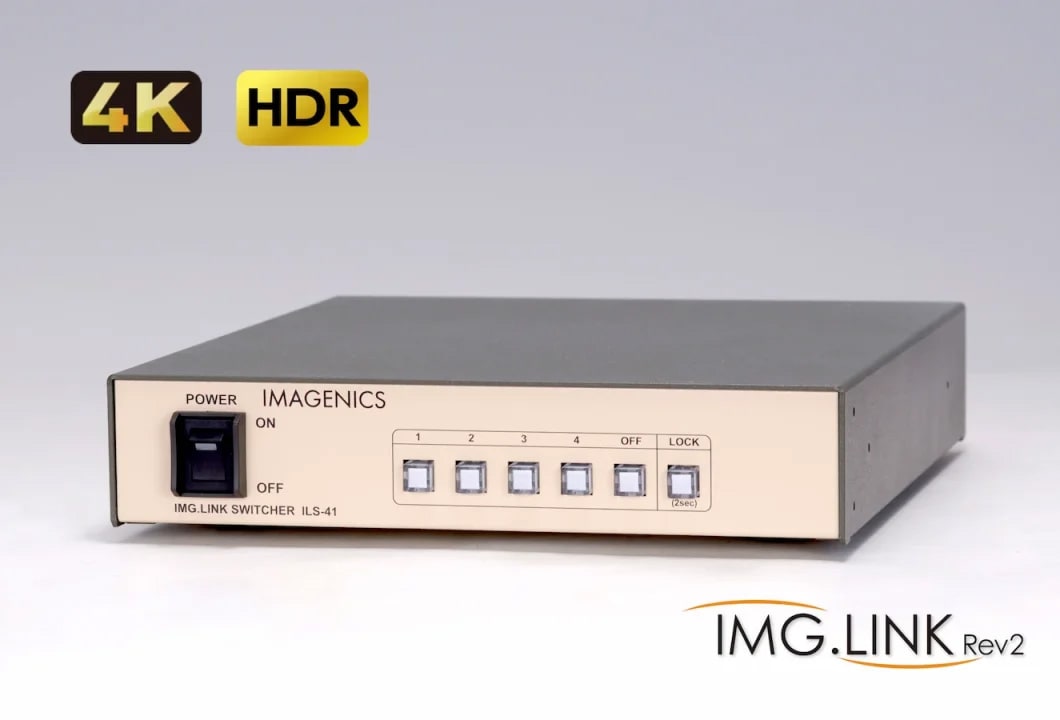

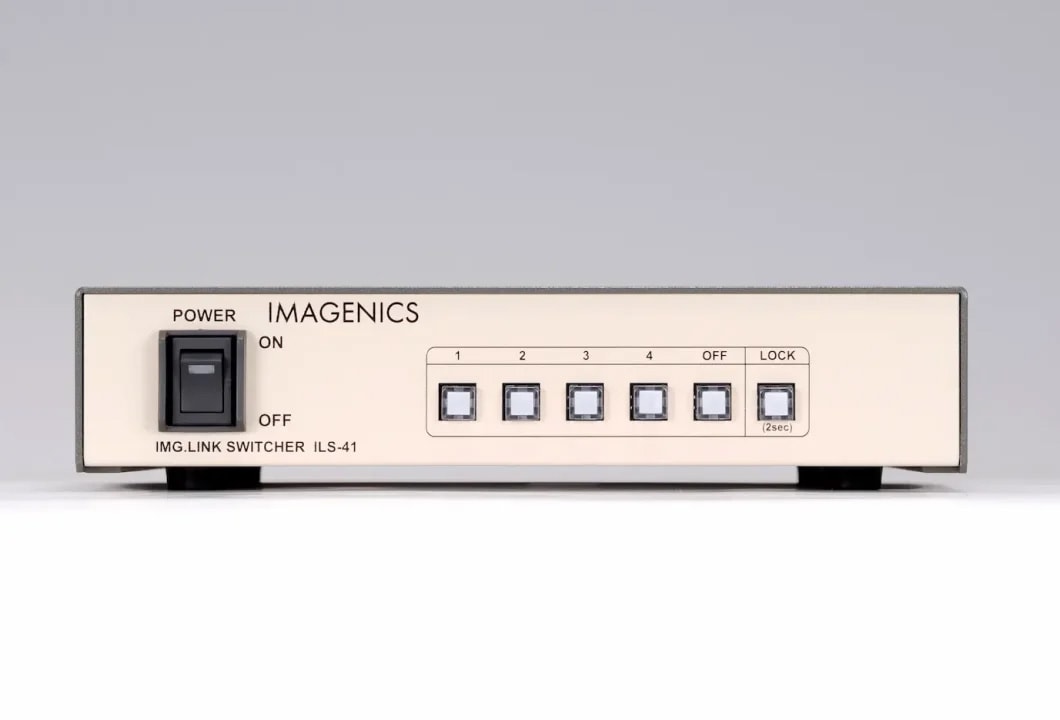

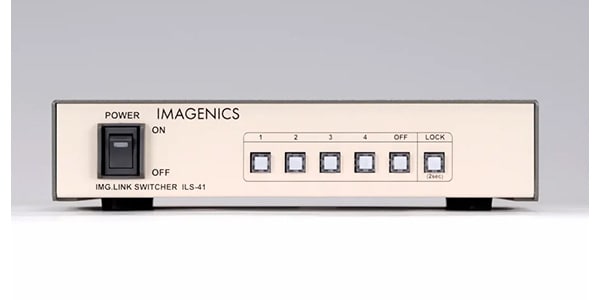

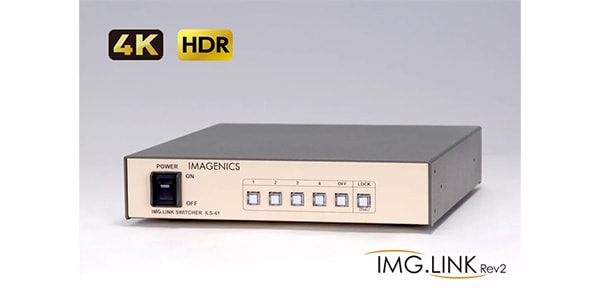

IMAGENICS / ILS-41

This is a 4-input x 1-output switcher for IMG.Link signals (compatible with both Rev1 and Rev2).

■IMG.LINK Switcher
■Input Digital Serial Video Signal:
4 digital serial signals using the original re-encoding method, 1.0Vp-p, 75Ω, BNC x 4
Video bitrate after original re-encoding: 2.592Gbps NRZI signal (constant bitrate, audio: 9.216Mbps)
Original bidirectional communication link function
■Output Digital Serial:
1 digital serial signal using the original re-encoding method, 1.0Vp-p, 75Ω, 2-way distribution, BNC x 2
Video bitrate after original re-encoding: 2.592Gbps NRZI signal (constant bitrate, audio: 9.216Mbps)
Original bidirectional communication link function
■Coaxial Transmission Distance:
(Common to input and output) L-7CHD: 210m, L-5CFB: 110m, L-5C2V: 60m, L-3CFB: 60m, L-3C2V: 30m
(Distance may be shorter depending on the installation environment, etc.)

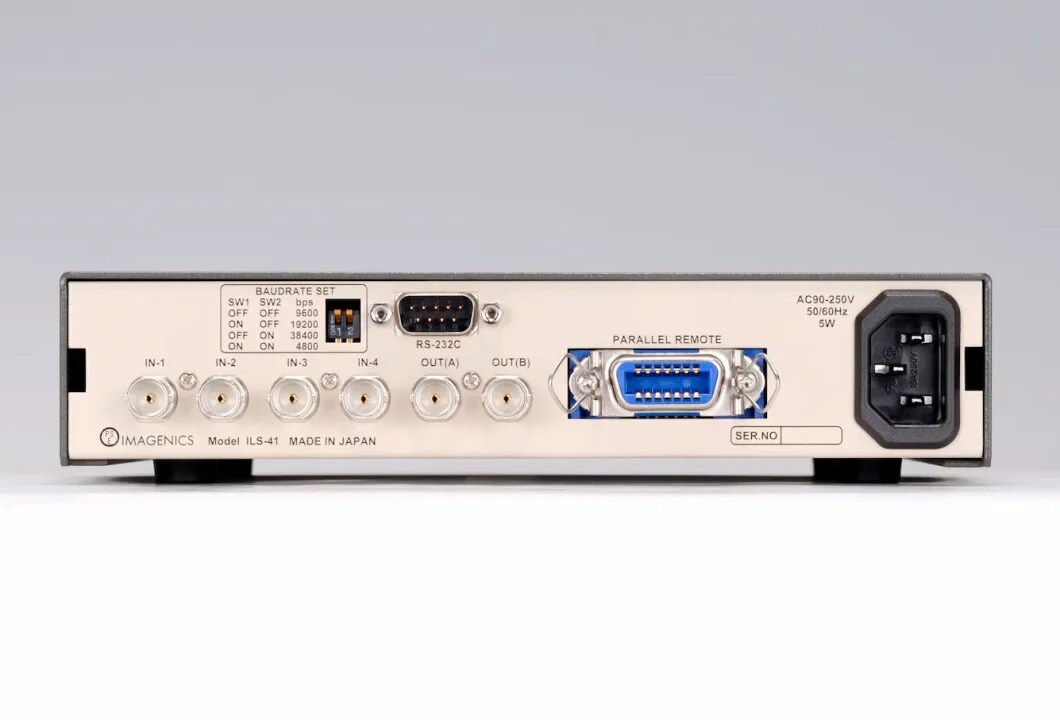

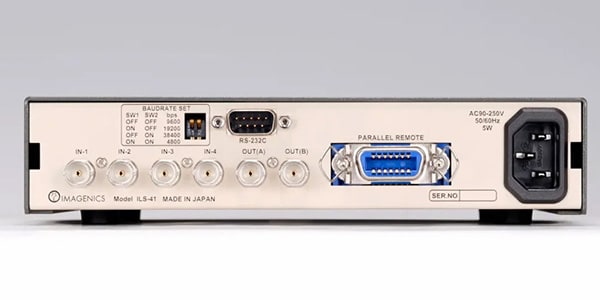

External Control RS-232C compliant, full-duplex, D-SUB9 (male) x 1
Baud rate: 4, 800, 9, 600 (default), 19, 200, 38, 400 bps selectable using the rear DIP switch
Flow control: No flow control (cannot be changed)
Communication format: 8 data bits, 1 stop bit, no parity (cannot be changed)
Parallel
Remote: Amphenol 14-pin (female) x 1
Contact control equivalent to all front switches
Supports open-collector tally output
Extendable up to 20 m
■Other features
Independent front and parallel remote keylock
Input detection display
Last status backup (semi-permanent)
Other
Note: When using this unit in combination with an IMG.Link transmitter (CRO-DCE15ATX, DCE-H1TX, DCE-112TX, etc.), be sure to use the transmitter's EDID setting with the built-in data (emulation function). For details, please refer to the instruction manual for each device.
■Power Supply: AC 90V to AC 250V 50Hz/60Hz
■Power Consumption: 5W (Maximum)
■Weight: Approximately 2.2kg
■Size: 210(W) x 44(H) x 230(D)mm (excluding protrusions)
■Accessories: Domestic-only power cable (3P-3SL)
1 with locking mechanism
1 power switch cover
