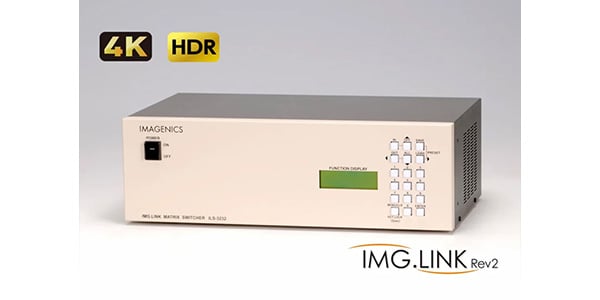

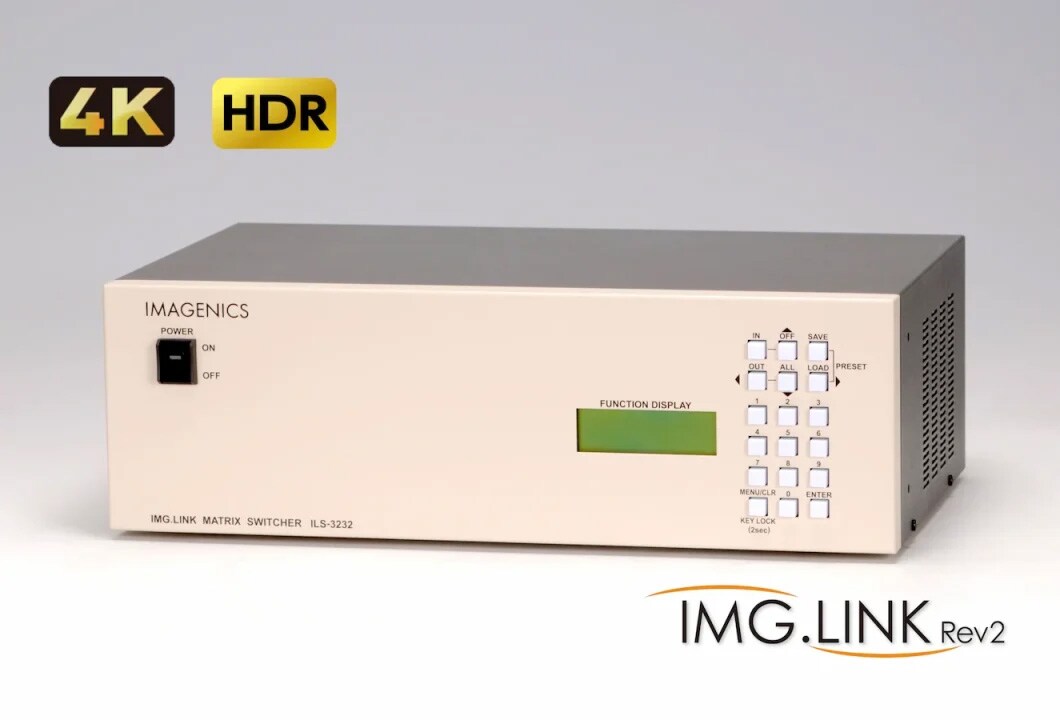

IMAGENICS / ILS-3232

This is a 32 input x 32 output matrix switcher for IMG.Link signals (compatible with both Rev1 and Rev2).

■IMG.LINK Matrix Switcher
■Input Digital Serial Video Signal:
32 digital serial signals using the original re-encoding method, 1.0Vp-p, 75Ω, BNC x 32
Video bitrate after original re-encoding: 2.592Gbps NRZI signal (constant bitrate, audio is 9.216Mbps)
Original bidirectional communication link function
■Output Digital Serial Video Signal:
Digital serial signal using the original re-encoding method 32 channels, 1.0Vp-p, 75Ω, BNC x 32
Video bitrate after original re-encoding: 2.592Gbps NRZI signal (constant bitrate, audio is 9.216Mbps)
Original bidirectional communication link function
■Coaxial transmission distance:
L-7CHD: 210m, L-5CFB: 110m, L-5C2V: 60m, L-3CFB: 60m, L-3C2V: 30m
(Distance may be shorter depending on the installation environment, etc.)
■External control function:
10BAS E-T, 100BASE-TX RJ-451 interface
Supports UDP/IP, TCP/IP, and browser control
RS-232C compliant full-duplex D-SUB9 (male) interface
Baud rate: 2, 400, 4, 800, 9, 600 (default), 19, 200, 38, 400 bps selectable from menu settings
Flow control: Flow control on or off selectable from menu settings
Communication format: 8 data bits, 1 stop bit, no parity (cannot be changed)
■Other Other Features:
Front key lock function
Input detection display function
Preset memory and final state backup function (semi-permanent)
Temperature-sensing internal fan speed control and rotation abnormality alarm display/notification function
And more
Note: When using this unit in combination with an IMG.Link transmitter (CRO-DCE15ATX, DCE-H1TX, DCE-112TX, etc.), be sure to use the transmitter's EDID setting with the built-in data (emulation function).
For details, refer to the instruction manual for each device.
■Power Supply: AC90V to AC250V
■Power Consumption: 45W (max)
■Weight: Approximately 6.5kg
■Size: 422(W) x 132(H) x 250(D)mm (excluding protrusions)
Accessories: 1 x Japan-only power cable (with 3P-3SL3P-2P conversion plug)
1 x Power switch cover
1 x EIA19 type 3U rack mounting bracket set
