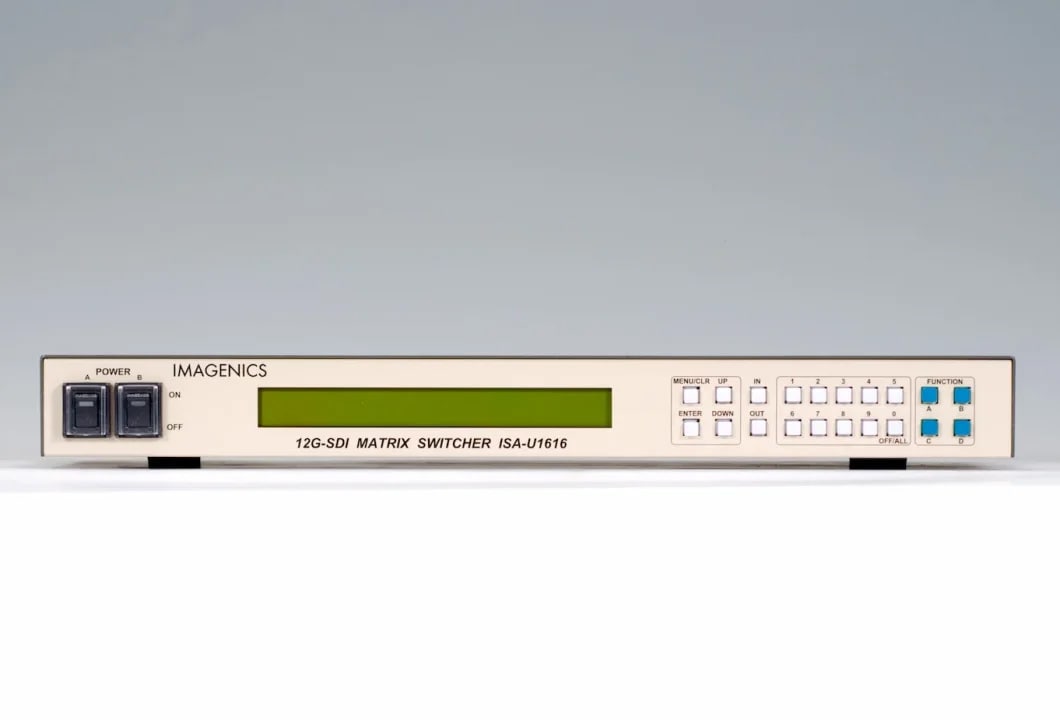

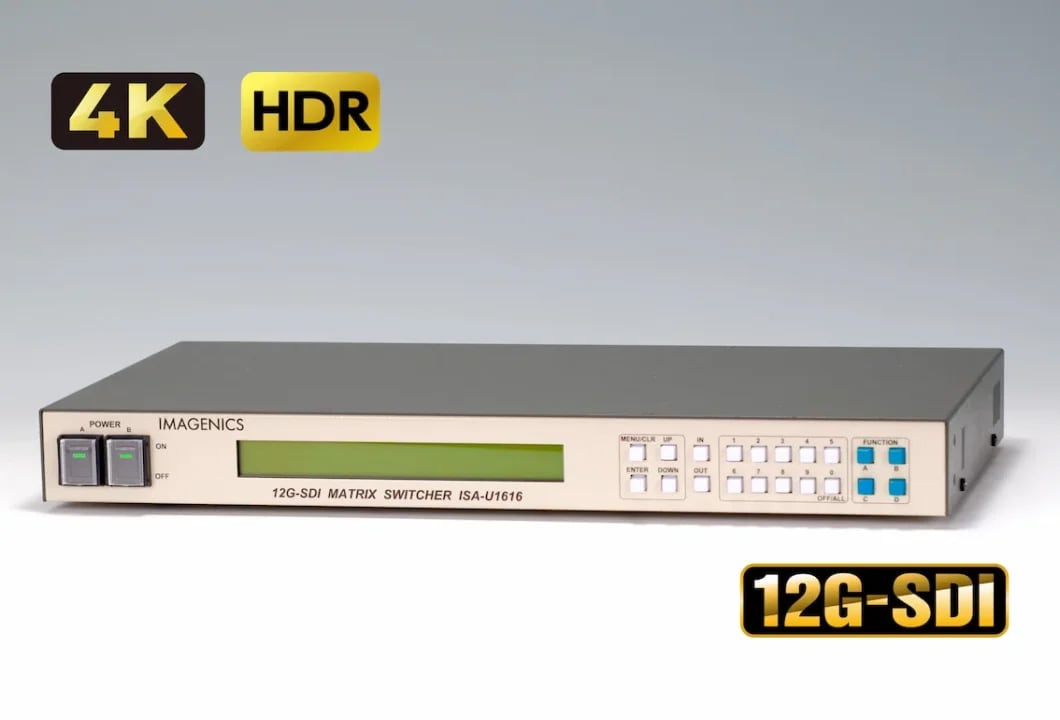

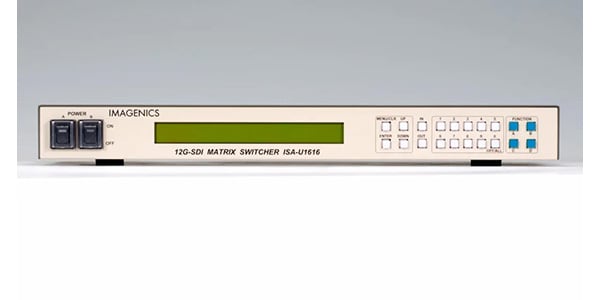

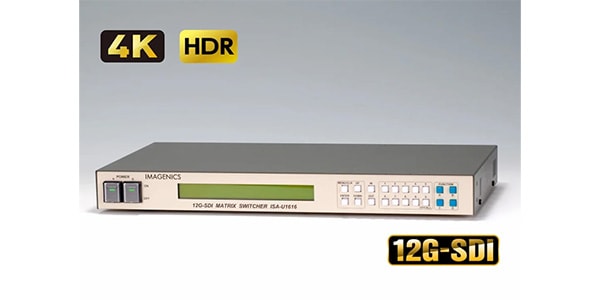

IMAGENICS / ISA-U1616

A matrix switcher with up to 16 inputs and 16 outputs that supports multiple standards including 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI.

■12G-SDI Matrix Switcher
■16 Inputs, 16 Outputs
■Compatible Standards
SMPTEST 2082-1 ​​Compliant (12G-SDI)
SMPTEST 2081-1 Compliant (6G-SDI)
SMPTEST 424 Compliant (3G-SDI)
SMPTEST 292-1 Compliant (HD-SDI)
SMPTEST 259-C Compliant (SD-SDI)
DVB-ASI Compliant (270Mb/s)
■Input Signal:

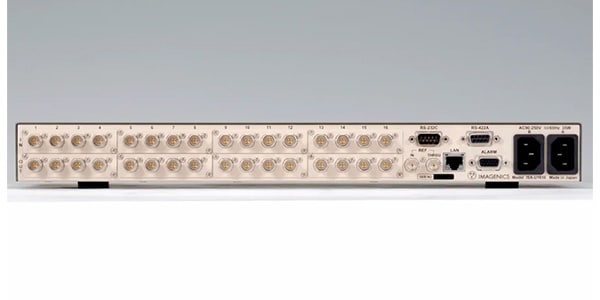

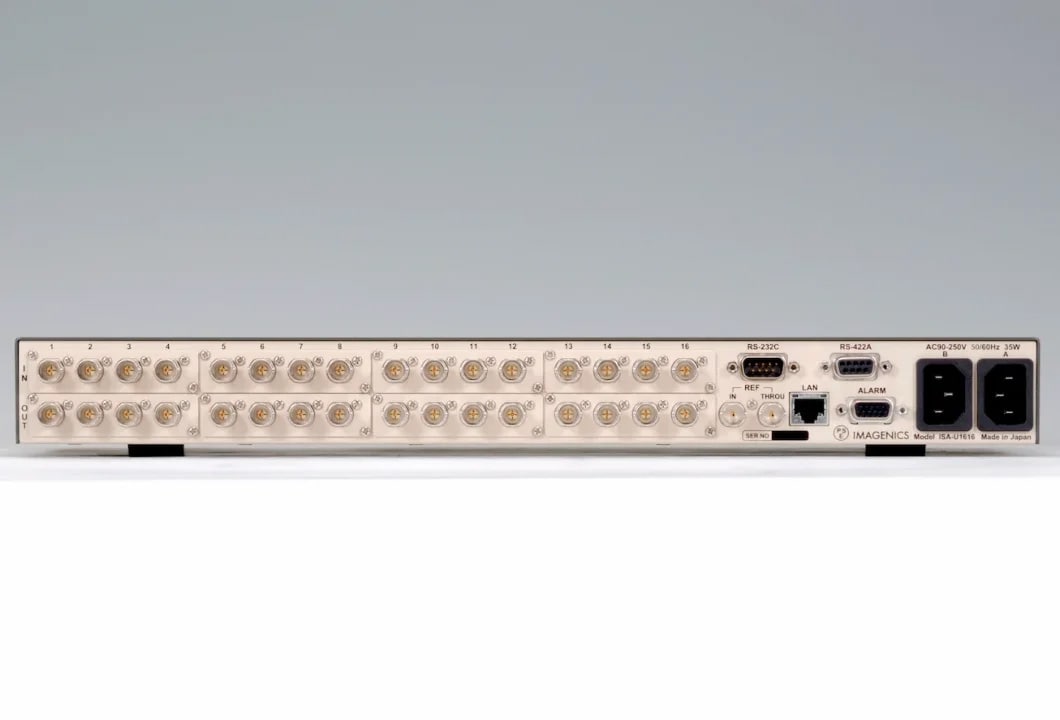

NRZI/NRZ signal, 0.8V (p-p), 75Ω, 16 BNC terminals
*When connecting an SDI signal output from a device that outputs DC power (e.g., a device that superimposes camera power), ensure that the SDI signal does not contain a DC potential and does not fluctuate.
Otherwise, the high-frequency device built into this unit may be damaged.
■ Output Signal:
NRZI/NRZ signal, 0.8V (p-p), 75Ω, BNC, 16 outputs
■ Signal Compensation Distance:
When inputting 12G-SDI (pathological signal), automatic compensation is provided up to 70m using 5.5C UHD coaxial cable equivalent.
When inputting 6G-SDI (pathological signal), automatic compensation is provided up to 70m using 5CFB coaxial cable equivalent.
When inputting 3G-SDI (pathological signal), automatic compensation is provided up to 150m using 5CFB coaxial cable equivalent.
When inputting HD-SDI (pathological signal), automatic compensation is provided up to 23m using 5CFB coaxial cable equivalent. Automatic compensation up to 370m when using 5CFB coaxial cable equivalent when inputting SD-SDI (pathological signal)
■Reference Sync Input:
Bi-level/tri-level sync signal or black burst signal 0.3V(p-p) to 0.6V(p-p)
(12G-SDI and 3G-SDI only support black burst signals)
1 BNC x 2 loop-through high impedance
■External Control:
10Base-T/100Base-TX, RJ-45, RS-232C (D-sub 9-pin male, mating thread: I inch)
RS-422A (D-sub 9-pin female mating screw: inch)
■Other Features
SDI signal reclocking function
Output slew rate switching function based on automatic input signal detection
Input selection information backup function and 32 pattern memory
Blanking switch function based on reference synchronization (SMPTER P168-2002 compliant)
(Blanking switch function cannot be used with DVB-ASI)
Mixed input of 12G/6G/3G/HD/SD is possible (format (Conversion is not possible)
■Dual power supply:
Hardware alarm output function (mini D-sub 15-pin female mating thread: inch)
SNMP trap transmission function (power monitoring, fan monitoring, input/output carrier monitoring, reference monitoring)
Switching event storage function
Prohibited crosspoint setting function
Sequential function
Changeover function
Channel number can be expanded by adding boards (maximum 16 inputs, 16 outputs)
I/O boards can be replaced during operation
■Power supply:
AC90V to AC250V 50Hz/60Hz
■Power Consumption: 35W
■Weight: Approx. 3.7kg
■Operating Temperature and Humidity Range: 0°C to 40°C, 20% RH to 90% RH (non-condensing)
■Storage Temperature and Humidity Range: -20°C to 70°C, 20% RH to 90% RH (non-condensing)
■Size: 422(W) x 44(H) x 230(D) (excluding protrusions)
■Accessories: 1 set of EIA19 rack mount brackets (1U), 2 locking domestic power cables (3P-3SL), 2 3P-2P power adapter plugs
