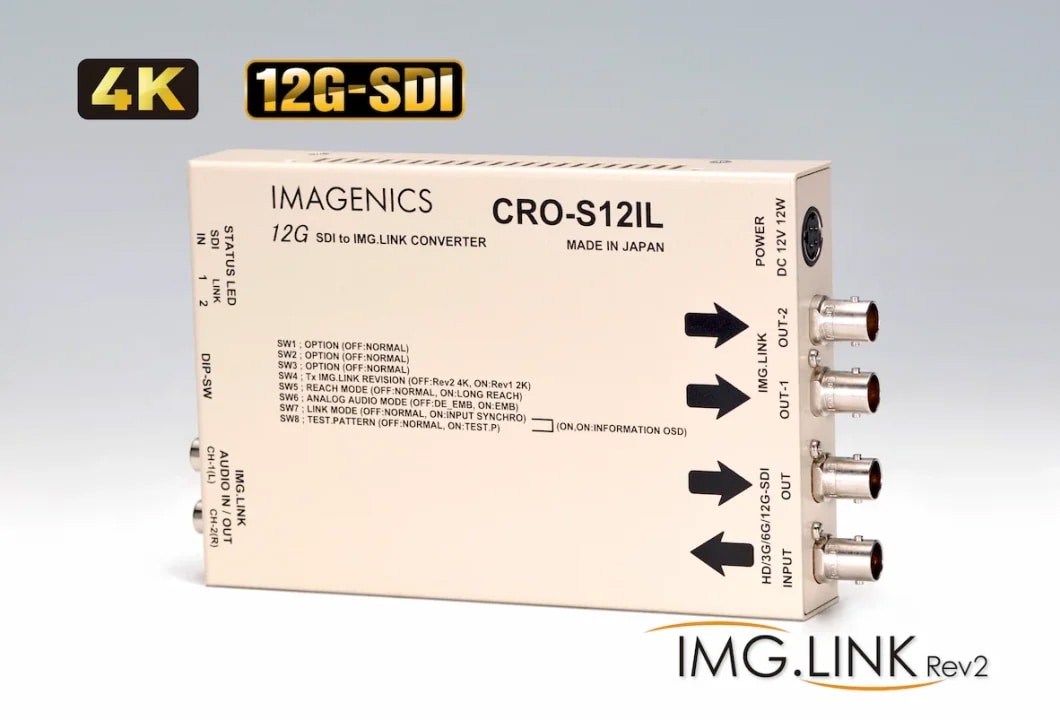

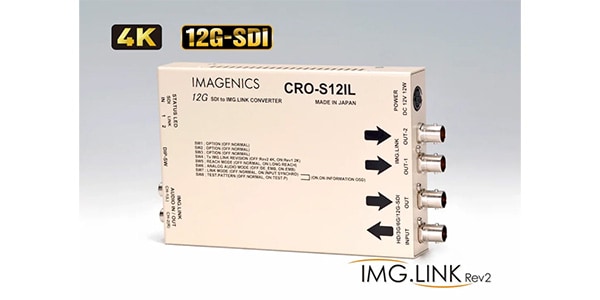

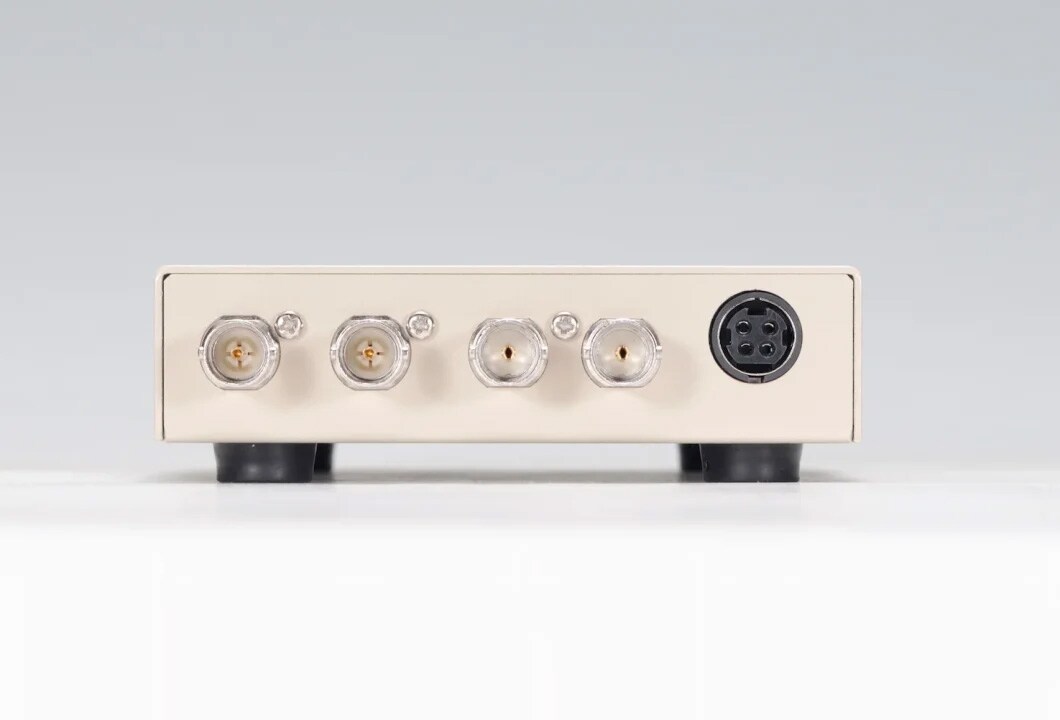

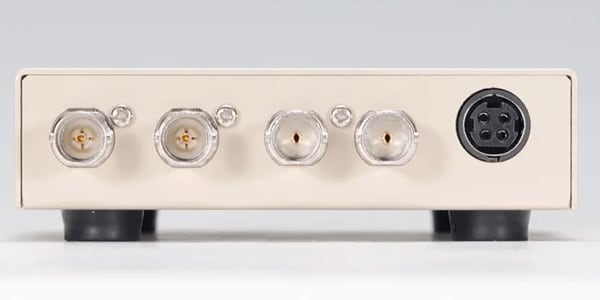

IMAGENICS / CRO-S12IL

The CRO-S12IL is a converter that converts HD/3G/6G/12G-SDI signals to IMG.LINK Rev2/Rev1 signals, allowing various SMPTE standard signals to be connected to an IMG.LINK switcher system.

■12G-SDI to IMG.LINK Converter
■SDI Input
SMPTEST2082-1/2081-1/424/292-1 compliant, 0.8V (p-p), 75Ω, BNC x 1
Signal Compensation Distance:
12G-SDI (pathological signal) input: Automatic compensation up to 80m with L-5.5CU HD coaxial cable
6G-SDI (pathological signal) input: Automatic compensation up to 70m with L-5CFB coaxial cable
3G-SDI (pathological signal) input: Automatic compensation up to 160m with L-5CFB coaxial cable
HD-SDI (pathological signal) input: Automatic compensation up to 230m with L-5CFB coaxial cable
■SDI Output
SMPTEST2082-1/2081-1/424/292-1 compliant, 0.8Vp-p, 75Ω, BNC x 1 active-through output
■IMG.LINK Output
1 digital serial signal using original re-encoding method, 1.0Vp-p, 75Ω, 2-way distribution, BNC x 2
Video bitrate after original re-encoding is approximately 2.5Gbps
NRZI signal (constant bitrate, audio is 9.216Mbps)
Original bidirectional communication link function, IMG.LINK Rev2 standard (VC-2HQ video compression), IMG.LINK Rev1 standard (previously our standard)
*IMG.LINK Rev2 signal and Rev1 signal are switchable outputs.
*IMG.LINK signals from the two output terminals are the same IMG.LINK revision and cannot be changed individually.
■ Coaxial Transmission Distance
L-7CHD: 210m, L-7CFB: 150m, L-5CFB: 110m, L-5C2V: 60m, L-3CFB: 60m, L-3C2V: 30m
(Distance may be shorter depending on the installation environment.)

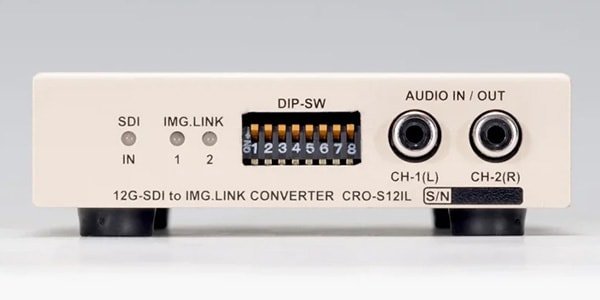

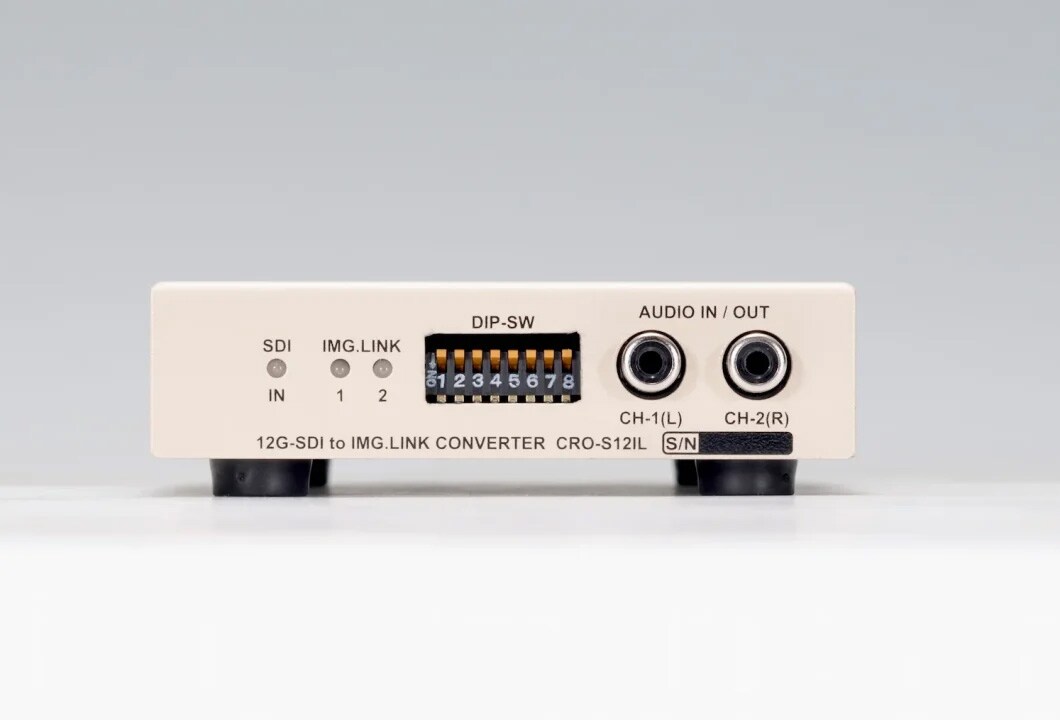

■ Analog Audio Input/Output
