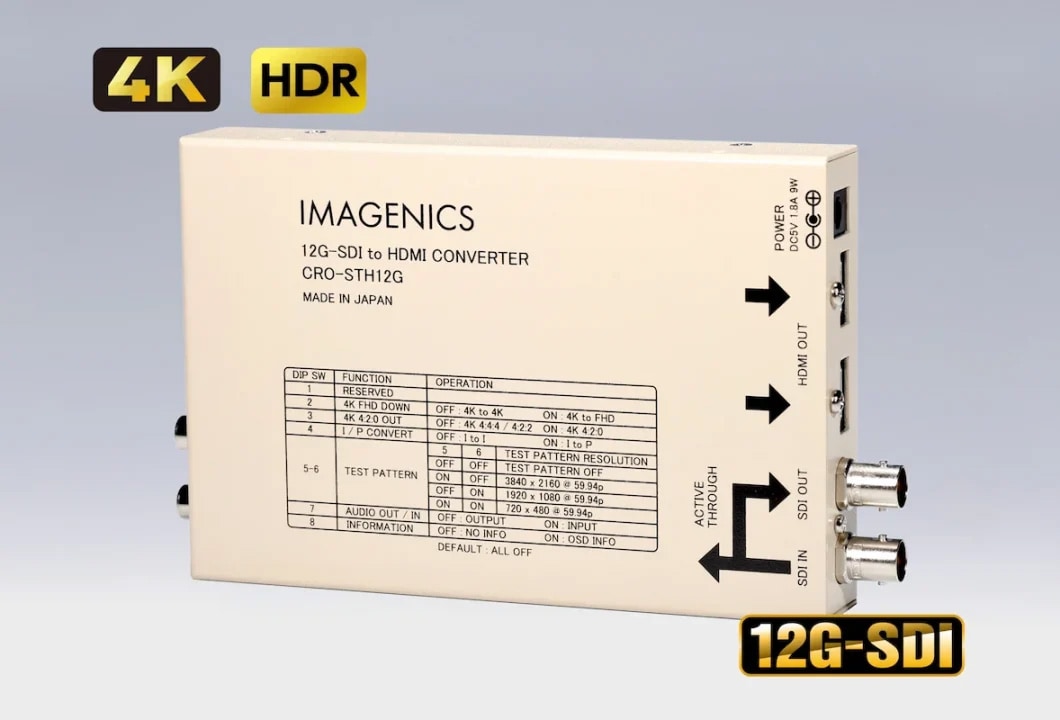

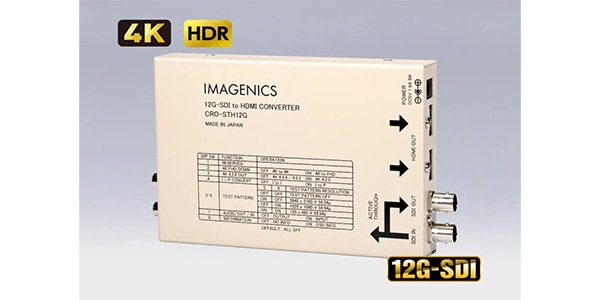

IMAGENICS / CRO-STH12G

This converter converts SD/HD/3G/6G/12G-SDI signals to HDMI signals. The AVDL (Automatic Video Delay Line) function enables blanking switching of genlocked SDI signals of the same format without disrupting the output HDMI signal.

■4K resolution compatible 12G-SDI to HDMI converter
■SDI input:
SMPTEST2082-1/ST2081-1/ST424/ST292-1/259-C compliant, 0.8V (p-p), 75Ω BNC x 1
Signal compensation distance *For pathological signals
12G-SDI input: L-5.5CU HD coaxial cable, 50m
6G-SDI input: L-5CFB coaxial cable, 50m
3G-SDI input: L-5CFB coaxial cable, 160m
HD-SDI input: L-5CFB coaxial cable, 230m
SD -SDI Input L-5CFB Coaxial Cable 340m

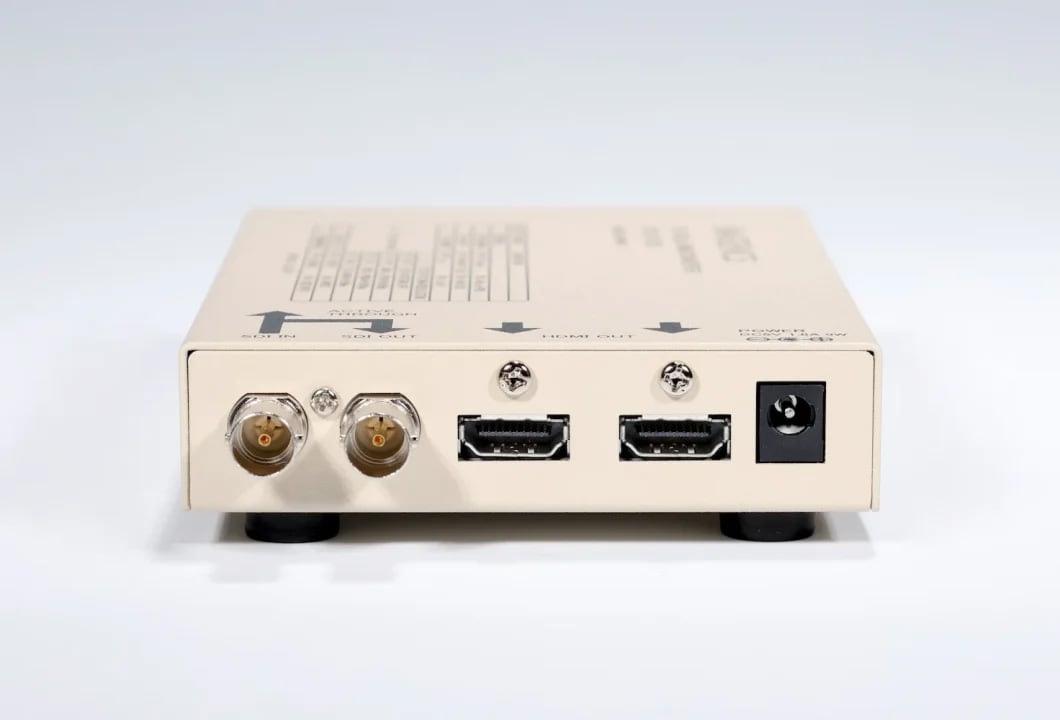

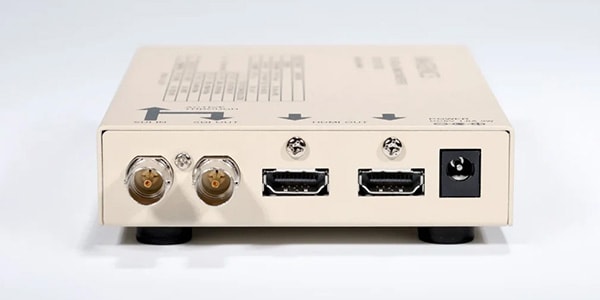

■SDI Output:
SMPTEST2082-1/ST2081-1/ST424/ST292-1/259-C Compliant
0.8V(p-p) 75Ω BNC x 1 Active Through Output
SDI Audio SMPTEST299/ST272 Compliant 48kHz/20-24bit
■HDMI Output:
HDMI Type A 19-pin connector x 1, 2-way distribution (CEC, HEC, and ARC are not supported)
HDMI Cable Length: Up to 3m for 4K output, up to 5m for FHD output (Our company (When using the HDMI Cable UHP series)
HDMI audio 48kHz 8-channel LPCM signal

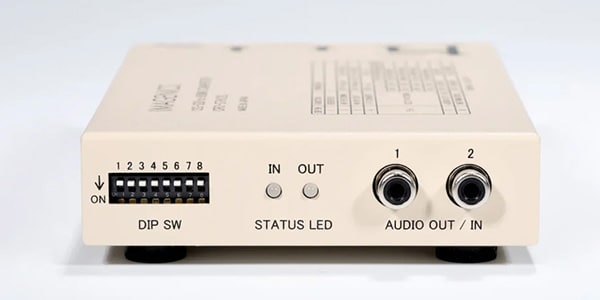

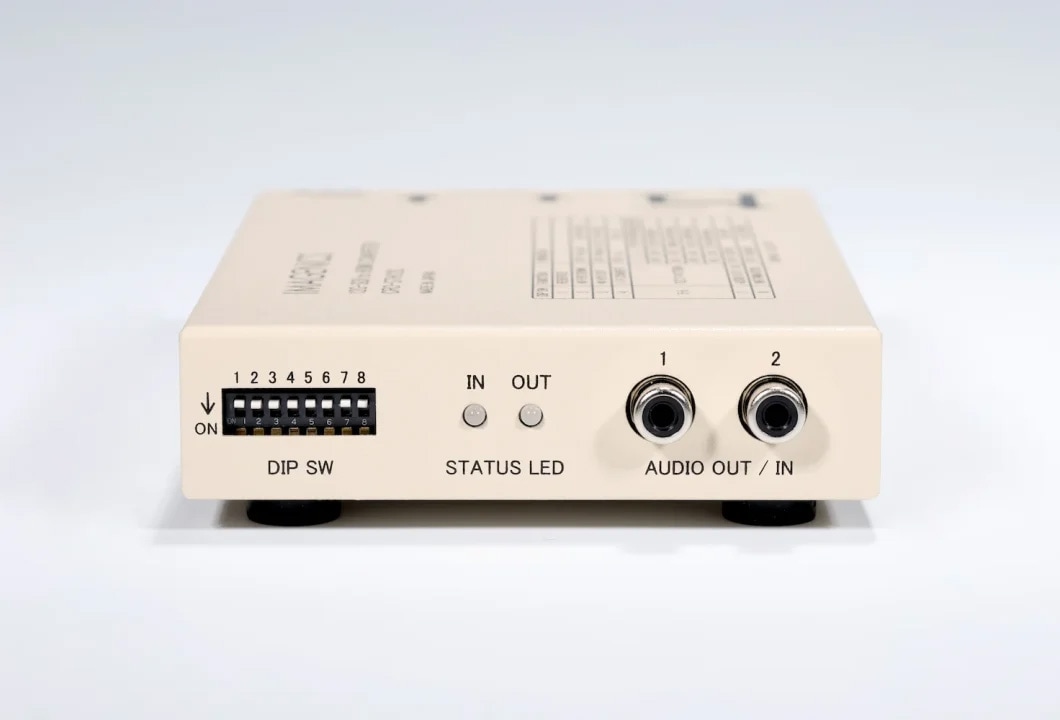

Analog audio output -10dBu, maximum output level +10dBu (0dBFS), approximately 470Ω RCA pin jack
2-channel 1 system (combined with input and switching)
Analog audio input -10dBu, maximum input level +10dBu (0dBFS), approximately 50kΩ RCA pin jack
2-channel 1 system (combined with output and switching)
AVDL latency equivalent to 3H ±2H
Other features include 4K to FHD downconversion,
4KY CbCr 4:2: 0 conversion,
Simple interlaced signal to progressive conversion,
Test pattern generation,
OSD information display,
Two-color LED input/output status display
■Power supply: DC 5V 1.8A 9W (max)
■Size: 100(W) x 25(H) x 150(D)mm (excluding protrusions)
■Weight: Approx. 520g
■Accessories:
1 AC 100V 27VA 50Hz/60Hz AC adapter for Japan (5V 2.3A output with locking mechanism)
2 HDMI connector retaining brackets (CL-2)
