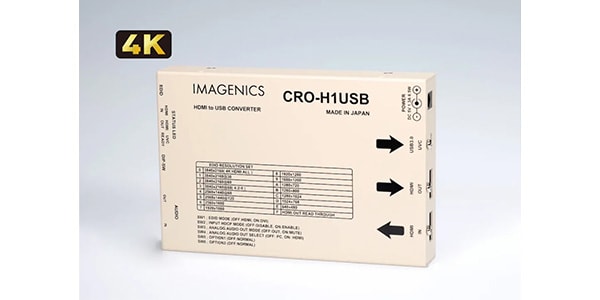

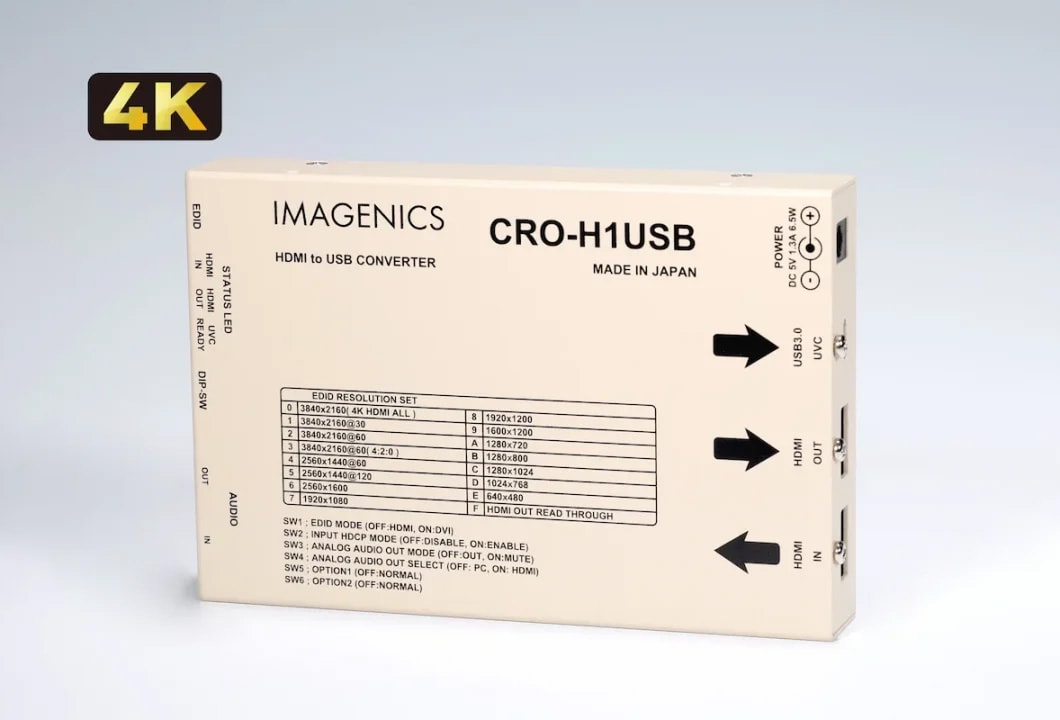

IMAGENICS / CRO-H1USB

This HDMI-to-USB converter supports 4K60/4:4:4 HDMI signals with EDID emulation and cable compensation. It also supports UVC (USB Video Class), allowing you to capture HDMI video from your camera or video device to a host computer.

■4K Resolution Compatible HDMI/USB Converter UVC (USB Video Class)
■HDMI Input
TMDS Clock 25MHz-340MHz, Data Rate 0.75Gbps-18Gbps x 1 (HDMI-A)
*Up to 4K60P (4:4:4)
HDCP 2.2/1.4 Compatible
Pixel Clock 25MHz-600MHz, Horizontal Frequency 15kHz-183kHz, Vertical Frequency 24Hz-120Hz
VGA-WQXGA (Reduced Blanking), 480P, 720P, 1080i, 1080p, 4K
■Audio Input:
24-bit 48kHz LPCM
Analog Audio: -10dBu, Approx. 50kΩ, Unbalanced, 2-Channel x 1
(3.5mm 3-pole mini jack)

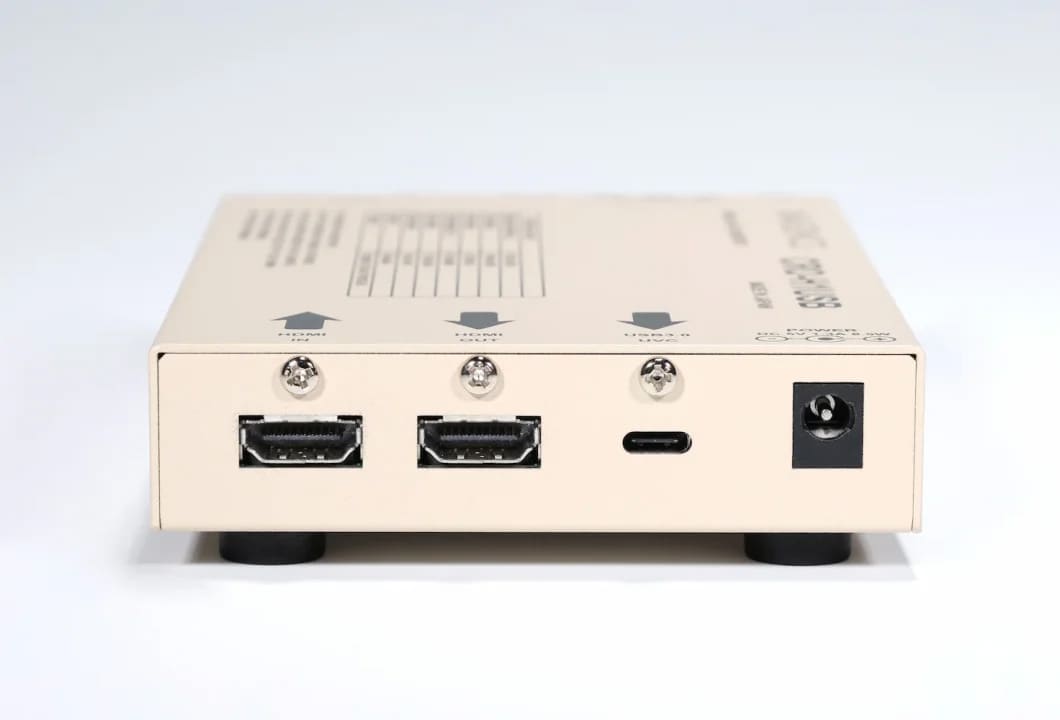

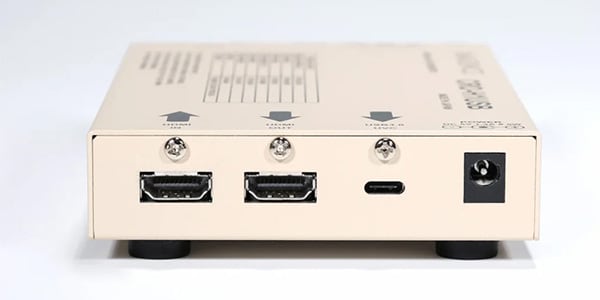

■HDMI Output
TMDS Clock 25MHz-340MHz, Data Rate 0.75Gbps-18Gbps x 1 HDMI-A System
Up to 4K60P (4:4:4)
HDCP 2.2/1.4 Supported
CEC function is electrically connected directly between the HDMI IN and OUT terminals
Pixel Clock 25MHz-600MHz Horizontal Frequency 15kHz-183kHz Vertical Frequency 24Hz-120Hz
VGA-WQXGA (Reduced Blanking), 480P, 720P, 1080i, 1080p, 4K
HDMI Input Pass-Through (No Downconversion or Color Space Conversion)
Audio Output 24-bit 32kHz-192kHz LPCM
Analog Audio: -10dBu (10kΩ or greater load), Low Impedance Unbalanced, 2-Channel, 1 Output
(3.5mm 3-Pole Mini Jack)
■USB Port:
USB 3.0 Compatible (USB 3.1 Gen 1, USB 3.2 Gen 1) Up to 5Gbps (USB Type-C)
UVC1. Compatible video data formats (FOURCC): Uncompressed (NV12, YUY2, P010, XRGB)
UVC resolutions: 3840*2160, 2560*1440, 2560*1600, 1920*1080, 1920*1200, 1600*1200, 1280*720, 1280*800, 1280*1024, 1024*768, 640*480
USB 2.0 port When connected to a HDMI input, UVC output is at a lower resolution, such as 1280*720@30.
USB Audio Class: UAC1.0 compatible, 16-bit, 48kHz, 2-channel LPCM.
Latency: Approximately 50-100ms.
Maximum Cable Length:
HDMI Input: 10m (4K60/4:4:4/24bit), 20m (4K60/4:2:0/24bit), 30m (1080p/24bit).
HDMI Output: 3m (4K60/4:4:4/24-bit), 5m (4K60/4:2:0/24-bit), 10m (1080p/24-bit)
USB port: 3m (for USB 3.0 logo-certified cables)

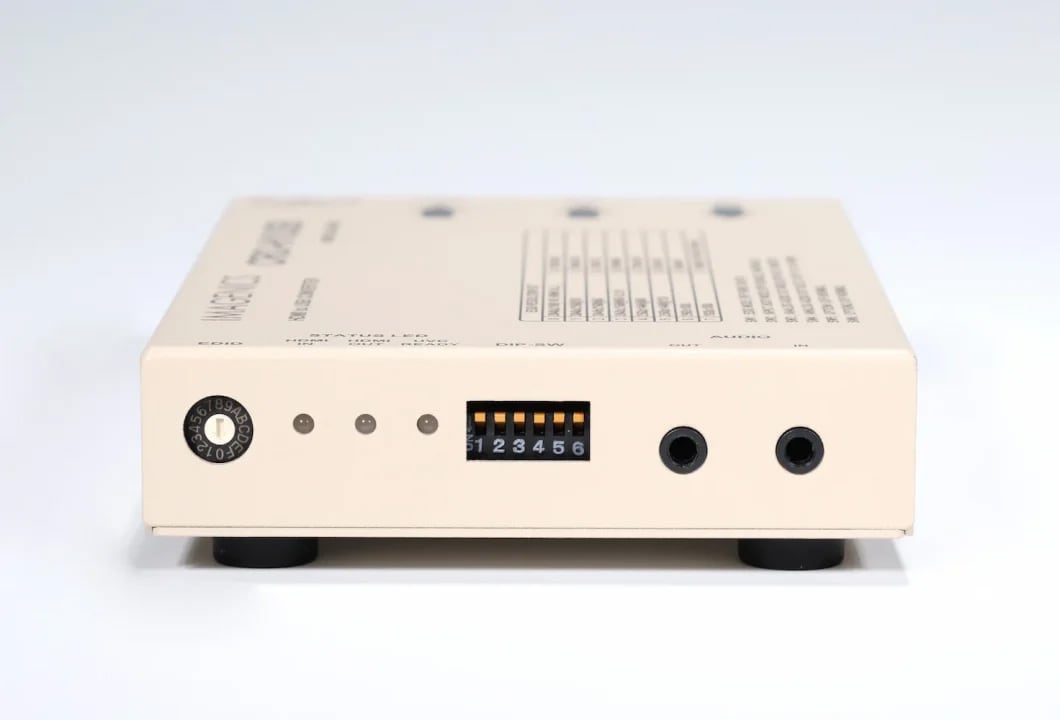

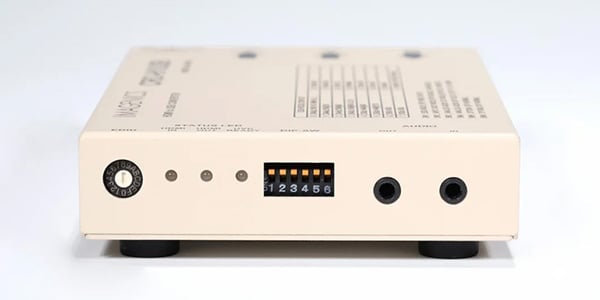

■Built-in EDID:
Select from 15 major resolutions, including CEA and VESA, using the ROT-SW

Real-time backup of EDID data from the HDMI OUT port
■Power DC 5V 1.3A, maximum power consumption: 6.5W
■Size: 100(W) x 25(H) x 150(D) mm
*Excluding protrusions
■Weight: Approximately 550g
■Accessories:
AC 100V 27VA 50Hz/60Hz AC adapter (for Japan only) (5V 2.3A output with locking mechanism)
HDMI cable retention kit (CL-2) (2 sets)
USB cable retention bracket (CL-1) and cable ties (1 set)
