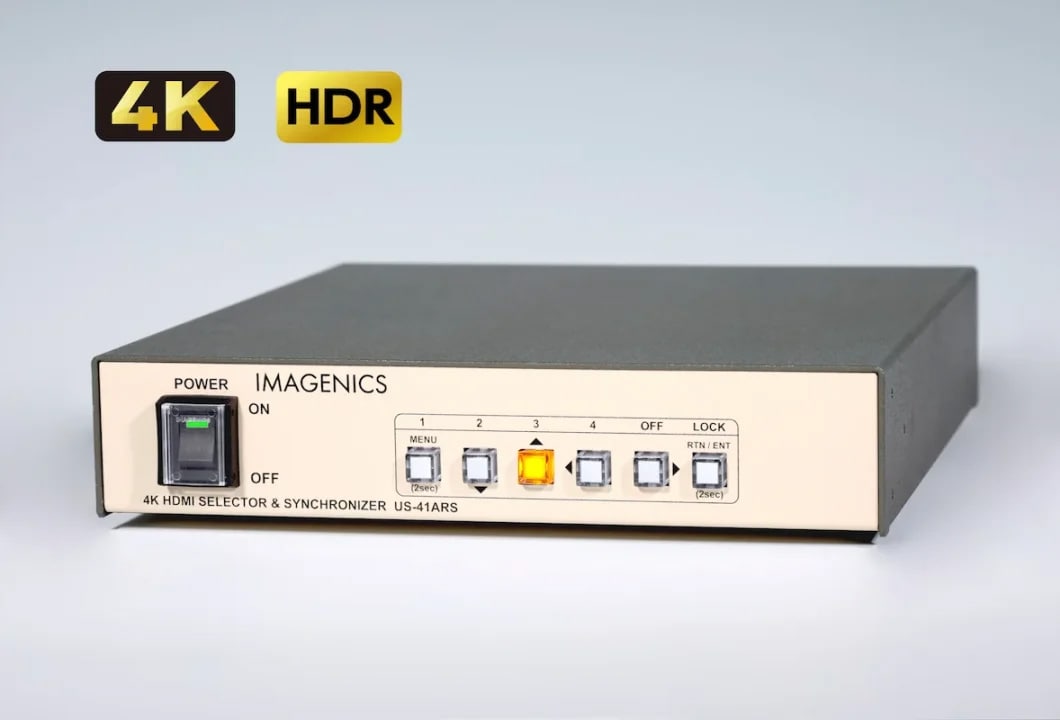

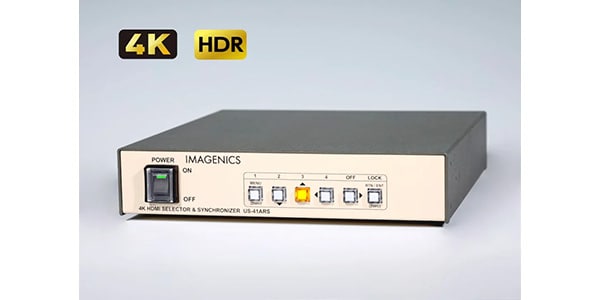

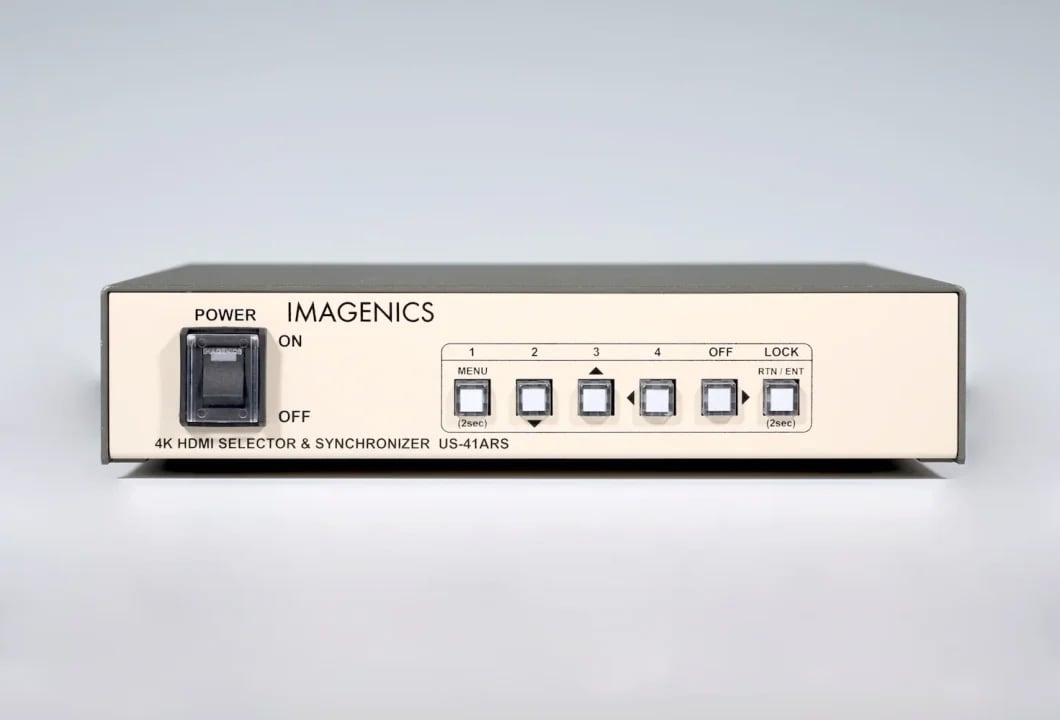

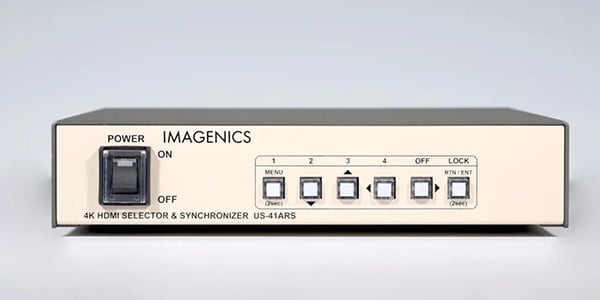

IMAGENICS / US-41ARS

This selector supports 4K HDMI signals with 4 inputs, 1 output, and 2 distribution. It is compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4 standards.

■4K HDMI/FS Selector
■Input Video Signal:
TMDS signal (digital RGB/YPbPr) pixel clock 25MHz to 600MHz (TMDS clock 25MHz to 340MHz)
Automatically supports 4K, D1 to D5 equivalent HDMI signals and PC signals from 640x480 to 4,096x2,160
Automatically supports HDMI signals with data rates up to 18Gbps
■HDMI Input

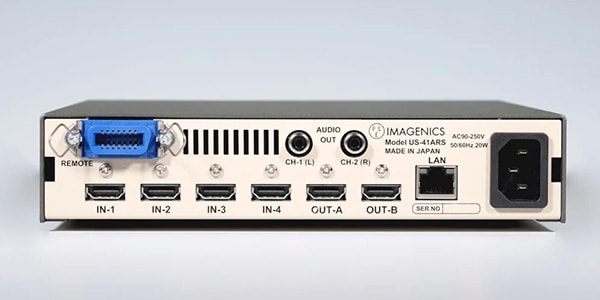

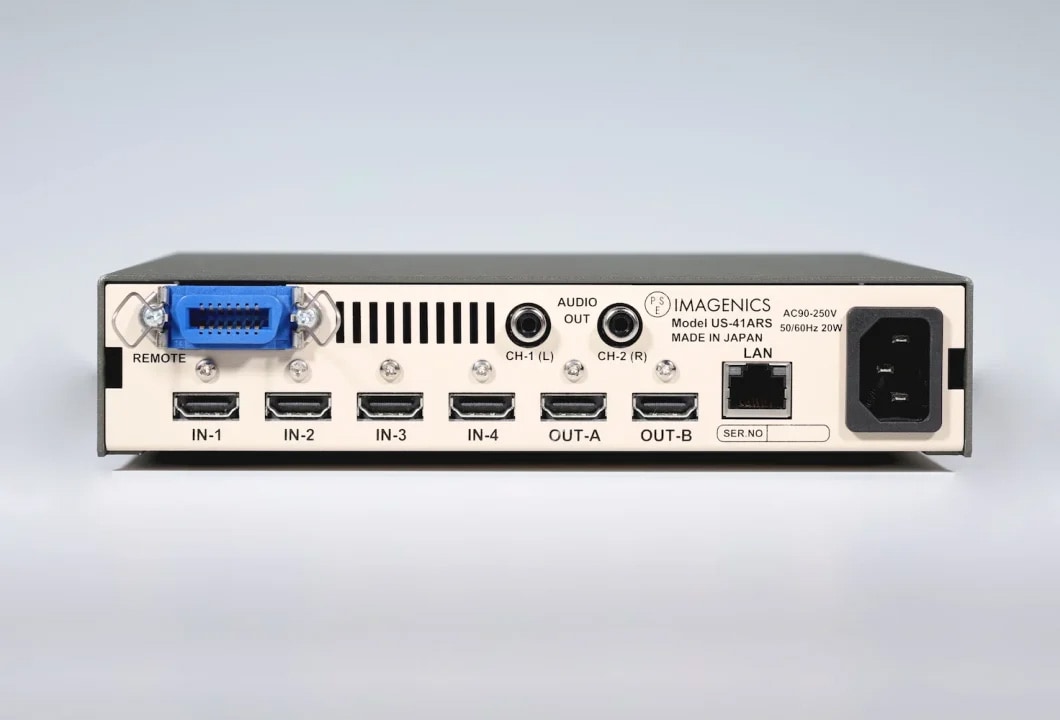

Four HDMI-A 19-pin connectors (HDMI 1.4, 2.0, HDCP 1.4, 2.2 compatible, DVI signal input possible)
Output Video Signal
HDMI 1.4, 2.0 compliant (HDR compatible, HDCP 1.4, 2.2 compatible) or DVI 1.0 compliant signal (HDCP 1.4 compatible)
4K60 (3,840x2,160), WQHD (2,560x1,440), WUXGA (1,920x1,200.RB), FHD (1,920x1,080)
UXGA (1,600x1,200), SXGA (1,280x1,024), WXGA (1,280x800), XGA (1,024x768)
Automatic setting based on acquired EDID or manual setting for each resolution is possible. Vertical offset is 59.94Hz.
■HDMI Output
HDMI-A 19-pin connector, 2-way distribution (color space conversion and DVI signal output possible)
■Input Cable Compensation:
PC (VESA), D5, etc., up to 6Gbps video up to 30m (Our HDP-HDP30mHD) With MI cable
4K30, 60 (420), and other video formats up to 10.2 Gbps: Up to 20 m
With our HDP-HDP 20m HDMI cable
4K60 (422, 444), and other video formats up to 18 Gbps: Up to 10 m
With our HDP-HDP 10m HDMI cable
■Output cable length (HDMI output):
Full HD 60 output: Up to 10 m
With our HDP-HDP 10m HDMI cable
4K60 4:2:0 output: Up to 5 m
With our UHP-5 HDMI cable
4K60 4:4:4 output: Up to 3 m
With our UHP-3 HDMI cable
■EDID emulation:
Built-in EDID emulation (plug and play)
Supports major CEA and VESA standards Select the resolution (including 4K HDR video) from the menu.
Or, copy and back up the EDID data from each HDMI output terminal.
■Analog Audio:
Audio Output Terminal: -10dBu (10kΩ or more load), low impedance unbalanced, 2-channel, 1x (2x RCA pin jacks)
Audio Frequency Response: -1dB to +1dB from 20Hz to 20kHz
Audio Signal-to-Noise Ratio: 80dB or more (1kHz A-weighted, -10dBu reference output)
Audio Crosstalk: 80dB or more
Audio Distortion: 0.03% or less (10kΩ or more load)
Maximum Audio Output Level: +10dBu (HDMI embedded audio at 0dBFS)
*Only linear PCM audio is output.
■Video and Audio Delay
Video Delay: 34 ms to 50 ms (2 frames -0, +1 frame)
Audio Delay: Approximately 42 ms (always fixed)
■External Control Function
LAN 10BASE-T, 100BASE-TX x1, RJ45 x1 (automatic 100BASE-TX, 10BASE-T detection)
Various operational settings can be configured for this unit.
(The factory default IP address is 192.168.2.254, port number 1300)
Parallel Remote Amphenol 14-pin (female) x1
Contact control equivalent to all front switches and open collector tally output
(Conditions equivalent to the front switch LED)
+5V MAX 500mA power output terminal for LED illumination. Extension up to 20m possible.
■Other features:
Various settings via on-screen menus,
Automatic color format conversion and down-conversion for each output terminal,
EDID settings for each input terminal,
Pseudo-seamless transitions (freeze, black, fade, flick, wipe),
Sequential switcher function (time, input detection, etc.),
Reading of internal status list (text strings from LAN),
Bulk backup and reload of operation settings,
Input non-HDCP compatible operation settings,
Variable zoom function, individual image inversion function for top, bottom, left, and right, and more. ■Power Supply: AC90V-AC250V 20W (Maximum)
■Size: 210(W) x 44(H) x 230(D) (excluding protrusions)
■Weight: Approximately 2.2kg
■Accessories:
1 domestic power cable (with 3P-3SL/3P-2P conversion plug)
6 sets of HDMI retaining brackets (CL-2) and cable tie wraps
*The power switch has a transparent opening/closing cover.
