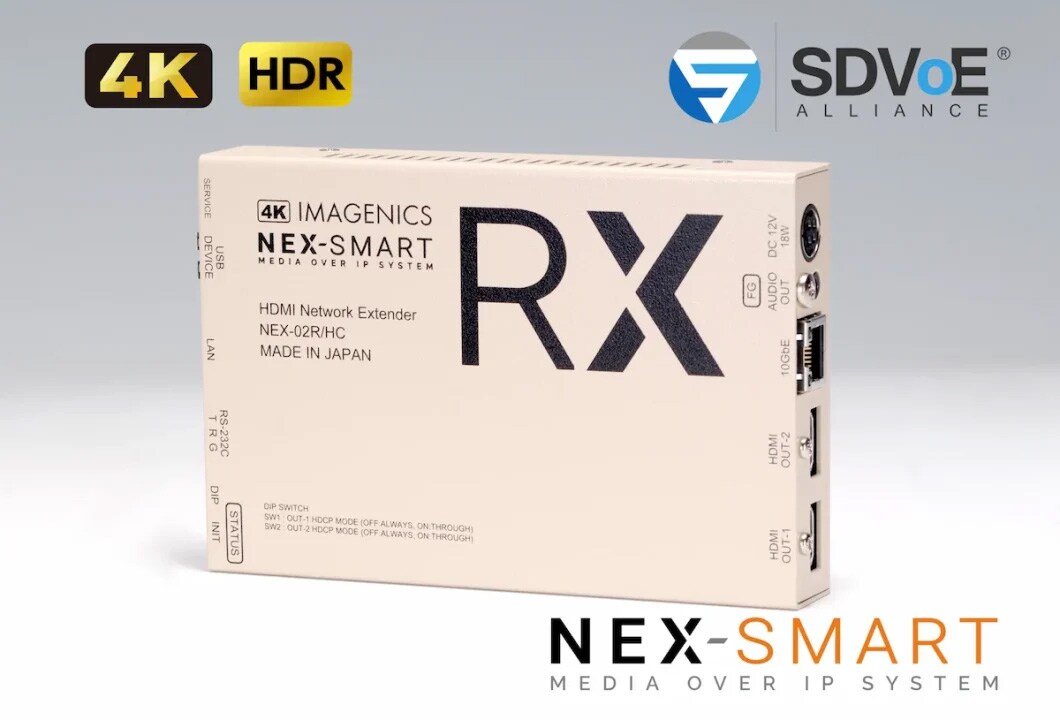

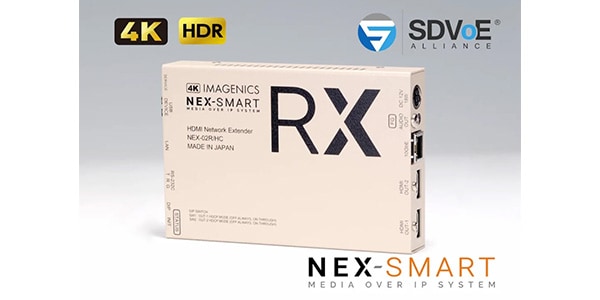

IMAGENICS / NEX-02R/HC

This receiver can transmit HDMI signals up to 4K60/4:4:4 over a maximum distance of 100m using a CAT6A cable. It supports PoE+, so it can also be powered solely by an IEEE802.3at compliant 10GbE switch.

■HDMI Network Receiver
■Video Input
10GbE Signal: 10GBASE-T, RJ-45 x 1
Supported Resolutions: D1-D5, VGA-UXGA and WUXGA (Reduced Blanking), 4K24, 4K30, 4K60
Pixel Clock Rate: 25MHz-600MHz, TMDS Data Rate: 0.75Gbps-18Gbps
Transmission Distance: CAT6A TP up to 100m
Video Output HDMI Signal: TMDS Single Link, HDCP 1.4/2.2 Supported, HDMI Type A 19-pin Connector (1x2 Distribution)
*ARC, HEC, and CEC are not supported.
When the HDMI output signal is 3840x2160/4:4:4, it is automatically down-converted to 1920x1080 depending on the connected device, such as a monitor.
HDMI output signals of 4096x2160/4:4:4 are automatically down-converted to 2048x1080.
Supported Resolutions: D1-D5, VGA-UXGA and WUXGA (Reduced Blanking), 4K24, 4K30, 4K60
Pixel Clock Rate: 25MHz-600MHz, TMDS Data Rate: 0.75Gbps-18Gbps
HDMI Cable Length: 1920x1080p up to 10m, 3840x2160@30 up to 5m, 3840x2160@60/4:4:4 up to 2m
■Audio Input
LPCM: 32kHz-192kHz, 16bit t to 24-bit, up to 8 channels, 1 RJ-45 connector
■Audio Output
LPCM: 32kHz to 192kHz, 16-bit to 24-bit, up to 8 channels
1 HDMI Type A 19-pin connector, 2-way distribution
Analog unbalanced: 245mV (rms) (-10dBu, 10kΩ or greater load), Maximum output level: 2.1V (rms) (+8.7dBu),
1 low impedance 3.5mm mini stereo jack *Analog audio output only supports LPCM.
Audio Quantization: 48kHz, 24-bit
Frequency Response: -1dB to +1dB from 30Hz to 20kHz
Crosstalk: 73dB or more (L-R)
S/N Ratio: 75dB or more
Distortion: 0.025% or less

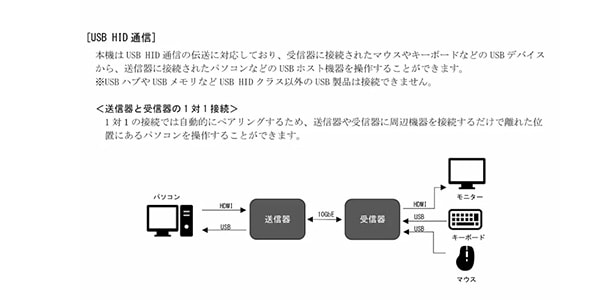

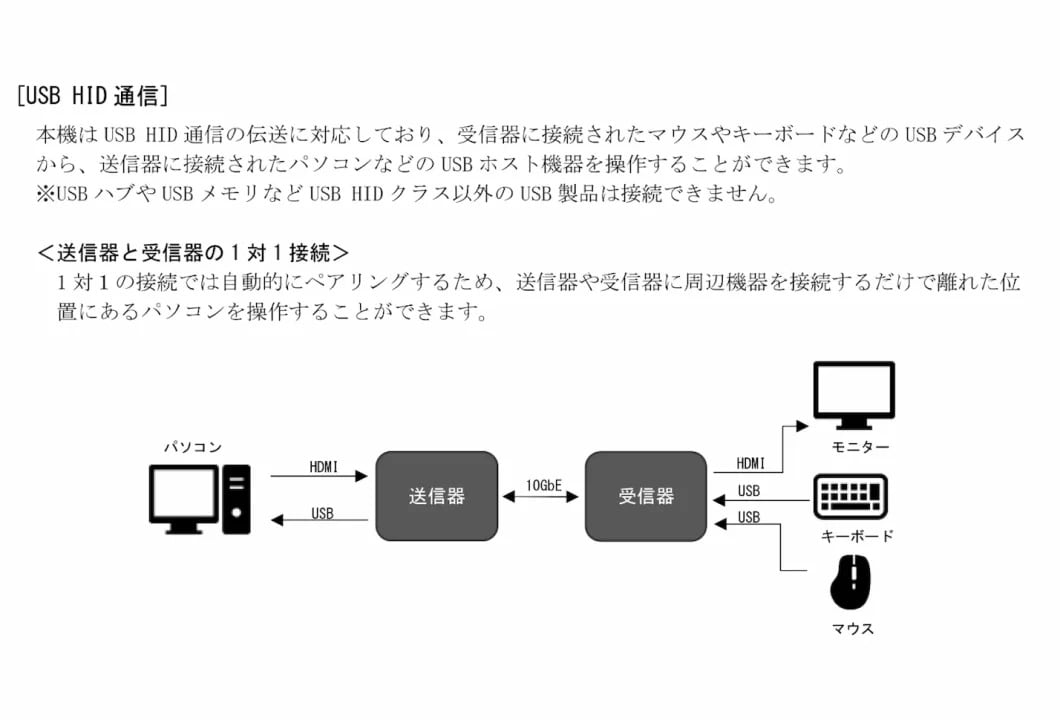

■USB: HID-class equivalent Type-A (2 ports)
■Other Inputs/Outputs: LAN: 1000BASE-T/100BASE-TX/10BASE-T, Auto-Negotiation, Auto-MDI/MDI-X, RJ-45 (1 port)
RS-232C: Full duplex, up to 115200b PS, 1 3-pin terminal block
■ Power Supply/Power Consumption: DC 12V 1.5A 18W (max),
PoE+ (IEEE802.3at) compatible PoE+PD 19W (max) (includes two 2.5W USB HID power outputs)
■ Size: 100(W) x 25(H) x 150(D) mm (excluding protrusions)
■ Weight: Approx. 560g
■ Accessories:
1 AC adapter (12V 3A output),
2 HDMI connector retaining brackets (CL-2),
2 cable ties,
1 3-pin terminal plug
