IMAGENICS / SDU-1616

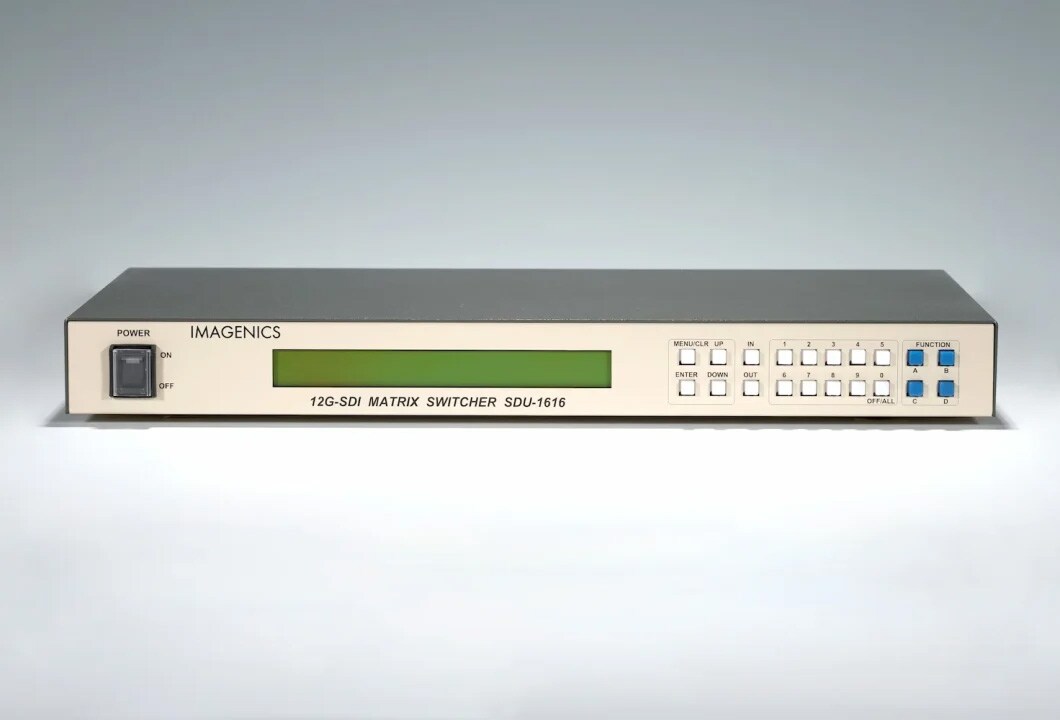

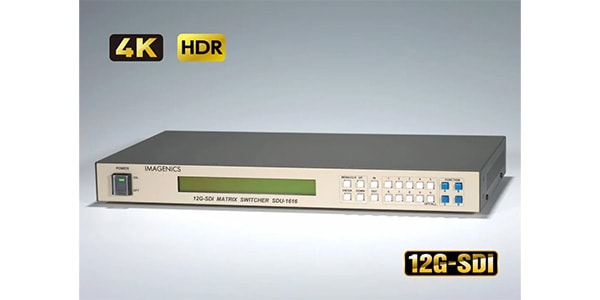

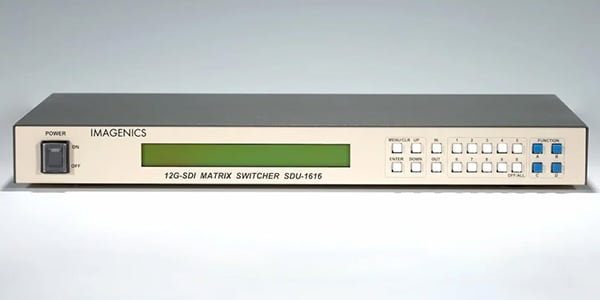

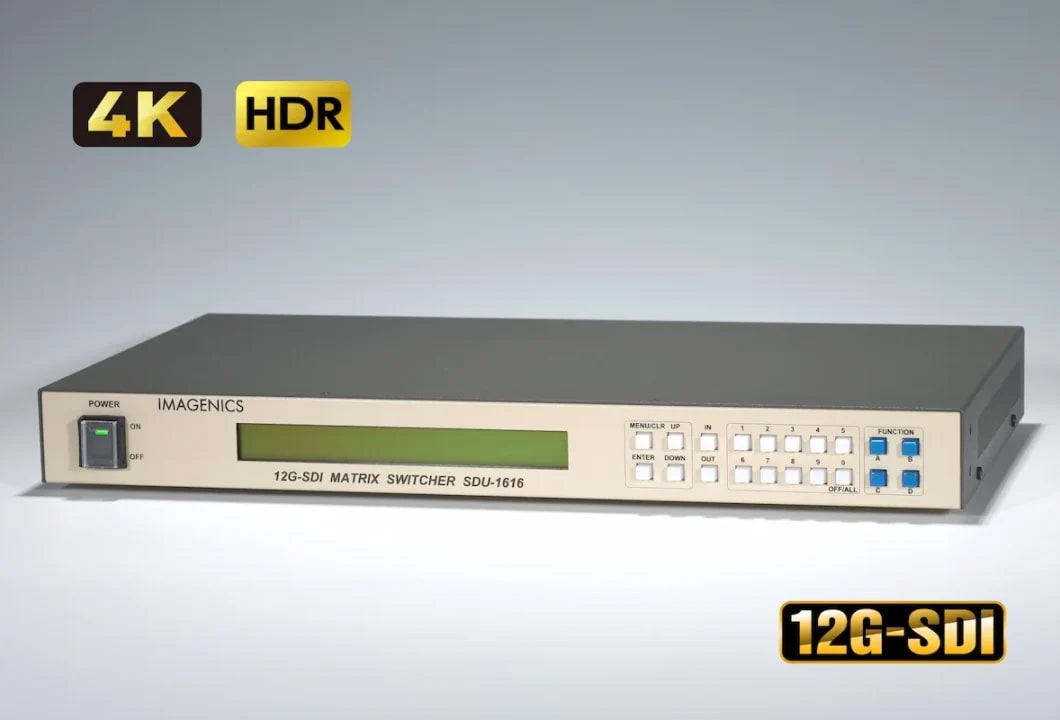

The SDU-1616 is a matrix switcher with up to 16 inputs and 16 outputs that supports multiple standards, including 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI.

■12G-SDI Matrix Switcher
■Compatible Standards:
SMPTE ST 2082-1 ​​compliant (12G-SDI)
SMPTE ST 2081-1 compliant (6G-SDI)
SMPTE ST 424 compliant (3G-SDI)
SMPTE ST 292-1 compliant (HD-SDI)
SMPTE ST 259-C compliant (SD-SDI)
DVB-ASI compliant (270Mb/s)

■Input Signal:
NRZI/NRZ signal, 0.8V (p-p), 75Ω, 16 BNC terminals
*When connecting SDI signals output from devices that output DC power (e.g., devices that superimpose camera power), ensure that the SDI signal does not contain DC potential and does not fluctuate.
Otherwise, the high-frequency device built into this unit may be damaged.

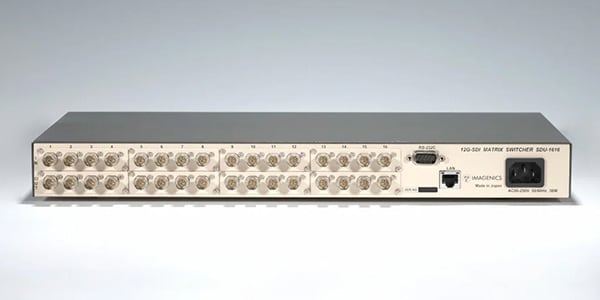

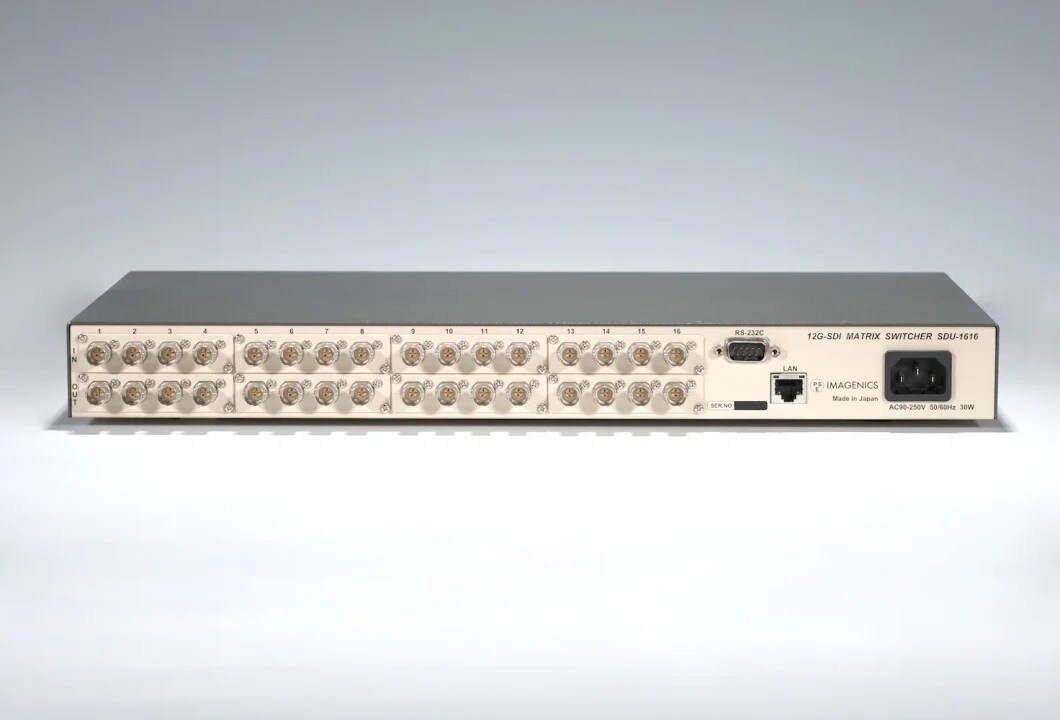

■ Output Signal: NRZI/NRZ signal, 0.8V (p-p), 75Ω, BNC, 16 outputs
■ Signal Compensation Distance:
When inputting 12G-SDI (pathological signal), automatic compensation is provided up to 70m using 5.5C UHD coaxial cable equivalent.
When inputting 6G-SDI (pathological signal), automatic compensation is provided up to 70m using 5CFB coaxial cable equivalent.
When inputting 3G-SDI (pathological signal), automatic compensation is provided up to 150m using 5CFB coaxial cable equivalent.
When inputting HD-SDI (pathological signal), automatic compensation is provided up to 230m using 5CFB coaxial cable equivalent.
When inputting SD-SDI (pathological signal), automatic compensation is provided up to 5 Automatic compensation up to 370m using C2V coaxial cable equivalent

■ Reference Sync Input:
Bi-level/tri-level sync signal or black burst signal 0.3V(p-p) to 0.6V(p-p)
(12G-SDI and 3G-SDI only support black burst signals)
1 BNC x 2 loop-through high impedance

■ External Control:
10Base-T/100Base-TX RJ-45
RS-232C (D-sub 9-pin male mating thread: inch)
■ Other Features:
SDI signal reclocking
Automatic input signal detection for output slew rate switching Switching function
Input selection information backup function and 32 pattern memory
Blanking switch function with reference synchronization (SMPTER P168-2002 compliant)
(Blanking switch function cannot be used with DVB-ASI)
Mixed input of 12G/6G/3G/HD/SD is supported (format conversion is not possible)
Switching event storage function
Prohibited crosspoint setting function
Sequential function
Changeover function
Channel number can be expanded by adding additional boards (up to 16 inputs and 16 outputs)
Input and output boards can be replaced during operation

■Power Supply:
AC90V to AC250V 50Hz/60Hz
■Power Consumption: 35W
■Weight: Approximately 3.7kg
■Operating Temperature and Humidity Range: 0°C to 40°C, 20%RH to 90%RH (non-condensing)
■Storage Temperature and Humidity Range: -20°C to 70°C, 20%RH to 90%RH (non-condensing)
■Size: 422(W) x 44(H) x 230(D)mm
*Not including protrusions
■Accessories:
EIA19-type rack mount brackets (1U),
Two domestic power cables (3P-3SL) with locking mechanism,
Two 3P-2P power adapter plugs
