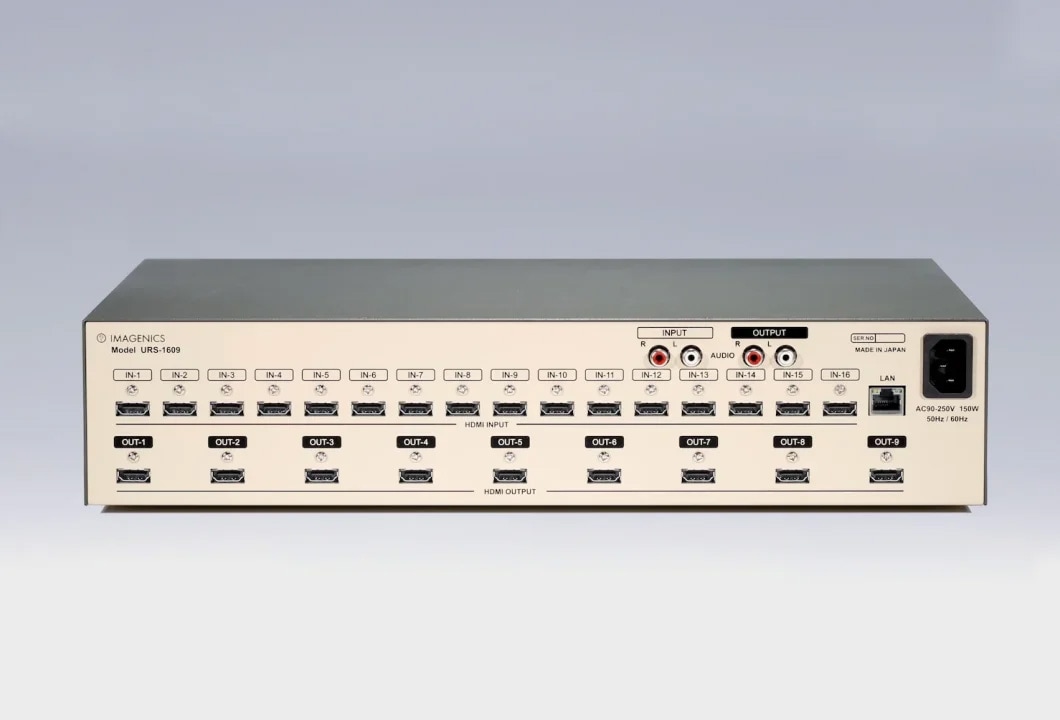

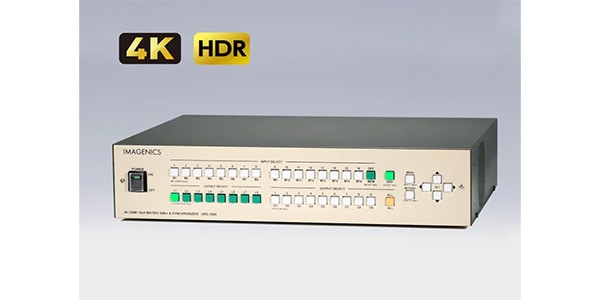

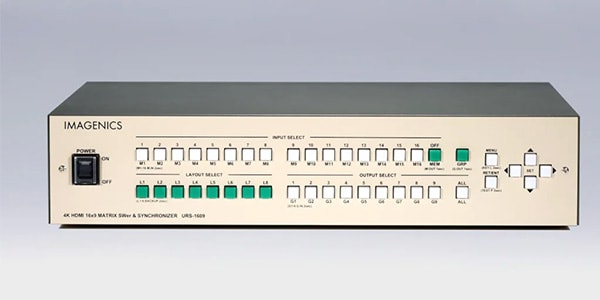

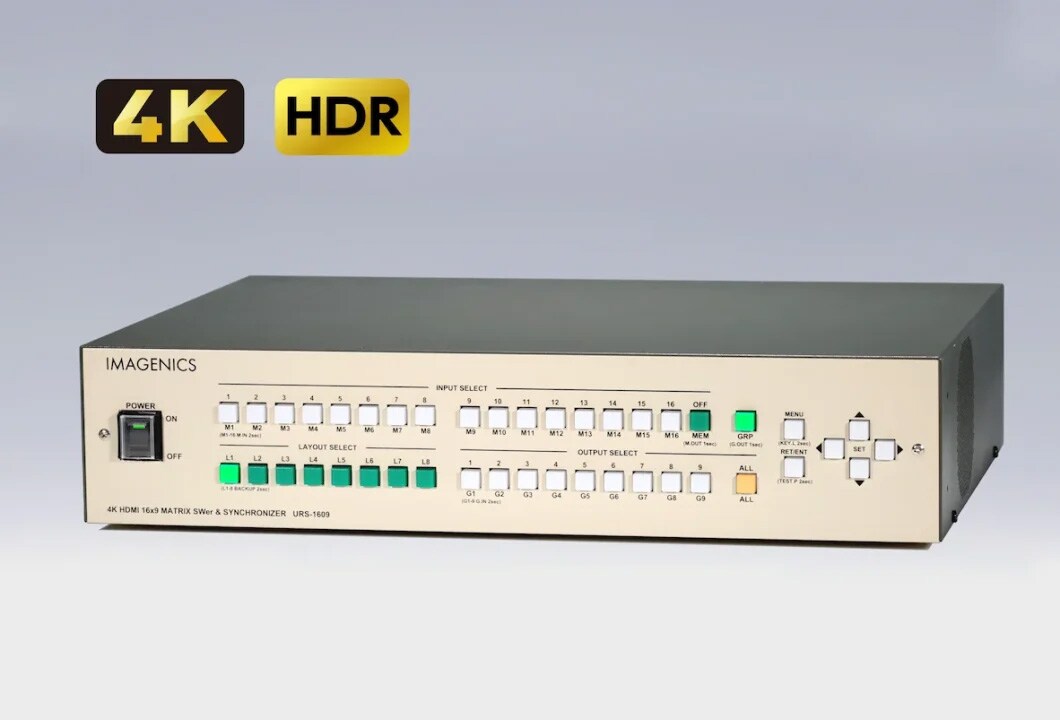

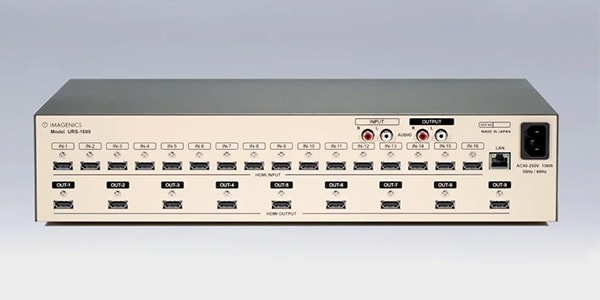

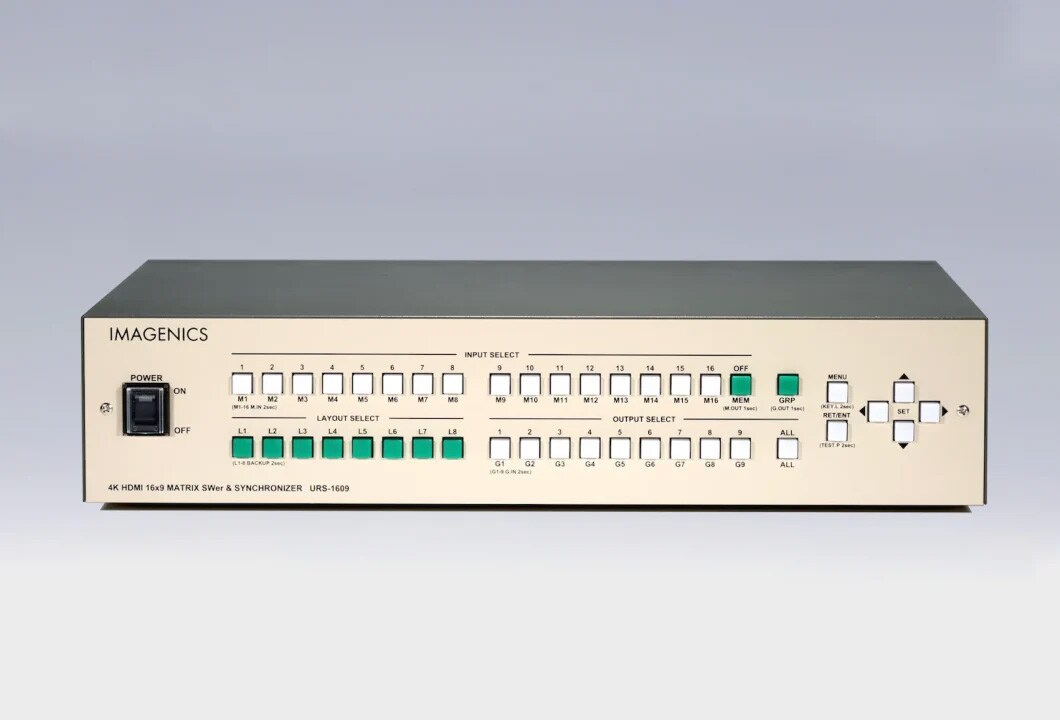

IMAGENICS / URS-1609

A 16-input, 9-output 4K HDMI seamless switcher that allows you to select any resolution for each of the 9 outputs.

■4K HDMI Seamless Switcher
■16 Inputs, 9 Outputs
■Input Signal Section
HDMI Signal:
TMDS Clock up to 340 MHz, Data Rate up to 18 Gbps (16 inputs, 16 HDMI-A)
Supports up to 36-bit deep color signals (4K60@422) or 24-bit full color signals (4K60@444)
HDCP 2.2/1.4 Compatible
Video:
Pixel Clock 25 MHz to 600 MHz, Horizontal Frequency 15 kHz to 135 kHz, Vertical Frequency 24 Hz to 240 Hz
VGA to WQXGA (Reduced Blanking), 480i, 480p, 720p, 1080p Supports i1080p, 4K, etc.
Audio: Up to 48kHz, 8-channel LPCM
Analog Audio: -10dBu (at 1kΩ or less output), high-impedance unbalanced, 2-channel, 1-channel (2 RCA)
Output HDMI Signal: TMDS clock up to 297MHz, data rate up to 17.8Gbps, 9-channel (9 HDMI-A), 4K60@444 compatible
HDCP 2.2/1.4 compatible
Video: Pixel clock 25MHz to 594MHz (select from the following resolutions, vertical frequency 59.94Hz)
720x480 (CTA-861F), 640x480, 800x600, 1024x76 81,280x720(CTA-861F)1,280x768
1,280x8001,360x7681,366x7681,440x9001,280x9601,280x1,0241,400x1,050
1,680x1,0501,600x9001,600x1,2001,920x1,080P/i(CTA-861F)1,920x1,200(ReducedBlanking)
2,048x1,0802,048x1,152(ReducedBlanking)2,560x1,080(CTA-861F)
2,560x1,440( (Reduced Blanking) 3,440 x 1,440 (Reduced Blanking) 2,560 x 1,600 (Reduced Blanking)
3,840 x 2,160 (CEA-861F) 4,096 x 2,160 (CTA-861F)
Audio: 48 kHz, 8-channel LPCM

■Output Signal Section
Analog Audio: -10 dBu (10 kΩ or greater load), low impedance, unbalanced, 2-channel, 1-system (2 RCA)
*A vertical frequency of 29.97 Hz can only be selected when FHD 2,560 x 1,080 and 4K resolutions are selected.
■Input Cable Compatibility
■: Video up to 6 Gbps, such as PC (VESA) 1080P, up to 30m with our HDP-HDP 30m HDMI cable
: Video up to 10.2 Gbps, such as 4K30, 60 (420), up to 20m with our HDP-HDP 20m HDMI cable
: Video up to 18 Gbps, such as 4K60 (422, 444), up to 10m with our HDP-HDP 10m HDMI cable
*These values ​​were measured in an IMAGNIX in-house environment and using IMAGNIX cables. Operation in all environments is not guaranteed.
■Output Cable Compatibility
: Full HD60 output up to 10m using our HDP-HDP 10m HDMI cable
: 4K60 4:2:0 output up to 5m using our UHP-5 HDMI cable
: 4K60 4:4:4 output up to 3m using our UHP-3 HDMI cable
*Values ​​measured internally at Imagenics and using Imagenics cables. Operation is not guaranteed in all environments.
■Latency: Approximately 33ms to 50ms *When both input and output are 60Hz
*Equivalent to a delay of 1 frame of input video plus 1 to 2 frames of output video.
*There is no delay corresponding to the video in the analog audio output.
■External Control Function
LAN: 10BASE-T/100BASE-TX (auto-detection) x 1 (RJ45 x 1)
EDID: Built-in EDID emulation function (plug-and-play): Select from major CTA and VESA resolutions (including 4K HDR video),
or copy and back up EDID data from each HDMI output terminal for use.

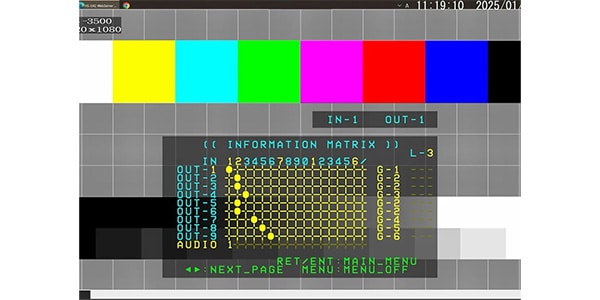

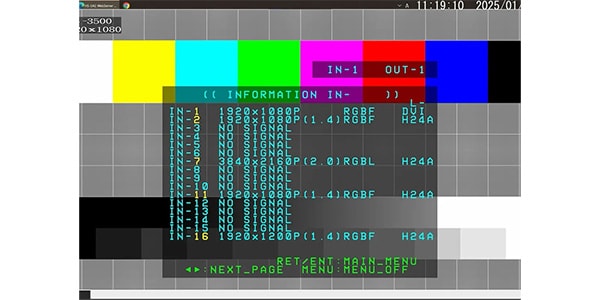

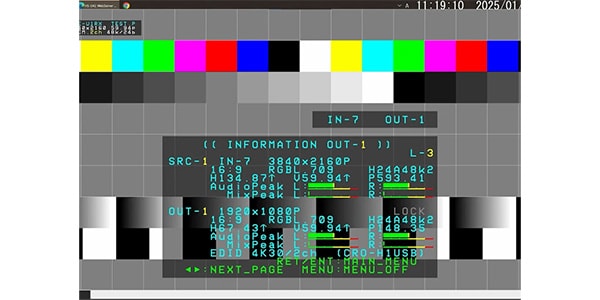

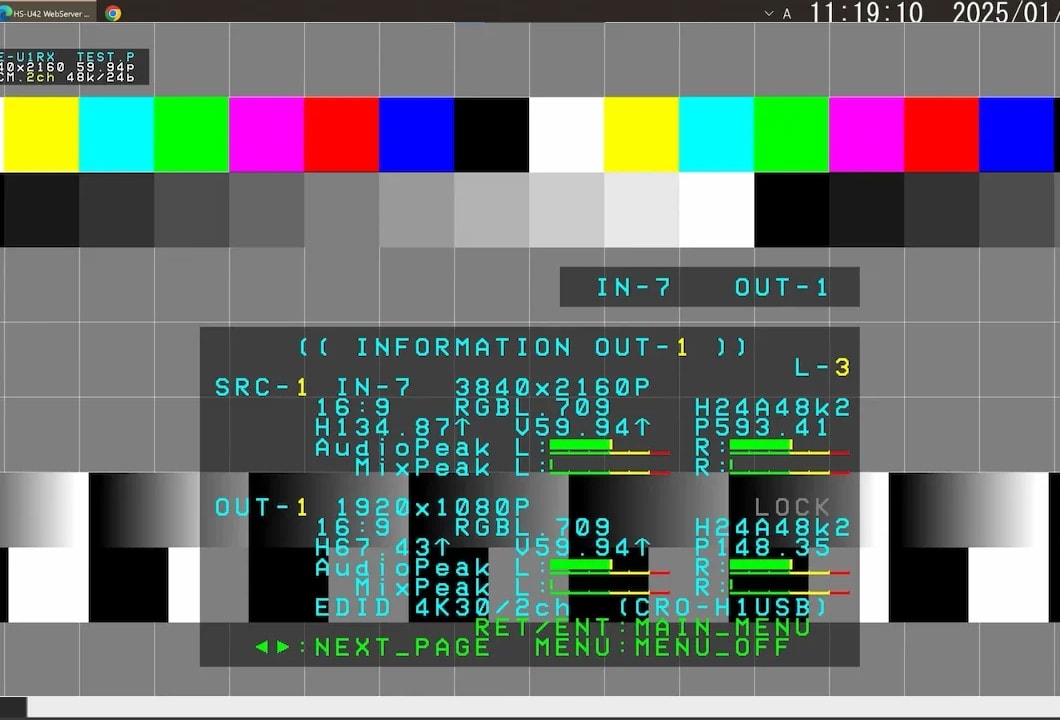

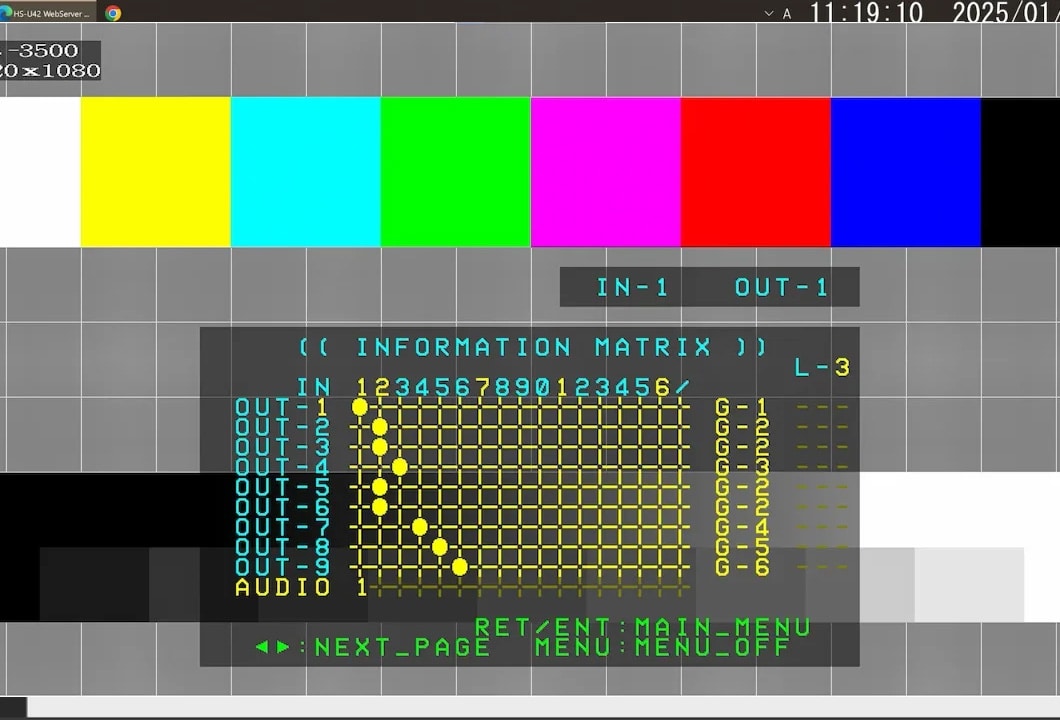

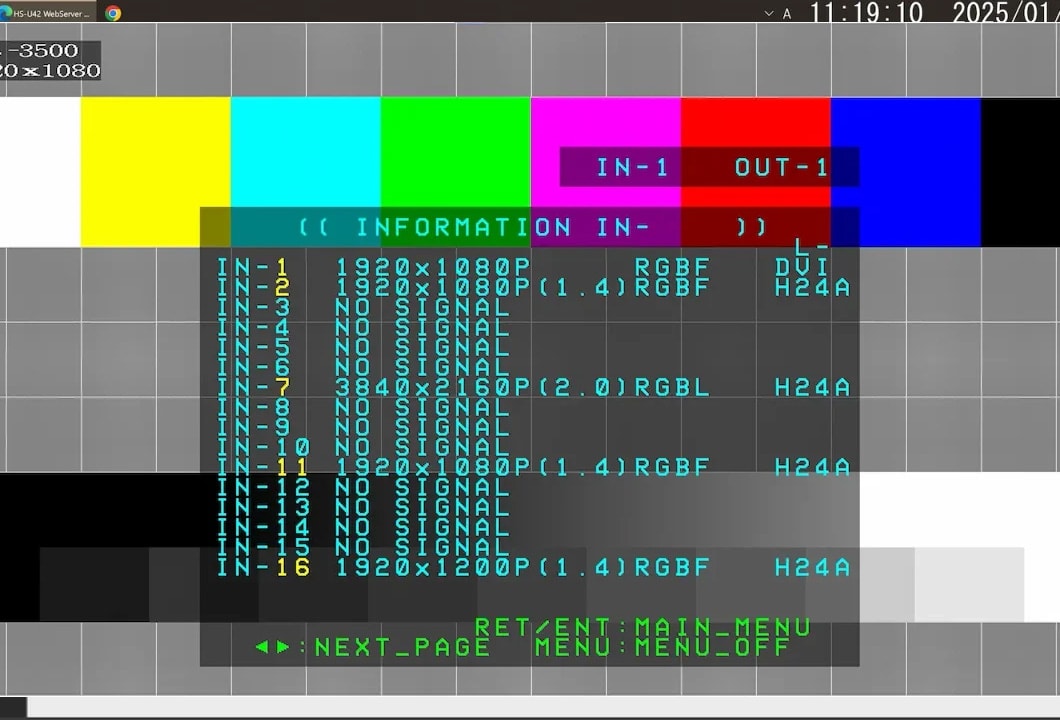

Other additional features include various settings via on-screen menus (on-screen display can be turned on/off for each output terminal),
EDID settings for each input terminal and non-HDCP operation settings,
audio level adjustment settings for each input terminal and output terminal,
automatic color format conversion and resolution settings for each output terminal, and pseudo-seamless transition settings (freeze, black, fade, flick, wipe types),
variable zoom and trimming functions for each output terminal, 90/180-degree rotation, vertical/horizontal flipping, and a multi-screen, custom-position crop and enlargement function,
sequential switcher function for each output terminal and layout operation,
synchronized auto-off function for each output terminal (input linked), instant switching with layout operation,
fan alarm and overheating notifications, backup and reload of all operating settings, and more. ■Power Supply/Power Consumption:
AC100V to AC240V 50Hz/60Hz
■150W: (Maximum)
■Weight: Approx. 6.0kg
■Size: 422(W) x 88(H) x 300(D)mm
*Excluding protrusions
■Accessories:
EIA19 2U Rack Mount Brackets (1 set)
Japan-only power cable (3P-3SL) with locking mechanism (1),
3P-2P power adapter plug (1),
HDMI Cable Lock Kit (CL-2) (25 pieces)
