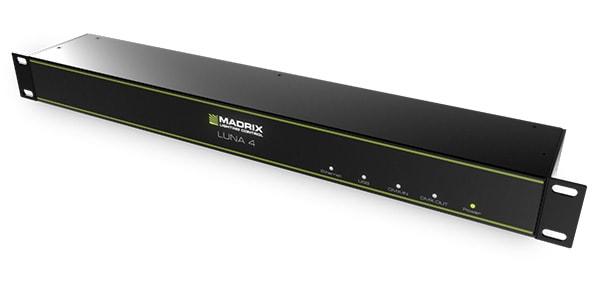

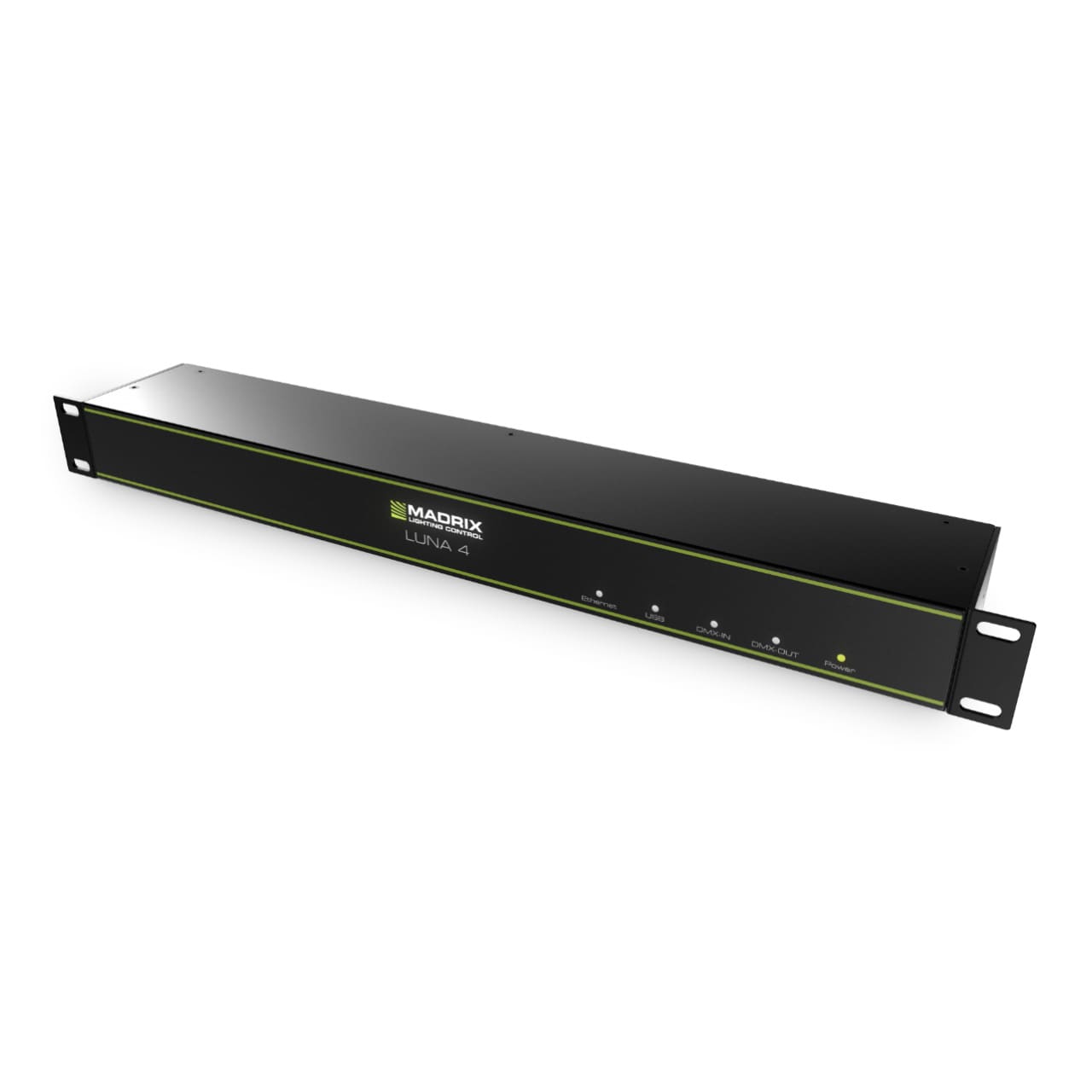

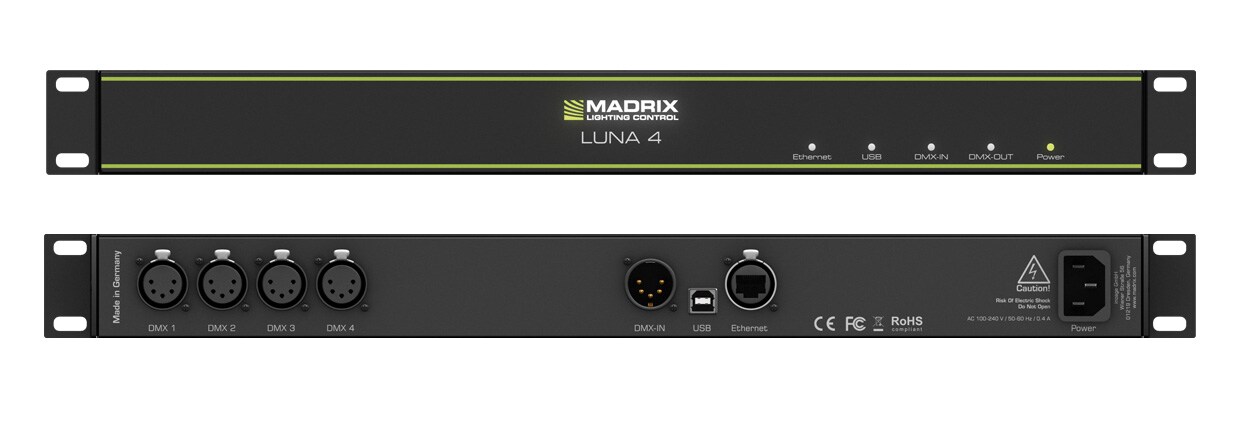

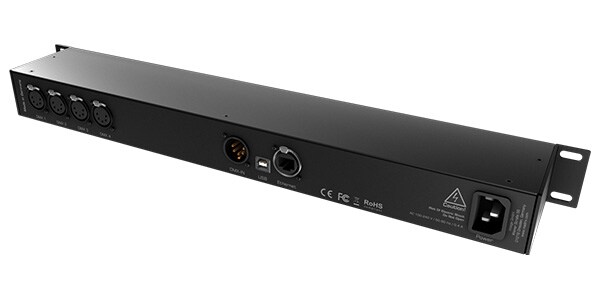

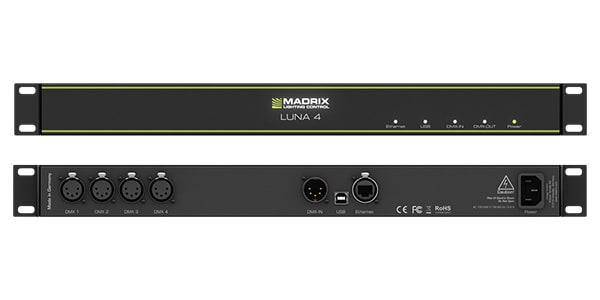

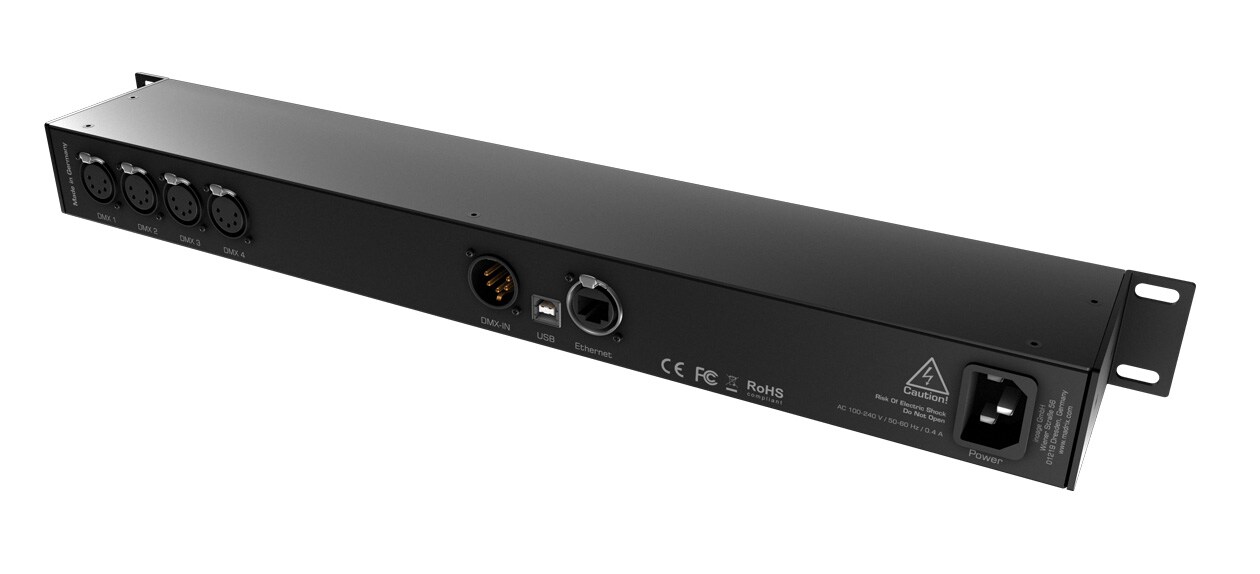

MADRIX / LUNA 4

MADRIX is an easy-to-use and reliable network node with 4 x 512 channel outputs.

■ Power Supply: AC100V 50/60Hz, Max. 0.4A
■ Power Consumption: <5W
■ Network Protocol: Art-Net (I, II, 3, 4, ArtSync), Streaming ACN (sACN / ANSI E1.31)
■ DMX512 Output: 4 x 512-Channel Output
■ DMX512 Input: 1 x 512-Channel Input
■ DMX Output Connector: 5-Pin XLR Female
■ DMX Input Connector: 5-Pin XLR Male
■ Ethernet: 1 x RJ45 Auto MDI-X, Neutrik etherCON, 10/100 MBit/s
■ USB: 1 x USB2.0 Type B
■ Dimensions: 76 x 482.6 x 44 mm
■ Weight: 1.3 kg
■ Operating Temperature: -10°C to 60°C
■ IP:IP20
