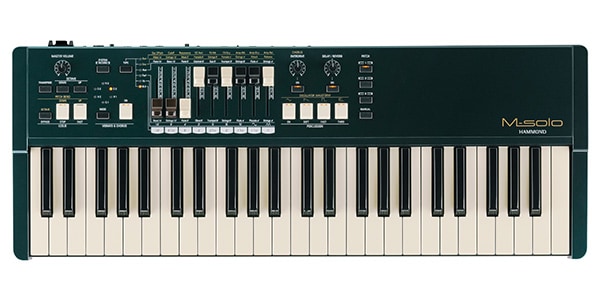

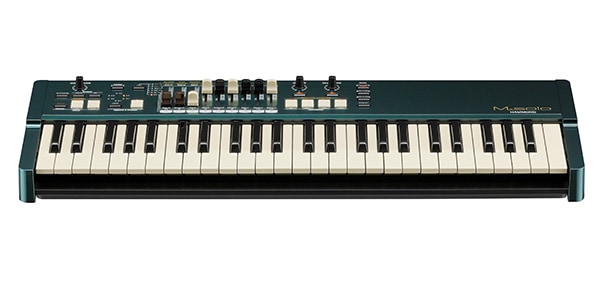

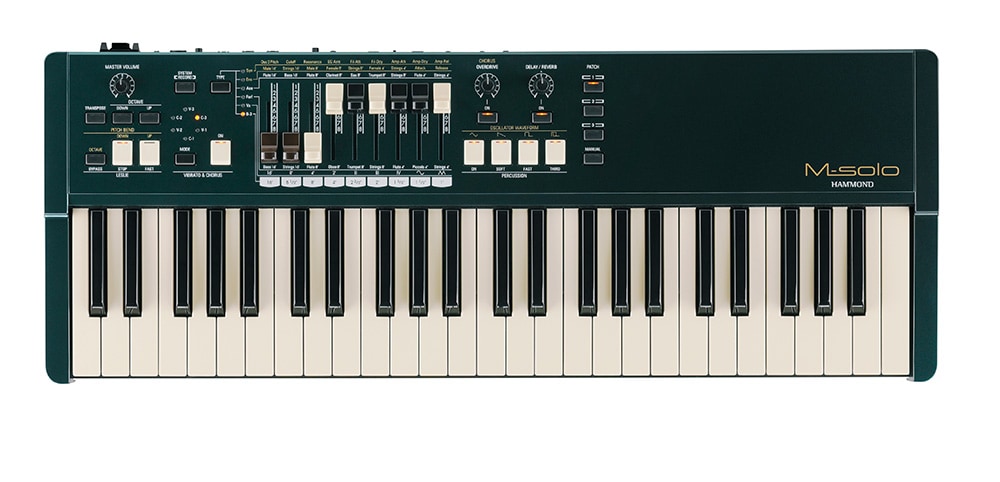

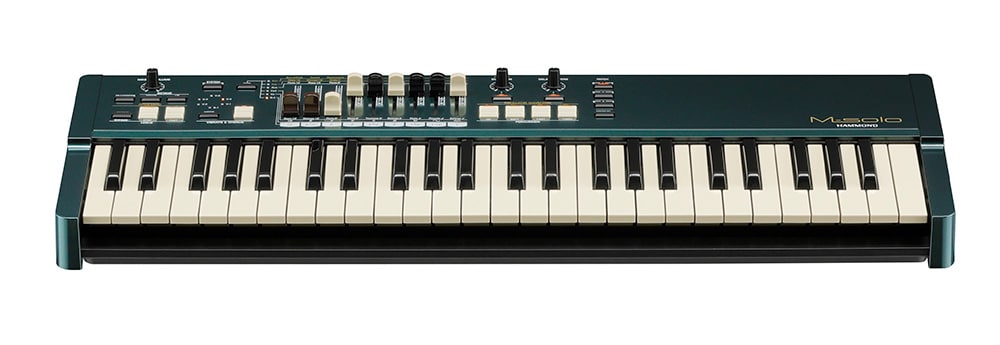

HAMMOND / M-solo BRG

The smallest and lightest 49-key model in Hammond's history. Equipped with six different instrument types, including four types of organ, string ensemble, and polyphonic synthesizer, it covers the vintage sounds of the 70s that are relevant in today's music scene.

■Keyboard
49 keys, lightweight (velocity-sensitive)
■Sound source
[Tone wheel organ (B-3)]
MTW2 (Modelled Tone Wheel 2) sound source, 61 simultaneous voices
[Transistor organ (Vx, Farf, Ace)]
Sampling sound source, 96 simultaneous voices
[Strings ensemble (Ens)]
Sampling sound source, 96 simultaneous voices
[Polyphonic synthesizer (Syn)]
Analog modeling sound source, 8 simultaneous voices
■Organ
[Drawbars]
1 set, 9 rows
[Organ type]
4 (B-3, Vx, Farf, Ace)
[Percussion]
Buttons (On, Soft, First, Third)
■Strings ensemble
[Stops]
7 (Male 16′, Strings 16′, Male 8′, Female 8′, Strings 8′, Female 4′, Strings 4')
[Envelope]
Attack, Release
■Polyphonic Synthesizer
[Oscillator]
Waveform (triangle wave, sawtooth wave, square wave, pulse wave), sub oscillator
[Filter]
LPF 24dB/oct
[Modulator]
LFO1 (delay vibrato & wah-wah/PWM), EG 2 (filter, volume)
■Effects
[Tone wheel organ (B-3)]
Leslie, vibrato & chorus, overdrive
[Transistor organ (Vx, Farf, Ace)]
Leslie, vibrato, overdrive
[Strings ensemble (Ens)]
Vibrato, chorus
[Polyphonic synthesizer (Syn)]
Delay vibrato & Wah-wah/PWM, Chorus

[Master]

Delay/Reverb

■Keymap

Octave, Transpose

■Controller

[Leslie]

Bypass, Stop, Fast

[Pitch Bend]

Octave, Down, Up

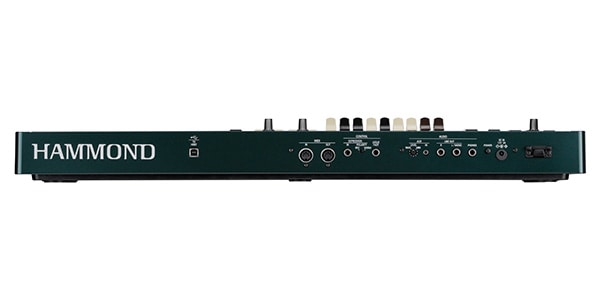

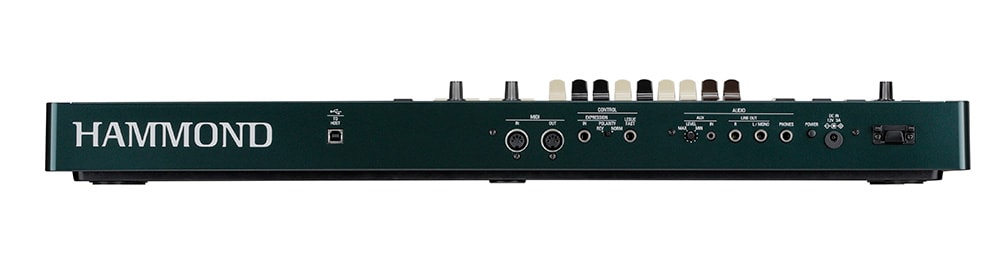

■External Terminal

[MIDI] MIDI IN, MIDI OUT

[USB] TO HOST

[AUDIO] LINE OUT (L/R), PHONES, AUX IN (output level adjustable)

[CONTROL] EXPRESSION IN (with polarity switch), LESLIE FAST

■Dimensions

W731×D274×H85mm

Weight 3.6kg

■Accessories

AC adapter (AD3-1230-2P) x 1, power cable x 1
