BITWIG / Bitwig Connect 4/12

The Bitwig Connect 4/12 is a compact, class-compliant, all-in-one audio/MIDI/CV interface with built-in monitoring and DAW control.

■Specifications
- 4-input/12-output audio inputs/outputs (2-input/4-outputs are 3.5 mm mini jacks with CV compatibility)
- Recording and playback at up to 24-bit/192 kHz
- All inputs and outputs use AKM converters
- 3.5 mm MIDI input/output terminals (conversion cable included)
- Compatible with macOS 10.15 and later, Windows 10 and later, and Linux
- Windows-specific ASIO driver
- Large, high-resolution center dial with LED for intuitive monitoring and DAW control
- Bitwig mode for seamless integration when using Bitwig Studio
- Supports MCU (Mackie Control Universal) protocol for DAW transport control
- Bitwig Studio Essentials license included
- USB bus-powered, class-compliant USB-2 device
- Full metal chassis
- Dimensions: 20.7 x 16.3 x 5.9 cm (W x D x H)
- Weight: 1.45 kg

-----------------------------------------

All-in-one solution with audio/CV/MIDI input/output, monitoring, and DAW control.
The Bitwig Connect 4/12 is a class-compliant, CV/MIDI-compatible 4-in/12-out USB audio interface with all-in-one audio/MIDI/CV interfaces, streamlining your studio or stage setup with monitoring and DAW control.

The Bitwig Connect also comes with a Bitwig Studio Essentials license, the entry-level version of Bitwig Studio, so even those without a Bitwig Studio series console can take full advantage of Bitwig mode.

●The ultimate studio controller
The Bitwig Connect serves three purposes: audio/MIDI interface, monitor, and DAW controller. Six mode buttons allow you to control interface parameters and software using a 360° touch-sensitive dial. Set input gain, adjust volume levels for two sets of monitors and headphones, move the playhead, and control every parameter in Bitwig Studio with exceptional resolution.

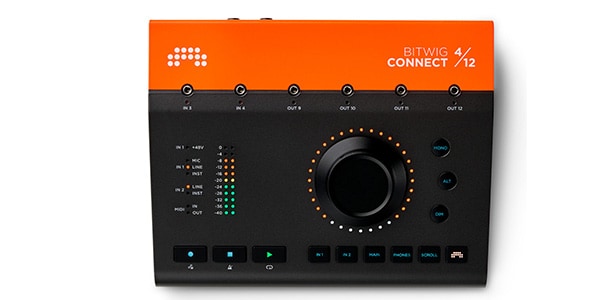

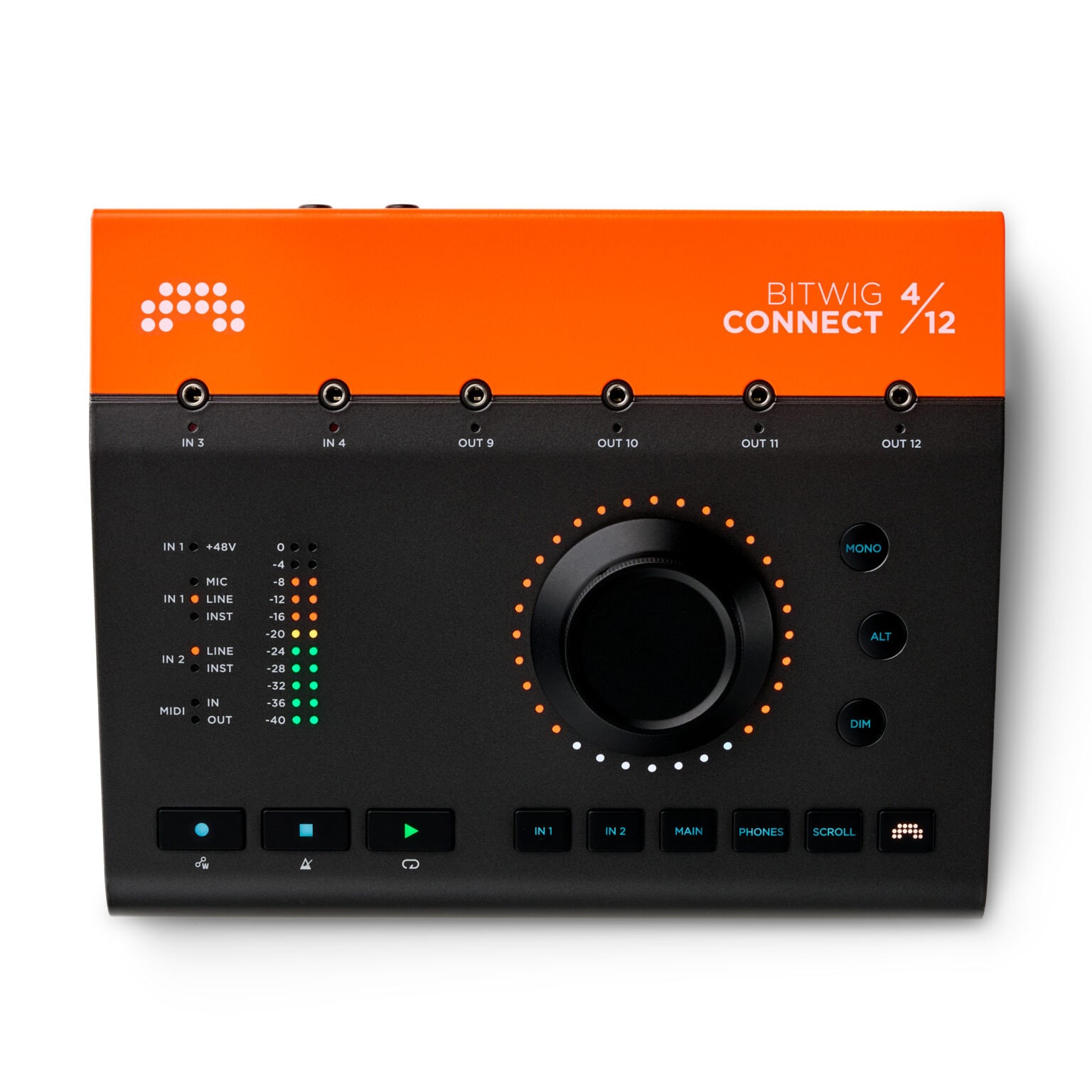

The front panel features precise input and output meters and a ring of 32 RGB LEDs around the dial that visualize parameter values ​​and automation data, providing instant visual feedback. Plus, gain settings can be accessed and saved within Bitwig Studio, so you can quickly resume where you left off the next time you open it.

-----------------------------------------

● 3.5 mm Inputs and Outputs for Both CV and Audio
Bitwig Connect features two DC-coupled inputs and four outputs, accessible directly from the front-panel 3.5 mm mini jacks. This means it can be used both ways: from Bitwig Studio or other programs to external devices, and from hardware sequencers and modulation signals into the software realm.

Factory calibration means Bitwig Connect works pitch-perfectly and offset-free with Bitwig Studio right out of the box. The jacks can also be used for audio signals, serving as additional line-level inputs and outputs, beneficial for all types of users.

● Control Bitwig Studio
Bitwig Connect's unique ""Bitwig Mode"" puts Bitwig Studio at your fingertips. Seamless integration allows you to create automation, fine-tune settings, and navigate Bitwig Studio's timeline intuitively and precisely with Bitwig Connect's main dial. Hover over the high-resolution dial for quick access to any control, and double-tap selected parameters to lock them into Bitwig Connect. The LED ring matches the color of Bitwig Studio parameters and tracks to indicate the current task, so you'll never get lost.

● Best-in-Class Audio Quality
The internal hardware ensures pristine recordings, every take. Bitwig Connect features balanced connections, premium microphone preamps, and high-quality instrument/line inputs, feeding AKM converters with up to 192 kHz, 24-bit resolution. That means you can capture any source with an ultra-low noise floor.

Bitwig Connect's rugged steel chassis is designed to withstand road and performance. USB-2 bus power via the USB-C connector means no external power supply is required, making it suitable for use from the studio to the stage.
