okayo / JDL-510DU-M1

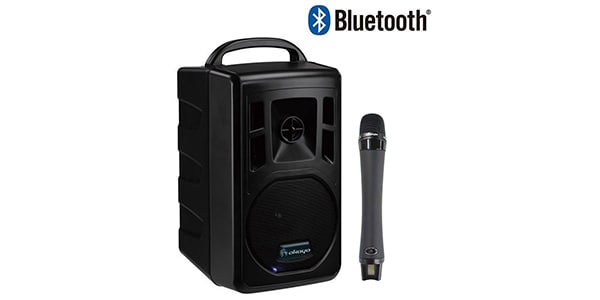

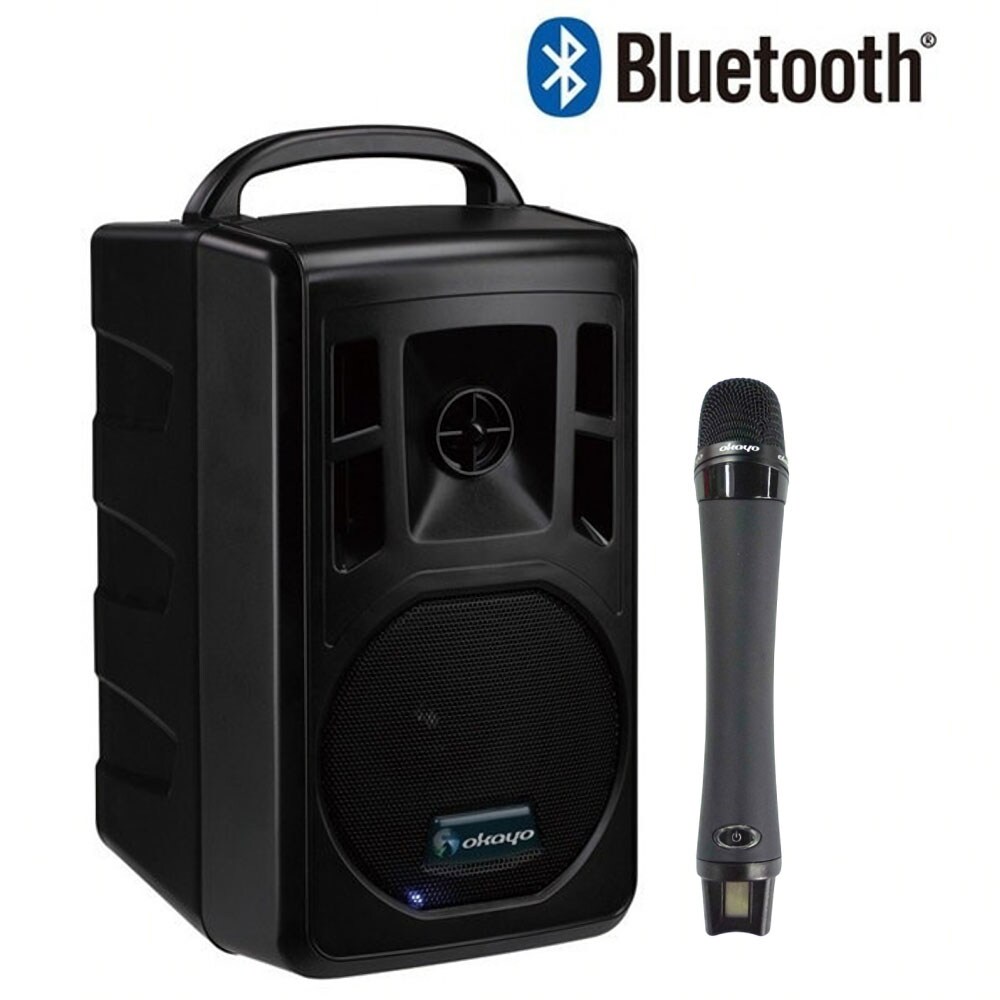

The okayo/JDL-510DU-M1 is a compact portable speaker/amplifier and microphone set.

800MHz digital band wireless portable sound system.
The 800MHz digital band provides clear sound quality and interference protection.
Its compact and lightweight design makes it easy to carry, and its built-in battery allows for use even in places without access to power.
Included microphone: One DL-8H Pro

Features
■Digital signal processing between the microphone and speaker (tuner) ensures confidentiality by preventing signal output from other speakers*.
In addition, by not outputting the analog signal commonly used in existing equipment, it delivers clear sound.
*Excludes the JDL series and products equipped with the DLR-9 dual tuner.

■Compatible with web conferencing/transcription software
Connect to a smartphone or PC to easily transcribe meetings and other events.
Using this product allows for more accurate transcription.
*Transcription software must be installed separately on the device.

■ Use three microphones simultaneously
The JDL-510DU-M1 can simultaneously use two wireless microphones and one wired microphone.
Connecting a microphone is as simple as setting it to the same channel as the tuner.
*A second wireless microphone must be purchased separately.
*By adding a tuner (DLR-9), five microphones can be used simultaneously.

■ Works in locations without power
The battery-powered design allows for use in a variety of locations.
An eight-hour charge provides 5-7 hours of use, and the four-level battery meter makes it easy to check charging and remaining battery life.
*Usage time may vary depending on volume, microphone, Bluetooth, and other connection conditions.

■ Use unlimited microphones in push-to-talk mode
This function allows you to occupy one tuner and speak while the button is pressed. This means that your microphone (DL-8H Pro) will be in standby mode, allowing you to build a cost-effective conferencing system.
Usage Examples: This microphone is useful in committee meetings, press conferences, public meetings, and other events with a certain number of speakers, eliminating the need to hand off microphones.

■JDL Series Compatible
Simply align multiple speakers with the wireless microphone channel to simultaneously output microphone audio.
*For simultaneous output of wired microphones and background music, please refer to the DL-9T 800MHz Digital Hands-Free Microphone.

■Smartphone Charging Function

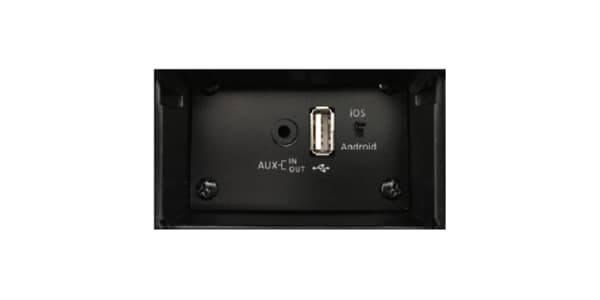

Equipped with a USB port for charging smartphones.
It is a useful disaster mitigation and disaster prevention tool in the event of a disaster.

■Lightweight Design at Approximately 3kg
Even with an integrated battery, it weighs only approximately 3kg.
Its compact size, approximately A4 size, makes it easy to carry.

■Bluetooth, SD Card, and USB Memory Support
Bluetooth functionality allows for audio playback from smartphones and tablets.
External media playback from SD cards and USB memory is also possible.
*An AUX input/output jack (3.5mm) is also provided for connecting to external devices.

■Microphone Priority Mode
This feature automatically reduces the volume of background music when you speak into the microphone.
*Can be turned on or off.

■Earns the reassuring ""Technical Conformity Mark""
This product is certified to comply with the technical standards stipulated by the Radio Law.

■Can be used in a variety of situations
Events, classrooms, presentations, fitness clubs, community events, speeches, and more.

●Maximum Output: 60W
●Rated Output: 40W
●Speaker: 5-inch Neodymium / 1-inch Tweeter
●Receiver Module: Digital 800MHz Duo Receiver (Max. 2)
●Microphone Input: Combo Jack (6.3mm Phone Jack / XLR)
●Audio Input: 3.5mm
●Audio Output: 3.5mm (Stereo Mix)
●Bluetooth Receiver: Built-in
●USB Port Output: 0.5W-0.7W. Fully charges a smartphone in approximately 9 hours.
●Power Supply: AC 100-240V 50-60Hz / DC 20V 3.25A
●Battery: Lithium-ion rechargeable battery
●Battery Meter: 4-level LED (FULL, 80%, 50%, 20%)
●Operating Time: 5-7 hours (battery powered) *Can also be powered by AC power.
Charging Time: 8 hours
Dimensions: 202.5 x 170 x 341.2 mm
Weight: Approximately 3.3 kg (including battery)
[Wireless System]
Carrier Frequency Range: 806.125 MHz - 809.750 MHz
Adjustable Channels: 30
Status Display: Channel Number, Signal Strength, Microphone Battery Level
Ambient Temperature: -10°C - +50°C
Latency: 4 ms
Frequency Response: 70 Hz - 16 kHz
Operating Range: 50 - 70 m (Unobstructed Environment)
