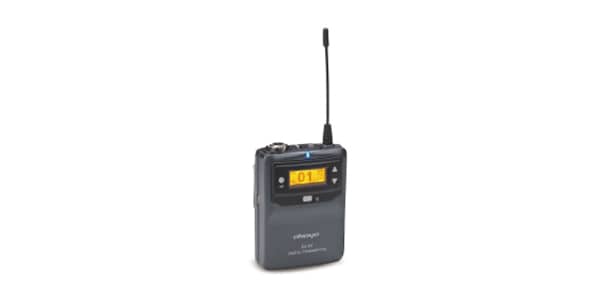

okayo / DL-9T

Okayo/DL-9H is an 800MHz digital band transmitter.

Wireless transmitter for JDL-510 and JDL-710

Features
■ A compatible microphone must be connected to use the microphone.
[Compatible microphones] HM-65C headset microphone, LM-95C tie clip microphone

■ Rechargeable battery
If you use AA nickel-metal hydride batteries, you can charge the microphone directly.

■ Interlocks with existing equipment
The parent unit can be any OKAYO product; broadcast equipment or other companies' products can also be used as a transmitter to output to the JDL series if they have AUX output.
Simply align multiple speakers with the transmitter (DL-9T) channel to simultaneously output wired microphones connected to the parent unit and background music mixes.
*Wired cables must be purchased separately to match the parent unit.

■ Certified ""Technical Approval Mark"" for peace of mind
This product is certified to comply with the technical standards stipulated by the Radio Law.

●Antenna: Whip antenna
●Volume Control: Talk/Mute button
●Battery: Two 1.5V AA alkaline batteries, two 1,900Ah 1.2V AA NiMH batteries
●Continuous Use Time: 10 hours with rechargeable batteries, 16 hours with alkaline batteries
●Dimensions: D30.4 x W64 x H164.1mm
●Weight: 115g (including batteries)
●Operating Temperature Range: -10°C to +60°C
●Display: Channel/Battery Level
●Buttons: Power/Mute/Channel Setting
●Communication Range: 40m to 70m
●Other Features: Micro USB Type-B Charging Port/Mini XLR Audio Input/AUX 3.5Φ
