TASCAM / RX-BT10

The TASCAM/RX-BT10 is a compact, professional-grade stereo Bluetooth audio receiver with XLR balanced output.

Professional Stereo Bluetooth Audio Receiver

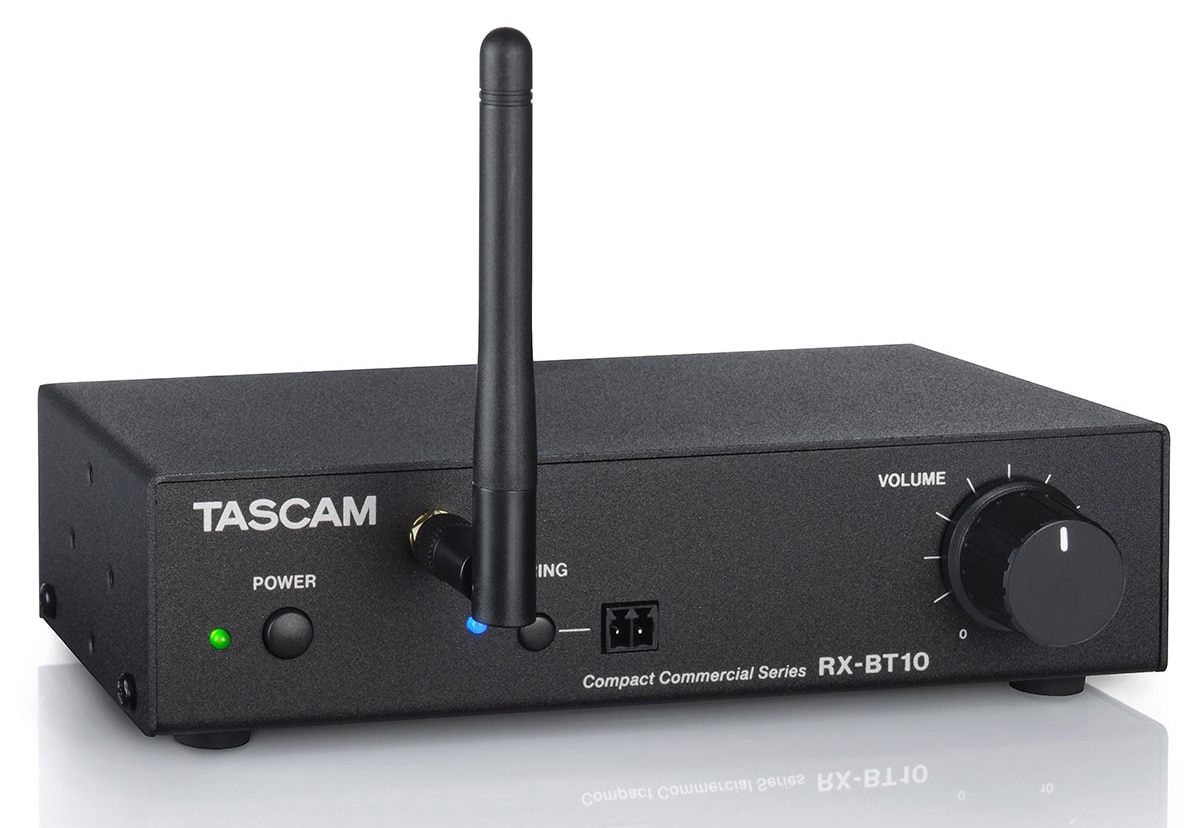

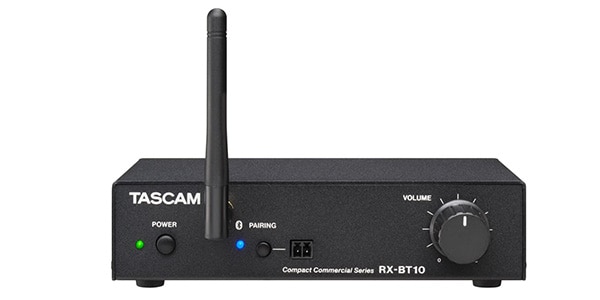

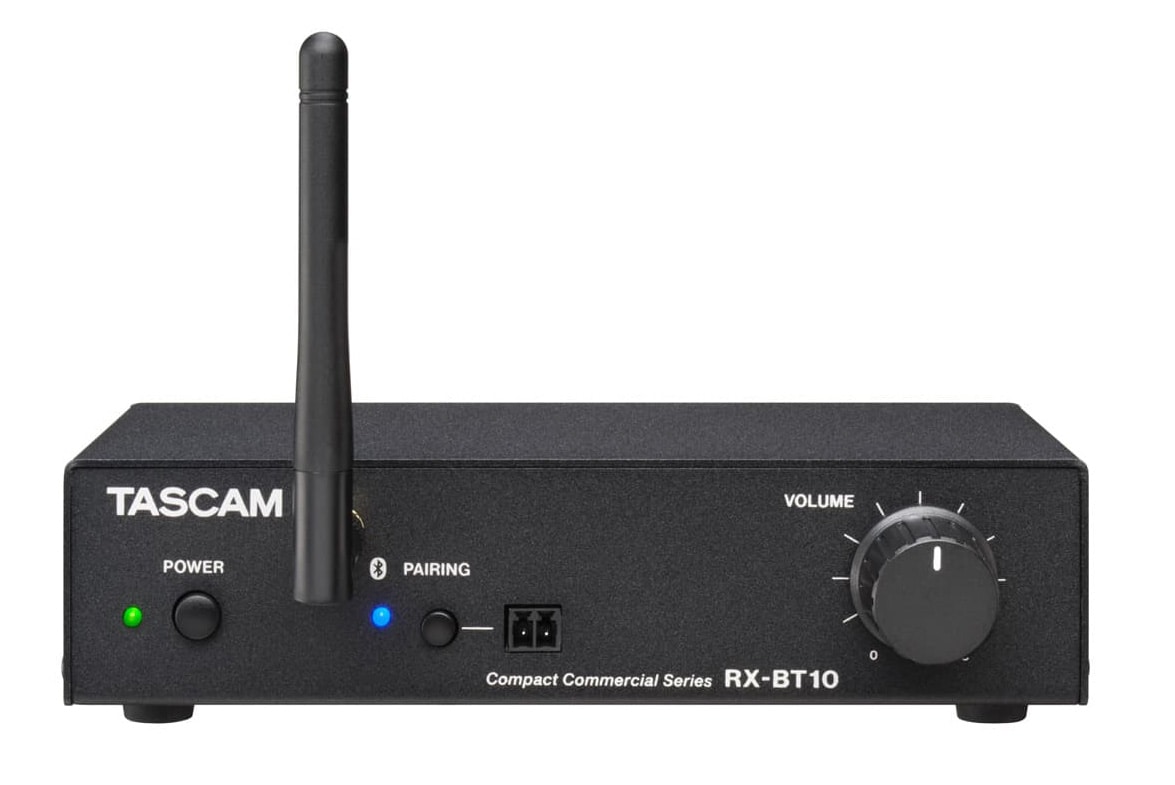

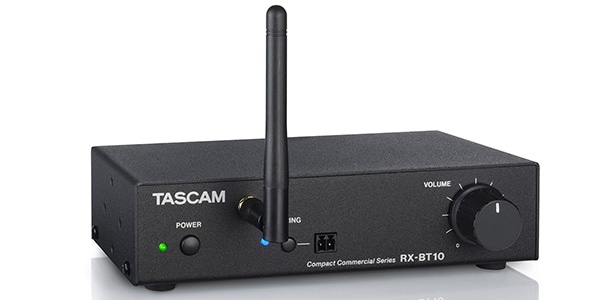

The RX-BT10 is a compact Bluetooth receiver smaller than half-rack size that can expand wireless audio reception capabilities into your facility sound system. It features Bluetooth 5.1 Class 1, supports balanced and unbalanced output, and supports antenna and pairing button extension, allowing for flexible installation locations. Its robust housing and flexible installation capabilities enable the creation of highly stable Bluetooth audio systems in a variety of existing small- to medium-sized systems, from commercial facilities such as shops and restaurants, hotel banquet halls and educational facilities, to outdoor events and temporary systems.

■Specifications
Input
Bluetooth
Version 5.1
Output Class Class 1 (Line-of-sight communication distance: approx. 100m*1)
Supported Profiles A2DP, AVRCP
Codecs SBC, AAC

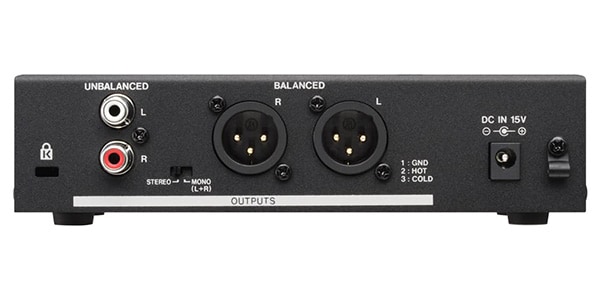

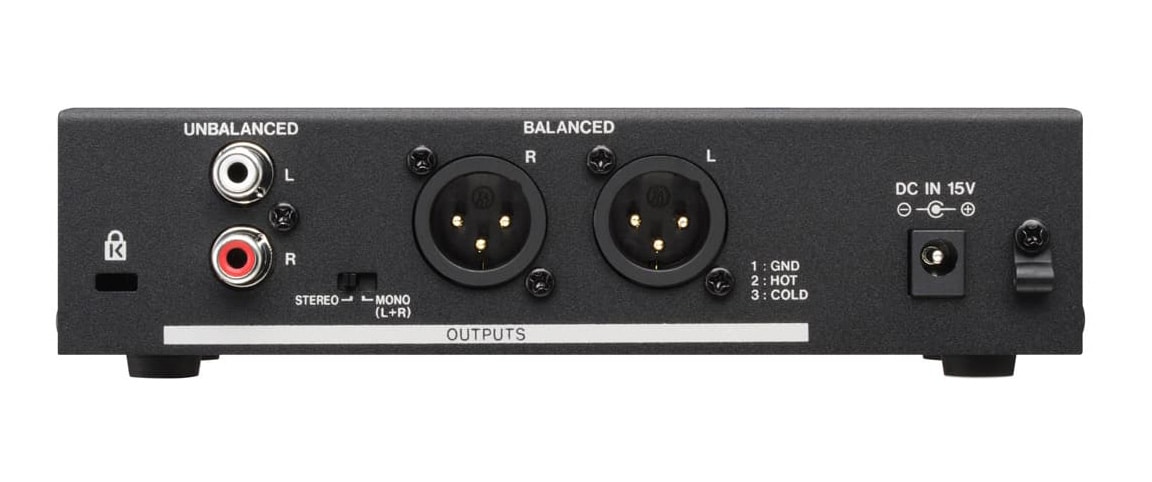

Output
LINE OUT (Unbalanced)
Connector RCA pin jack
Maximum Output Level +6dBV
Nominal Output Level -10dBV
Output Impedance 100Ω or less
LINE OUT (Balanced)
Connector XLR (Balanced) (1: GND, 2: HOT, 3: COLD)
Maximum Output Level +14dBu
Nominal Output Level -2dBu
Output Impedance 200Ω or less
General
Power Supply Dedicated AC Adapter (PS-M1524)
Input Voltage AC 100-240V (50- 60Hz)
Output Voltage: DC15V
Output Current: 2.4A
Operating Temperature: 0°C - 40°C
Operating Humidity: 5% - 85% (non-condensing)
Power Consumption: 1.7W
Dimensions: 171 x 45 x 73 mm (W x H x D, excluding protrusions)
Weight: 530g
Included Items:
RX-BT10 (with Euroblock plug) x 1
AC Adapter (TASCAM PS-M1524) x 1
AC Adapter Cord (JAPAN USA/EUROPE) x 1
Mounting Bracket Kit:
- Brackets x 2
- Mounting Screws x 6
Safety Guide x 1
TASCAM ID Registration Guide x 1

Audio Characteristics
Frequency Response: 20Hz - 20kHz: +0.5dB/-1dB
Distortion (THD+N): 0.04% or less (1kHz, maximum output level)
S/N ratio: 90dB or more (1kHz, 22kHz LPF+A-Weighted)
Channel separation: 100dB or more
