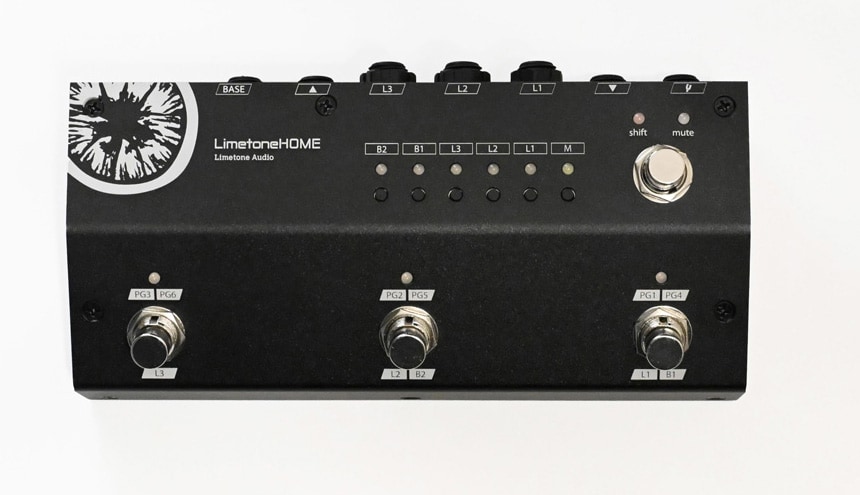

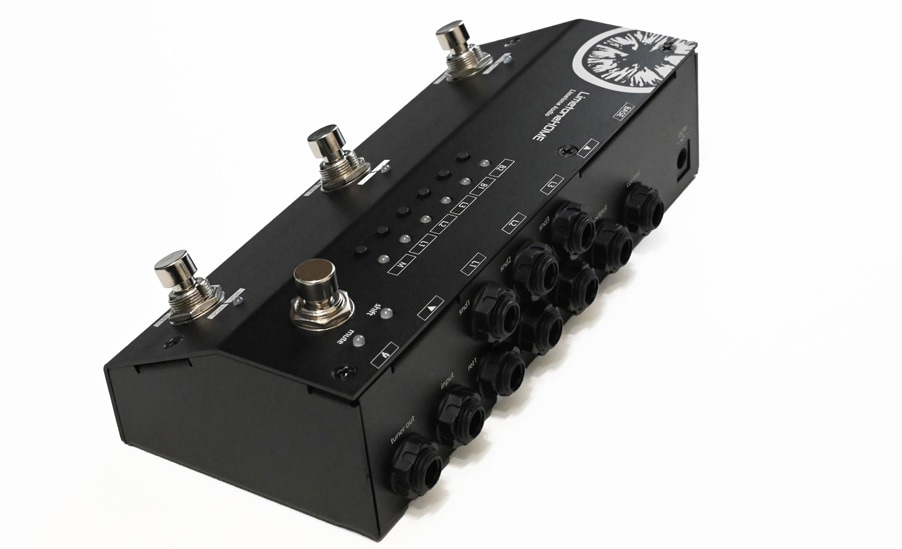

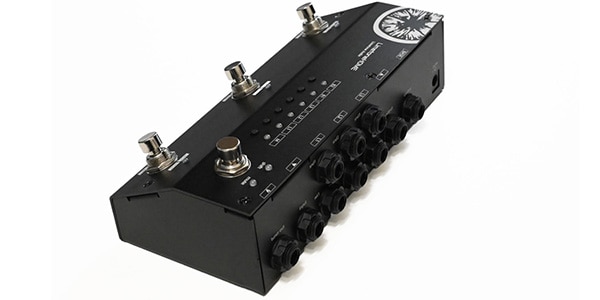

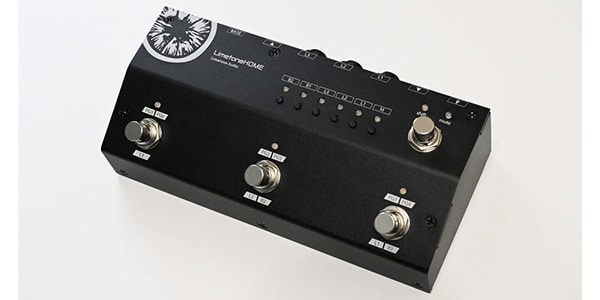

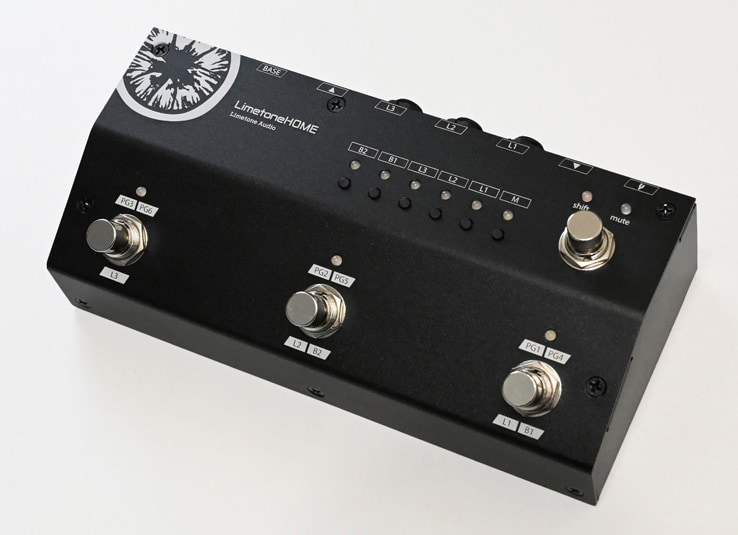

Limetone Audio / LimetoneHOME 3LB

This programmable switcher features three loops. It is non-buffered, minimizes changes in the sound quality of connected effects, and uses carefully selected parts to achieve high-quality signal routing.

By connecting a LimetoneBASE (sold separately) with a TRS cable to the control terminal on the rear panel, you can control a total of five loops (3 + 2) simultaneously while saving space. What's more, the concepts of STORE and SAVE are eliminated; simply selecting a loop with the push switch stores the settings.

Each footswitch has its own hidden mode, and pressing the selected footswitch again will switch to hidden mode. By storing a different setting on the hidden side from the front, you can easily increase the volume by pressing the same switch again to turn on a booster or add a spatial effect.

When combined with the shift function, you can program 12 settings (3 x 2 x 2) and easily switch between them.

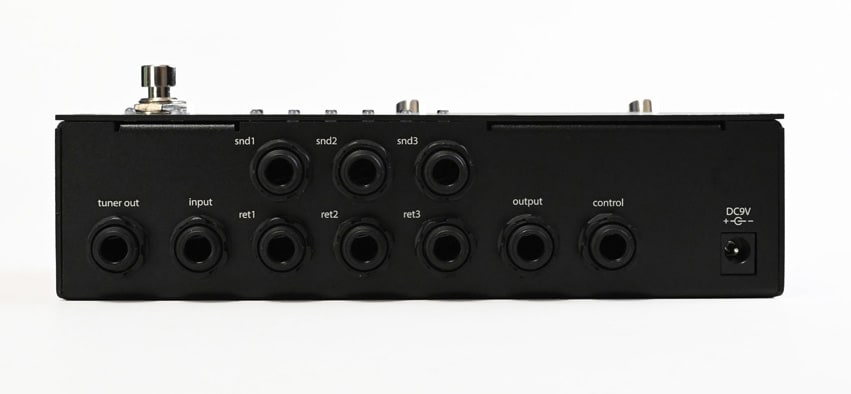

Connection Terminals: Input, Tuner Out, Send 1, Return 1, Send 2, Return 2, Send 3, Return 3, Output, Control, DC9V In
Accessories: Instruction Manual, Warranty Card
Dimensions: Width (W) 183 mm, Depth (D) 90 mm, Height (H) 58 mm (including protrusions)
Weight: 452 g
Current Consumption: Max. 300 mA
