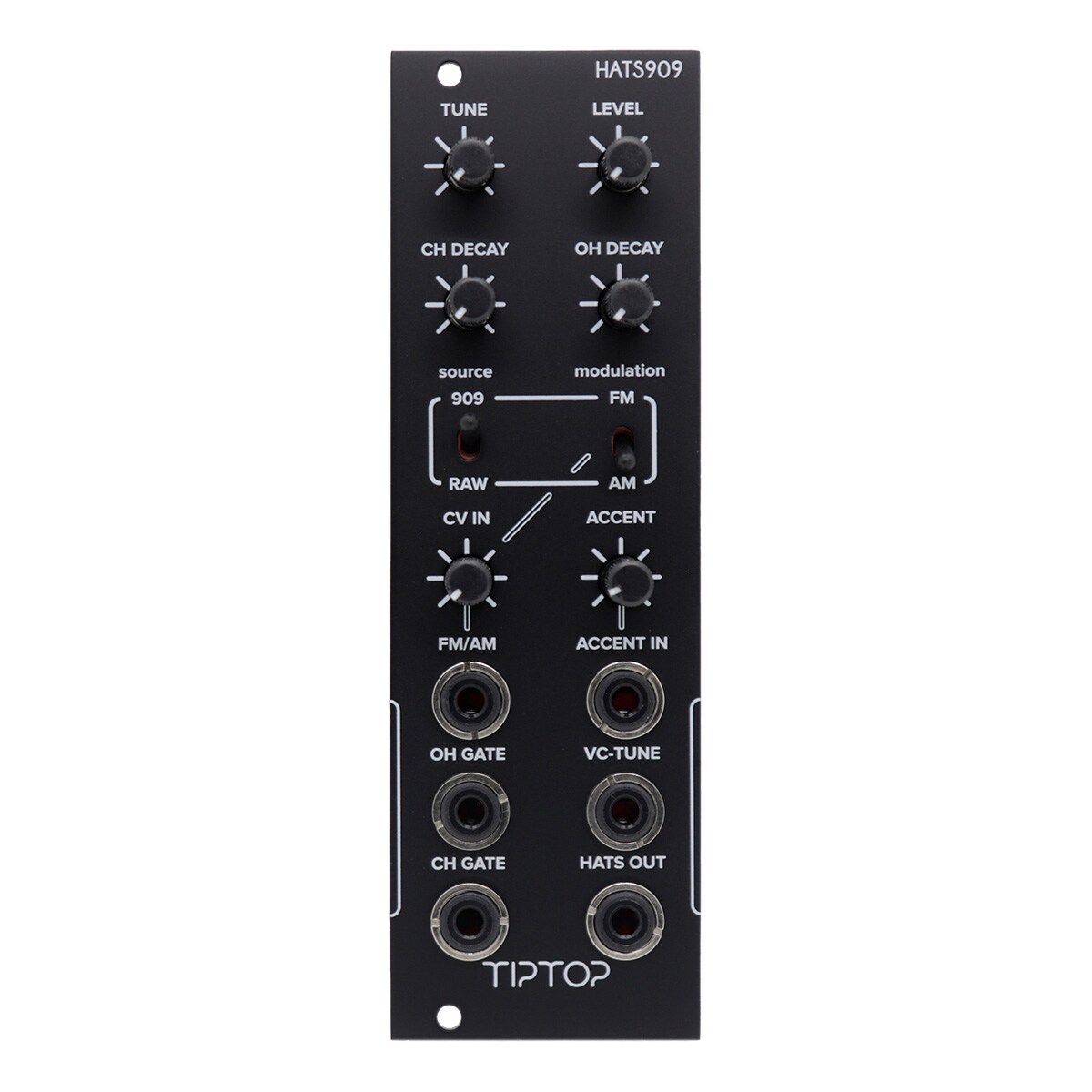

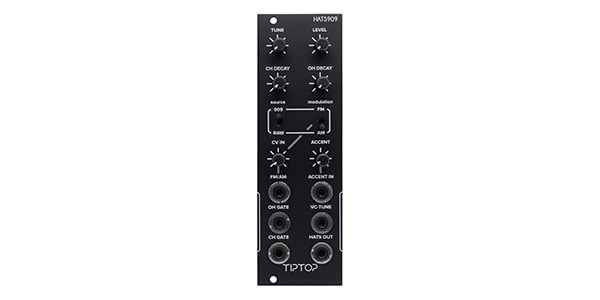

Tiptop Audio / 909-HATS Black

The HATS909 is a module that faithfully reproduces the hi-hat of the TR-909.

The oscillator section uses lo-fi 6-bit samples like the original, and Tune and Decay can be adjusted manually, and Tune can be controlled by an external CV. The Tune can also be controlled by an external CV.
The source switch can be toggled to output only lo-fi 6-bit samples. The internal analog circuitry can be bypassed and used as a sound source for processing with other modules.

Width 8HP
Depth 36mm
Current consumption +12V : 33mA
-12V : 22mA
