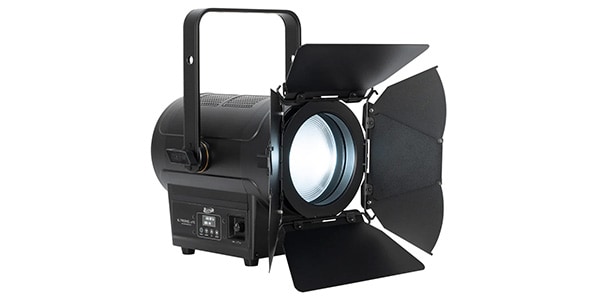

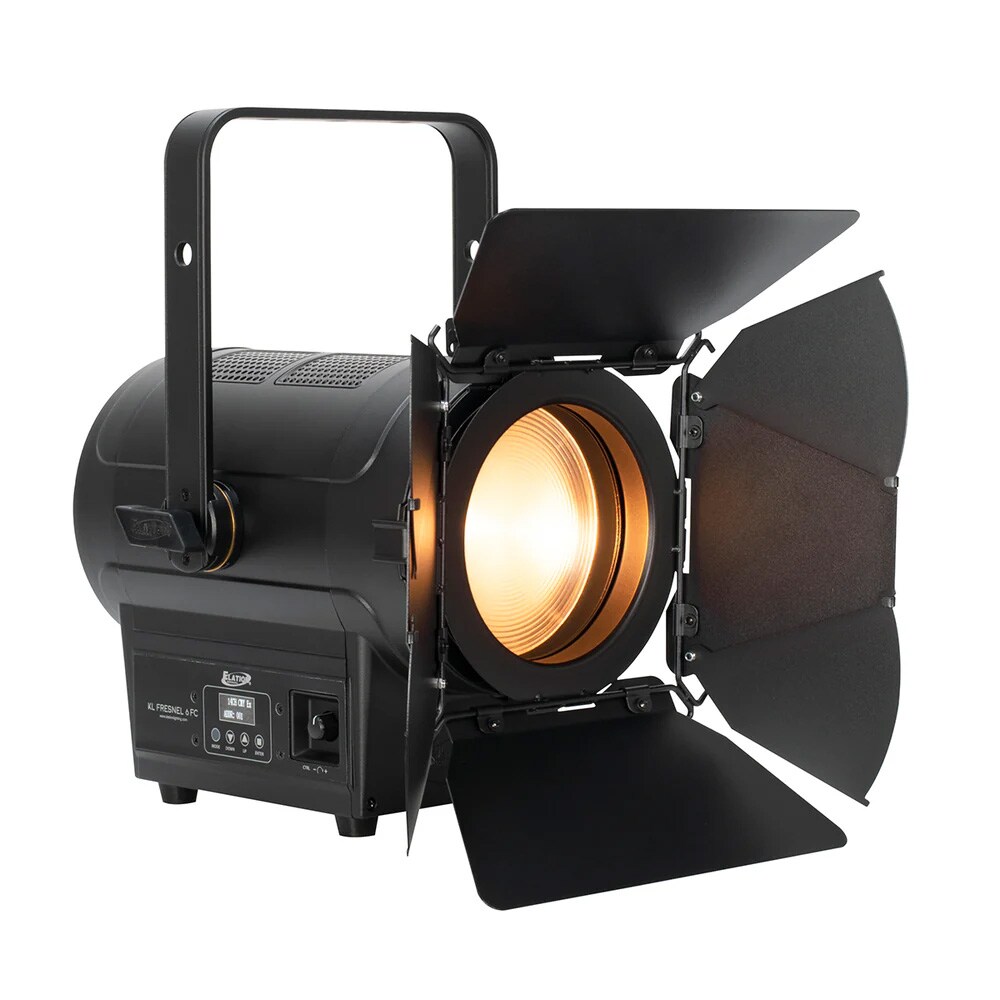

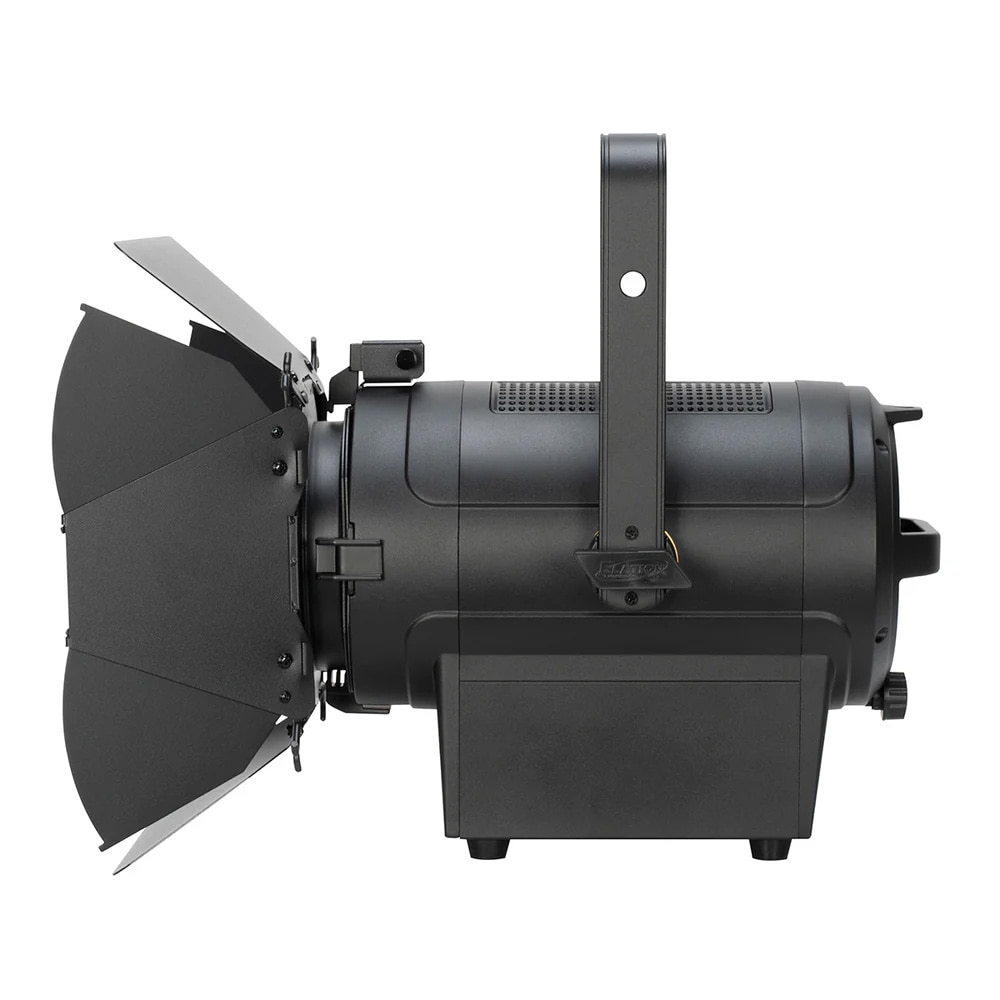

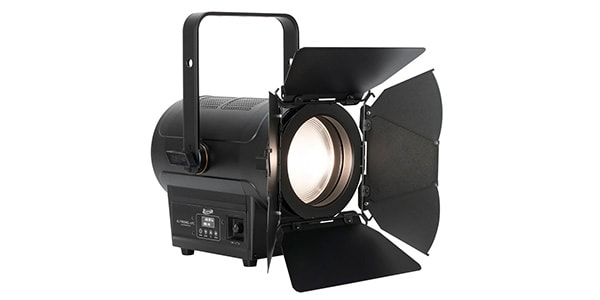

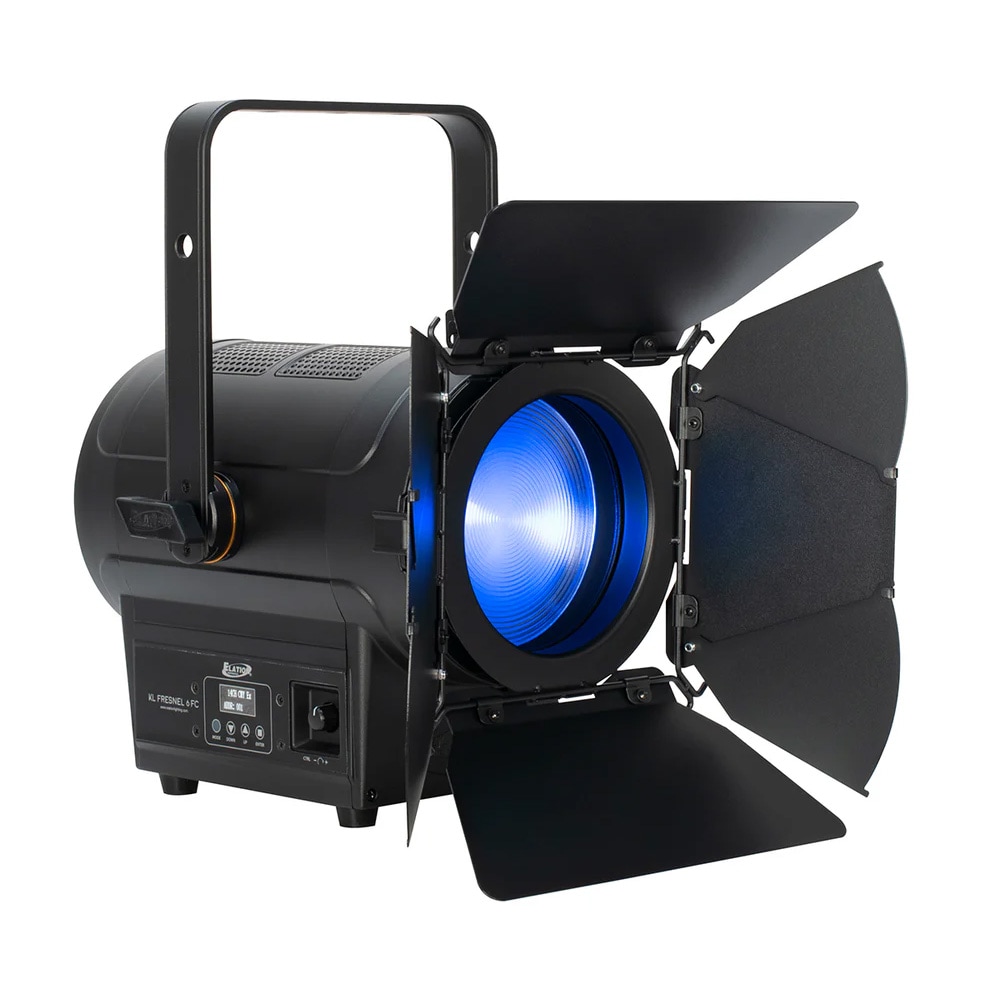

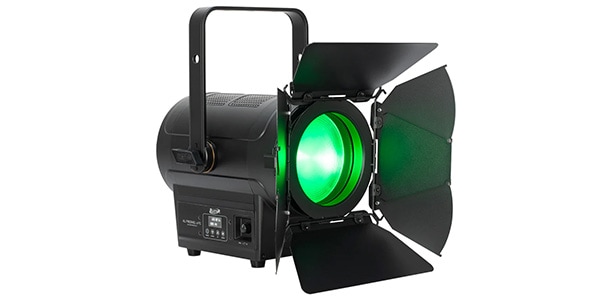

ELATION / KL Fresnel 6 FC

The KL Fresnel 6 FC is a high‑performance 220W‑class LED Fresnel spotlight equipped with full‑color RGBMA LEDs. It delivers smooth color reproduction and the soft, distinctive beam quality of a Fresnel lens, making it ideal for stage, studio, and event lighting. With excellent color rendering and a quiet operating design, it is a reliable choice for professional environments.

■ SOURCE
- 220W 6500K RGBMA LED engine
- Average LED lifetime: 50,000 hours*
*Lifetime may vary depending on environmental conditions, power/voltage, usage patterns (on/off cycling), and control or dimming methods.

■ PHOTOMETRIC DATA
- Total luminous flux: 7200 lumens
- CRI: 92.5
- Zoom range: 10 - 32 degrees
- Beam angle: 9.7 - 32.2 degrees
- Field angle: 18.7 - 49.3 degrees

■ EFFECTS
- Manual zoom
- Electronic dimmer and strobe
- Variable 16-bit dimming modes and curves

■ COLOR

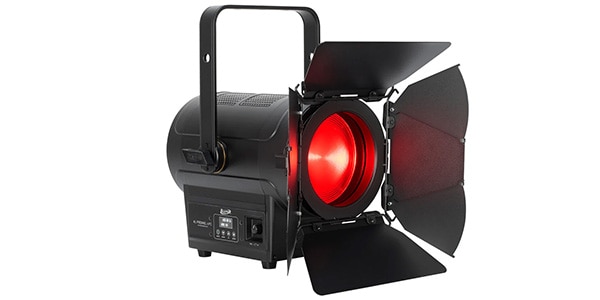

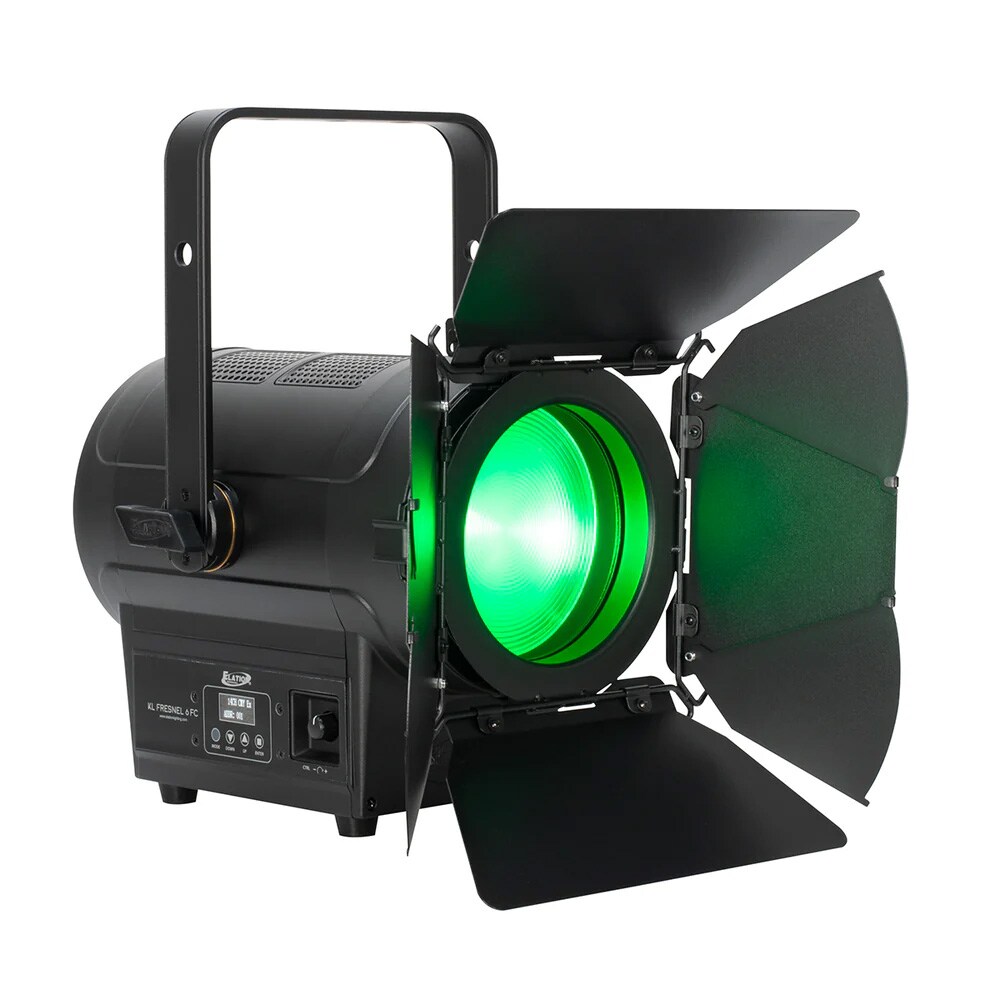

- RGBMA color array
- CMY emulation
- Variable CCT: 2400K - 8500K
- Green/Magenta shift
- Virtual gel swatch book

■ CONTROL / CONNECTIONS
- 6 DMX channel modes (1 - 18ch)
- Manual and DMX control of dimming, color, and zoom
- Direct-access encoder

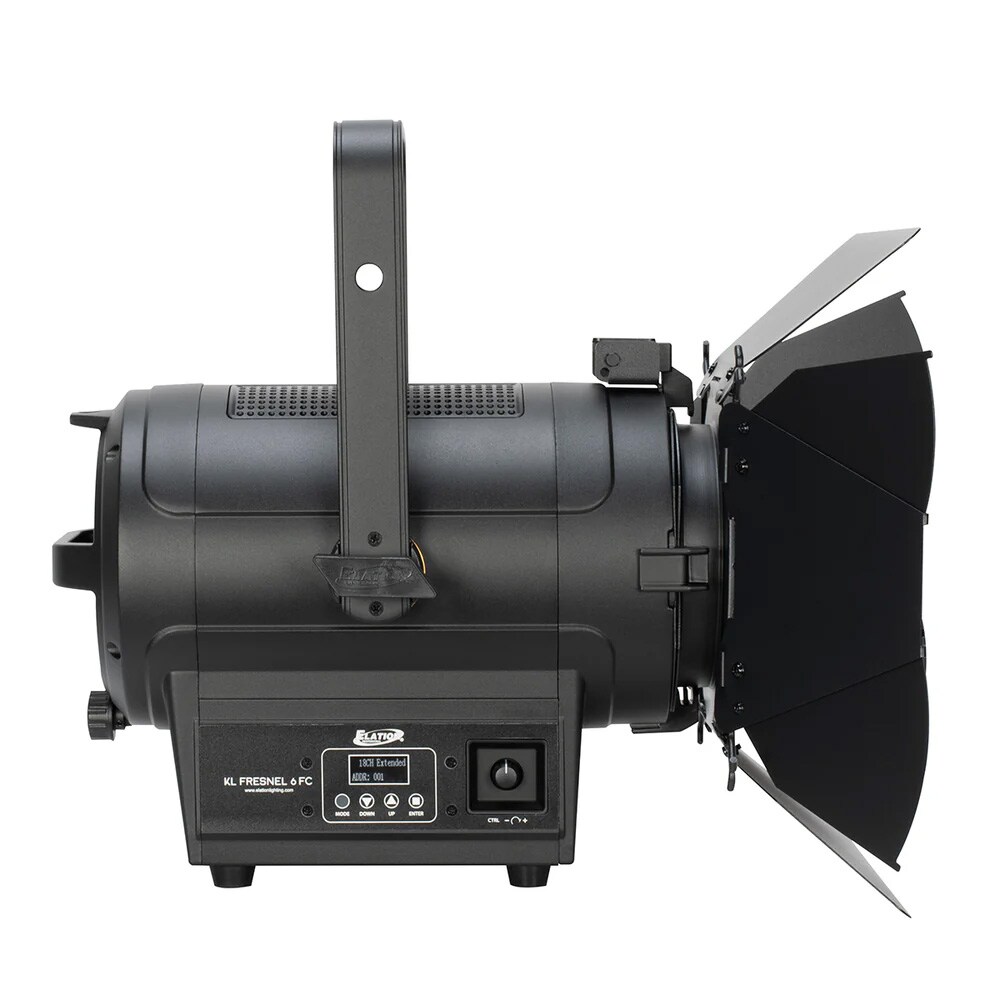

- Button control panel with LED display
- RDM (Remote Device Management) support

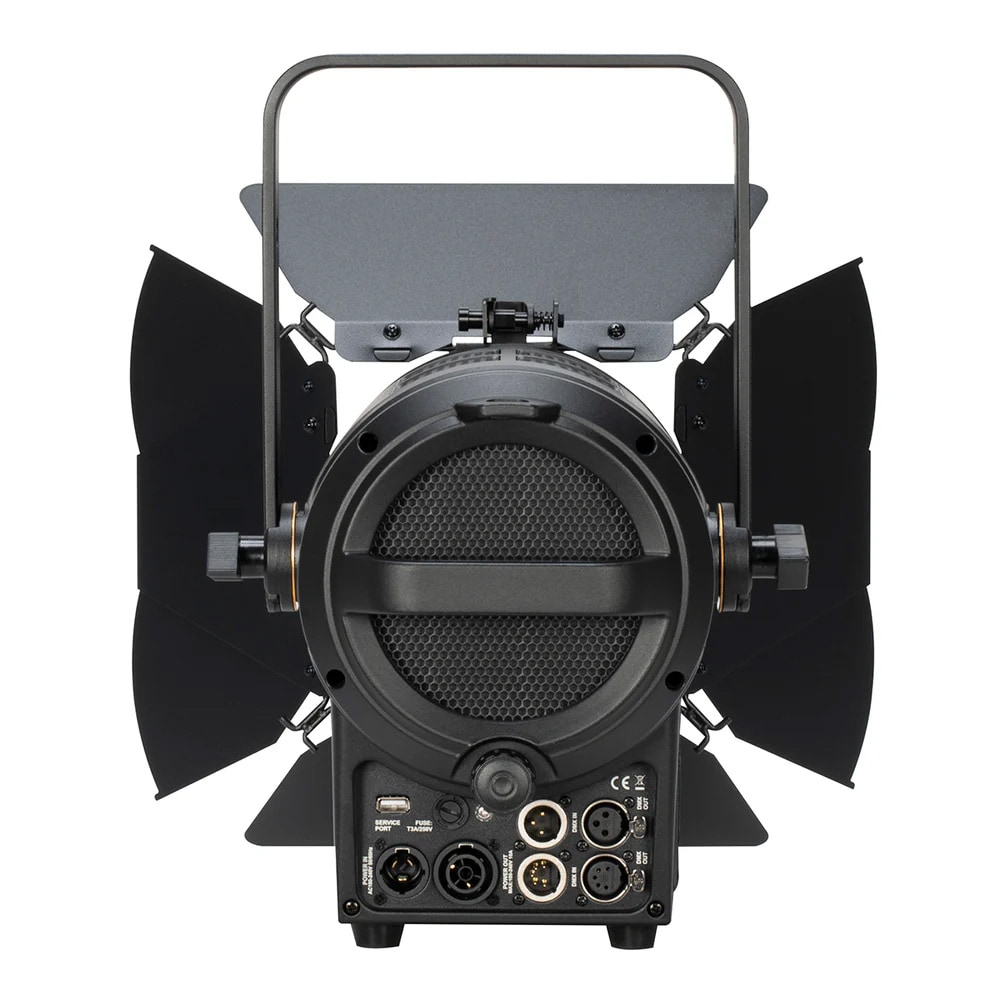

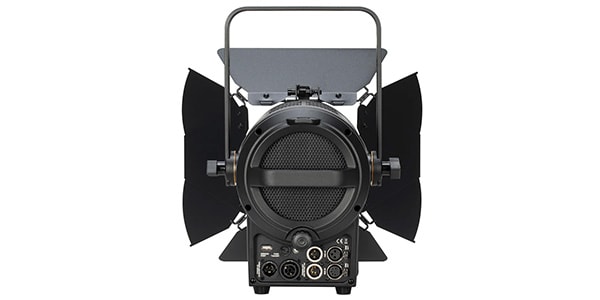

- 3-pin / 5-pin DMX, IP65 locking power In/Out

■ SIZE / WEIGHT
- Length: 13.5 in (344 mm)
- Width: 11 in (280.6 mm)
- Height: 23 in (584 mm)
- Weight: 18.5 lbs (8.4 kg)

■ ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- Maximum power consumption: 219W
- Power thru capacity: 11A (5 units @110V, 12 units @240V)
- Operating temperature: 5F - 113F (-15C - 45C)
- Heat output: 746.79 BTU/hr (+/- 10%)

■ INCLUDED ITEMS
- Gel frame and rotating 8-leaf barndoor
- Junior pin (1 1/8 in - 28 mm)
- IP65 locking power cable

■ APPROVALS / RATINGS
- CE / cETLus / IP20
