audio technica / ATCSP7

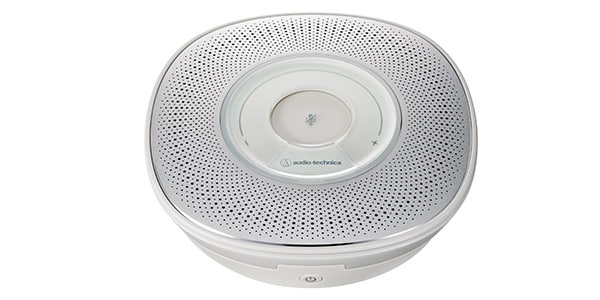

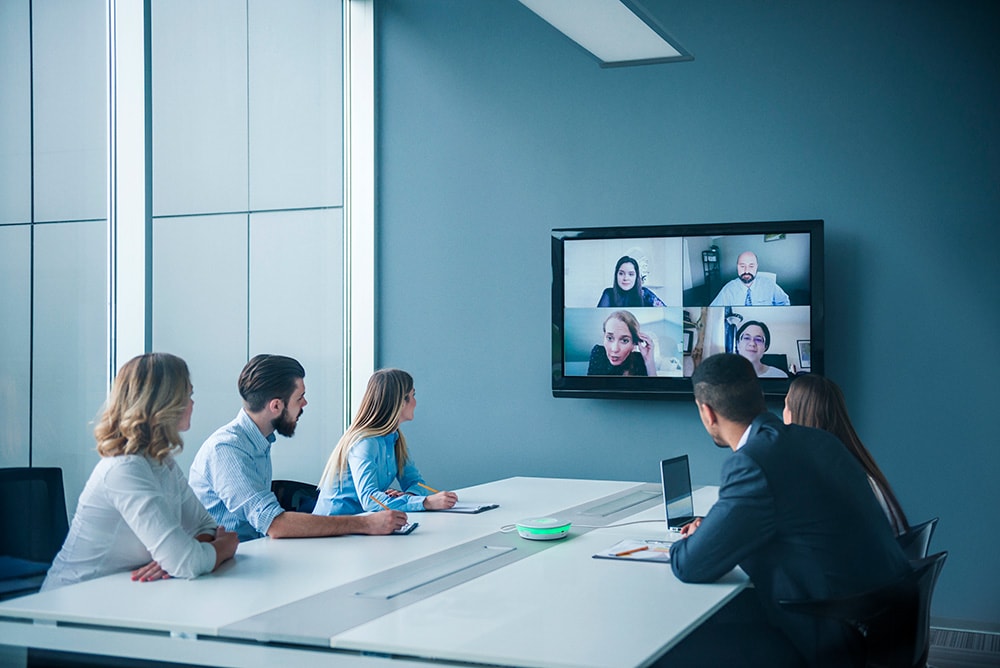

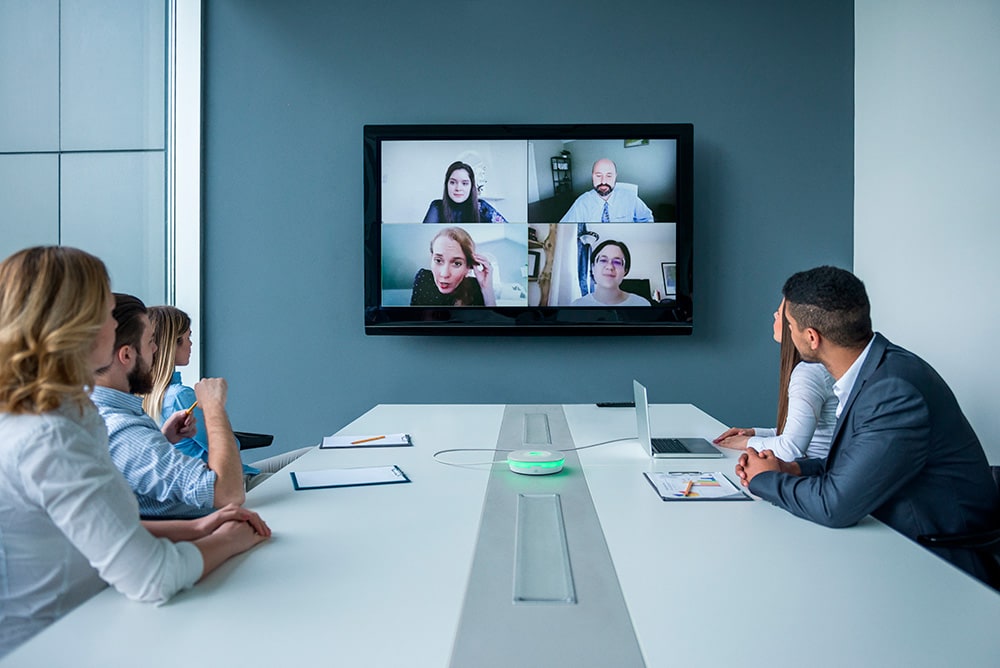

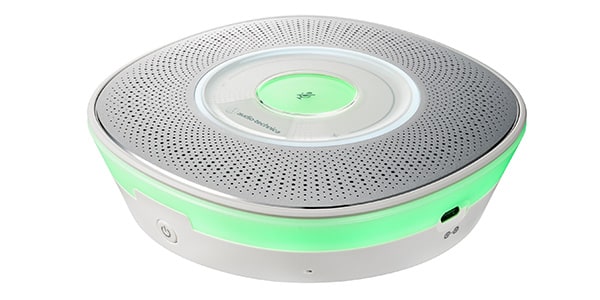

The audio technica/AT-CSP7 is a speakerphone that allows clear communication in any room, from small rooms to large conference rooms.

■USB Speakerphone

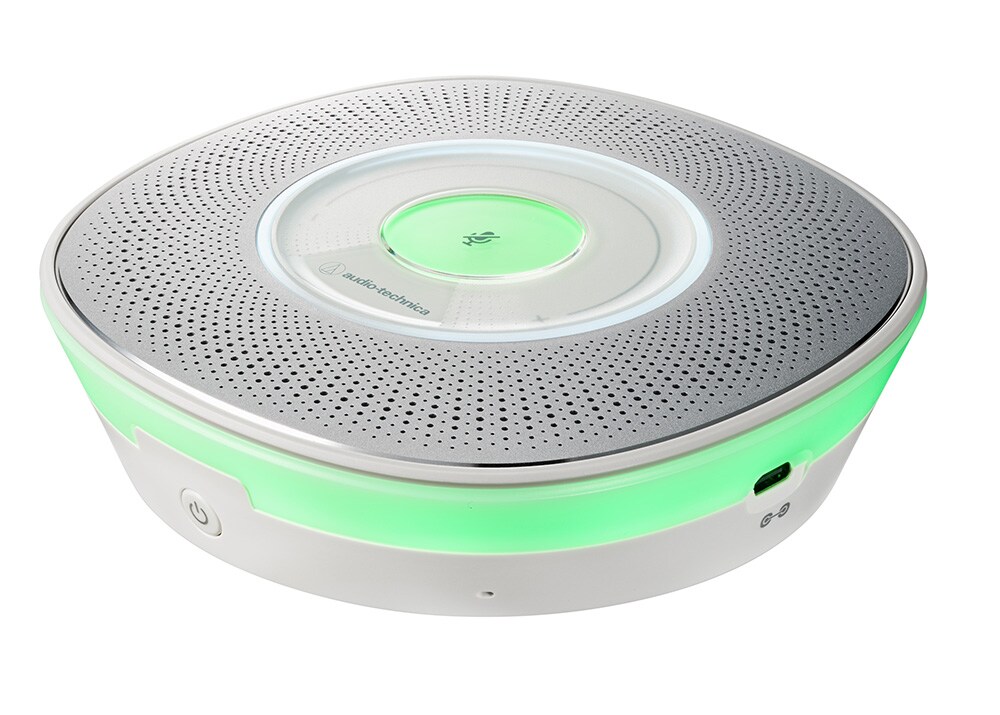

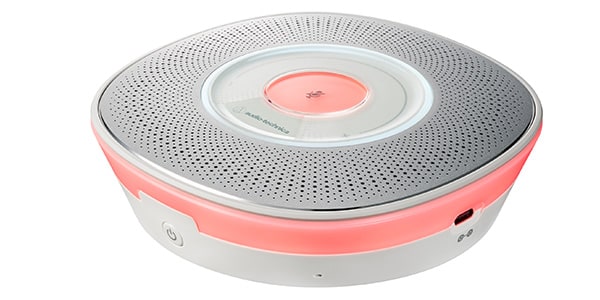

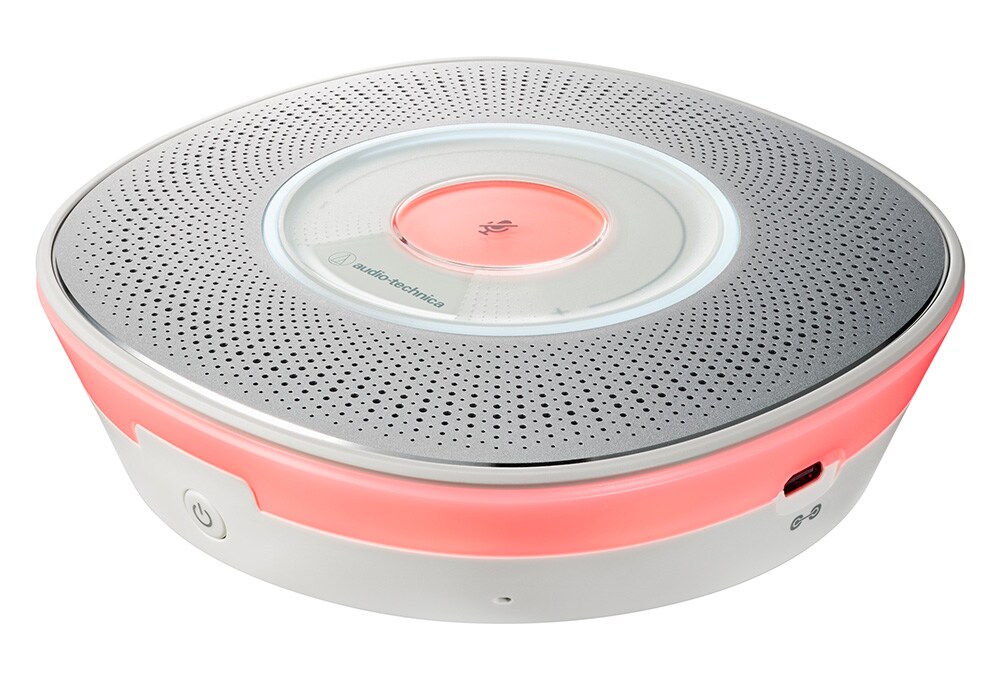

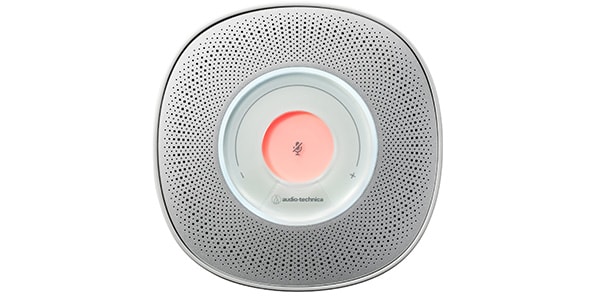

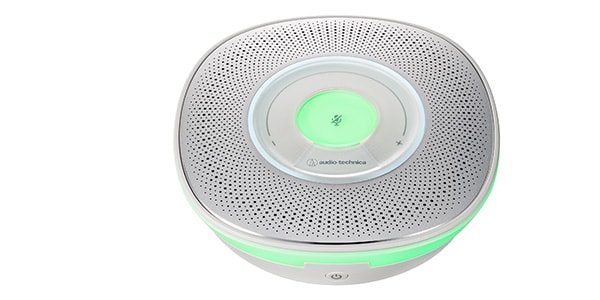

■The mute status is always displayed on the top panel and omnidirectional LED on the side.

All members actively participating in the meeting can visually see the mute on/off status. This makes it easy to know when to speak, ensuring the meeting proceeds smoothly.

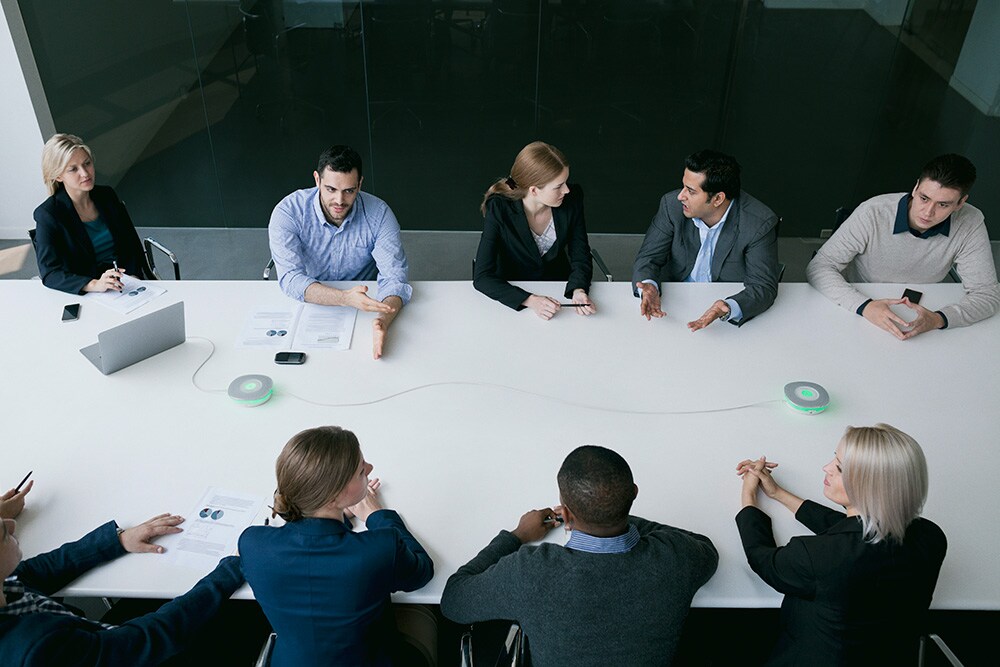

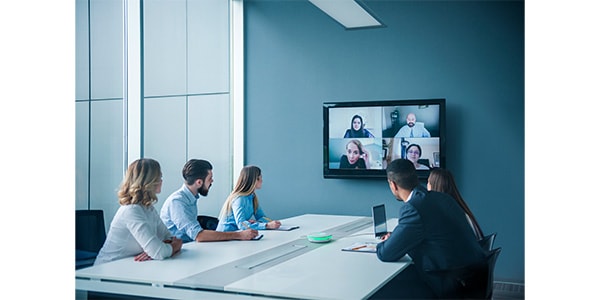

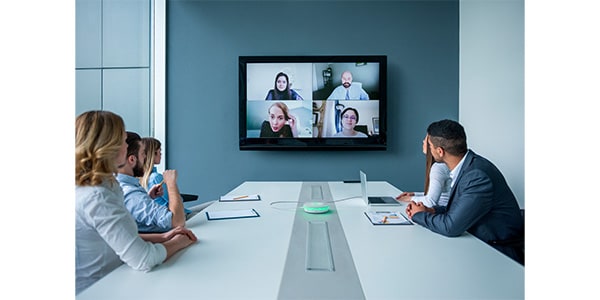

■Connect two units together to accommodate meetings with up to 12 people.
The recommended distance is within a 1m radius (maximum 2m), and the recommended maximum number of participants is 6. By connecting two units together, up to 12 people can be used simultaneously. Not only can you speak without raising your voice even in a large conference room, but you can also be heard clearly from any seat.

To connect two units together, you will need to purchase two units.

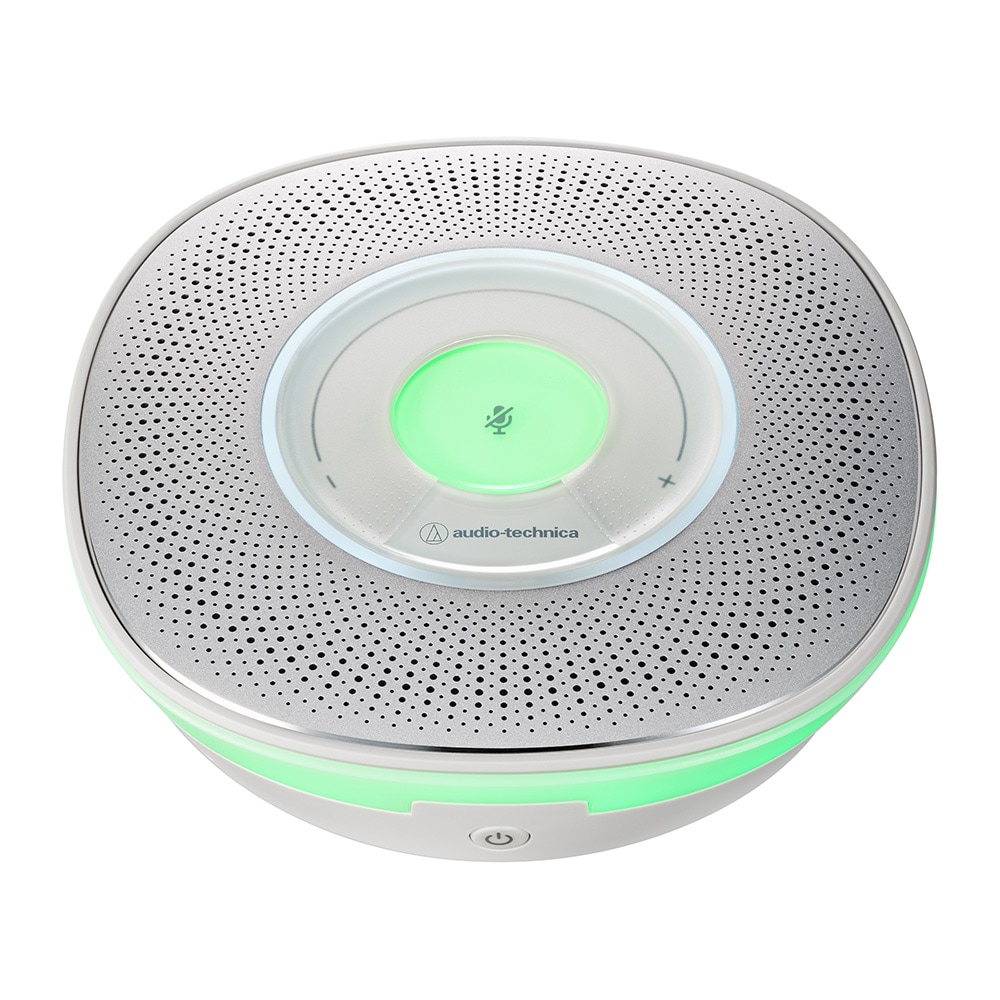

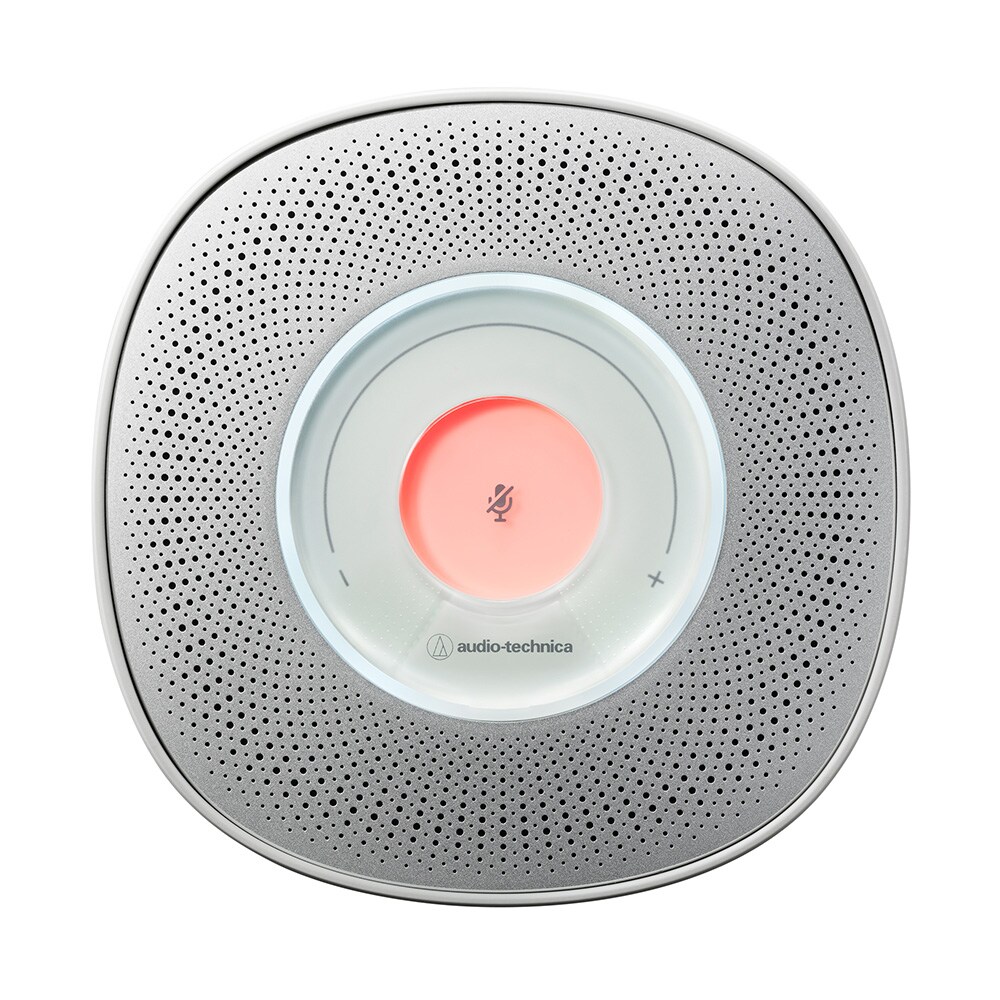

■Large, reliable mute switch panel
The mute operation is one of the most frequently used speakerphone controls. A large panel is used for reliable operation. You can quickly switch mute without making a mistake during the meeting. When using two units together, the base unit and handset will automatically mute in tandem.

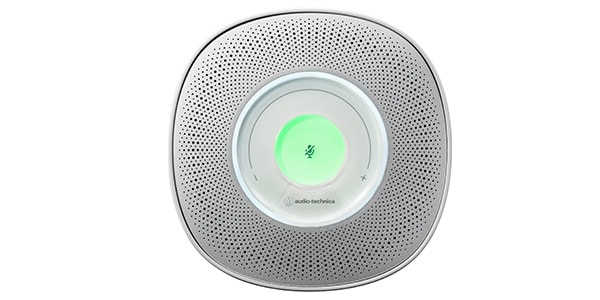

■ Adjust the volume by simply tracing the periphery of the mute panel.
The current volume level is displayed on the LED indicator on the top panel. You can also adjust the volume by simply tracing the periphery of the mute panel.

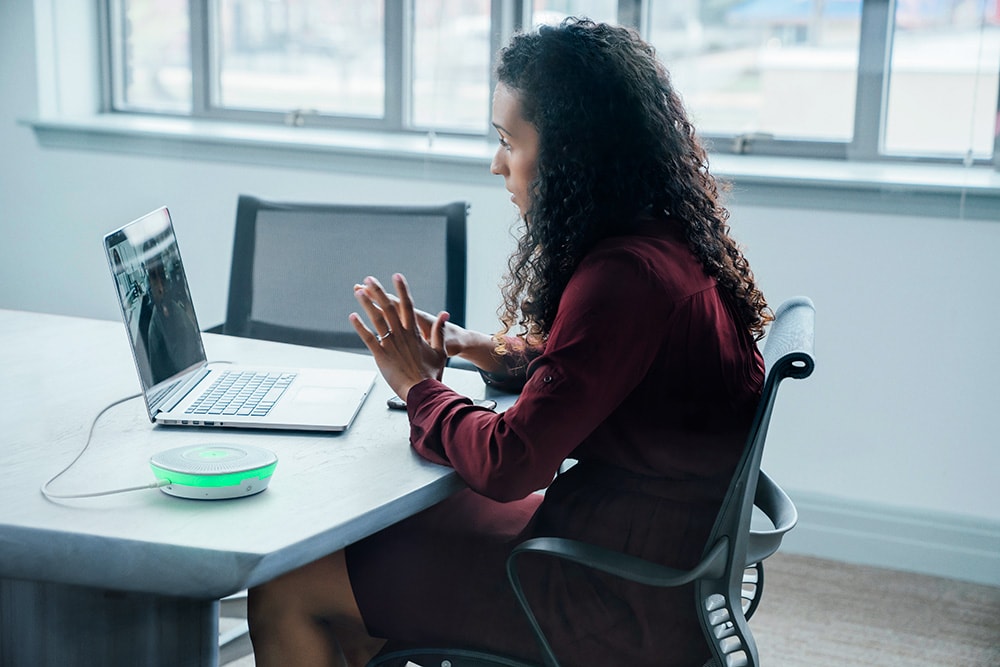

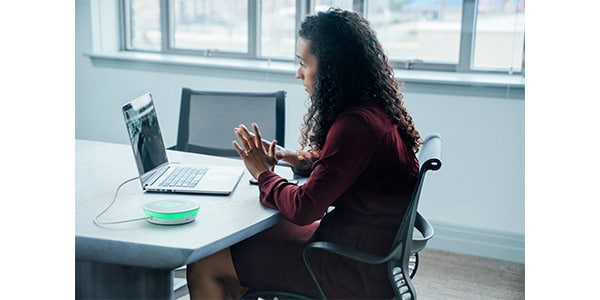

■ Simply connect to a PC for instant, easy use.
Compatible with USB Type-A and USB Type-C. Simply connect to your device via USB for plug-and-play convenience, allowing you to start making calls right away. It can also be used with both Windows and Mac.
■ Uniquely tuned microphone sound quality design
■ High-output speaker design ensures clear audio and prevents missed calls
■ Beamforming microphone quickly recognizes and automatically tracks the speaker
■ Noise reduction suppresses unwanted background noise and delivers the speaker's voice
■ Auto gain control automatically adjusts voice volume to a consistent level regardless of seating position
■ Echo cancellation suppresses reverberation and enhances voice clarity

■ Technical Data
Type (Amplifier/Speaker Section) Built-in amplifier speaker system
Speaker Unit φ44mm/Full-range
Output Pressure Level 82dBSPL±3dB
Reproduction Frequency Range 150-15,000Hz
Maximum Output Power 1W (using USB Type-A cable)
2W (using USB Type-C cable)
Impedance 3Ω
Type (Microphone Section) MEMS
Directivity Omnidirectional
Sensitivity -26dB (0dB=1V/Pa, 1kHz)
Frequency Range: 60-7,000Hz
Required System: USB 2.0
Supported OS: Windows 10, Windows 11
macOS Monterey, macOS Ventura, macOS Sonoma
Bit Depth: Up to 16-bit
Supported Sampling Frequency: 48kHz
Power Supply: USB power supply (DC 5V)
Interface Port: USB Type-C jack
Dimensions: 135mm x 135mm x 38mm (W x D x H)
Weight: Approximately 290g
Operating Temperature Range: 5°C-40°C

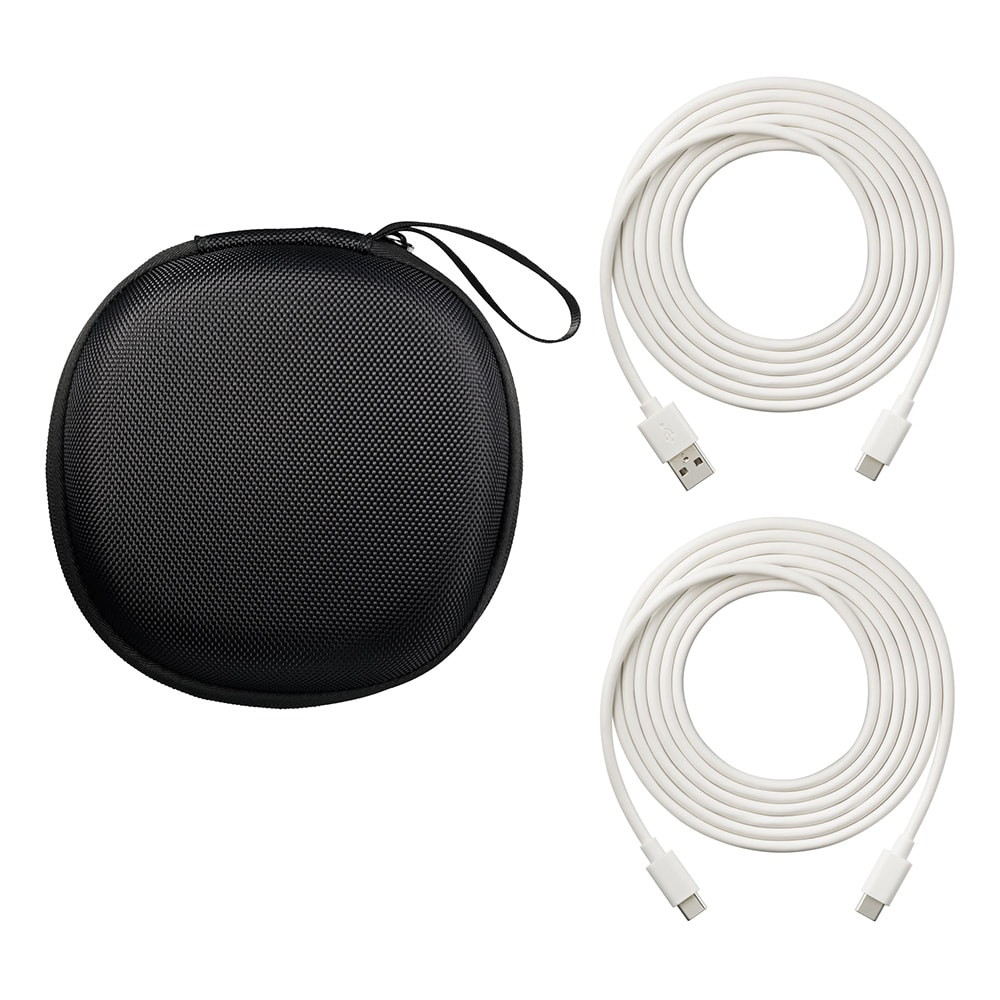

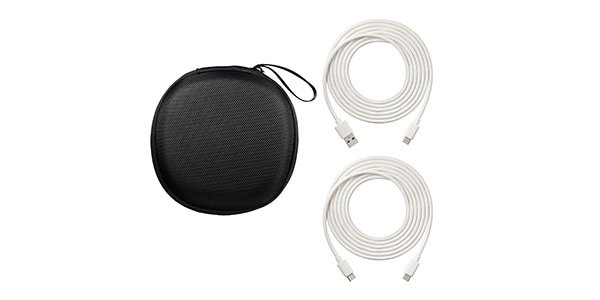

Accessories: USB cable (2.0m, USB Type-A to USB Type-C)

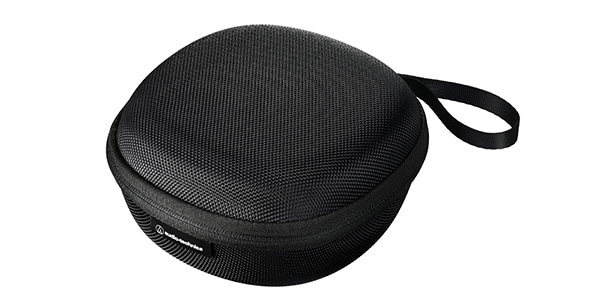

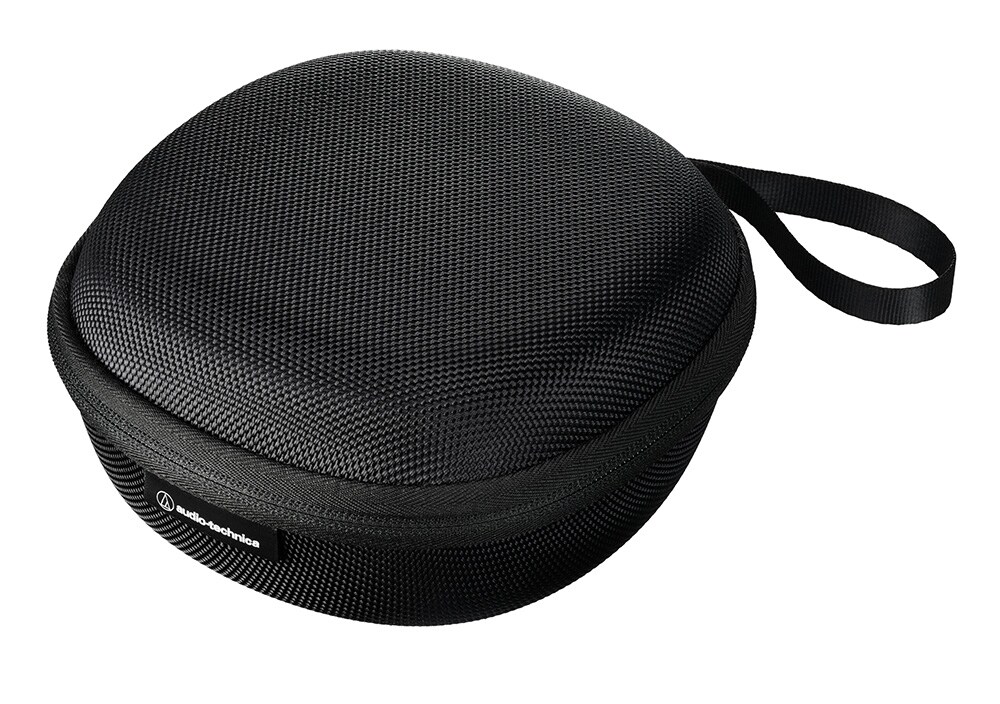

Case
