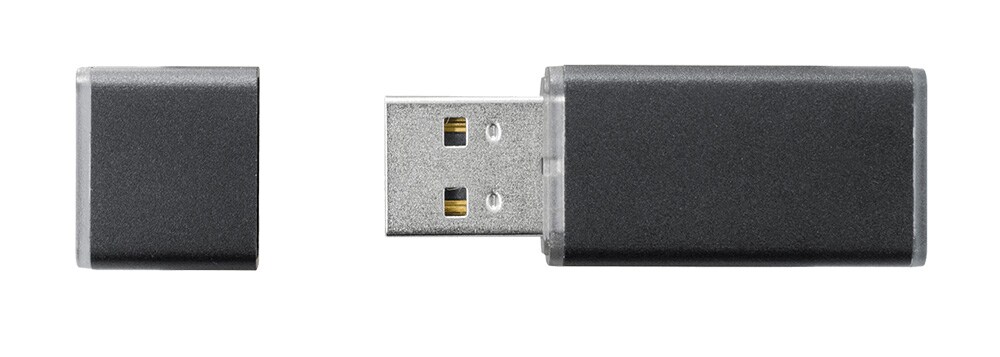

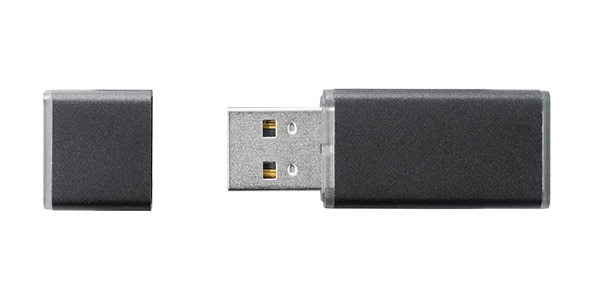

GREEN HOUSE / GH-UFI-XSE256

This is an industrial USB memory that uses an SLC chip and can be used in a wide range of embedded devices.

■Industrial USB3.2 Gen1 memory 256MB
■Standard: USB3.2 Gen1/USB2.0/USB1.1
■NAND flash type: SLC
■Data transfer speed (actual measurement):
[256MB] Maximum 30.6MB/sec (read), maximum 9.1MB/sec (write)
■Data transfer speed (specification value):
[256MB] Maximum 30.8MB/sec (read), maximum 9.6MB/sec (write)
■Shock resistance: 1500G, 0.5ms, 3 axes
■Vibration resistance: 20G, 80Hz to 2KHz, 3 axes
■Long life design
ECC function: Up to 72 bit error correction possible for every 1024 Byte
Write distribution: Static wear leveling function
ESD: ±4KV (metal terminal part)
bad block management
■Power supply voltage: 5V±10%
■Current consumption: 141mA (maximum)
■Operating temperature range: -40℃~+85℃
■Operating humidity range: 10% to 95% (no condensation)
■Storage temperature range: -50℃~+95℃
■Storage humidity range: 10% to 95% (no condensation)
■Weight
Without cap: approx. 7.3g
With cap: approx. 10g
■SIZE:
Without cap: W32.0(W)x7.8(H)x17.2(D)mm
With cap: 47.2(W)x7.8(H)x17.2(D)mm
■Warranty period: Manufacturer's warranty 3 years



■Warranty period: This product only comes with a 1-year manufacturer's warranty.
*Please check the product page on the manufacturer's website for details/terms of use (excerpt) of the data recovery service.
*This product is a made-to-order product, so once your order is confirmed, we cannot accept cancellations or changes for any reason. When placing an order, please be sure to inquire about the delivery date in advance.
