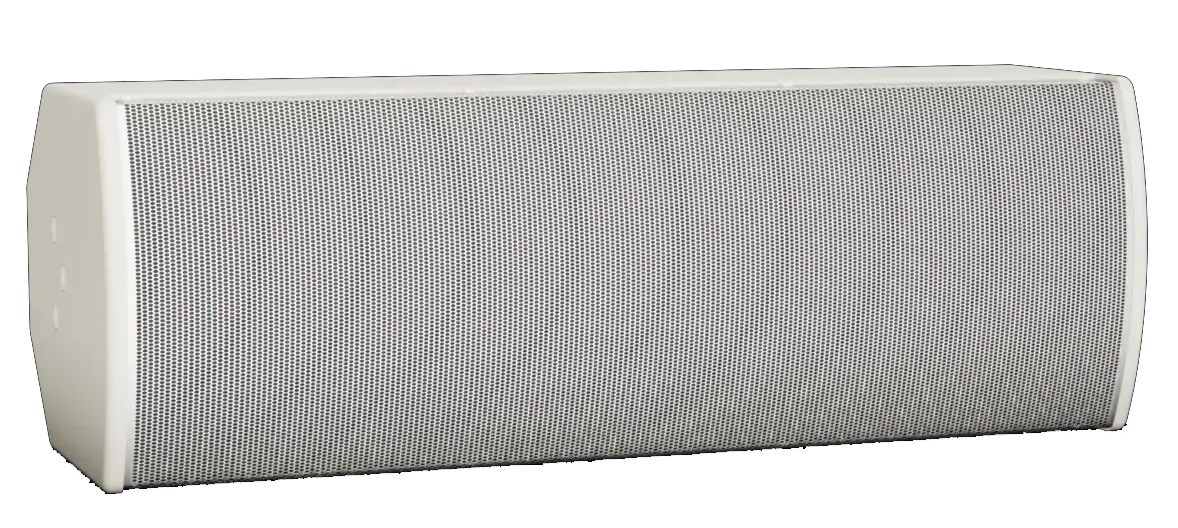

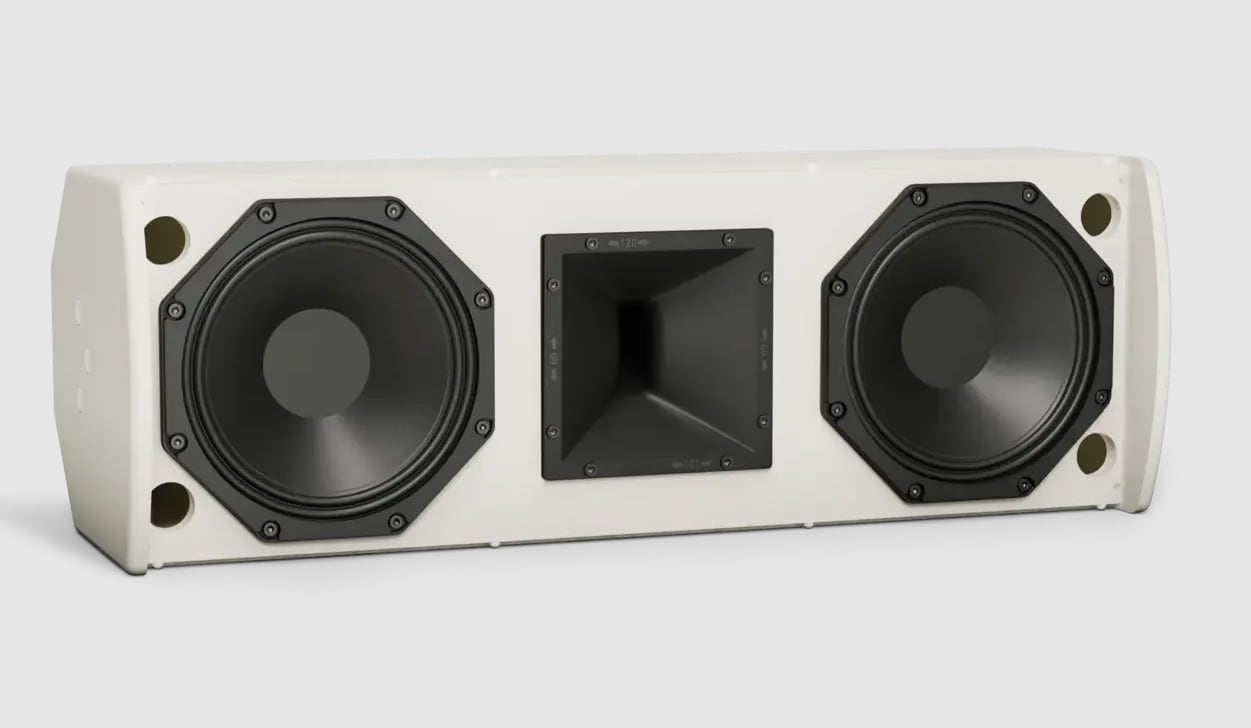

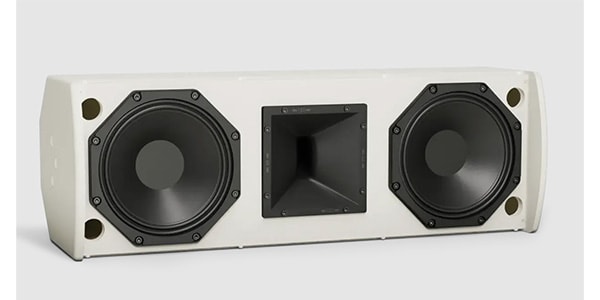

BOSE / ArenaMatch AMU208-120W

The BOSE/AMU208-120 features high output, rich full-range sound, and outstanding vocal clarity. The built-in 70/100V transformer is equipped with a bypass switch for live SR. The rotary 120° x 60° constant directivity high-frequency horn, 80 Hz to 16 kHz frequency response, and 127 dB maximum sound pressure level provide wide and even coverage, enhancing output and supporting low-frequency extension.

■Wall-mounted speaker
■300W
■8Ω/100V/70V compatible
■White
■1 bottle

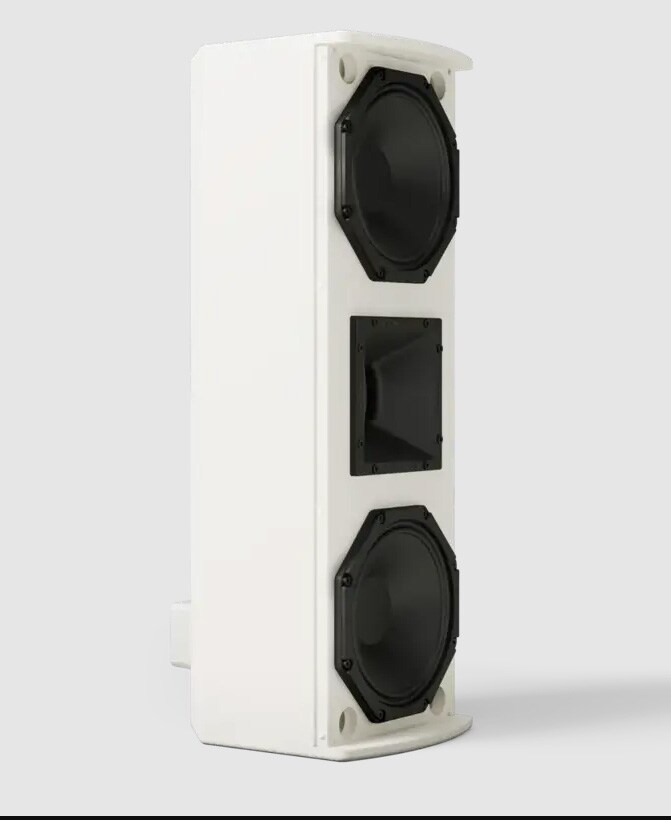

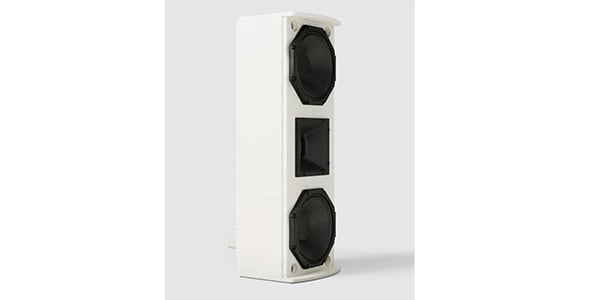

■2-way transducer configuration: Equipped with a high excursion woofer and high frequency compression driver, enhanced with an optimized filter and passive crossover.

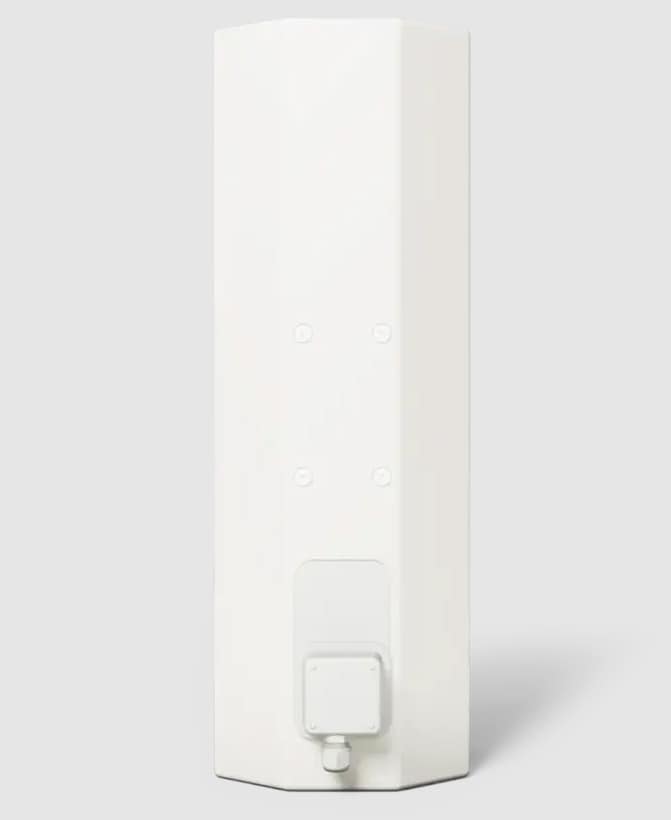

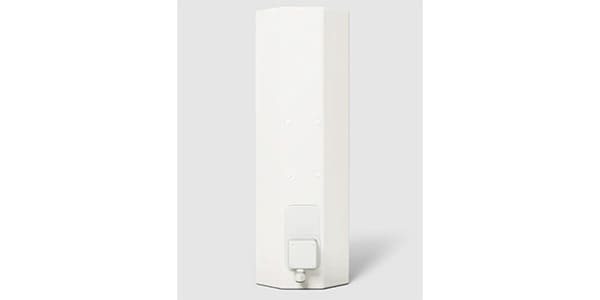

■IP55 compliant weather resistance: Equipped with a 3-layer stainless steel grille, waterproof woofer, industrial polyurethane exterior coating, and a molded cover to protect the input terminals.

■All-weather sealing: 70/100V transformer equipped with tap setting switch and 8Ω bypass inside.

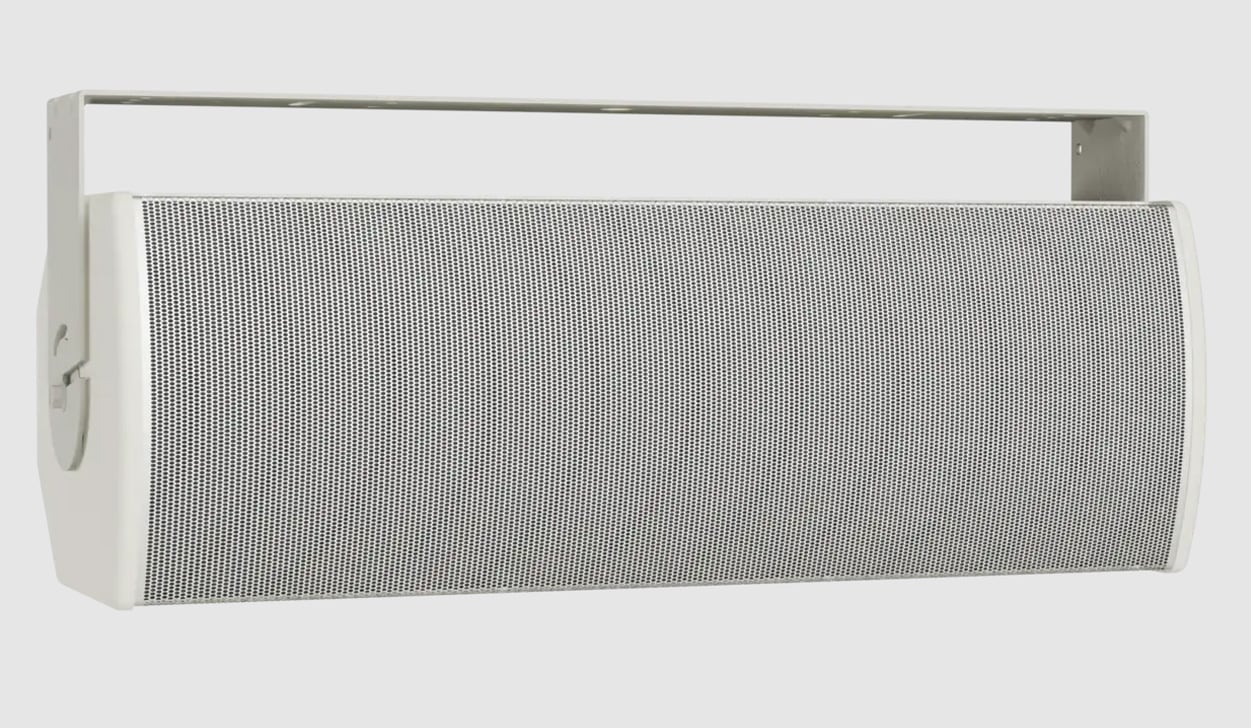

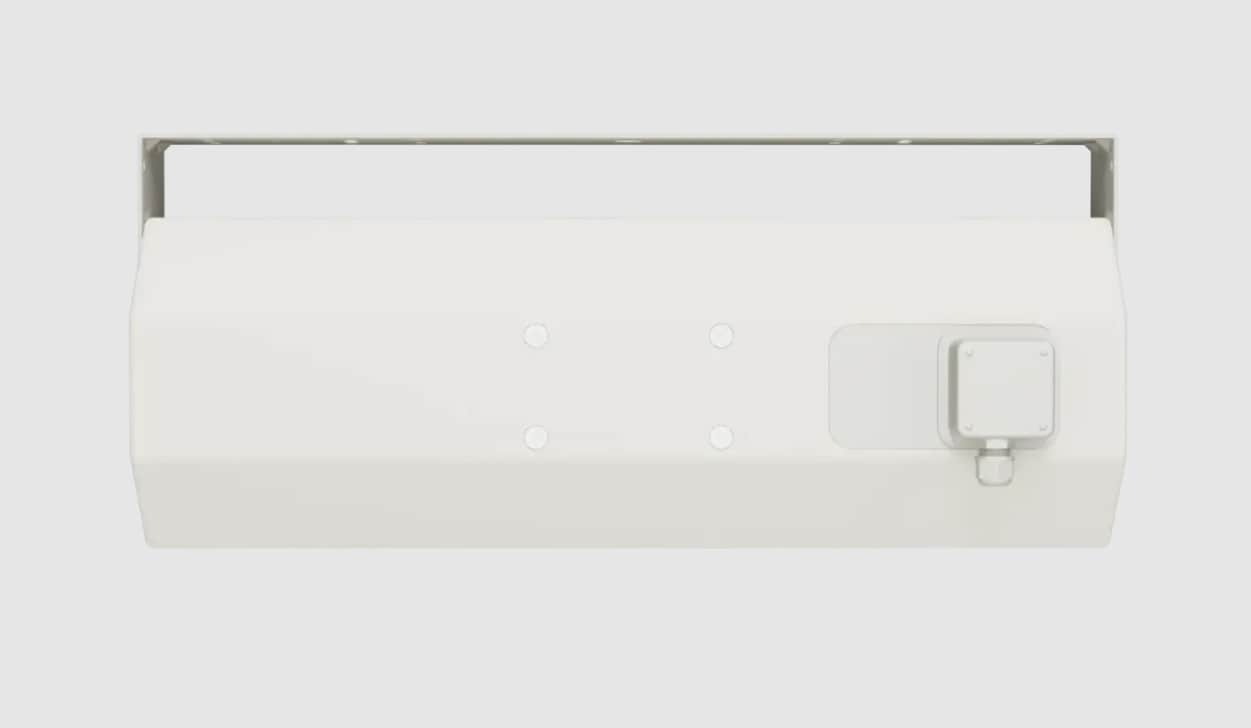

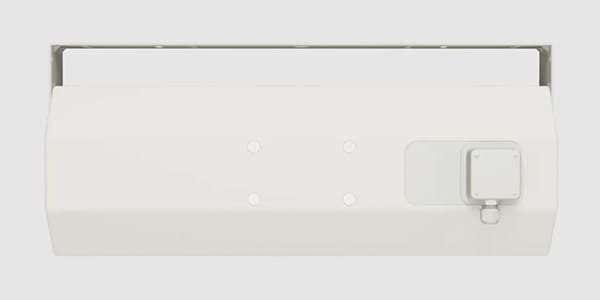

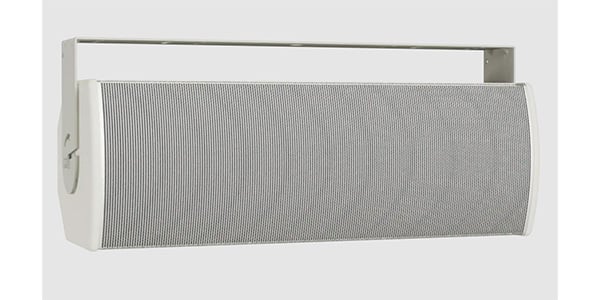

■Stainless steel U bracket: M8 screw hole on the back panel, compatible with third-party accessory mounting brackets.

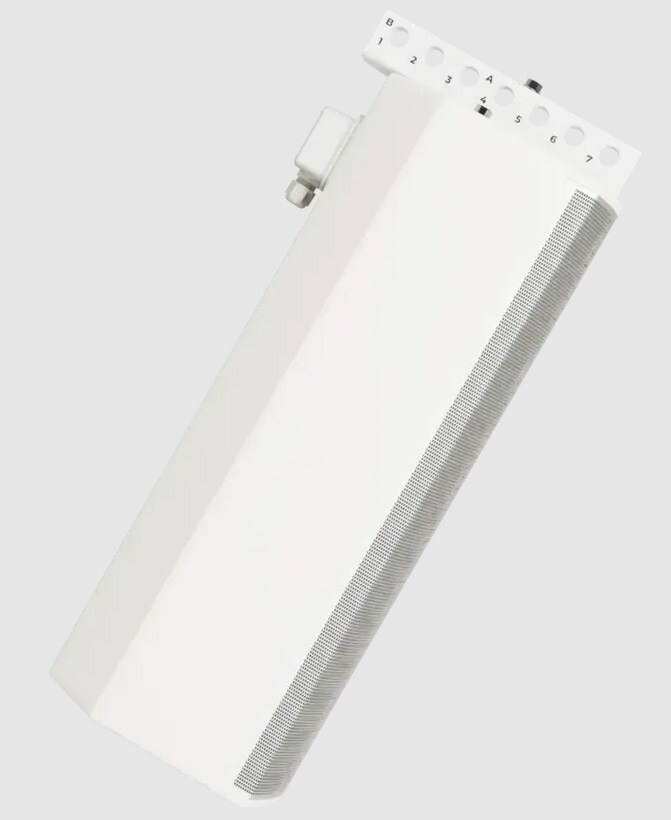

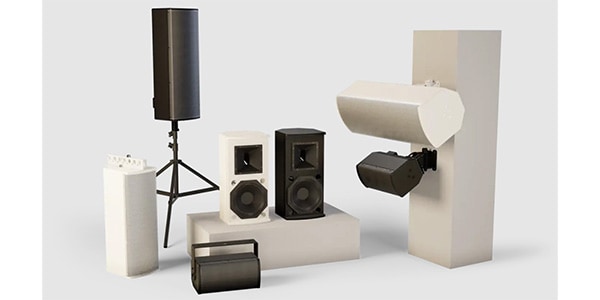

■Compatible accessories: Exposed pan/tilt bracket, single point suspension bracket with multi-angle mounting points, portable external pole adapter

■Compact cabinet structure: Comes with suspension points with anti-rust finish.

■Preset speaker presets: Available in combination with Bose Professional amplifiers and processors.

■Simple installation: By using Bose Professional equipment and speakers, configuration and operation are much simpler and faster.

■In-stock products: No special orders or additional charges required.

■Choose from black or white finish: Choose the color that matches the design of your project.


Bar, energetic restaurant
fitness
large hall
Small and medium-sized places of worship
Gathering area/shared space where live performances are held
Indoor entertainment, sports and activity center
Multipurpose hall
outdoor dining bar
Hospitality/Accommodation
concourse
public sidewalk
outdoor pool and common areas
theme park
stadium


■Frequency characteristics (+/-3 dB): 90 Hz to 16,000 Hz
■Frequency range (-10 dB): 80 Hz to 18,000 Hz
■Directional characteristics: 120° x 60° (sideways) (rotatable high-frequency horn)
■Allowable input (continuous): 300 W
■Allowable input (peak): 1200 W
■Maximum sound pressure level @ 1m: 122 dB
■Sensitivity (SPL/1W @ 1 m): 96 dB
■Impedance: 8Ω (at transformer bypass)
■Transformer tap
　70V:5, 10, 20, 40, 80W, bypass
　100V:10, 20, 40, 80W, bypass
