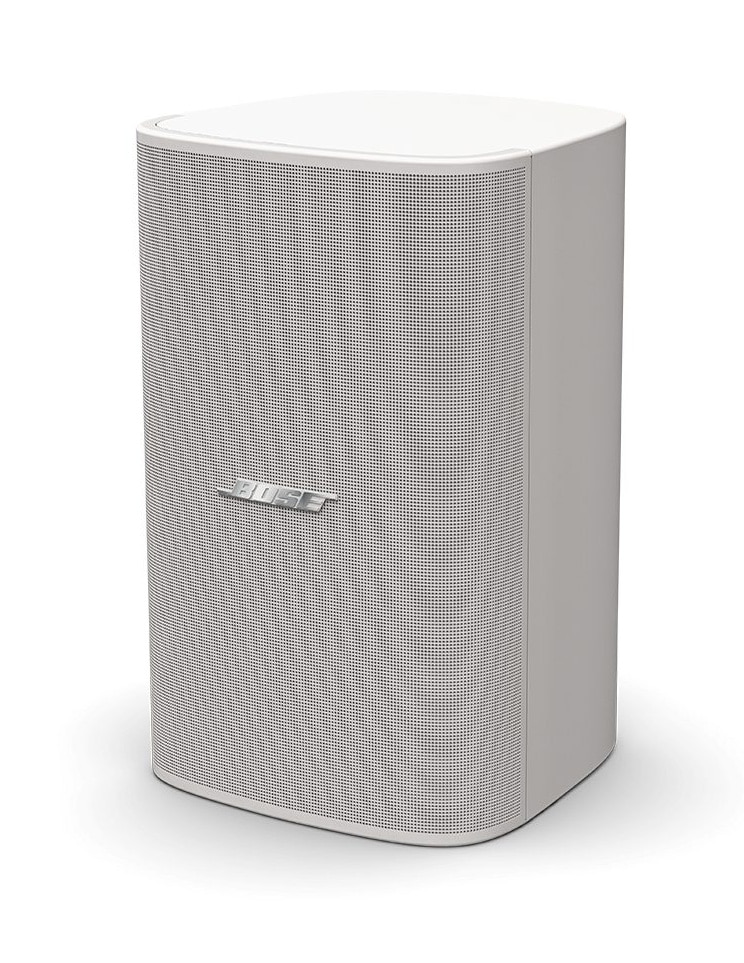

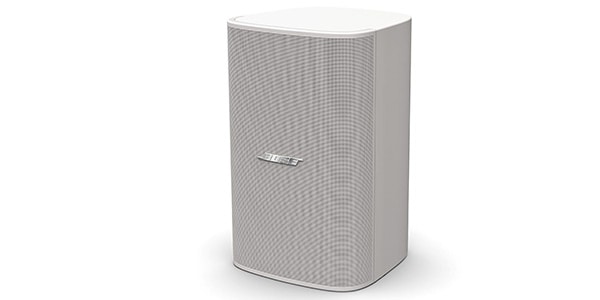

BOSE / DesignMax DM8SE SINGLE White

BOSE/DesignMax DM8SE is equipped with a coaxial 2-way driver and has a powerful output of 125W, making it the perfect speaker for live sound and foreground music. It has been upgraded from the DM8S to be suitable for outdoor use, and is equipped with an aluminum grille with a rust-proof finish, an all-weather sealed cover that protects the input wiring terminals on the back, and a mounting bracket with excellent weather resistance.

■Wall-mounted speaker
■8 inch
■125W
■8Ω/100V/70V compatible
■White
■1 bottle

■Combine DesignMax models to accommodate the design of any space: You can freely choose from 12 different models, from a 2-inch low-profile model to an 8-inch model equipped with a high-output compression driver, and an outdoor model.

■Rich bass and clear treble with coaxial 2-way design: Provides excellent sound without DSP or EQ. For applications that require even higher quality sound, we recommend Bose Professional's proprietary DSP and amplifier. Bose Professional speaker EQ and SmartBass processing improve performance and response at all volume levels.

■Elegant design that blends into any interior: Compact bezel grille in black and white. Logo is removable.

■Reduce installation time: Unique quick-hold mounting mechanism reduces stress, installation time, and product damage.

■Easy installation with industry standard accessories: Euroblock connectors included with all models. In-ceiling models feature vented backcans, tile bridges, and front-access audio wiring terminals for easy installation and maintenance.

■Excellent sound pressure level: Provides clear foreground music.

■Outdoor specifications: Conforms to IP55 outdoor standards, including weatherproof driver and cabinet, aluminum grille, all-weather sealed input cover cap, and all-weather U bracket.


theater
worship facility
conference center
retail store
restaurant, bar
Accommodation


■Frequency characteristics (+/-3 dB): 60 to 20,000 Hz
■Frequency range (-10 dB): 52 to 20,000 Hz
■Nominal coverage (1-4 kHz): 130° conical
■Nominal coverage (1-10 kHz): 130° conical
■Allowable input (continuous): 125 W
■Allowable input (peak): 500 W
■Maximum sound pressure level @ 1m: 114 dB
■Sensitivity (SPL/1W @ 1 m): 93 dB
■Impedance: 8Ω (at transformer bypass)
■Transformer tap
70V: 2.5, 5, 10, 20, 40, 80W, bypass
100V: 5, 10, 20, 40, 80W, bypass
