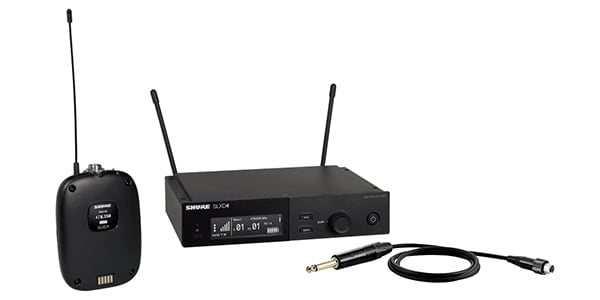

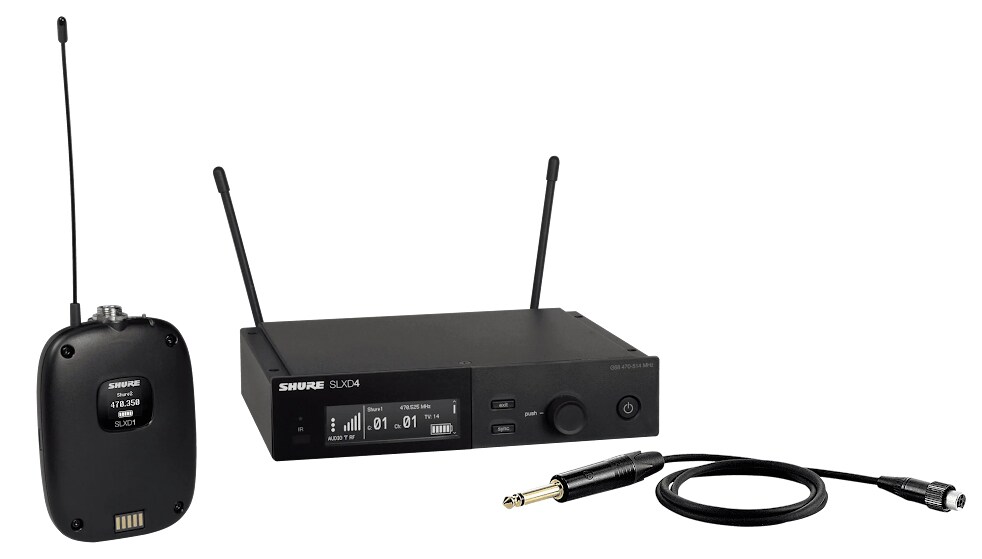

SHURE / SLX-D14

The SLXD14 wireless system connects you and your audience in live situations with clear 24-bit digital audio and dependable RF performance, up to 10 channels of simultaneous use in the B band, easy setup, and a choice of charging options to support higher-level performances.

＜Product Features
SLXD1 bodypack transmitter
Ergonomic, lightweight, durable plastic construction
Compatible with Shure microphones and instrument cables with TA4F connectors
Highly visible OLED panel
Up to 8 hours of continuous use

SLXD4 Single Receiver
Large backlit LCD panel for easy viewing even in dark areas
Easy-to-operate control knob
Group scan function for automatic detection of available frequencies
Ethernet port for firmware updates and third-party control devices
Infrared scanning and synchronization for easy transmitter/receiver pairing

＜Product Specifications
SLXD1 bodypack transmitter
Connector: TA4M
Transmitter output (m/W): 1mW or 10mW
Drive: 2 x AA alkaline batteries or SB903 lithium-ion rechargeable battery
Maximum input level: 8.2?dBV (2.57 Vrms, 7.27 Vpp)
Gain adjustment range: 0dB to +21dB (3dB step)
Exterior: ABS resin
Dimensions (excluding protrusions), weight: H98 x W68 x D25.5 mm, 89 g
Latency standard: 3.2 msec (transmitter input to receiver analog output)
Operating time: up to 8 hours *Depends on operating environment

SLXD4 Single Receiver
Number of receiving channels: 1ch
Antenna input impedance: BNC connector, 50 Ω
RF sensitivity: -97 dBm (at 10-5 BER)
Power supply: 15 V DC/600 mA, AC100 V AC, 50/60 Hz with AC adapter
Dimensions (excluding protrusions): H42 x W197 x D152 mm
Weight (excluding antenna): 816 g
Audio output
　　- Connector: XLR 3-pin/male, 6.3 mm phone (balanced)
　　- Impedance: XLR: 400Ω , unbalanced 200Ω (line), 150Ω (microphone) / 6.3mm: 1.3kΩ, unbalanced 670Ω
　　- Maximum output level (at 200kΩ load): XLR: -15dBV (mic), +15dBV (line), 6.3mm: +15dBV (balanced), +9dBV (unbalanced)

- Single receiver ? 1
- Bodypack transmitter ? 1
- WA305 Premium cable with lock for guitar/bass ? 1
- AA alkaline batteries ? 2
- 1/4-wavelength antenna ? 2
- BNC conversion connector ? 2
- Approx. 55cm coaxial cable ? 2
- AC adapter ? 1
- Zippered bag (black) ? 1
- Rack mount brackets (short) ? 1 Rack mount bracket (long) ?
- 1 Rack mount bracket (long) ? 1 Rack mount bracket (long) ?
- 1 Rack mount bracket (long) ? 1 Connecting plate ?
- 1 Hardware kit ? 1 Hardware kit ?
- 1 Quick start guide ? 1
- 1 Warranty card ? 1
- Rubber feet ? 4

＜Related Information
Manufacturer's Model Number: SLXD14J-JB
JAN code: 0042406696418
Country of Origin: China
Manufacturer's Warranty：2 years
