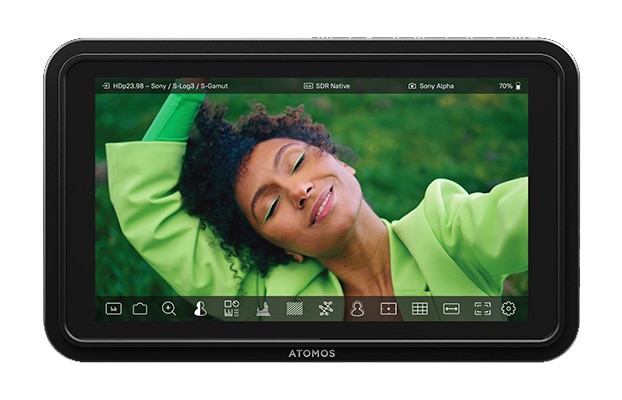

ATOMOS / Shinobi II

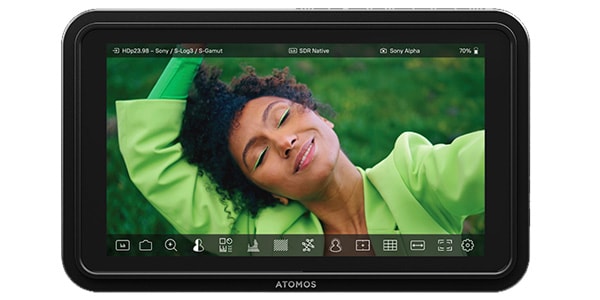

A 5-inch HDR monitor that supports 4K HDMI and is equipped with a 5.2-inch HDR-compatible monitor with high brightness of up to 1500 nits that can accurately display subjects even outdoors. Using various video assist tools with touch operation, it provides powerful support for shooting with compact cinema cameras and high-performance cameras that input via HDMI.

■5-inch HDR monitor compatible with 4K HDMI

[Usage environment]
■Ambient operating temperature:
0-40 degrees (no condensation)

[Usage environment]
■Ambient operating temperature:
0-40 degrees (no condensation)
【structure】
■Housing material: ABS plastic
■Cooling: Natural cooling (fanless)
■Power button: Main power on/off and screen lock on/off

【power supply】
■Compatible input voltage: DC 6.2 to 16.8 V
■Power consumption: 10W
■Compatible batteries:
ATOMOS NPF L series *If PD input is used, power will be supplied from the PD input. These power supplies cannot be selected and will be supplied from the higher voltage side.
■Built-in battery: Not installed
■DC input:
Separately sold optional battery eliminator and AC adapter can be used
■D-Tap:
Connect optional battery eliminator and D-tap to DC cable (sold separately)
■USB PD input:
External 20W or higher USB PD charger (via included USB-C cable)
■USB PD output:
Max 13W
*Cannot be used at the same time as PD input

【monitor】
■Touch screen:
SuperAtom IPS panel (capacitive touch)
■Screen size: 5.2 inches
■Screen resolution: 1920×1080
■PPI: 427
■Color depth: 10-bit (8+2 FRC)
■Backlight
Edge lit
■Maximum brightness: 1500nit
■Aspect ratio: 16:9
■Color temperature:
D65 *Changes to other models such as D93 and fine adjustments to color temperature are not supported.
■Color gamut: Rec.709
■Calibration support:
Atomos calibrator compatible *Calibrite ColorChecker Display Pro (HL) / ColorChecker Display Plus (HL) or Xrite i1 Display Pro / Plus is required separately.

[Color pipeline]
■Gamma:
SLog2/SLog3, CanonCLog/CLog2/Clog3, ArriLogCEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogC EI1000/LogCEI1280/LogCEI1600, PanasonicVlog, JVCJLog, RedLogFilm/Log3G10/Log3G12, FujiFilmFlog, PQ(HDR10), HLG, NikonN-Log■Gamut:
BT2020, DCIP3, PDCIP365, SonySGamut/SGamut3/SGamut3.cine/CanonCinema/DCIP3/DCIP3+/BT2020, PanasonicVGamut, ArriAlexaWideGamutRec709, JVCLS300, RedDragonColor/DragonColor2/RedColor2/RedColor3/RedColor4/RedWideGamut
■3DLUT display: .Cube format
■3DLUT 50/50: Compatible
■Monitoring mode:
SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT

[Video input]

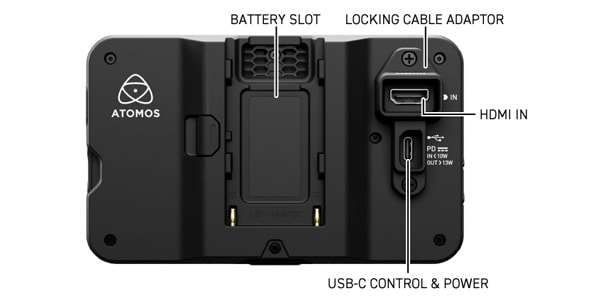

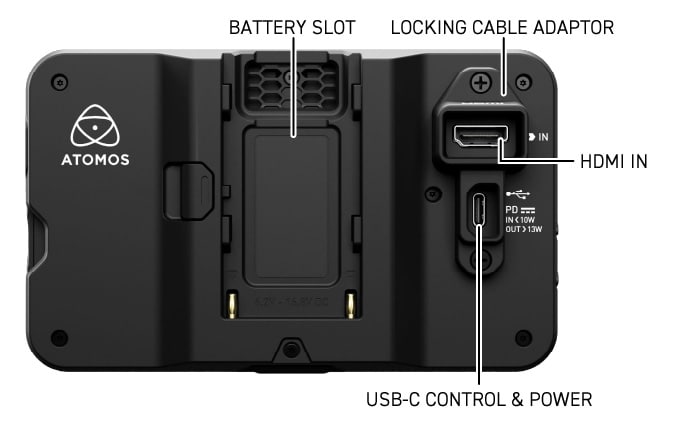

■HDMI:
Supports 1xHDMI(1.4) to 4K30p
■Video chroma subsampling:
4:2:2, 4:2:0
■Color depth: 8/10bit
■HDCP copy prevention: Not supported

[Audio input/output]
■HDMI: 2ch24-bit (depends on input signal)

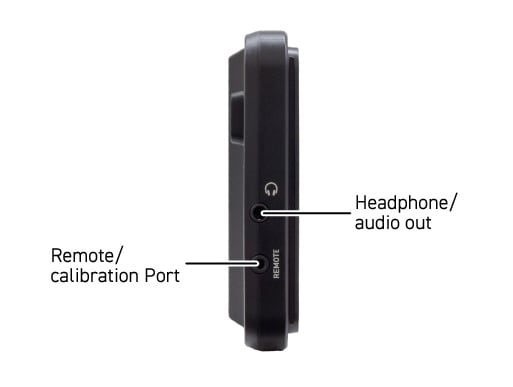

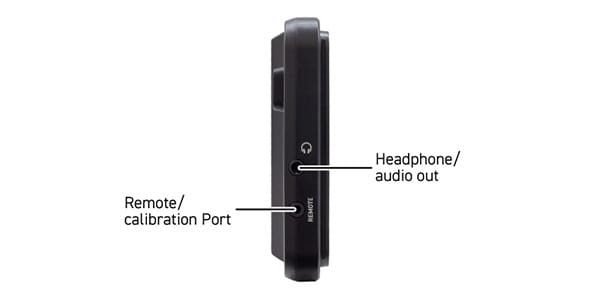

■HDMI headphone output: 3.5mm 2 channels
■Built-in speaker: Not installed

[Time code]
■Compatible with HDMI superimposed data: Display only

[Supported formats (video input)]
■4KDCI:
23.98/24/25/29.97/30p
■4KUHD:
23.98/24/25/29.97/30p
■FHD1920x1080 progressive:
23.98/24/25/29.97/30/50/59.94/60p
■FHD1920x1080 interlace:
1080i50/1080i60
1280x720p
50/59.94/60p

[SD card slot]

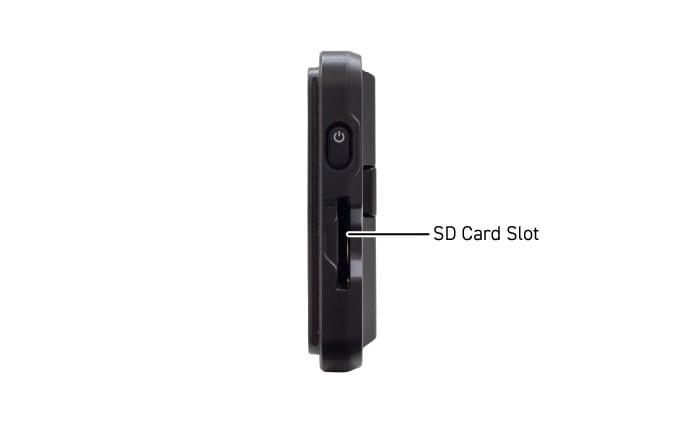

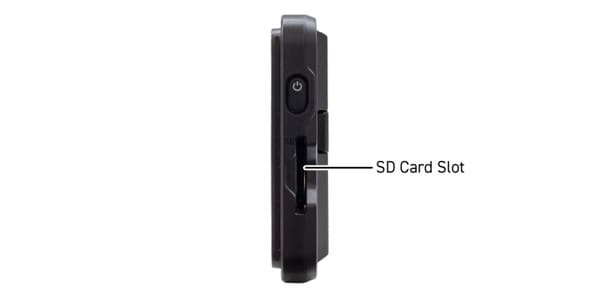

■UHS-1 full size SD card:
Used for loading LUTs and updating AtomOS
■File format: FAT32, NTFS

[On-screen tools]
■Image analysis multi-screen:
Image, waveform selection, vectorscope, histogram
■Waveform:
Compatible with *3 types of sizes, transparency and brightness adjustable
■Histogram:
Compatible with *3 types of sizes, transparency and brightness adjustable
■RGB parade:
Compatible with *3 types of sizes, transparency and brightness adjustable
■Vector scope:
Supported *2 types of sizes, transparency and brightness adjustable
■Zoom 1x: Supported
■Zoom 2x: Supported
■Zoom 4x:
Compatible*~HD60p
■Focus peaking:
Color selection/3 types of border width can be set, 4 modes color, monochrome, outline, edge sharpening display
■ATOMOS false color:
Supported *Scale display
■Arri false color: compatible
■EL zone: Compatible
■Zebra: Compatible
*Threshold value setting possible (50% to 105%)
■Isolated color channel:
blue only
■Cine frame guide:
2.41, 2.35, 1.91, 1.9, 1.85, 16:9
■Social frame guide:
9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
■Safety area:
Supported*Action/Graphics
■9 grid markers:
correspondence
■Anamorphic Desqueeze:
1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
■Display reversal:
Vertical and horizontal selfie modes
■Connection terminal:
Serial 2.5mm terminal
ZCAM camera control via optional USB serial cable (sold separately)
■USB-C terminal x1
You can select the corresponding camera control function and power supply to the camera or power supply to Shinobi II.
[Peripheral equipment]

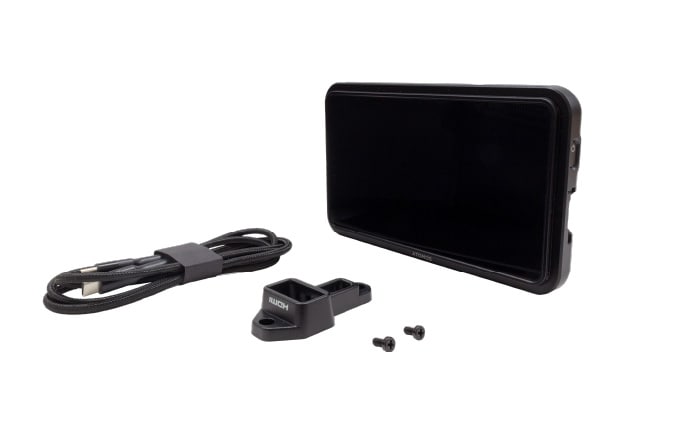

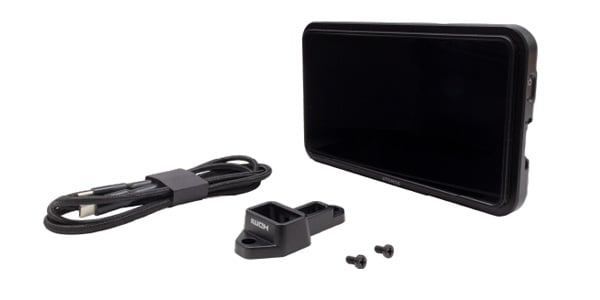

■Included contents
・Shinobi II main body
・USB-C to USB-C 2.0 cable (approx. 0.9m) x1
・HDMI + USB-C lock cable adapter x1
・QuickStartGuide (English version) x1
*The Japanese version of the quick start guide is available under the download section on the manufacturer's product page.

[Case]
■SIZE: 151(W)×91.5(H)×20.8(D)mm
■Weight (monitor body): 210g
■Mount screw hole:
Top: None
Bottom surface: Anti-rotation 1/4-20
Screw hole x1
