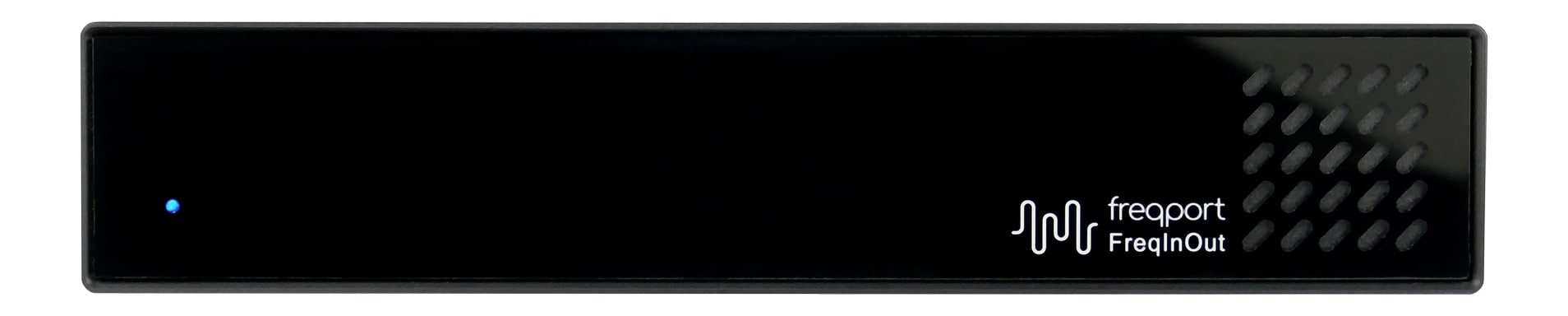

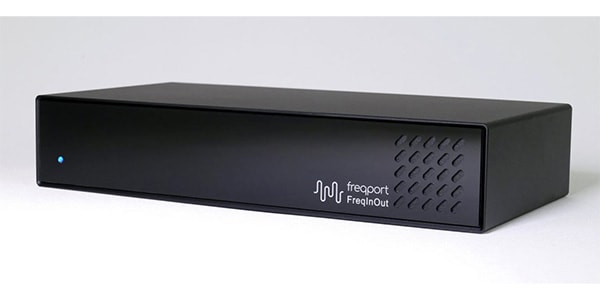

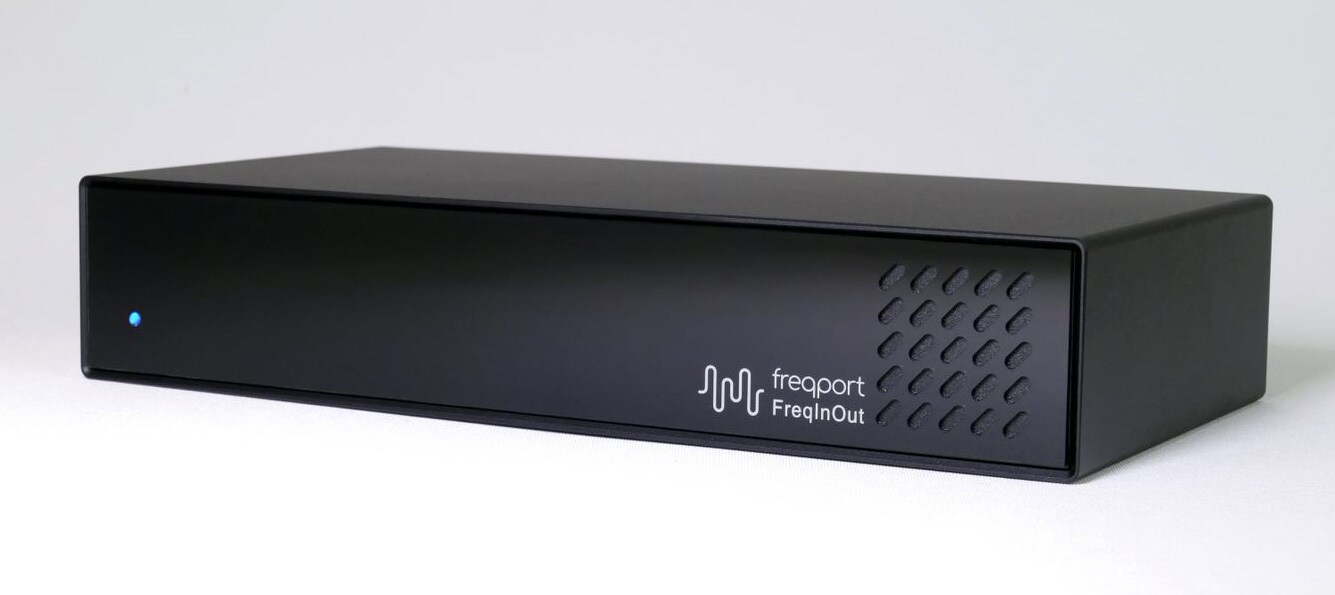

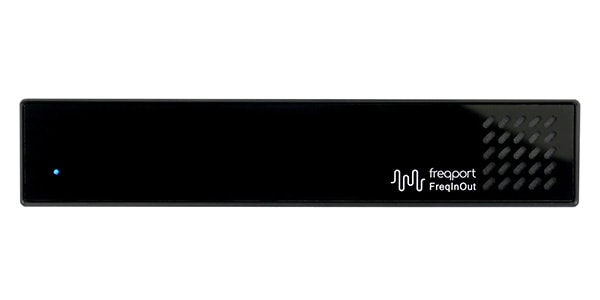

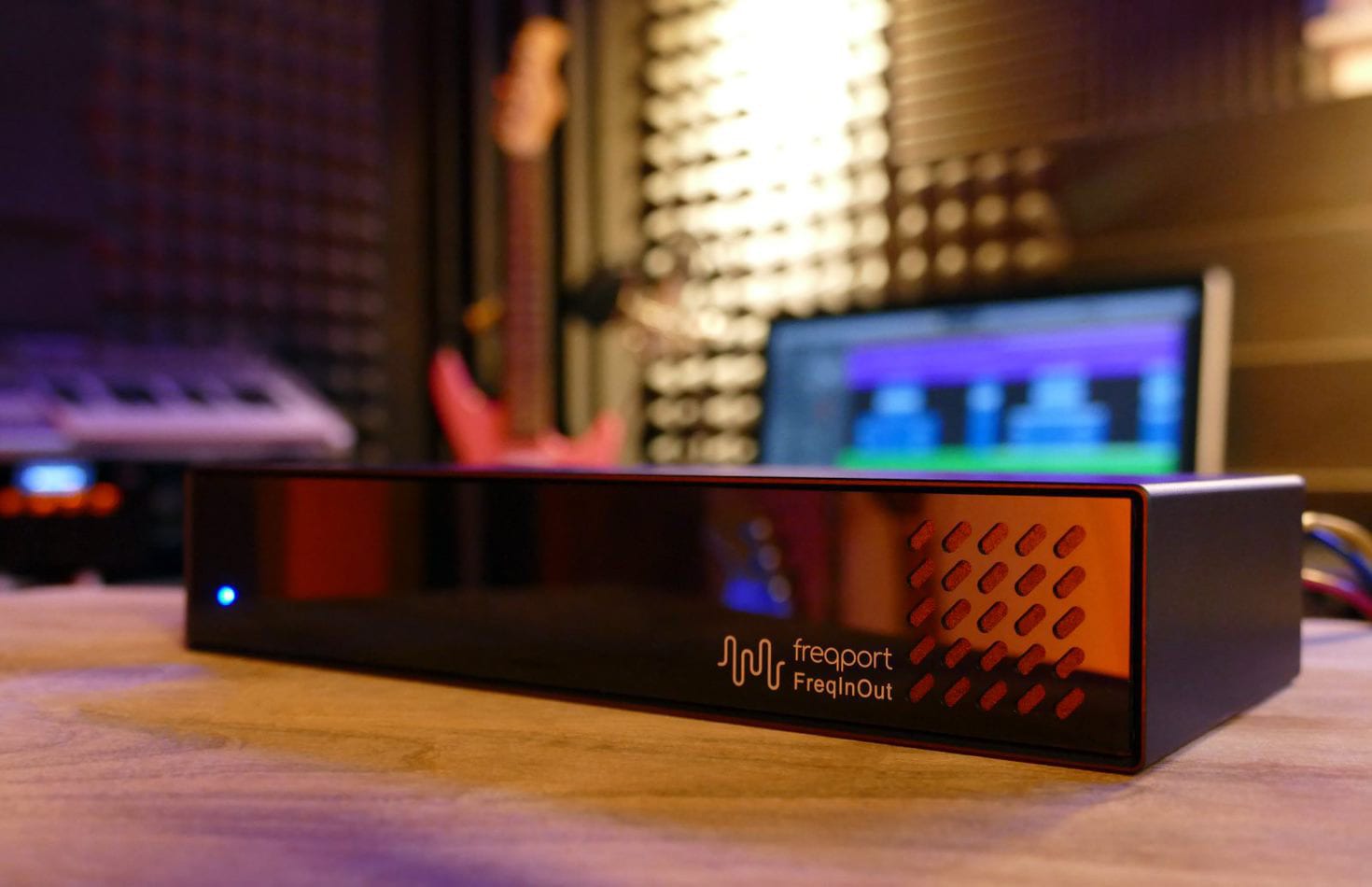

Freqport / FreqInout FO1

FreqInOut FO1 is an innovative device that allows outboard equipment to be treated as a plug-in software.

■Analog/digital converter
■Bridge device

Dedicated plug-in software allows you to easily integrate the connected outboard into your digital workflow.
This frees you from the hassle of routing, cabling, and latency settings. Furthermore, it is equipped with M/S mode, and the main unit's matrix allows signal flow to be easily restructured and hardware parallel processing to be possible.
Featuring a best-in-class ESS 32-bit converter and supporting sample rates up to 192kHz, the FO1 is perfect for engineers and producers to easily get the most out of their outboard equipment.

■Features

●Analog matrix
Easily reconfigure signal flow through outboard equipment using the built-in hardware matrix. Moreover, it does not generate any latency.

●Simple setup
Simply connect any outboard equipment to FO1 and open the plug-in in your DAW. No need to worry about complicated setups, routing, latency, or recording timing issues.

●Add channel
You can add 4 or 8 inputs and outputs by integrating FO1 with your existing sound card.

●Plug-in software
Dedicated plug-in software makes it easy to enable M/S mode, utilize hardware MIX to enable parallel processing, and fine-tune gain staging. Additionally, you can scan a QR code to record your hardware settings as an image and create custom skins within the plugin.

●Multi-instance analog circuit
Multiple analog processing circuits allow simultaneous processing of multiple audio signals within a digital workflow. It is equipped with an ESS 32-bit converter and supports sample rates up to 192kHz.

USB power: 5W
USB terminal: Type-C
Power supply: DC12V - 1A *Power adapter is an optional item. *Only compatible with Freqport power adapter

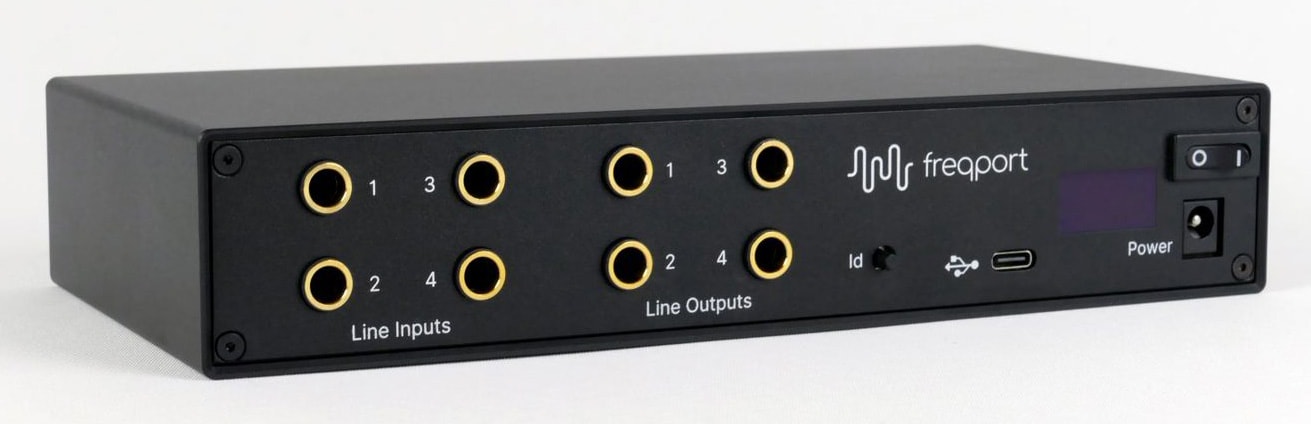

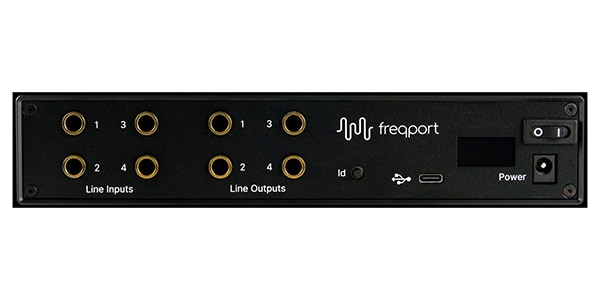

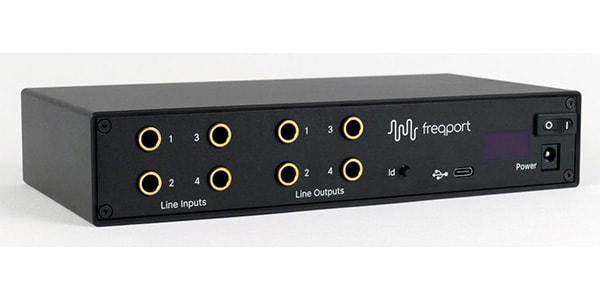

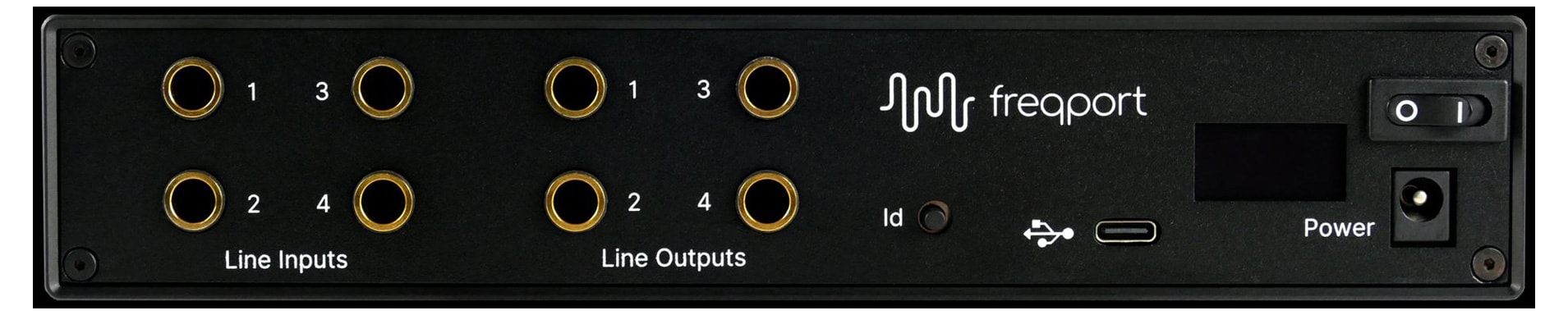

Input: 4 inputs (+18dBu (-10dBV/+4dBu)) 4 outputs (+18dBu levels)
Input/output: 120dB DNR 32bit DAC, 116dB DNR
AD/DA converter: 32bit ADC maximum sample rate 192kHz
Operating environment temperature range: 0 to 50℃
Outer diameter dimensions: body 220mm x 105mm x 43mm (W x H x D)
Weight: 810g
