SHURE / NXN6-J

An innovative approach that takes live sound to new heights. Nexadyne instrument microphones deliver powerful, natural-sounding guitars and drums, making mixing a breeze.

Supercardioid dynamic microphones faithfully capture the timbre of your instrument, delivering a realistic, natural sound with minimal need for additional EQ. Exceeding the reliability standards required for real-world applications, Nexadyne microphones are ideal for modern touring.

Product Overview

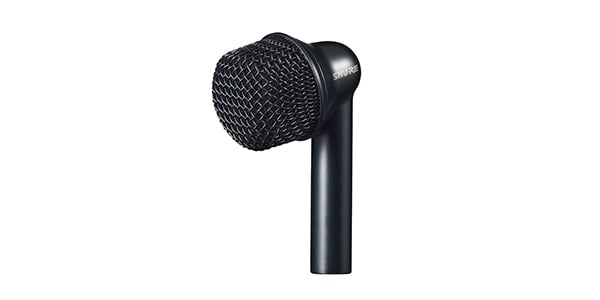

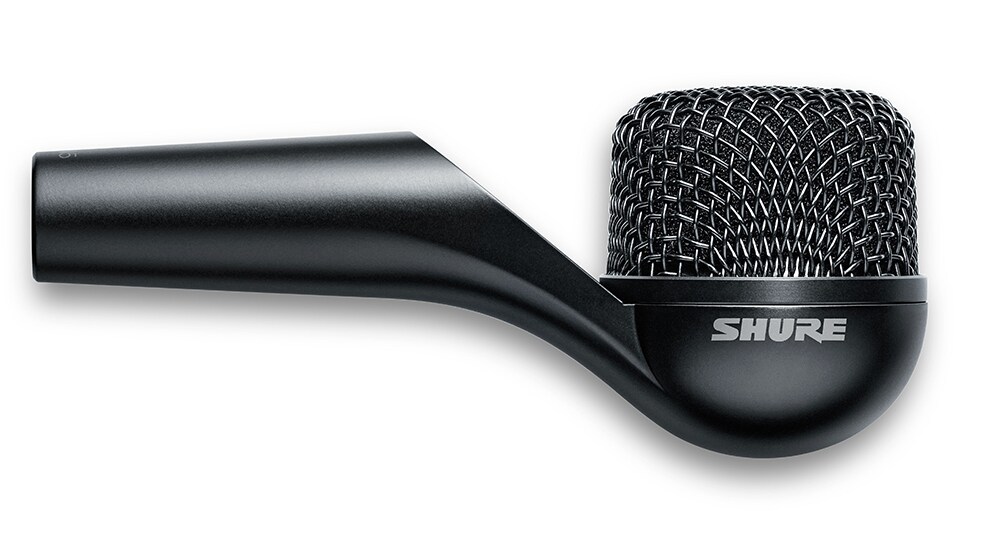

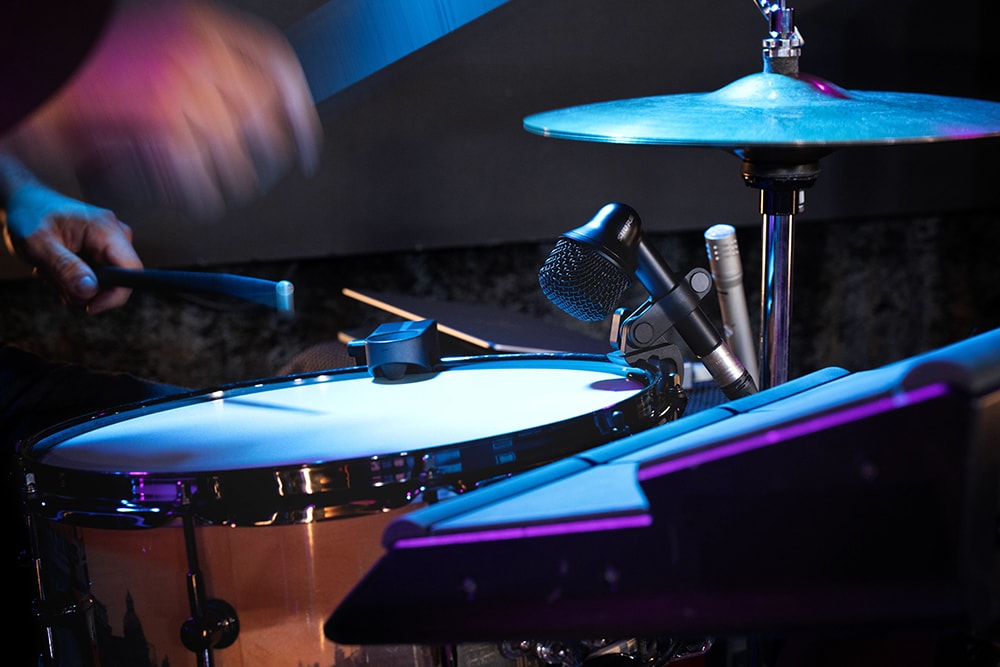

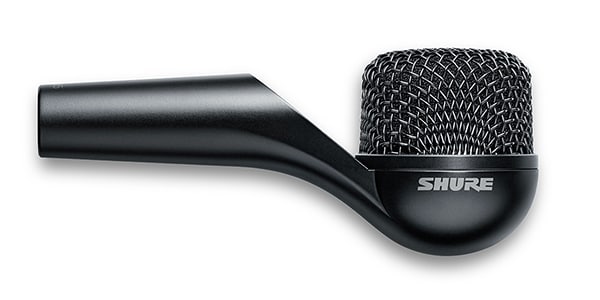

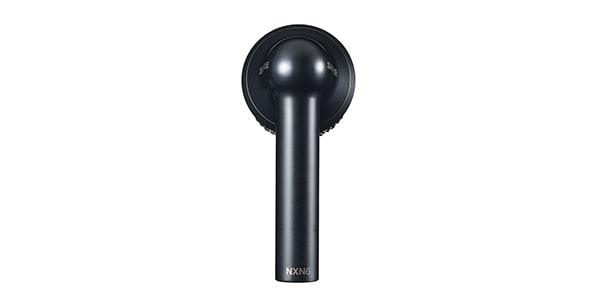

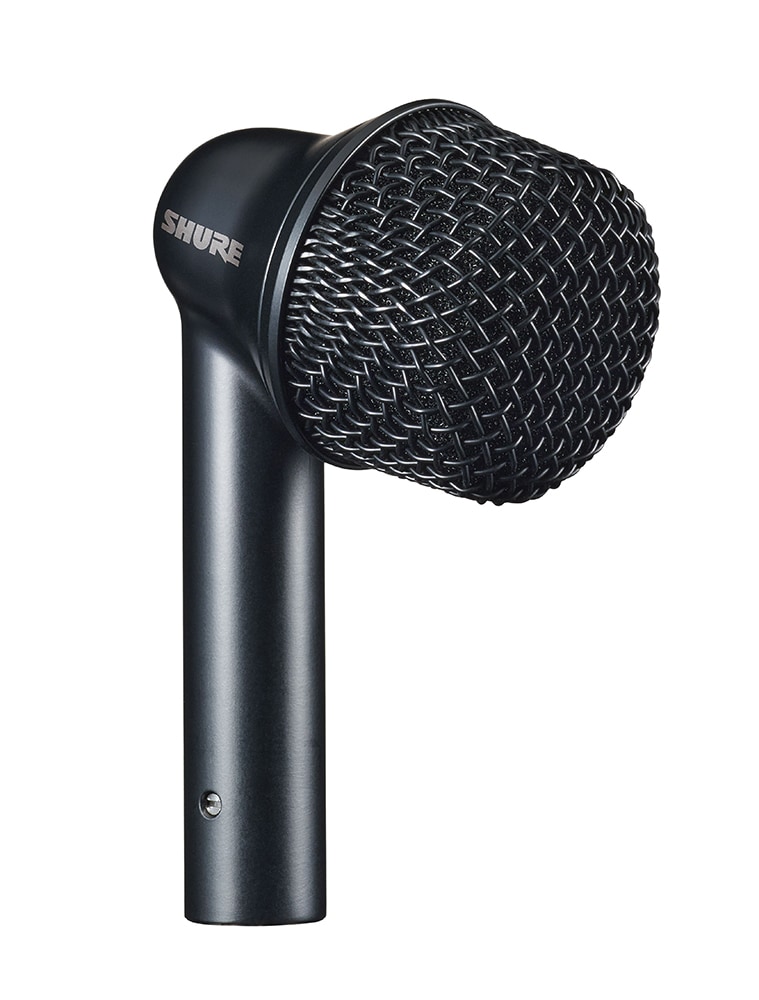

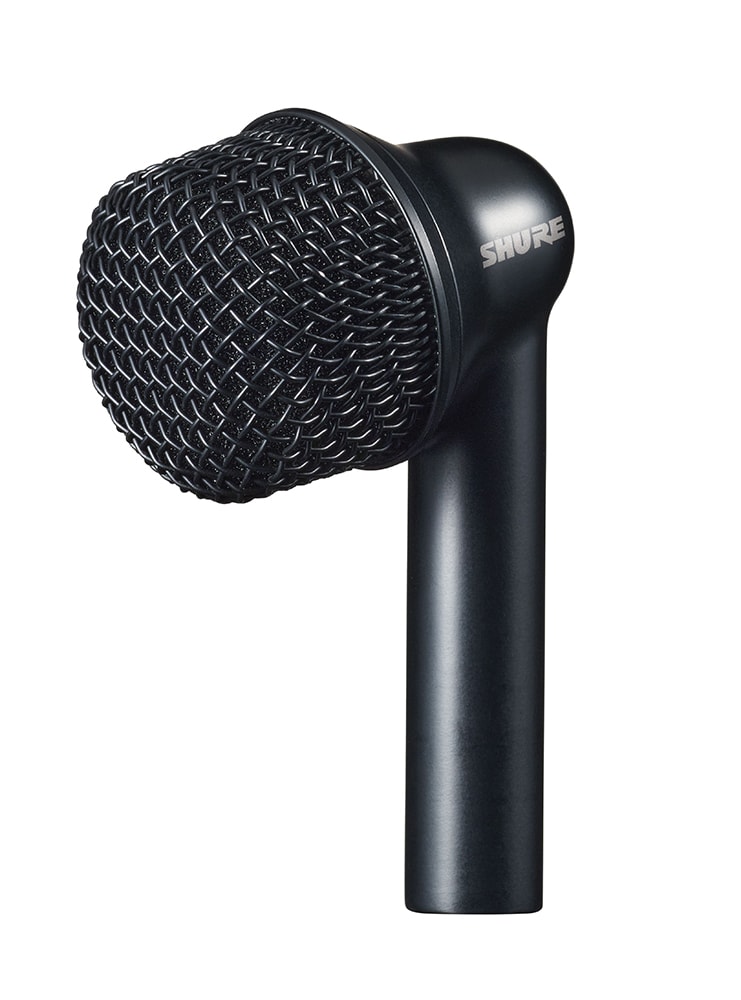

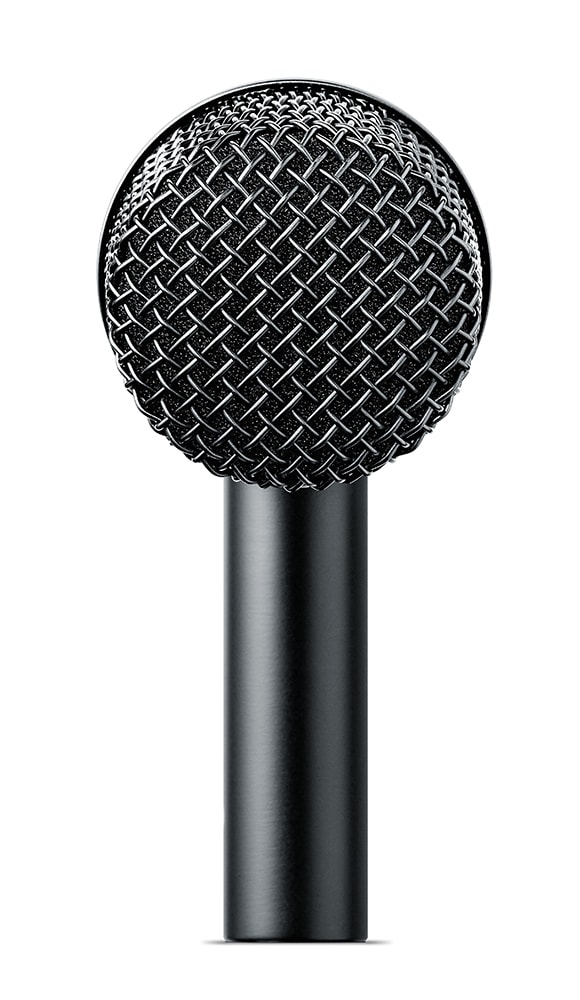

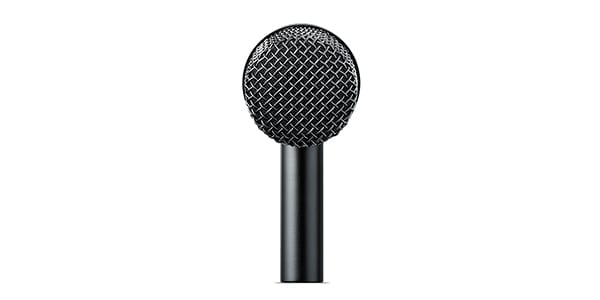

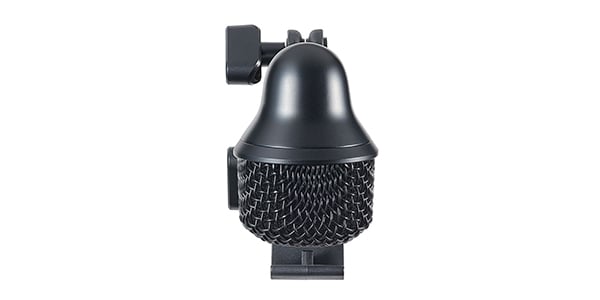

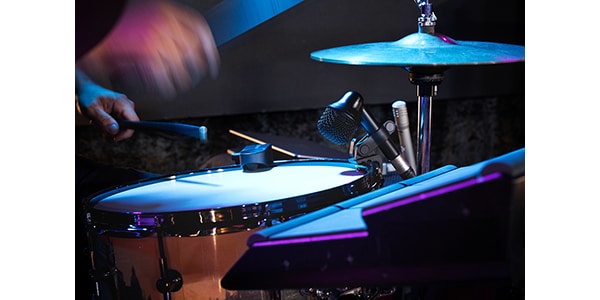

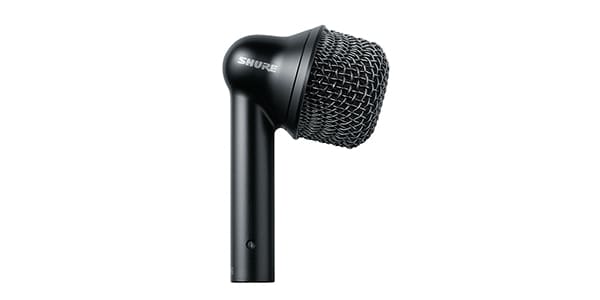

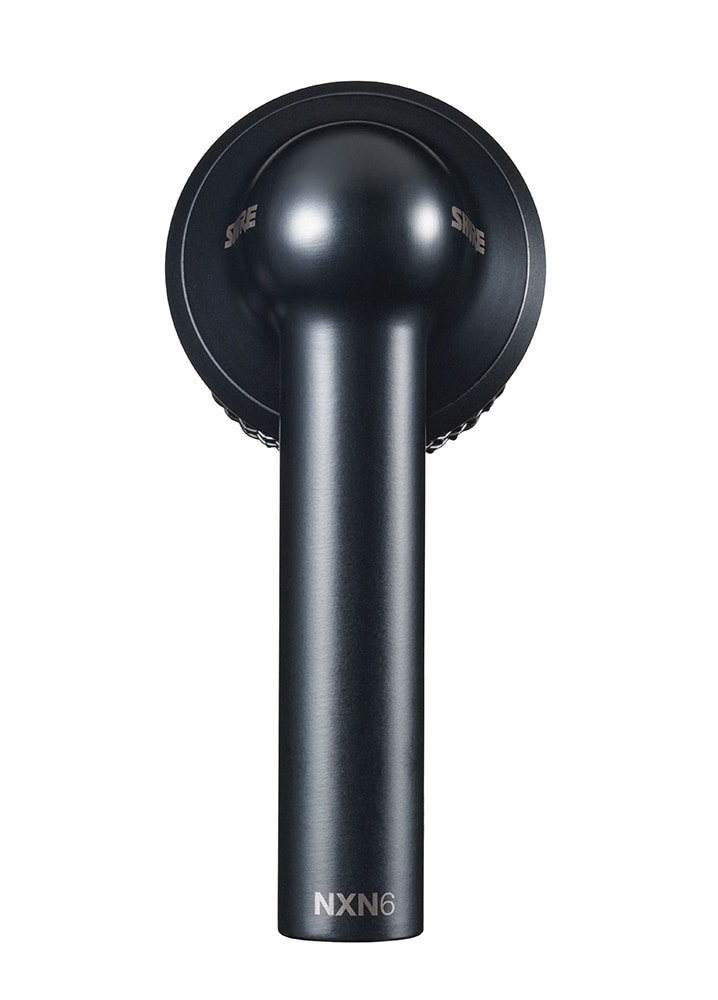

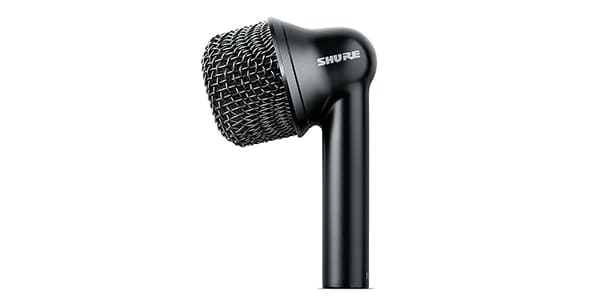

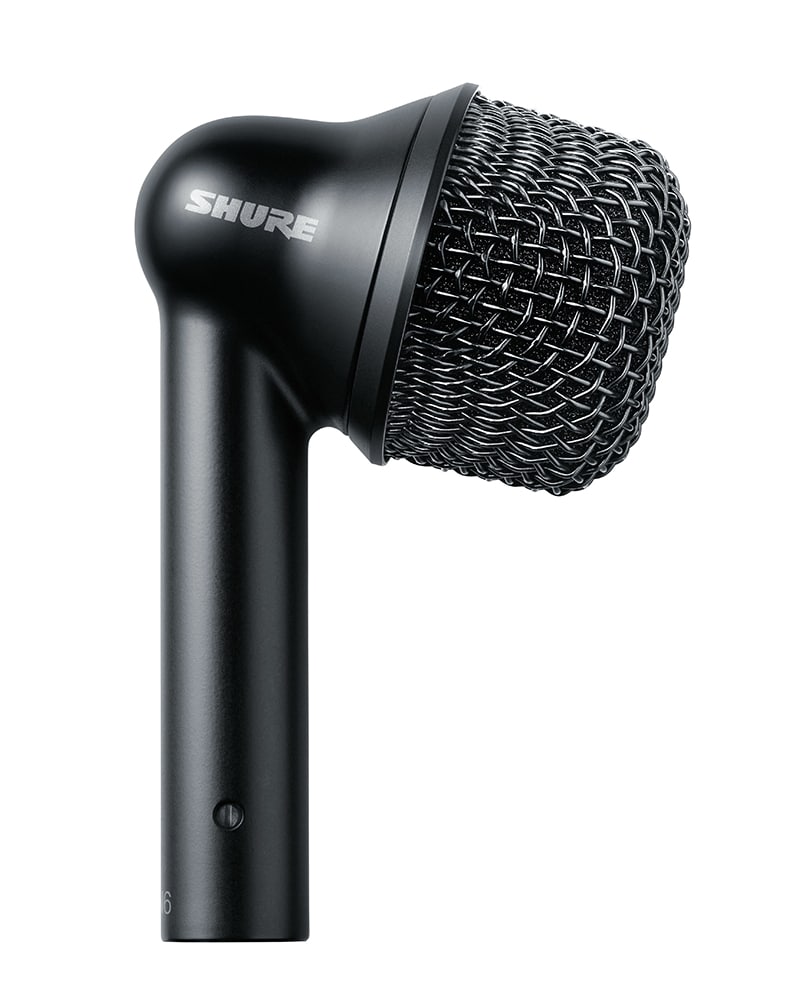

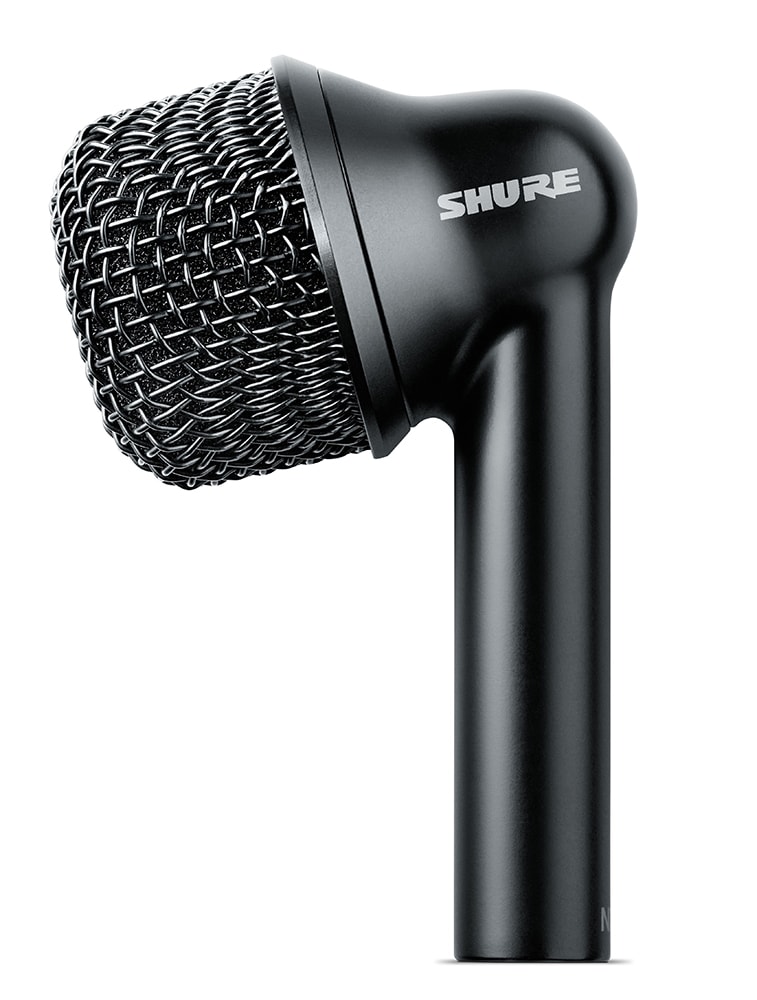

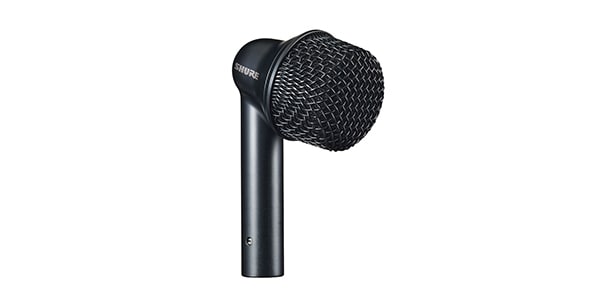

The Nexadyne 6 Tom/Snare Drum Microphone is a supercardioid dynamic microphone designed for professional live performance.

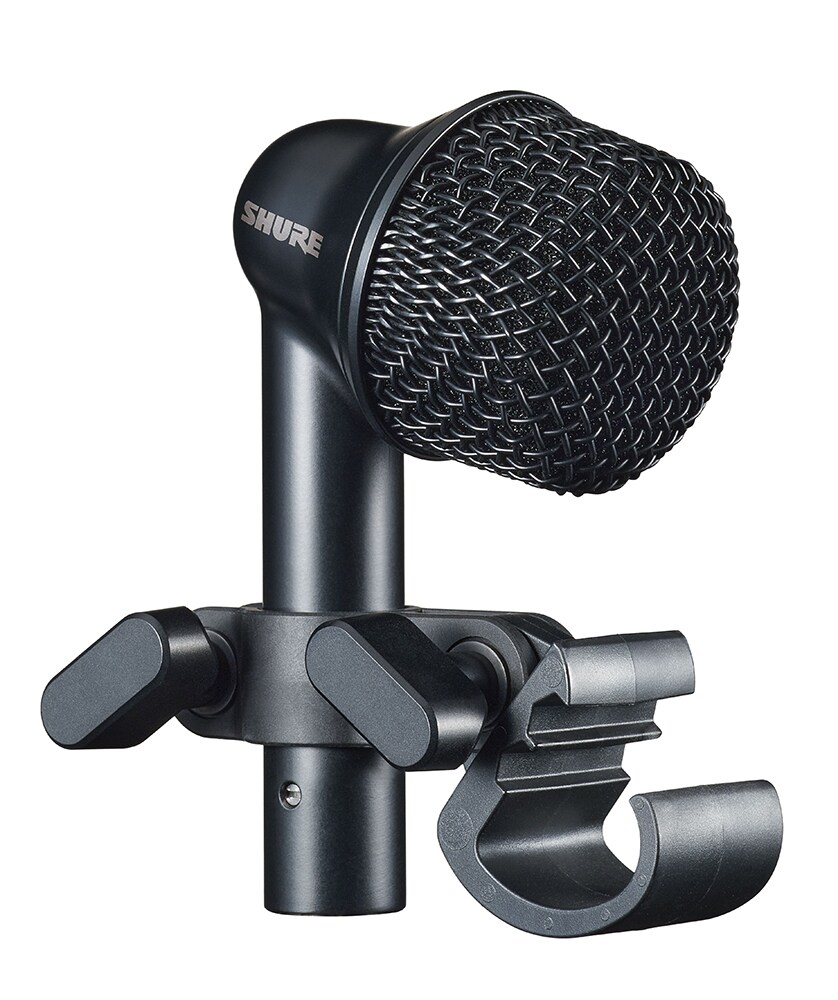

The Nexadyne 6 features patented Shure Revonic Dual Engine transducer technology, specifically engineered to completely isolate the tom and snare drum sounds while minimizing interference. The two meticulously engineered transducers work together to deliver optimal audio performance. This microphone combines cutting-edge audio signal processing, the exceptional linearity of its supercardioid polar pattern, and noise suppression to deliver exceptional performance. Combining Shure's industry-standard consistency, durability, and performance, the Nexadyne 6 comes in a discreet black finish that stands out on stage and includes an AD6 drum mount and a zippered pouch.
- Dual Engine Technology acoustic signal processing delivers clear, high-fidelity sound with minimal EQ adjustment.
- Innovation delivered with industry-leading Shure reliability.
- Dent-resistant hardened grille.
- XLR connector, black finish.


Type: Dynamic (moving coil) transducer with second-order vibration cancellation.
Positive Polar Pattern: Supercardioid.
Frequency Response: 50 Hz to 16 kHz.
Output Impedance @ 1 kHz: 335 Ω.
Sensitivity (Open Circuit Voltage @ 1 kHz, Typical): -61.0 dBV/Pa (0.9 mV/Pa) 1 Pa = 94 dB SPL.
Polarity: Positive pressure on the diaphragm generates a positive voltage on pin 2 relative to pin 3.
Weight: 245 g.
Connector: Pro Audio 3-pin (XLR), male.
Exterior: Die-cast zinc with black paint finish


Manufacturer Model Number: NXN6-J
JAN Code: 0042406845397

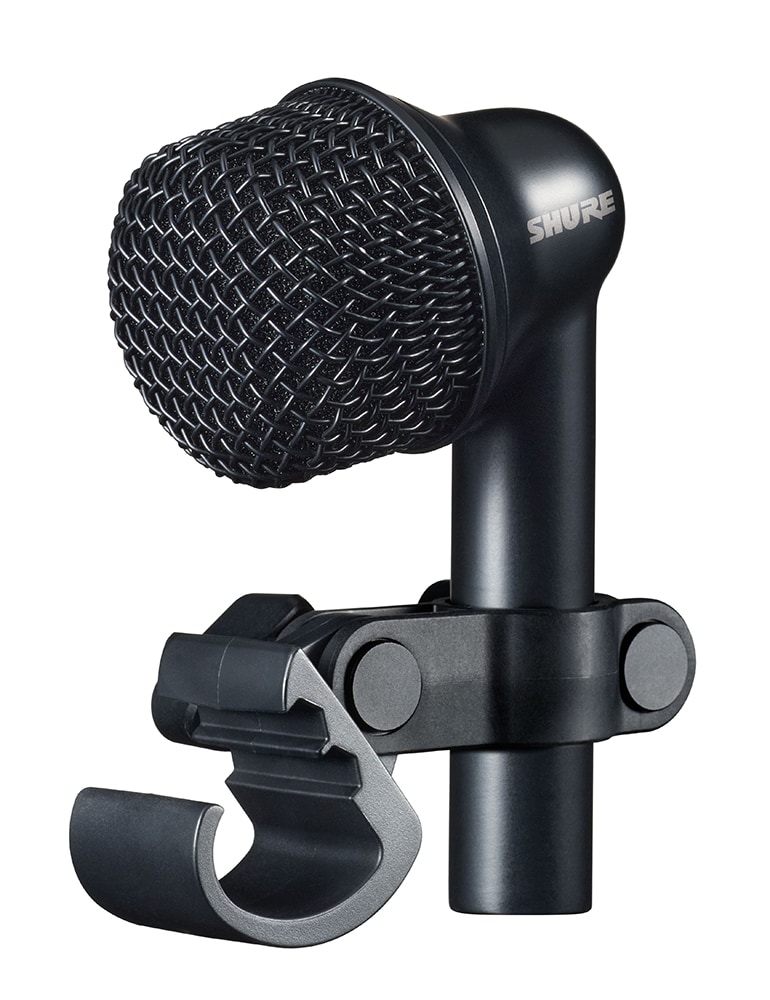

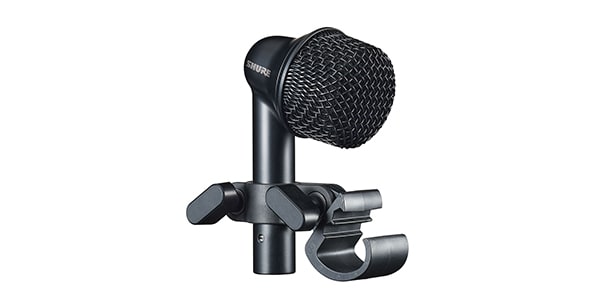

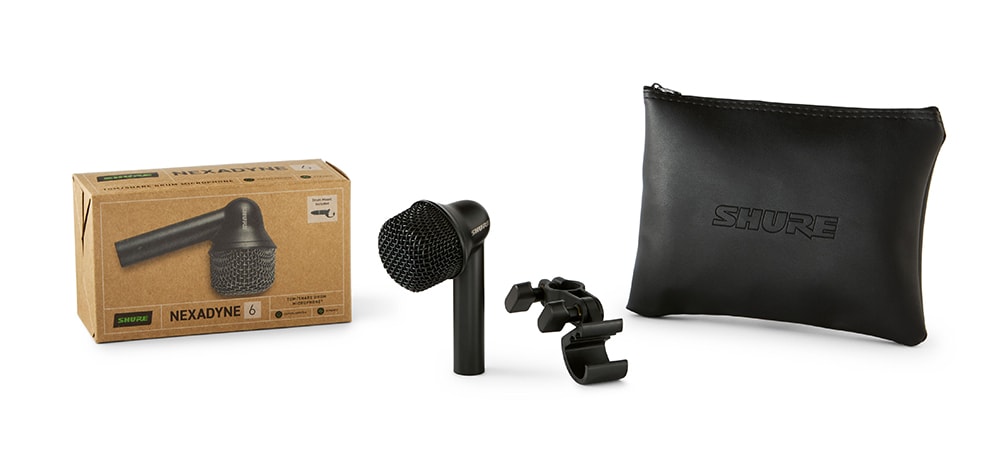

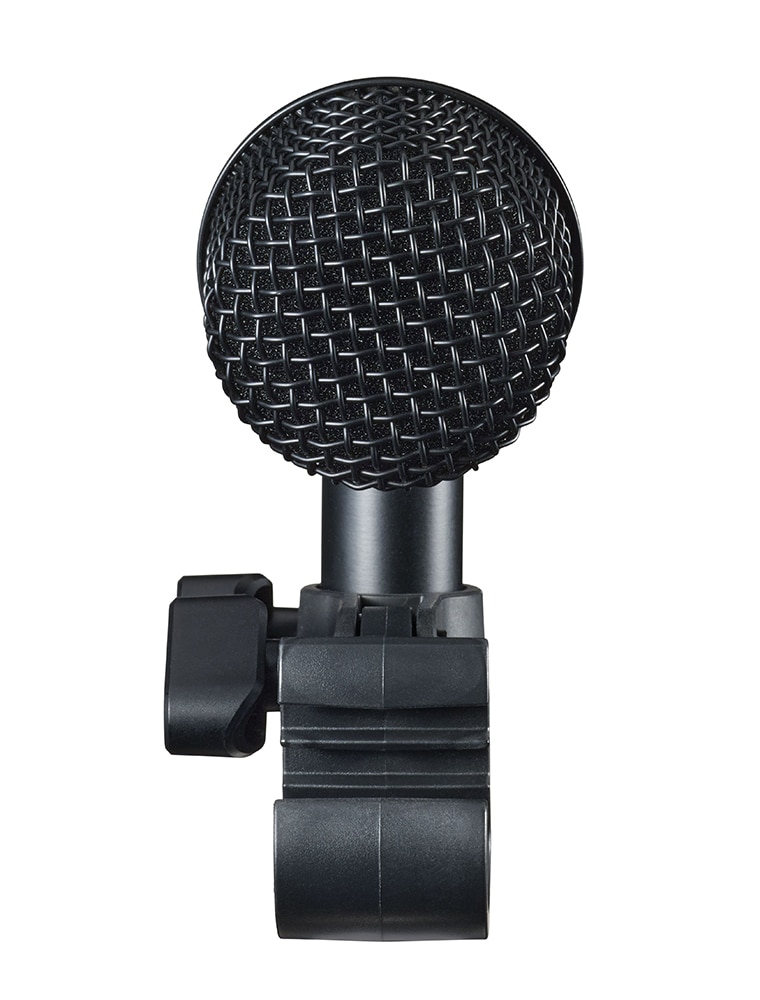

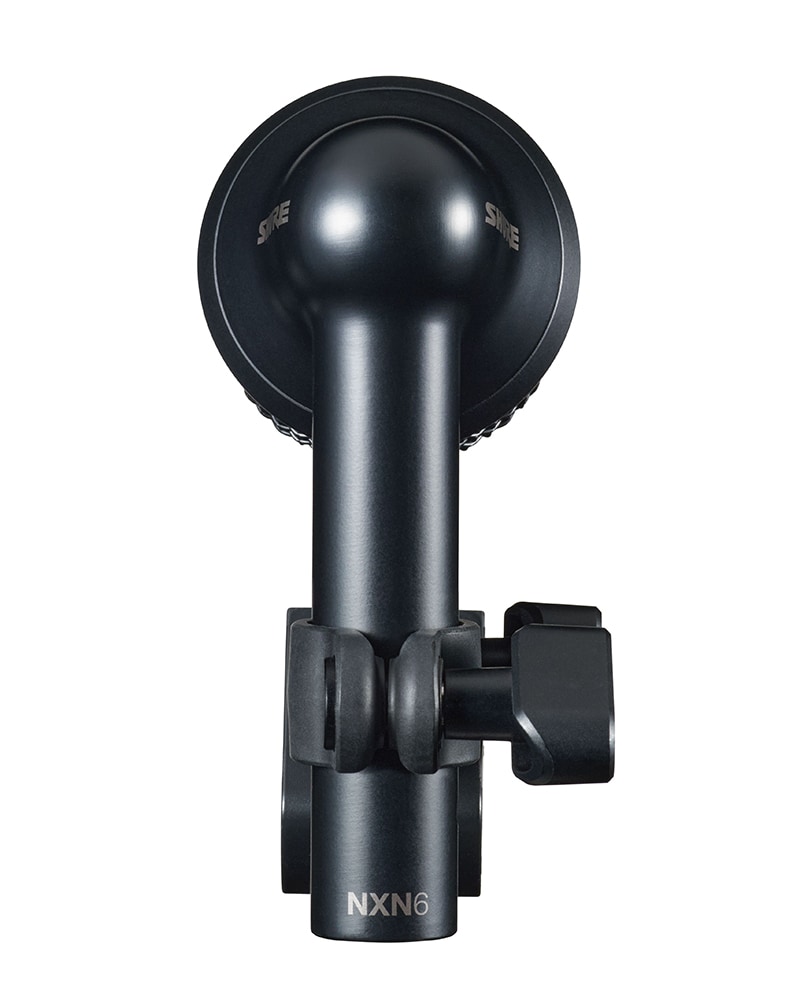

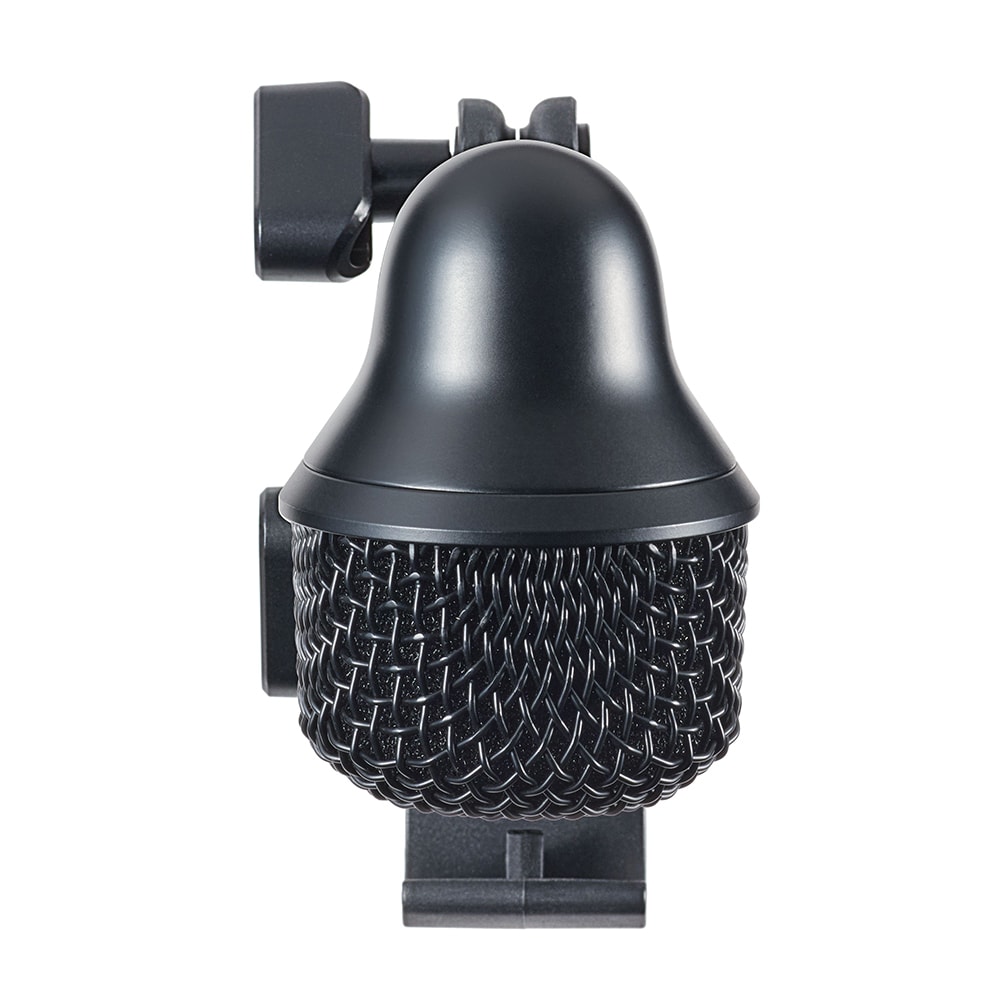

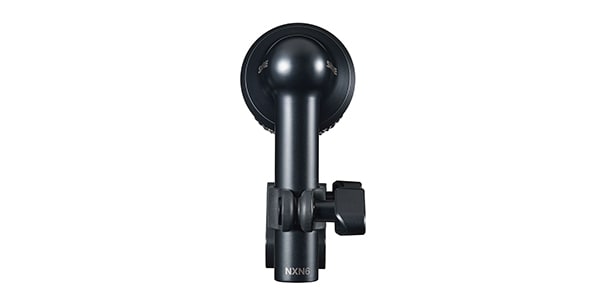

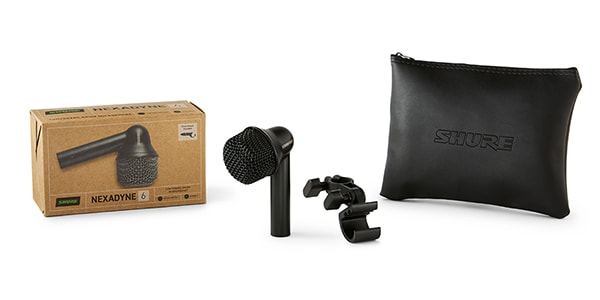

Includes: Nexadyne 6 unit x 1, drum mount (A6D) x 1, zippered pouch (95D2313) x 1
Country of Origin: Mexico
Manufacturer's Warranty: 2 years
