SHURE / SLXD4Q+JB

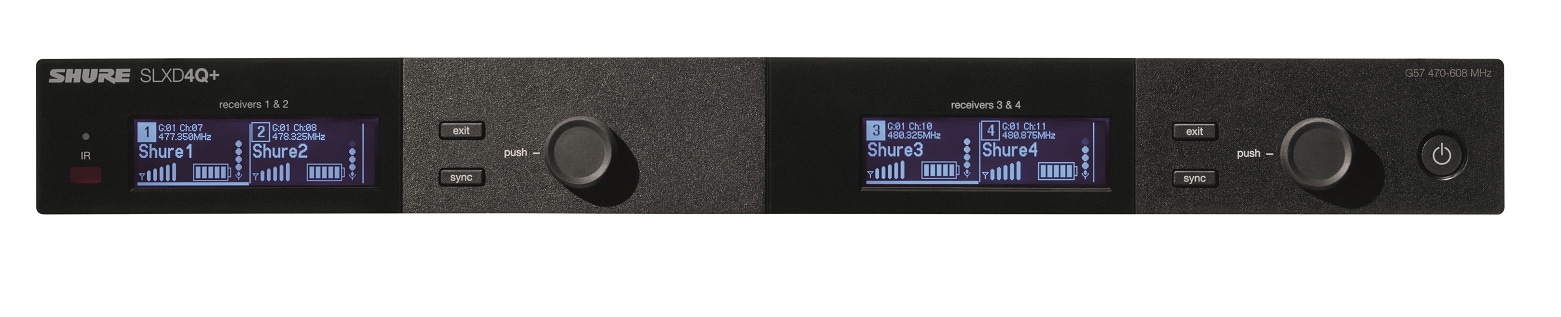

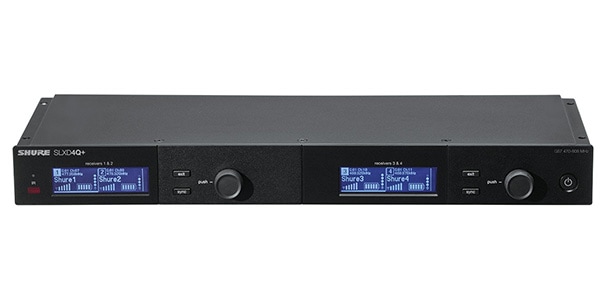

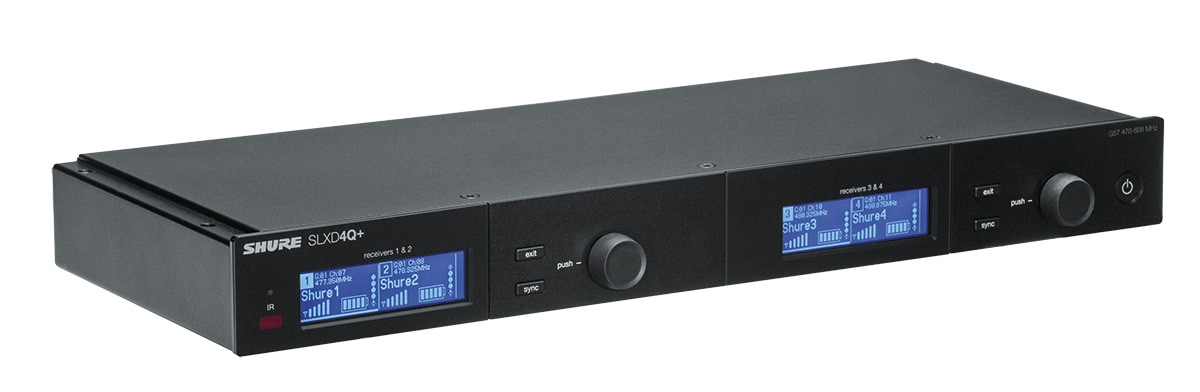

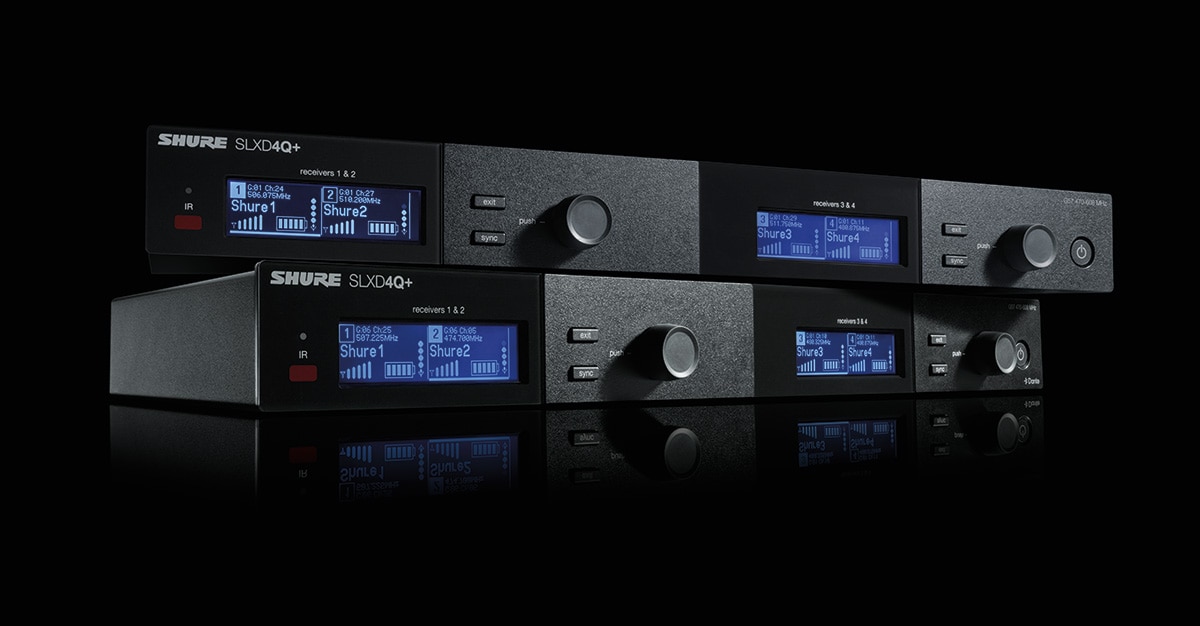

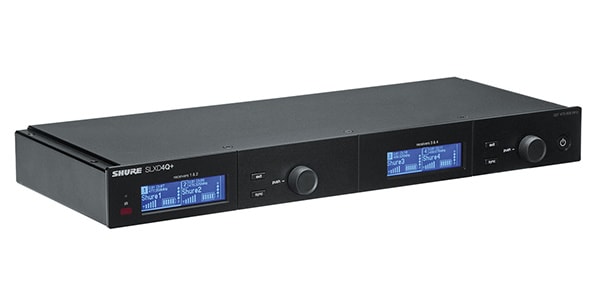

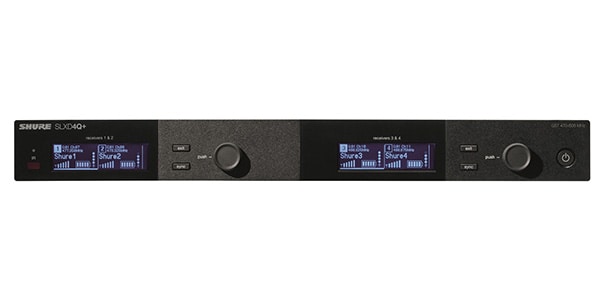

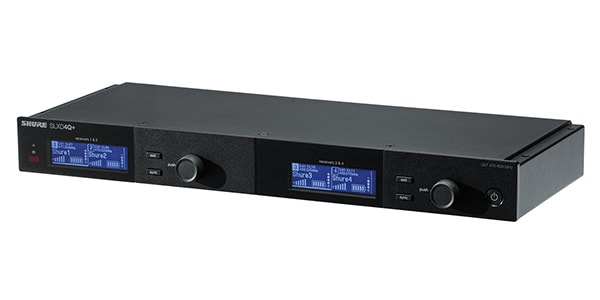

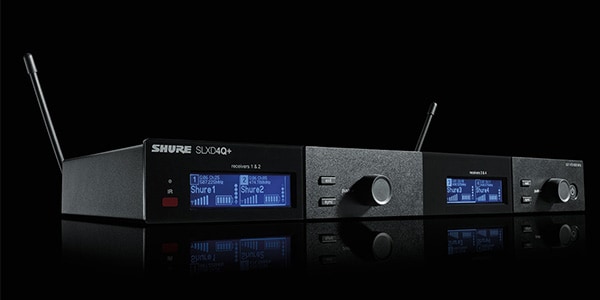

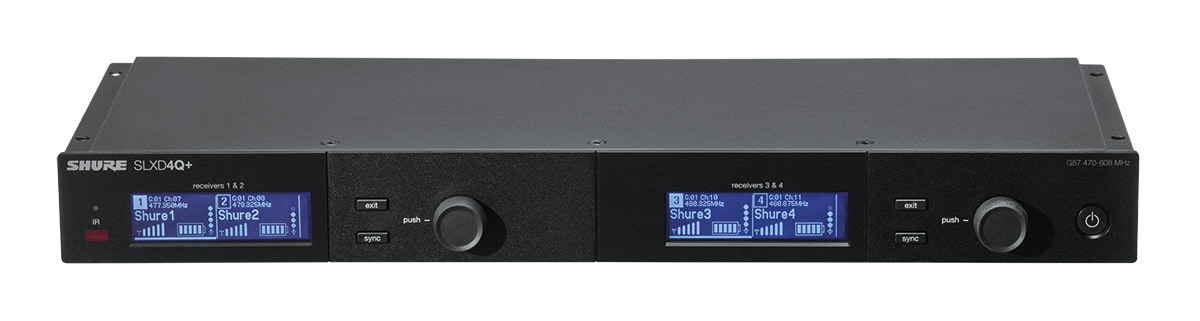

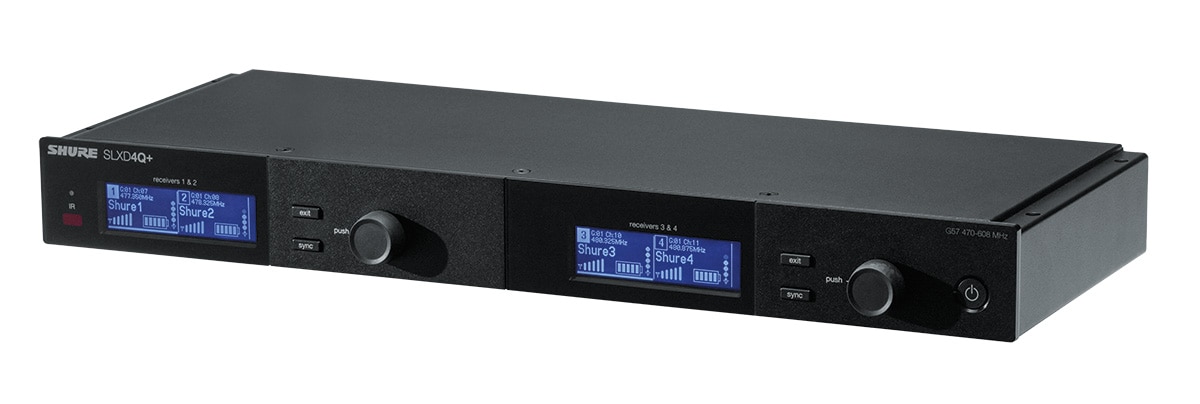

The SLXD4Q+ Quad-Channel Receiver is a receiver for the SLX-D series that allows for the simultaneous use of four channels. Despite supporting four channels, its 1U size enables space-saving when rack-mounted. It is ideal for situations requiring the simultaneous use of four microphone signals, from lectures to live entertainment.

■Features
4-channel receiver fits within a 1U rack space
Wide frequency range of 20Hz–20kHz (varies by microphone)
Supports up to 10 simultaneous channels in the B band (Japan)
24-bit clear digital audio
118dB dynamic range
Audio summing function allows mixing and output of multiple channels as needed
RF cascade function enables an 8-channel system by connecting two SLXD4Q+ units
Supports bias voltage supply
Digital predictive switching diversity
Easy transmitter-receiver pairing with infrared scan and sync

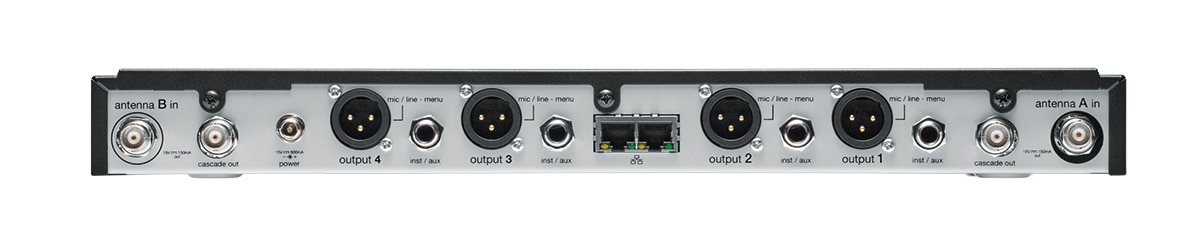

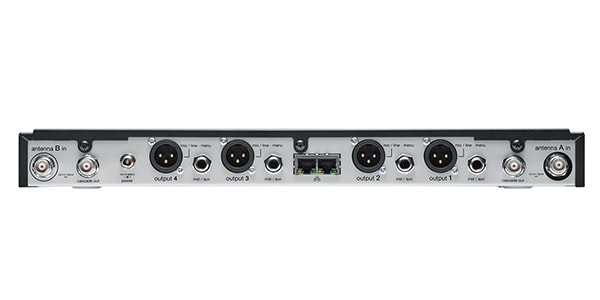

Equipped with four XLR outputs, a 1/4-inch output, and two Ethernet ports
Compatible with Shure Wireless Workbench® software
Durable metal chassis

■Specifications
・All of Systems
Frequency Band: B band (806–810MHz)
Frequency Response: 20Hz–20kHz (varies by microphone type)
Audio Dynamic Range: 118dB at 1% THD, A-weighted, standard
Audio Latency: 3.2ms
RF Sensitivity: -97dBm at 10⁻⁵ BER
THD (Total Harmonic Distortion): <0.02%
Operating Temperature Range: -18°C to 50°C (varies depending on battery performance)
Storage Temperature Range: -29°C to 74°C (varies depending on battery performance)
System Audio Polarity: Positive pressure on the microphone diaphragm produces positive voltage at XLR output pin 2 (relative to pin 3) and at the 1/4-inch output tip (relative to the ring).
Continuous Operating Time: Up to 8 hours (varies by usage conditions)

・SLXD 4-Channel Receiver
Number of Receiving Channels: 4
Dimensions: W 393 x H 42 x D 152 mm
Weight: 1,750g (excluding antennas)
Power Supply: DC 15V / 900mA
Chassis Material: Zinc-plated steel
>RF Input
Spurious Rejection: >75dB, standard
Connector Type: BNC connector
Impedance: 50Ω
Bias Voltage: DC 15V, max 150mA per antenna (switchable on/off)
>Audio Output
Gain Adjustment Range: -18 to +42dB (1dB steps)
Phantom Power Protection: Included
>Configuration:
1/4-inch (6.35mm): Balanced (Tip = Audio+, Ring = Audio-, Sleeve = Ground)
XLR: Balanced (1 = Ground, 2 = Audio+, 3 = Audio-)
>Impedance:
1/4-inch (6.35mm): 1.1kΩ (550Ω unbalanced)
XLR (Line): 500Ω (250Ω unbalanced)
XLR (Mic): 150Ω
>Full Scale Output:
1/4-inch (6.35mm): +18dBV balanced (+12dBV unbalanced)
XLR: Line setting = +18dBV, Mic setting = -12dBV
Mic/Line Switch: 30dB pad
Cascade Output
Connector Type: BNC (for connecting one additional receiver on the same band)
Configuration: Unbalanced
Impedance: 50Ω
Insertion Gain: 0–2dB, standard
>Network
Network Interface: Dual Ethernet ports, 1000Mbps, RJ-45 x2
Network Addressing: DHCP or manual configuration
Max Cable Length: 100m
>Additional Information
Manufacturer Model Number: SLXD4Q+J=-JB
JAN Code: 0042406870467
Included Accessories:PS60J power adapter x1, Hardware kit x1,1/4-wave antenna x2,
BNC adapter x2,Approx. 55cm coaxial cable x2, Rack mount brackets x2, Ethernet cable x1
Rubber feet x1,
Country of Manufacture: China
Manufacturer Warranty: 2 years
