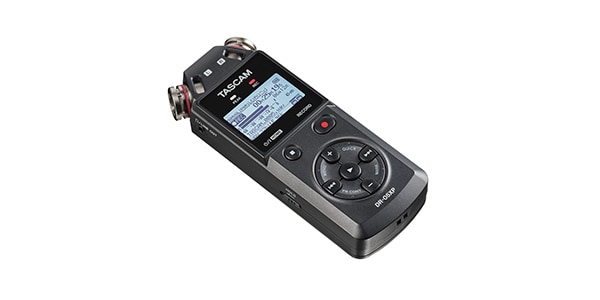

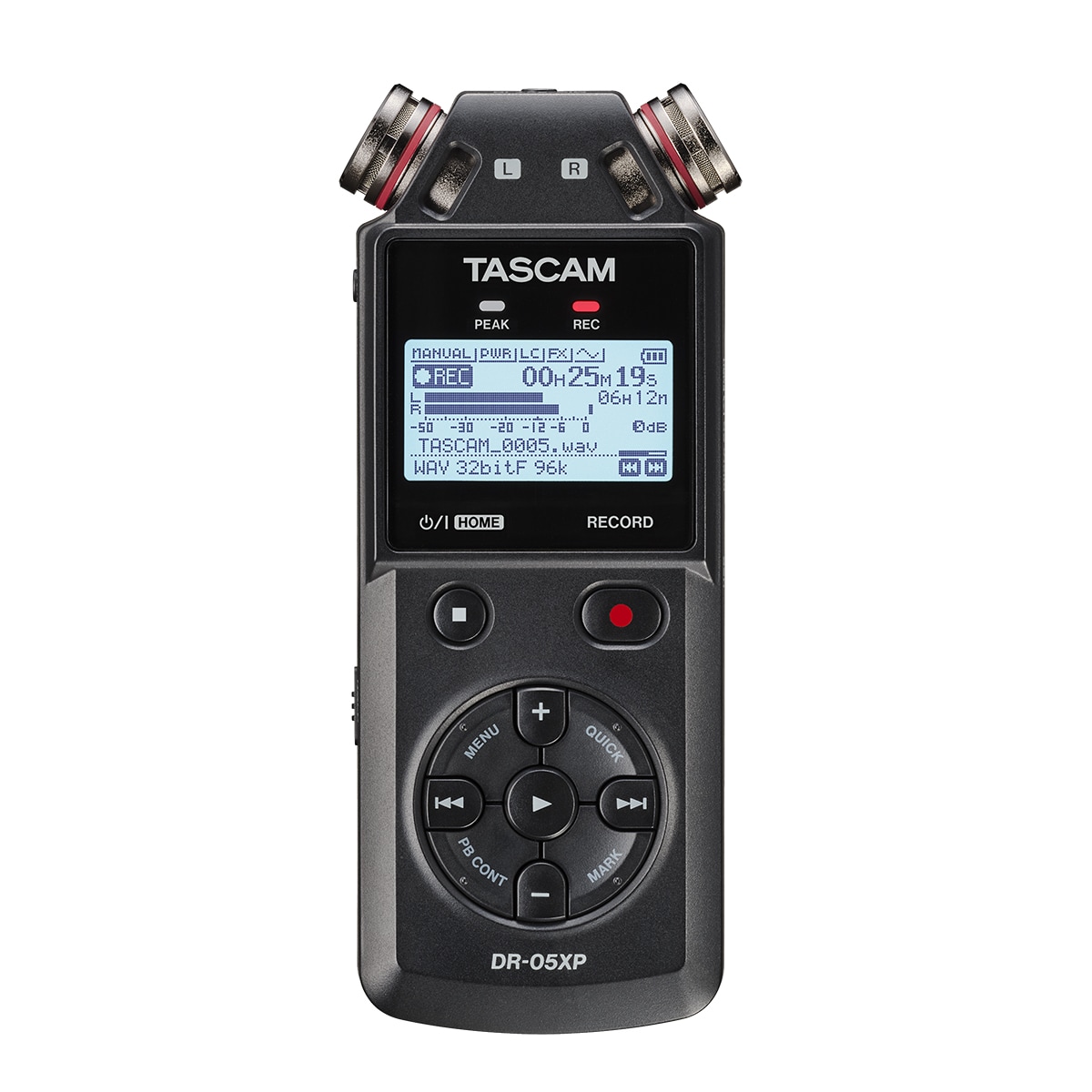

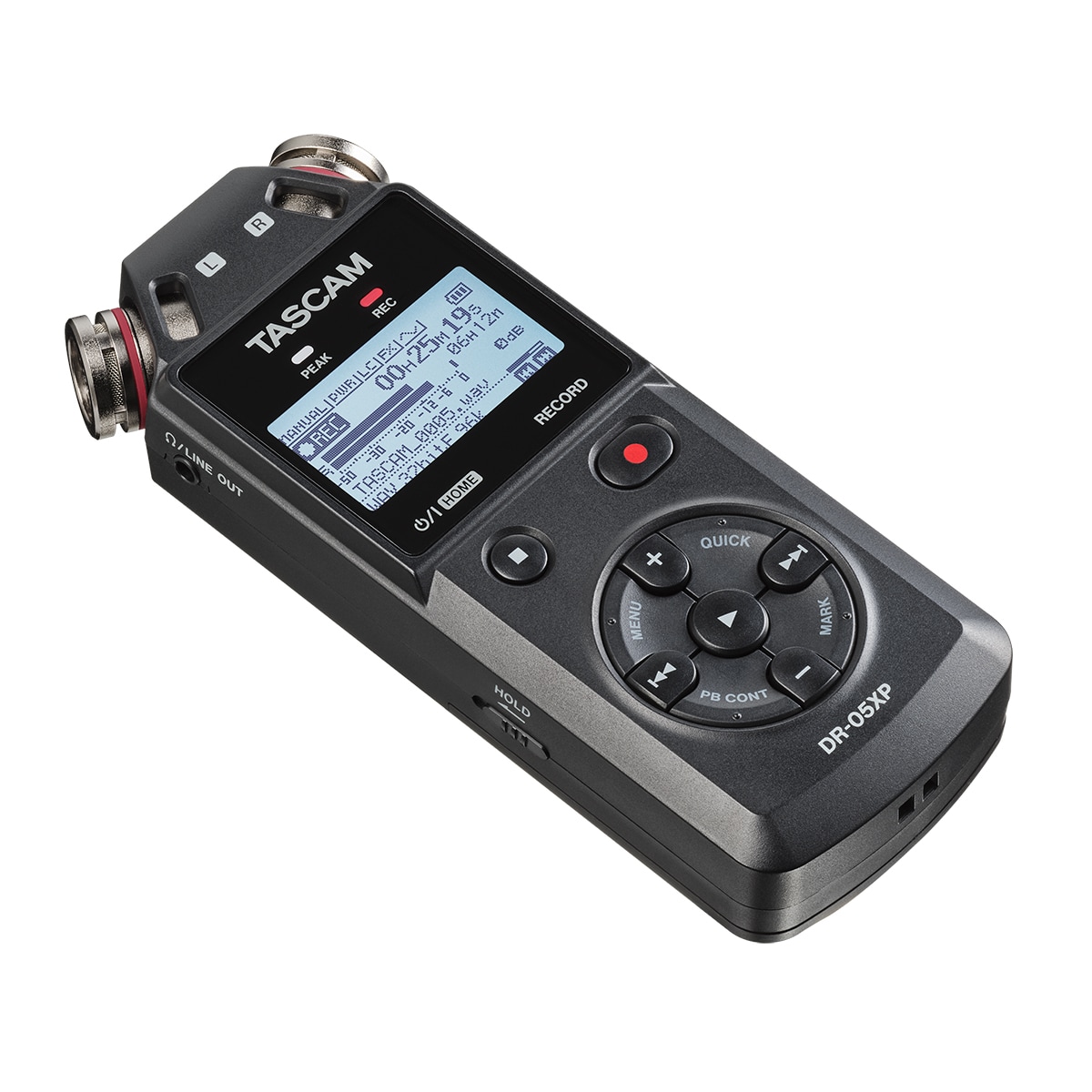

TASCAM / DR-05XP

Stereo portable recorder with 32-bit float recording support. The omni-directional condenser microphone with high sound pressure resistance can be used not only for recording but also as a Type-C compatible USB audio interface.

■ Handy recorder
■Omnidirectional condenser microphone
■Max 125dB SPL

[Rated].
■Recording media: microSD card, microSDHC card, microSDXC card (max. 512GB)
■Recording and playback format:
WAV (BWF)
　Sampling rate： 44.1/48/96 kHz
　Quantization bit depth: 16-bit/24-bit/32-bit float
MP3
　Sampling rate: 44.1/48 kHz
　Bit rate 32/64/96/128/192/256/320 kbps
Number of channels/tracks
Number of input channels: 2 (stereo)
Number of recording tracks: 2 (stereo)

Analog audio input/output ratings
MIC/EXT IN jack (plug-in power)
Connector: 1/8” (3.5 mm) stereo mini jack
Input impedance: 18 k ohms or more (plug-in power off), 2 k ohms or more (plug-in power on)
Reference Input Level: ? 20 dBV
Maximum input level: ? 4 dBV
PHONES/LINE OUT jacks
Connector: 1/8” (3.5 mm) stereo mini jack
Output impedance: 12 ohms
Reference Output Level: ? 14 dBV (with 10k ohm load)
Maximum Output Level: +2 dBV (with 10k ohm load)
Maximum output power: 20 mW + 20 mW (with 32 Ω load)
Recommended headphone impedance: 16 to 250 Ω
Built-in speaker: 0.3 W (monaural)

Control Input/Output Ratings
USB connector: Type-C
Connector: Type-C
Format: USB2.0 HIGH SPEED Mass Storage Class
USB1.1 FULL SPEED audio class
USB audio
Sampling rate：44.1/48 kHz
Quantization bit depth：24-bit
Number of inputs：2 channels
Number of outputs: 2 channels

General
Power supply: 2 AA batteries (alkaline or nickel-hydrogen batteries, sold separately)
USB bus power from PC 5V / 0.5A
Dedicated AC adapter (TASCAM PS-P520U, sold separately): DC 5V / 2A
Power consumption: 1.7 W (at maximum)
Weight: 174 g / 126 g (including battery / not including battery)
Operating temperature: 0 to 40°C (32 to 104°F)
Dimensions: 60.5 x 142.3 x 27 mm (W x H x D)
Included: DR-05XP x1
Safety Guide (with warranty) x 1
TASCAM ID registration guide x 1”
