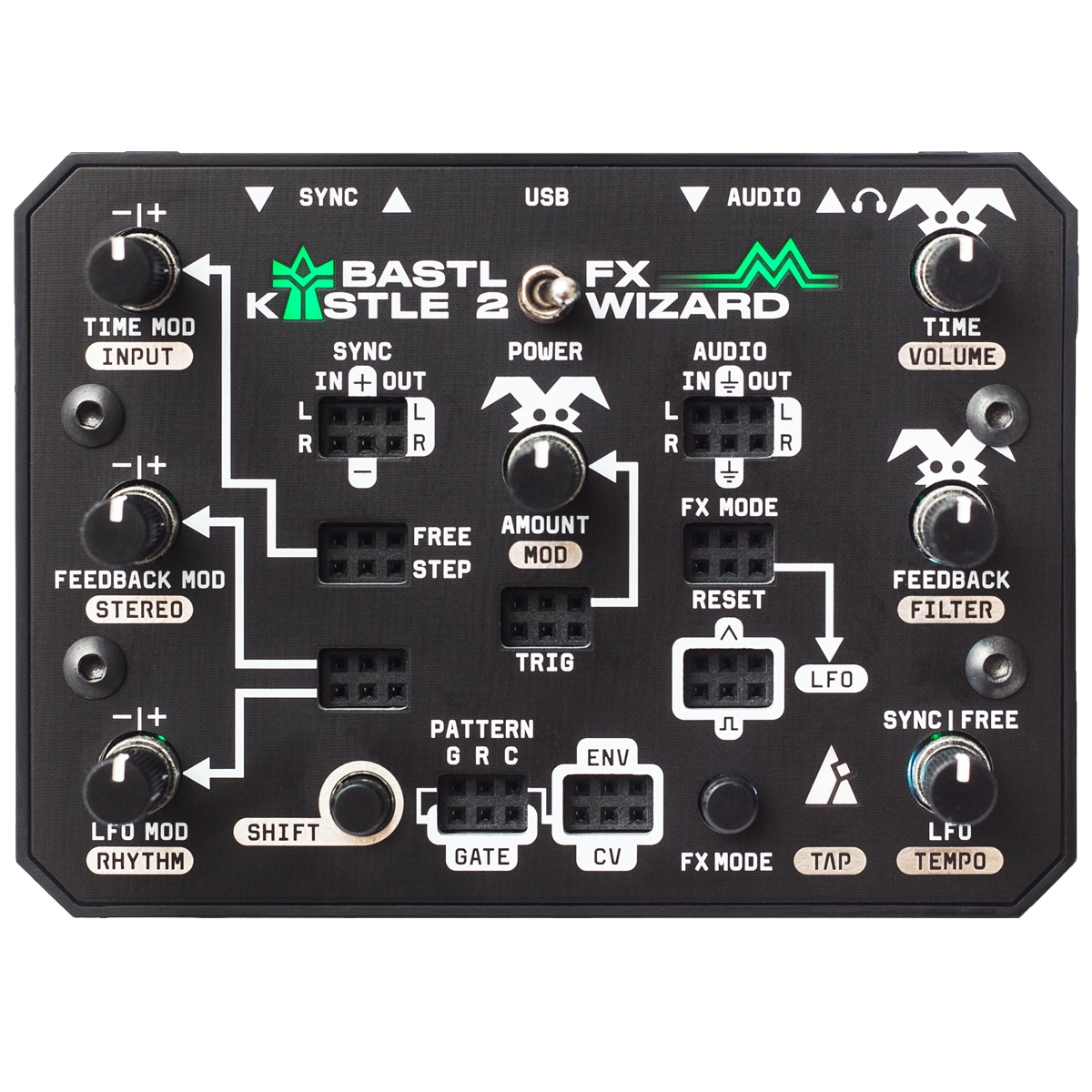

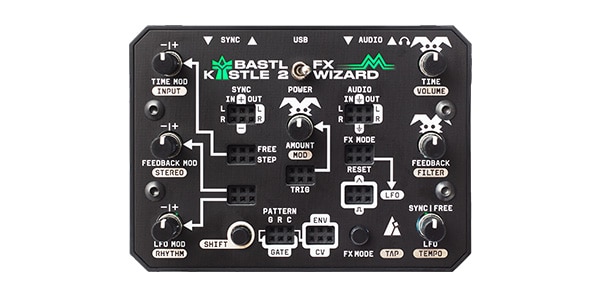

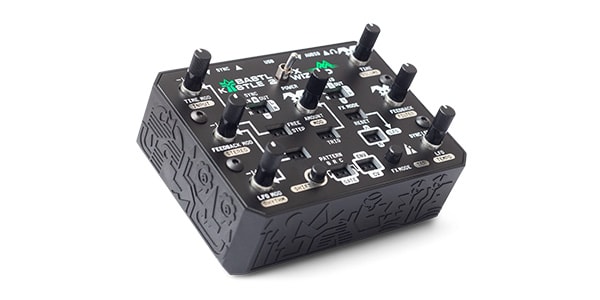

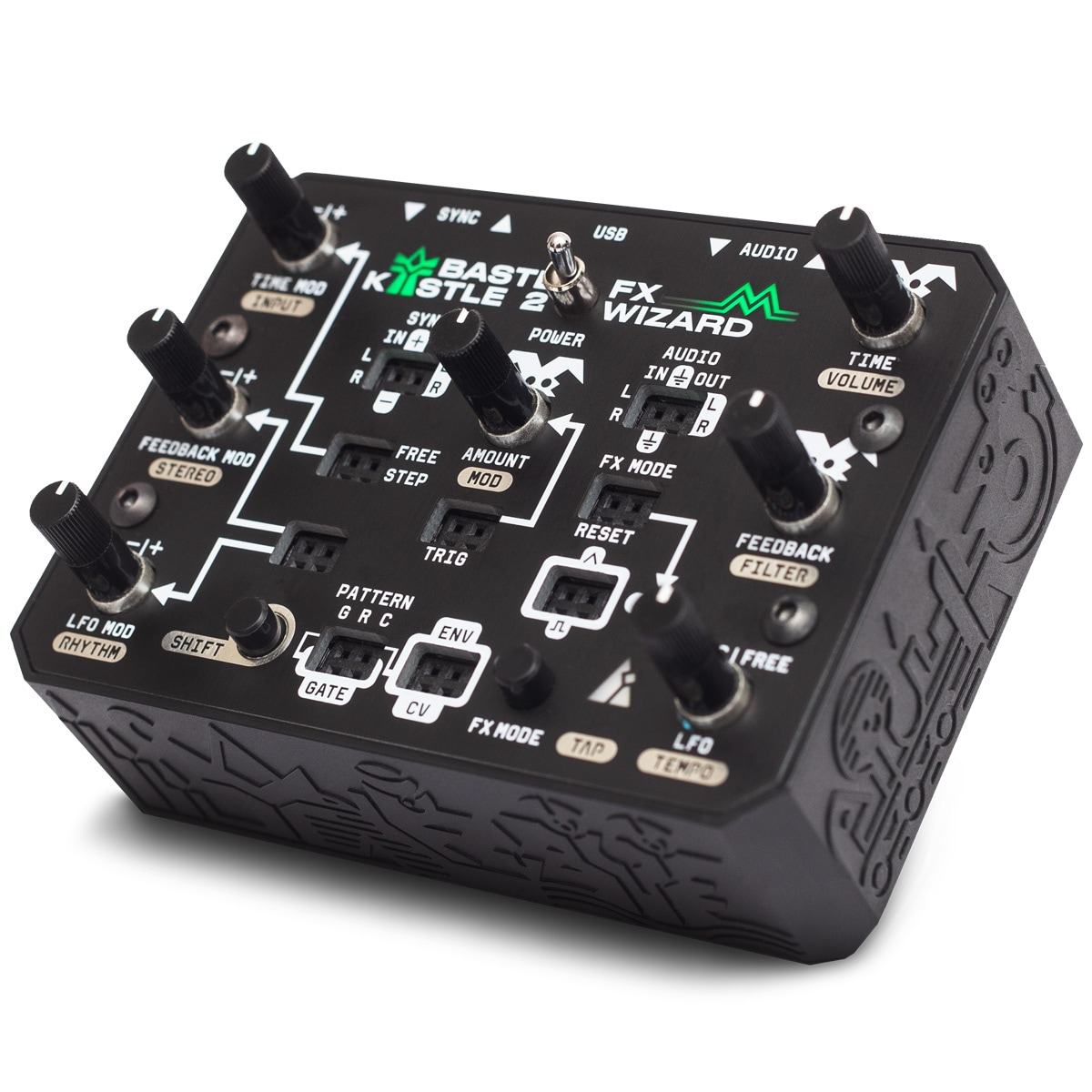

BASTL INSTRUMENTS / KASTLE 2 FX WIZARD

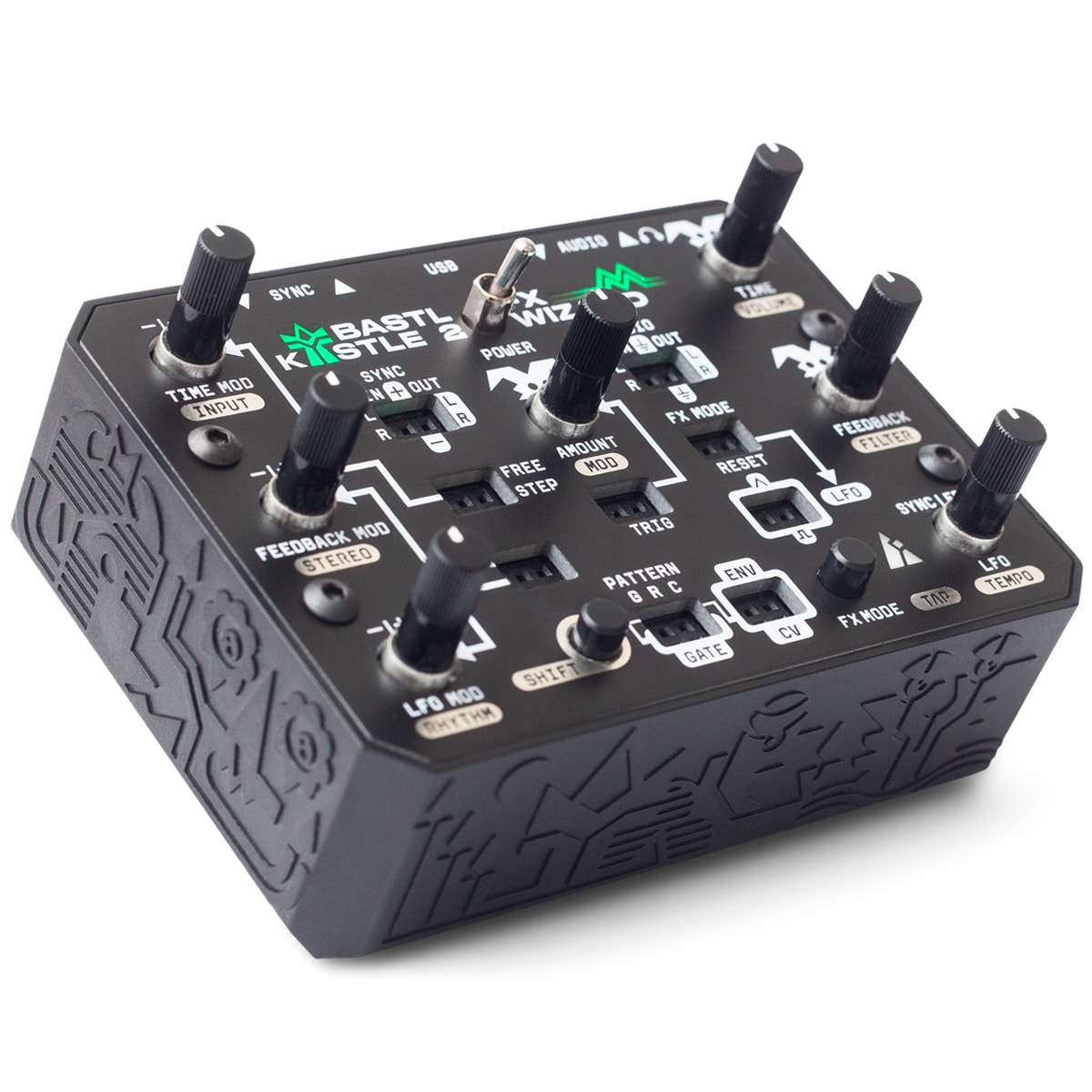

The Kastle 2 FX Wizard is a patched stereo multi-effect processor.

With 9 types of unique stereo effects, you can start your vast sound processing adventure right away by freely patching the built-in LFO or external clocks and CVs.
From sophisticated plain stereo effects to modulation-driven glitches, a sound design paradise awaits you!

Instead of navigating through effect presets, would you like to create your own effects that work uniquely with modulation?
Play with this compact and clever stereo multi-FX and you won't be able to sleep with excitement as lots of happy accidents will fulfill your FX desires.

Powerful glitches and sound design heaven.
There are three broad categories of effects.
Each category has both sophisticated controls and BASTL's own exciting and extreme controls.

The DELAY FX (LED color = blue/greenish) include a clean “stereo delay,” a “flanger” with stereo chorus function and blistering extremes, and a “freezer” that captures and freezes a moment in time.
AMPLITUDE FX (LED color = bright colors) includes “Autopan” with ring mod possibilities, a crunchy “Digital Crusher” with powerful feedback, and a “Rhythmic Slicer” that can create fun rhythmic transients from any drone. Rhythmic Slicer” that can create fun rhythmic transients from any drone.
The PITCH SHIFTING FX (LED color = reddish) includes a dirty “Pitcher (pitch shifter)” that shifts up the signal and can do so in a tonal or rhythmic fashion. There is also a fun “Replayer” that lets you play with audio inversion and pitch shifting, and a “Shifter” that lets you move the pitch up or down in a more nuanced way with detuned sounds or feedback pitch slopes.
There is also a “Filter” in the Shift menu!

Let's modulate anything!
The selection of modulation and active FX MODE opens the door to extreme sound design and glitch territory.

Effect parameters can be freely modulated with the built-in LFO and pattern generator!

There is even an envelope follower for dynamic effects that follow the input audio.

SPECIFICATION

9 types of FX modes
? Delay (up to 1.15 seconds in stereo)
Flange (up to 1.15 seconds in stereo) ? Flanger
? Freezer
? pannier
Crusher ? crusher
Crusher ? slicer ?
? Pitcher
? Replayer
? Shifter
44 kHz/16-bit stereo audio processing
TIME parameter with attenuvert modulation (S&H or free)
FEEDBACK parameter with attenuvert modulation
AMOUNT mix with attenuation modulation
Low-pass/high-pass FILTER
STEREO detuning for each FX MODE
FX MODE CV input with attenuator to change modes via CV
TRIG input to synchronize effects to tempo
LFO with triangle and pulse outputs, reset input, attenuate modulation, sync or free
Tempo generator with tap tempo, external clock and divider function
Pattern generator (tempo sync), GATE, CV output, patch programmable
Patchable envelope follower
Stereo input with input gain (up to +12db), accepts signals up to 6Vpp
Stereo outputs capable of driving headphones up to 250 ohms
Analog sync input
Analog sync output

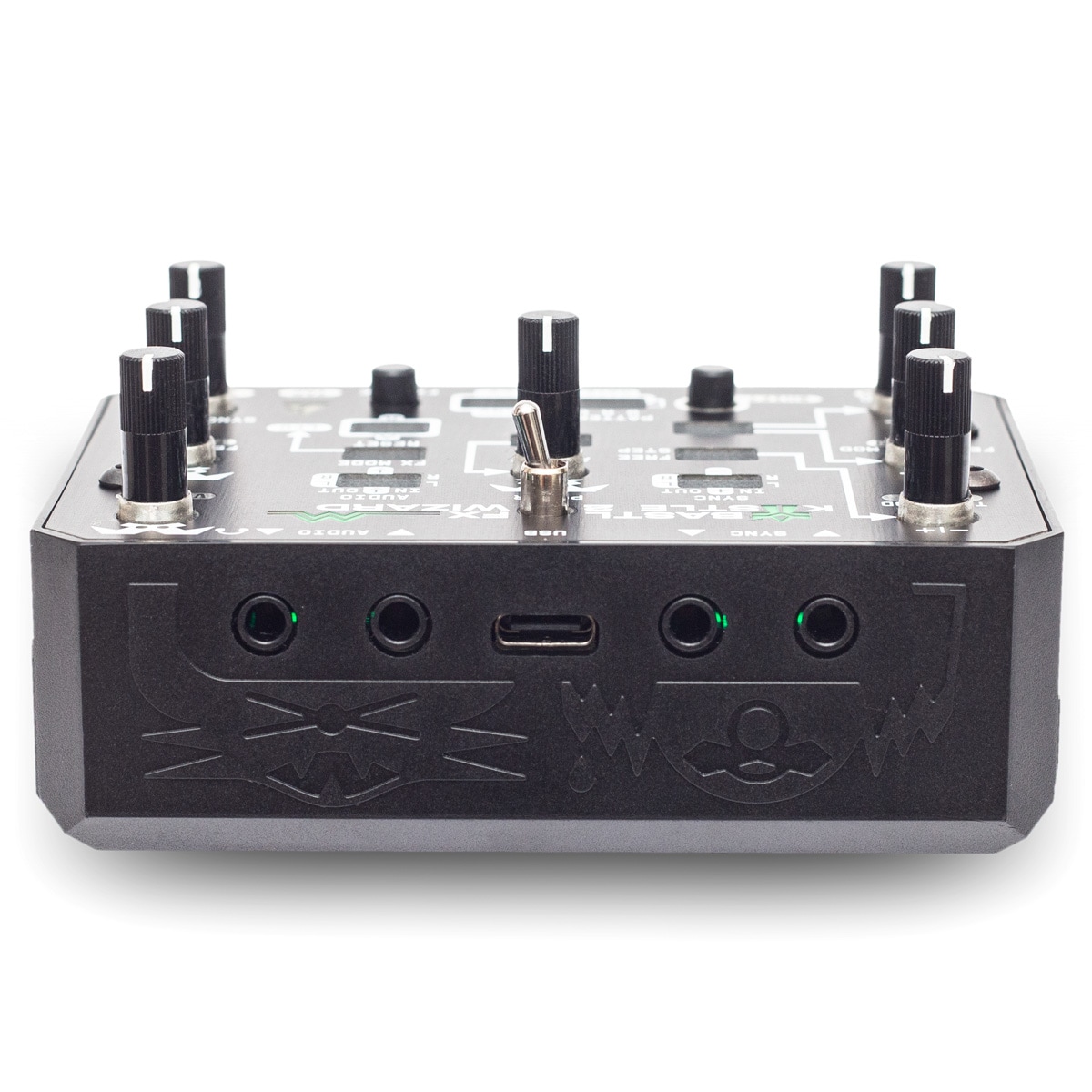

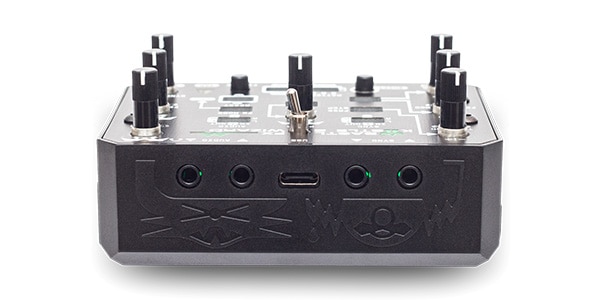

USB-C powered (can also be used for firmware updates)

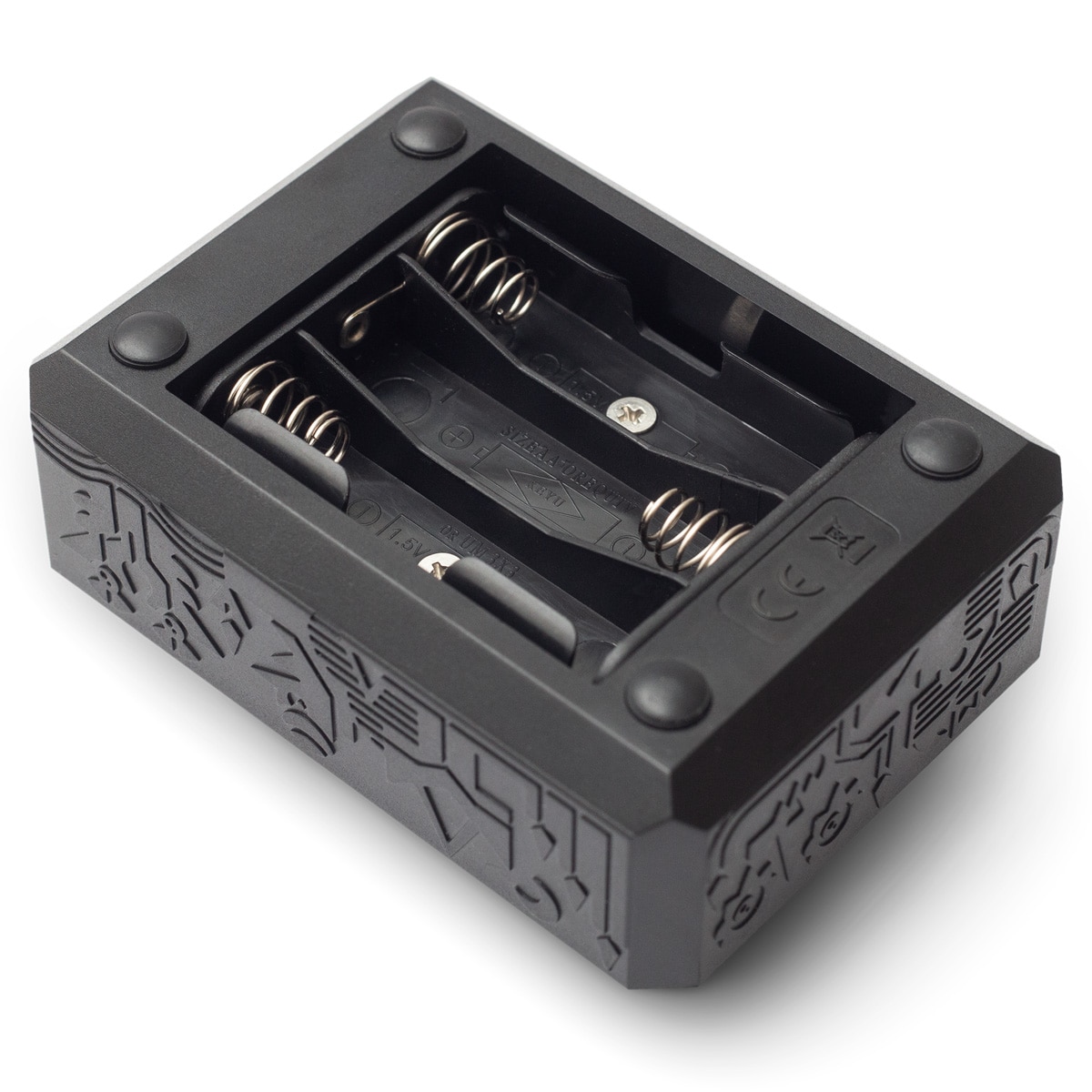

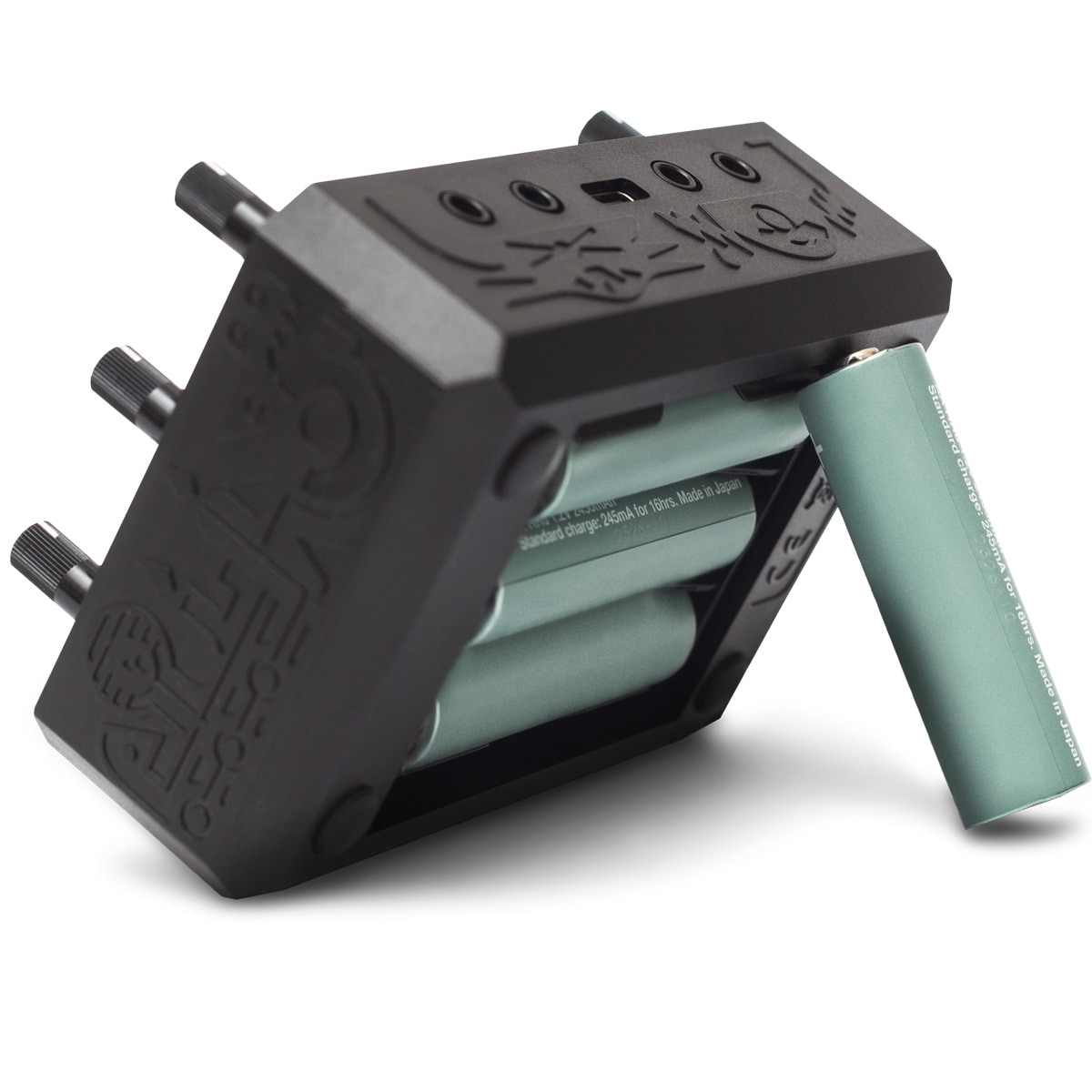

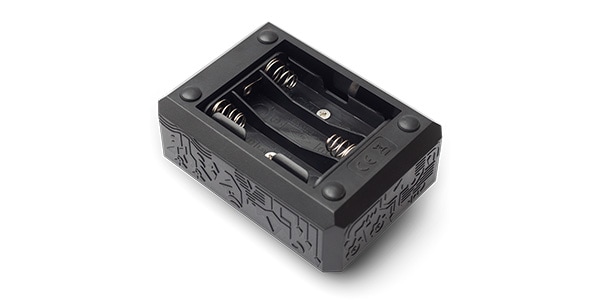

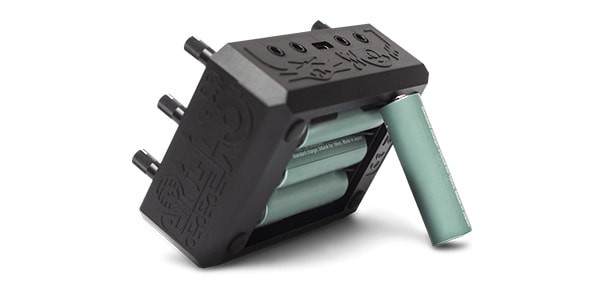

Can also be powered by 3 AA batteries
Power consumption approx. 100-150 mA, up to 15-18 hours of use with 3xAA batteries
