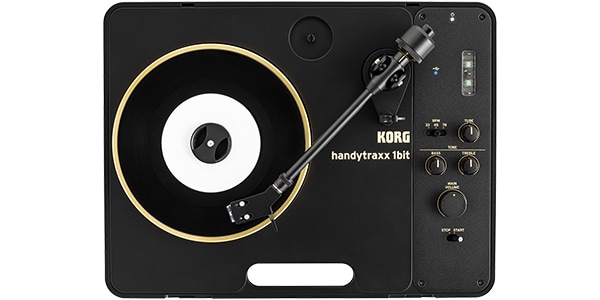

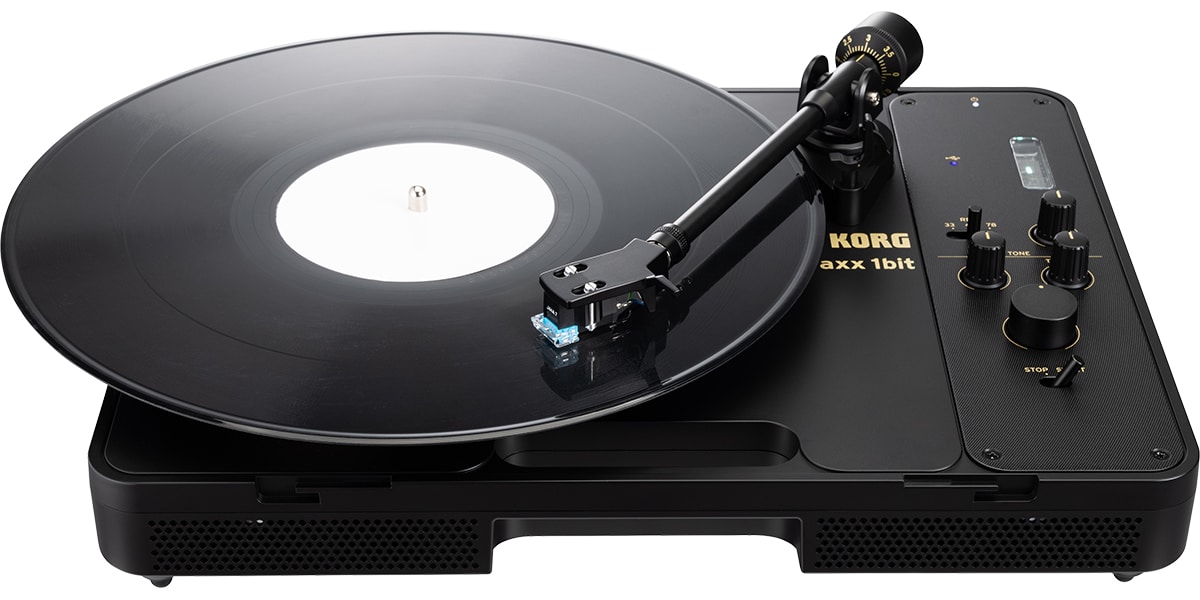

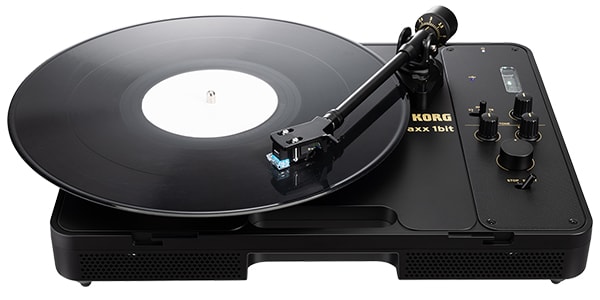

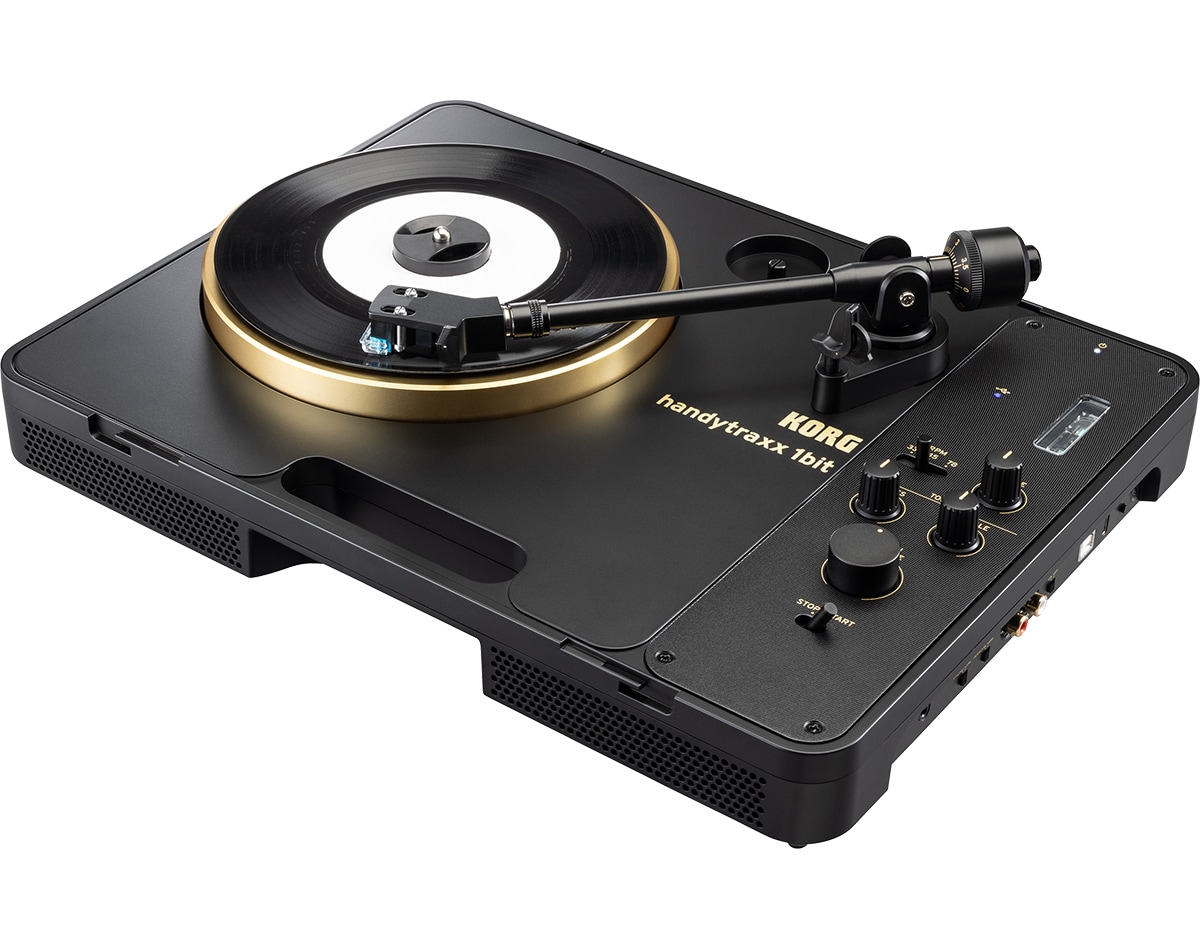

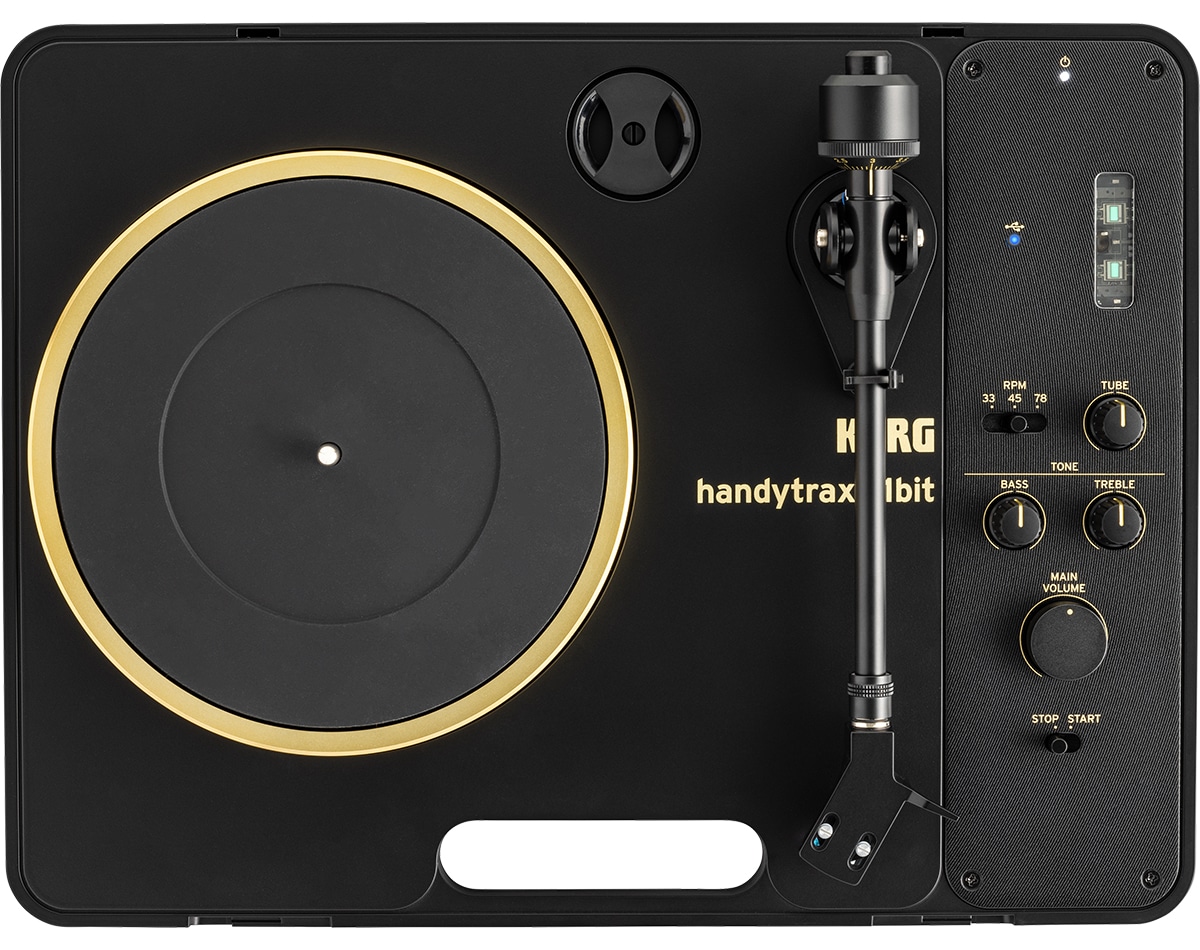

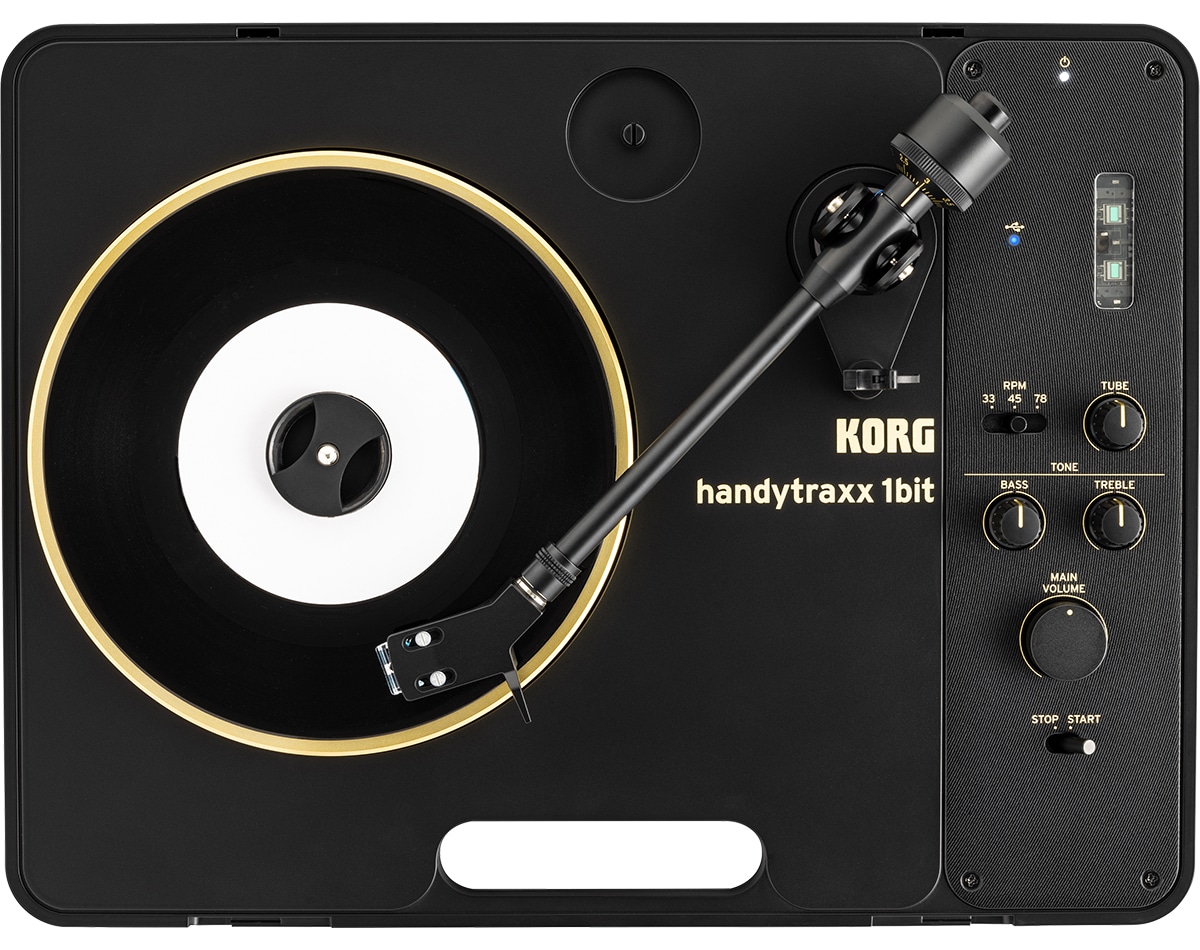

KORG / handytraxx 1bit high-resolution output record player

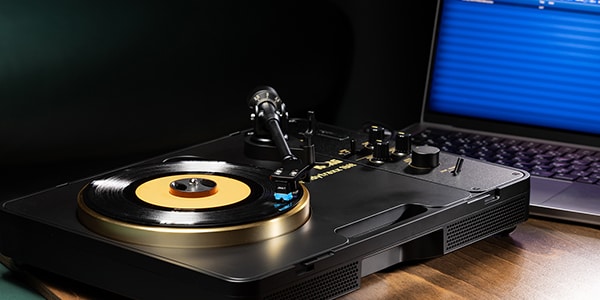

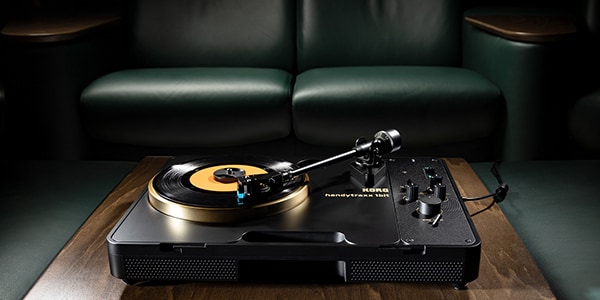

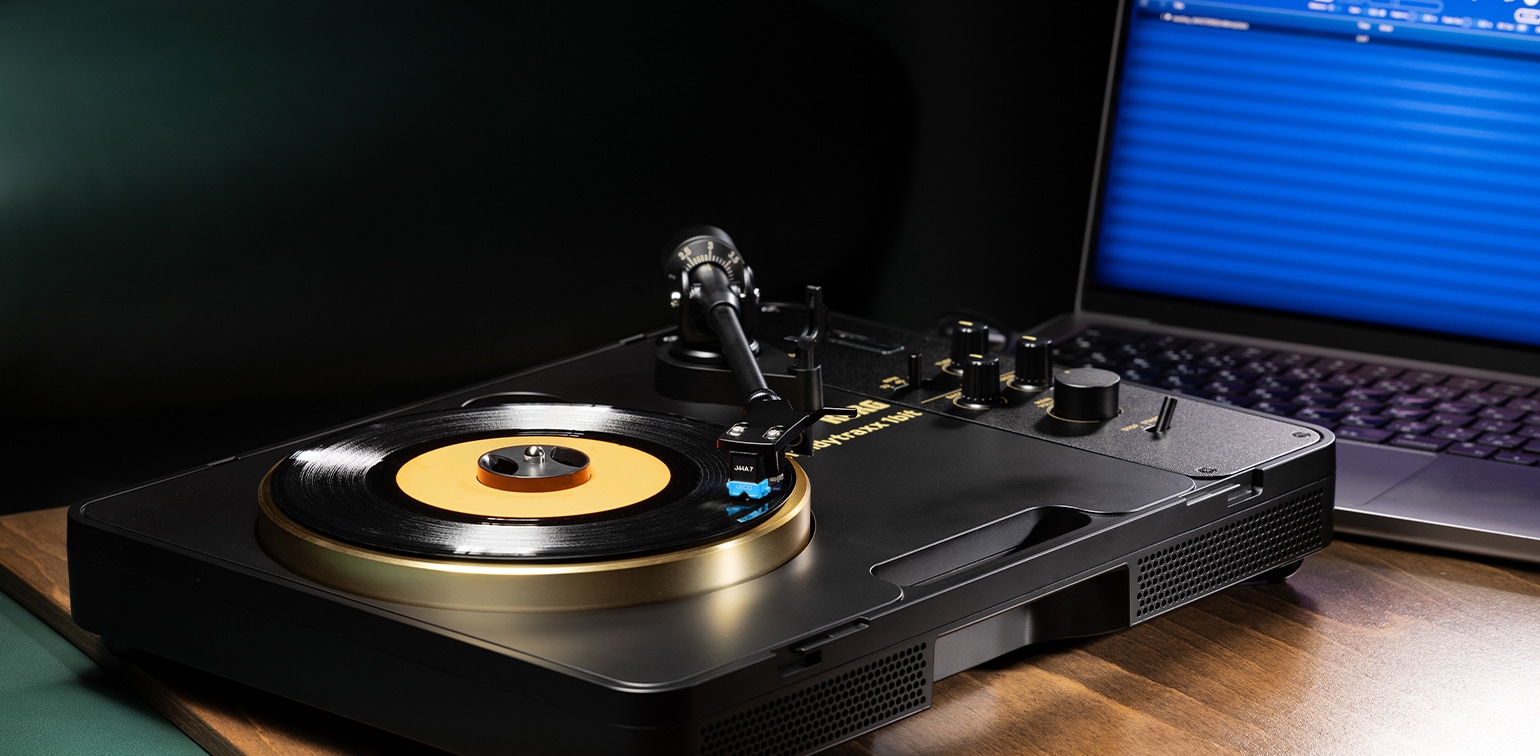

The handytraxx 1bit, the top model in the handytraxx series, lets you easily enjoy analog records with just one device. It can record record audio to your PC as high-resolution 5.6MHz, 1-bit (DSD) data. It's ideal for digitizing your vast record collection, or as a sub-player for casual record playback without the need for an audio system. The handytraxx 1bit is the perfect piece of equipment for anyone who wants to enjoy analog records.

Drive System: Belt drive (with digital rotation compensation)
Drive Motor: DC servo motor
RPM: 33-1/3, 45, 78 rpm
Platter: Aluminum die-cast
Wow and Flutter: < 0.15% (WTD) at 3kHz
S/N Ratio: > 60dB (DIN-B)

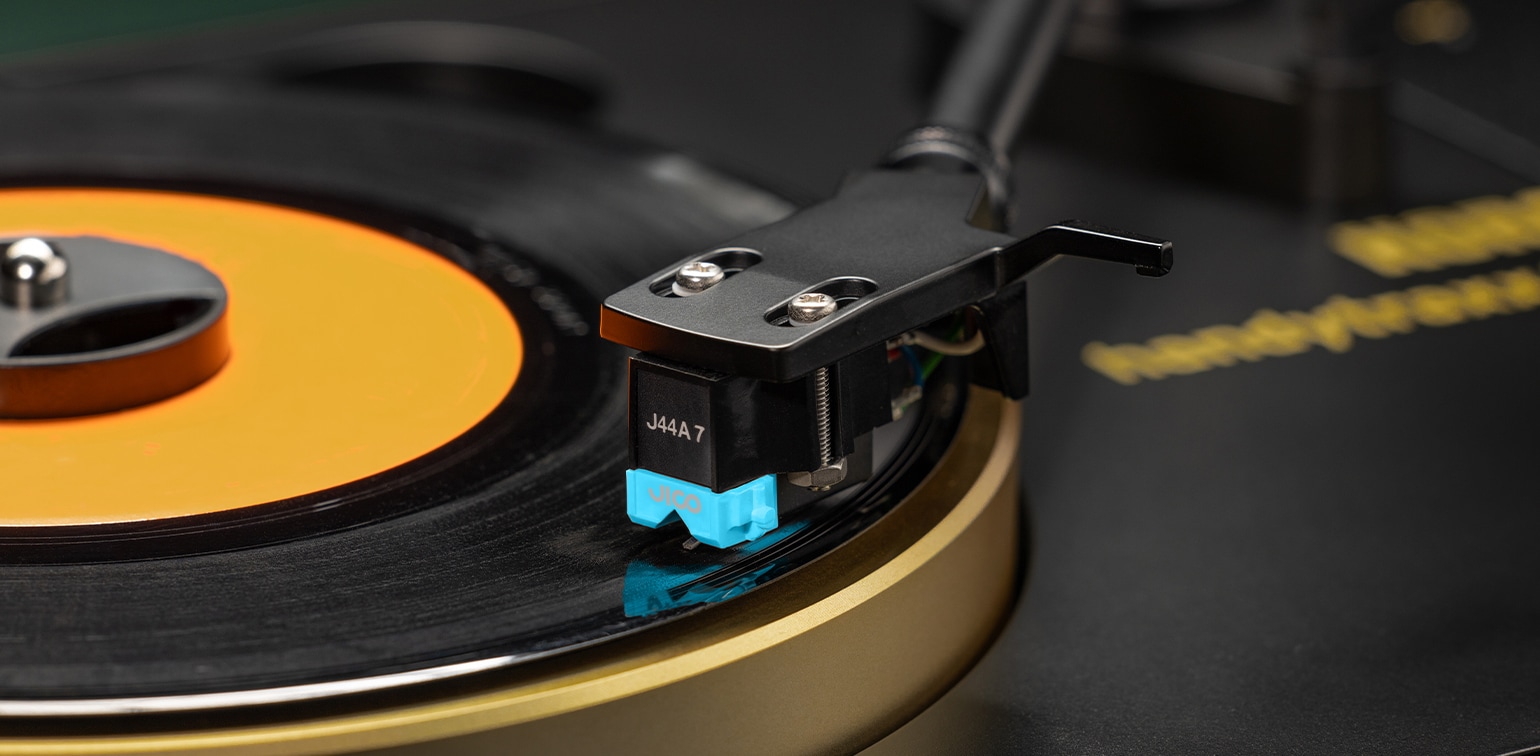

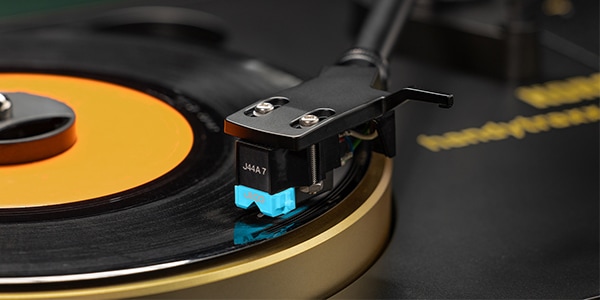

Cartridge Type: MM stereo cartridge (JICO J44A 7)

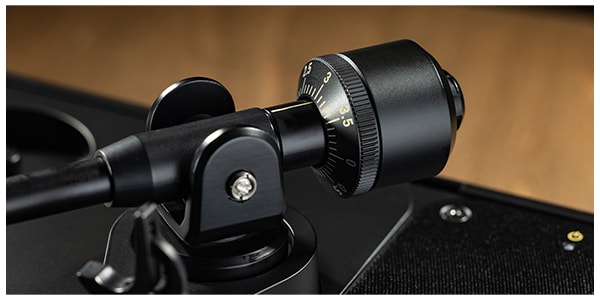

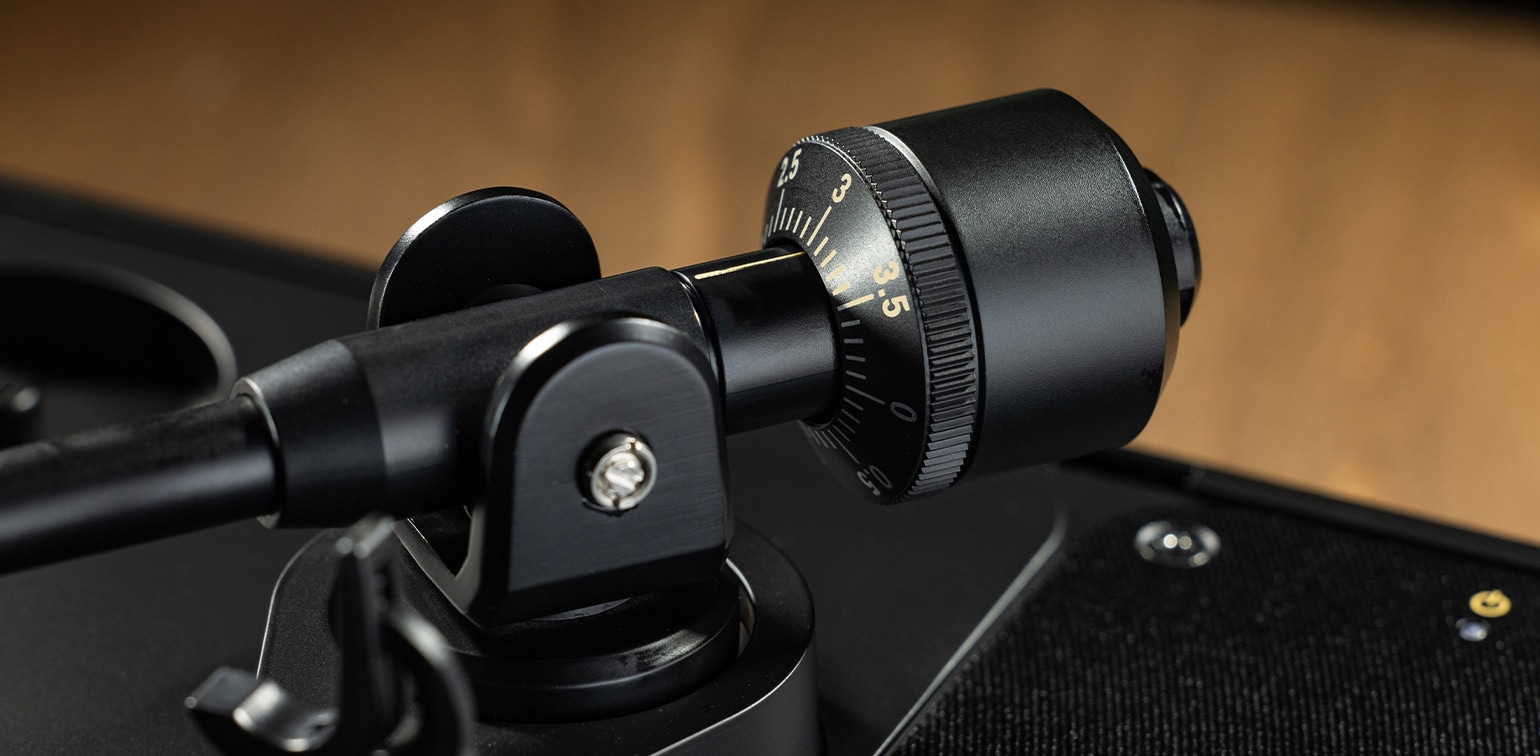

Stylus Pressure: 1.5-3.0g
Effective Tonearm Length: 190mm

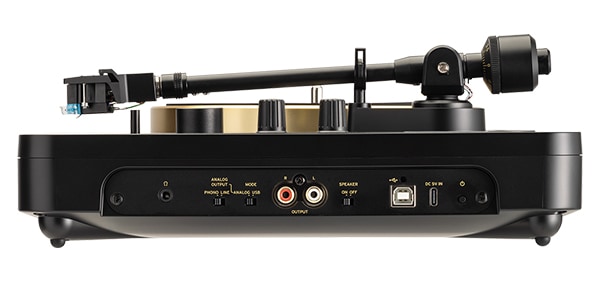

Output Level:
Phono: 420-750mV at 1kHz (GAIN knob MAX, TUBE knob MIN)
Line: +14.75dBu (4.24Vrms), THD 1% or less
Headphones: 70mW (1.5Vrms) @ 32Ω, THD 1% or less
Speakers 2.5W @ 4Ω x2, THD < 1%
PHONO Preamp:
Gain 38dB
RIAA Equalizer

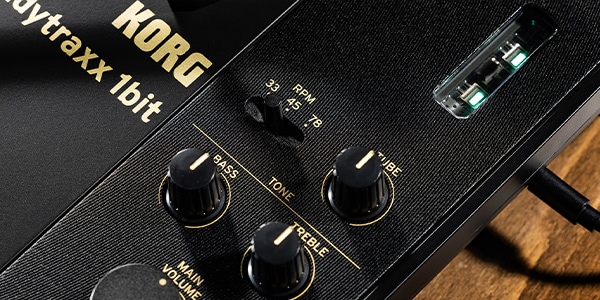

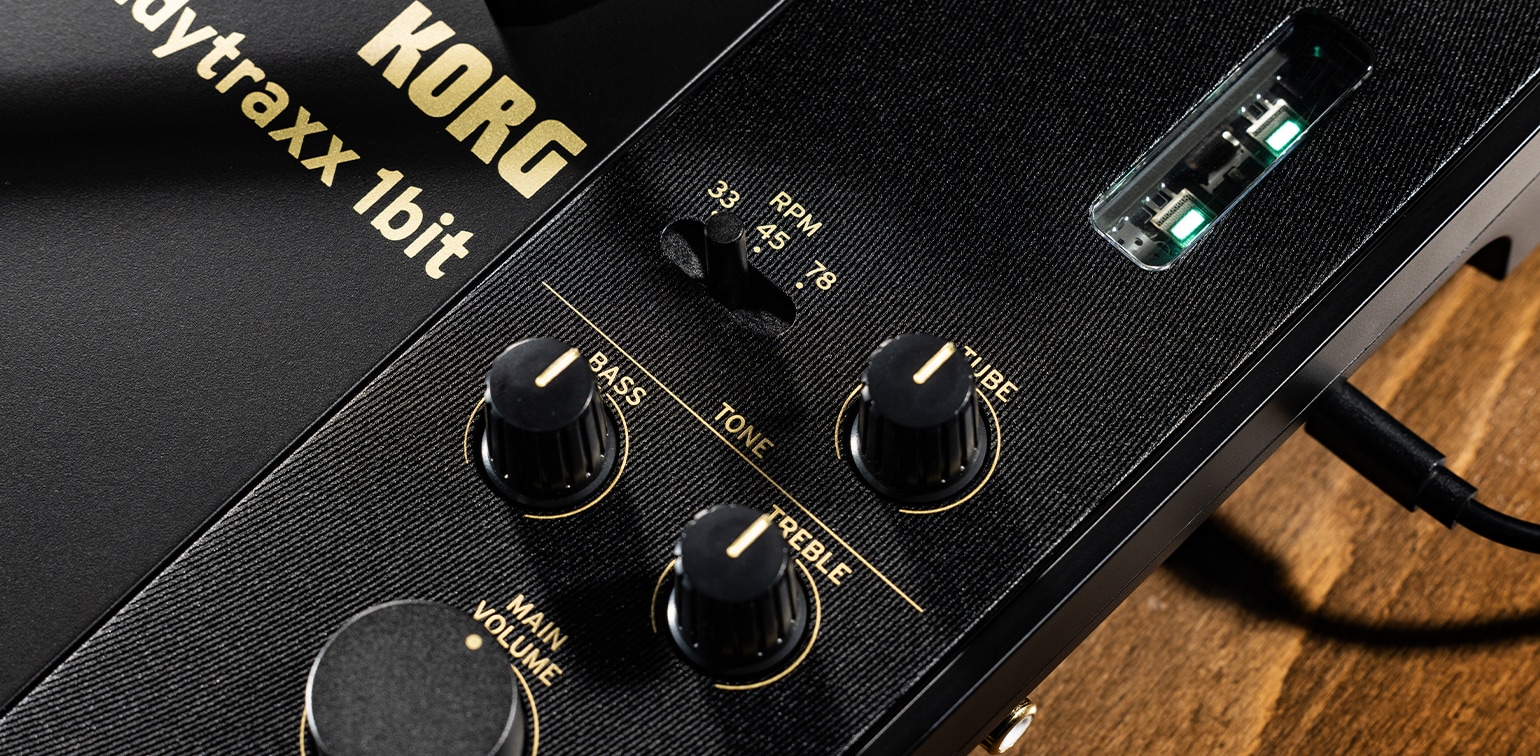

Tone Controls:
BASS Knob 130Hz, ±8dB
TREBLE Knob 5.5kHz, ±8dB
TUBE Control: Gain 0-6dB
USB Audio:
DSD 2.8224MHz / 5.6448MHz, 1-bit
PCM 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz, 16-bit / 24-bit
Power Consumption: 2.35W
Power Supply: AC adapter, six AA batteries (alkaline or nickel-metal hydride)
Battery Life: Approximately 11 hours (Speakers: ON, MAIN VOLUME knob: center, alkaline batteries used)
Weight Weight: 2.8 kg (including dust cover, excluding batteries)
Dimensions: 370 x 286 x 118 mm (with cover attached)
Accessories: AC adapter, AC adapter replacement plugs (5 types), dust cover, platter, belt, record mat, EP adapter, head shell, cartridge (pre-installed in head shell), counterweight, platter retainer
*Product specifications and appearance are subject to change without notice for product improvement purposes.

[Release Date]
Orders open: July 18, 2025, 6:00 PM
Scheduled release date: July 30, 2025
