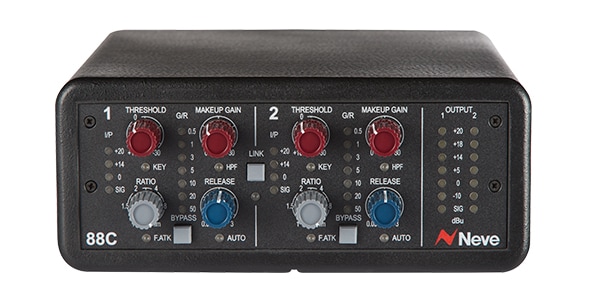

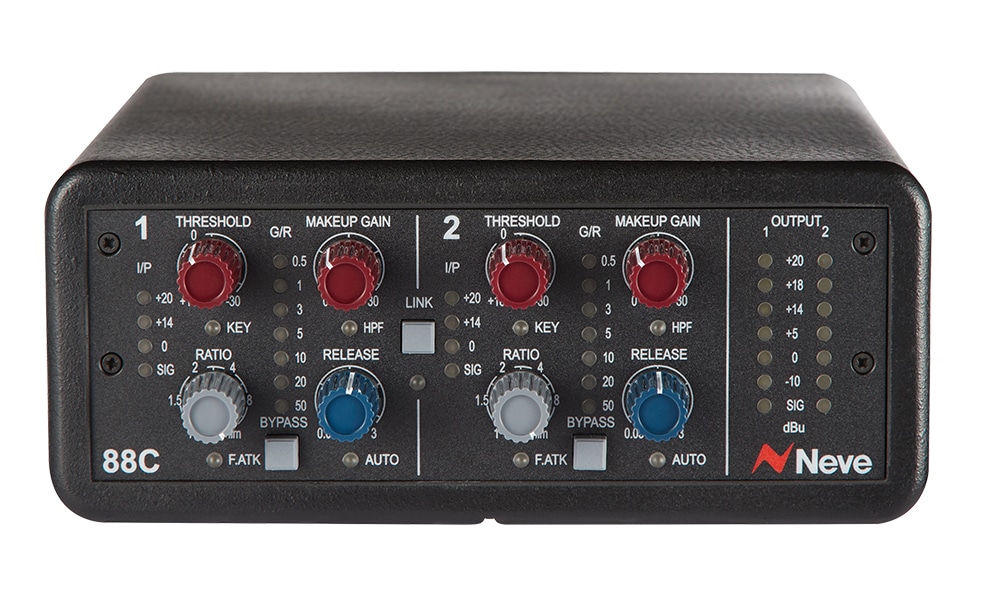

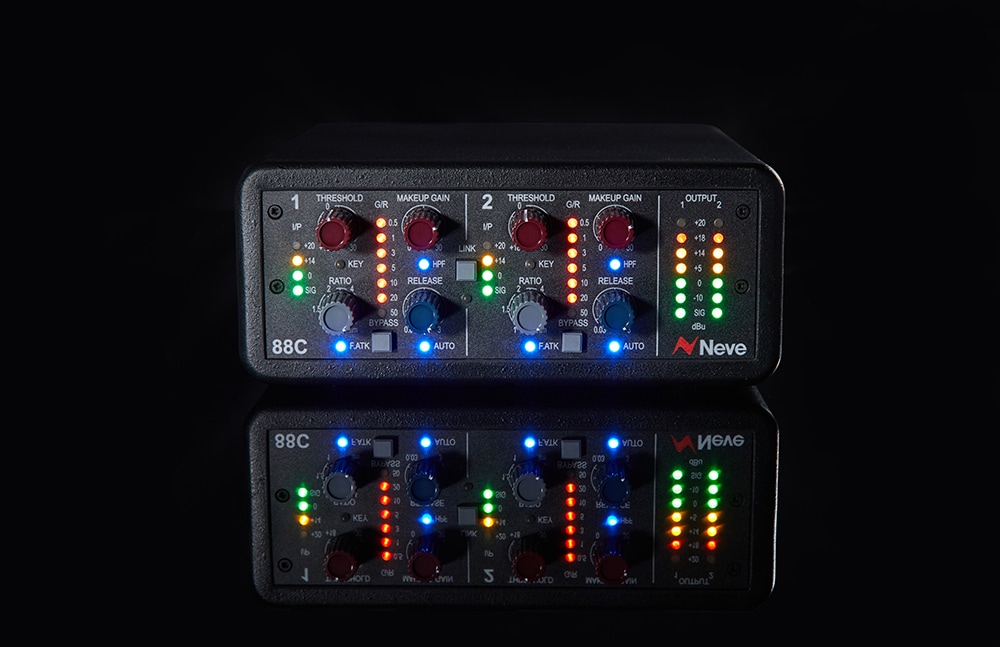

AMS Neve / 88C: Dual Desktop Dynamics

AMS Neve/88C: Dual Desktop Dynamics is a 2ch VCA compressor that combines the dynamics section of the flagship console Neve 88R into a compact desktop outboard.

The dynamics section of the flagship console Neve 88R is now a compact desktop outboard. The 88C brings the 88R's iconic sound quality, versatile control, and legendary dynamics to any studio.

________________________________
VCA tradition
First introduced on the 50 Series consoles in the 1970s, Neve's VCA compressors set a new standard for accurate and versatile compressors. This innovative technology played a key role in Neve's legendary consoles such as VR and the 88R series. Now, the engineered 88C brings classic Neve signature sound to every studio in a compact, easy-to-use format.

iconic sound quality
The Neve 88R's dynamics section is praised for its warm, smooth, and musical compression. In the 88C, this Neve-specific sound has been further optimized for modern environments. It provides clear, powerful dynamics control without sacrificing natural tone.

Various controls
The 88C features adaptive attack, release, and ratio settings that mirror the precision and versatility of the 88R dynamics section. This gives you full control over instantaneous response and overall dynamics, making it ideal for a variety of music genres and studio applications.

legendary character
The 88C features a dynamics processor with the character of an 88R, giving your tracks and mixes a sophisticated sound. This iconic sound is exactly why it is highly rated by the world's top studios such as Abbey Road, Air Studios, Fox, and Capitol Studios.

desktop design

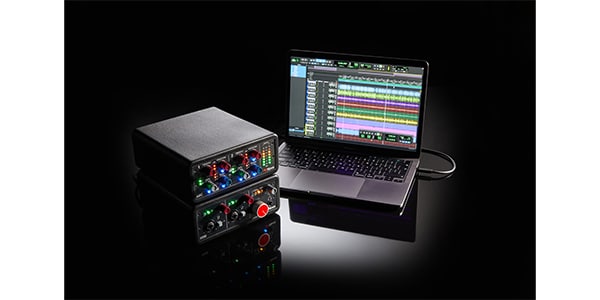

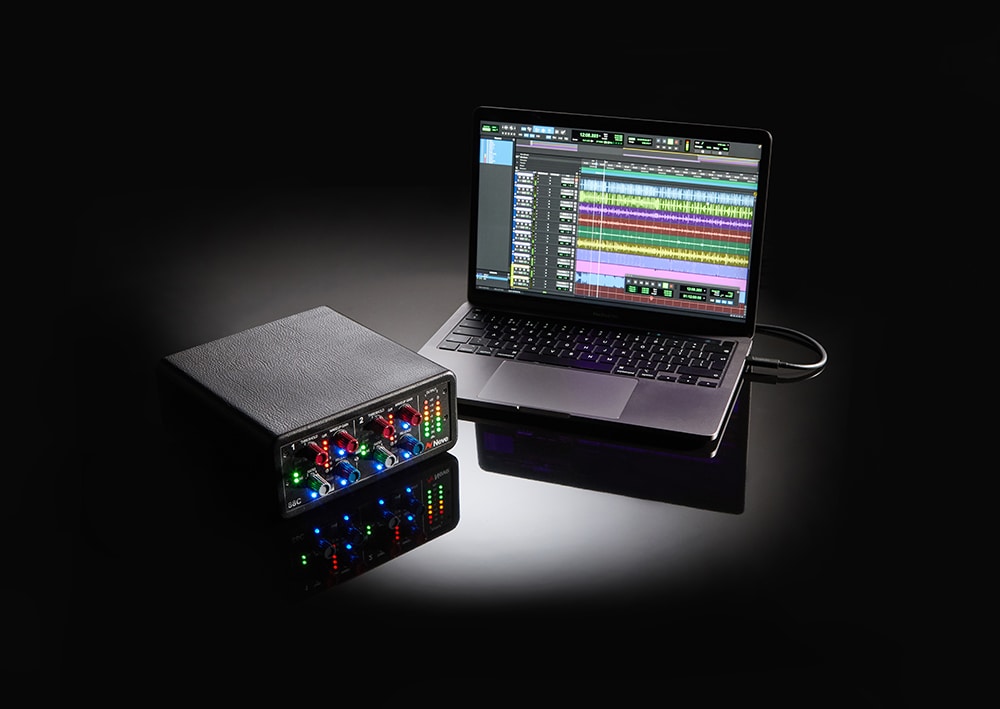

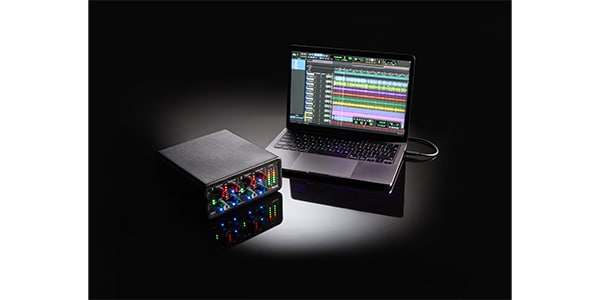

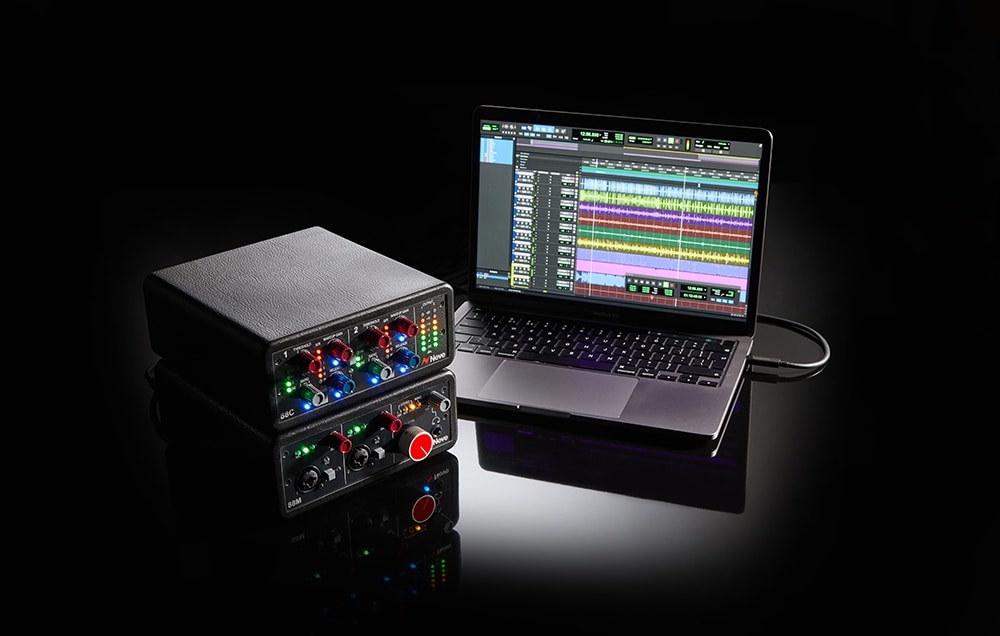

The 88C condenses the 88R's dynamics section into a compact 2-channel desktop format. Modern USB-C power provides portability and studio-quality performance for home studios and small setups. The 88C is designed as an ideal companion to the 88M and as a standalone desktop compressor.
_______________________________

■Features
2ch VCA compressor based on the channel strip of the 88R console

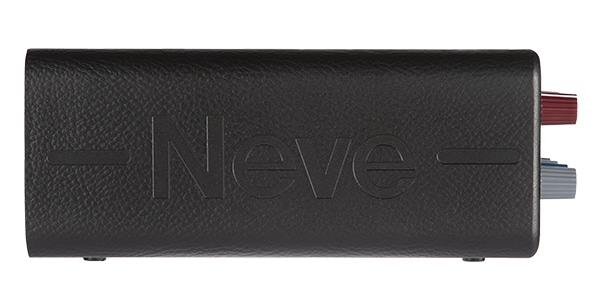

Compact and durable body with excellent portability
USB-C BUS power supply: Can be powered directly from the laptop
Balanced connections: easy to integrate into your studio
Optimized gain reduction: compression and limiting functions up to +18dBu threshold

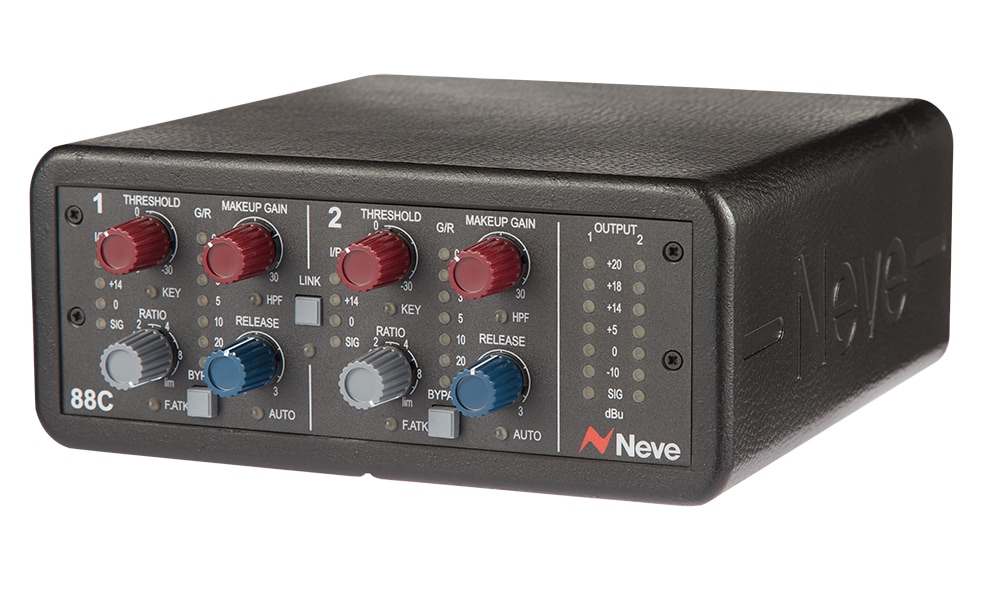

Extensive metering features: 3 independent meters for input, gain reduction, and output
Brickwall Limiting: Accurate mixing and mastering from 1:1 ratio to full limiting
Adaptive attack technology: responds to transients while preserving the characteristics of the sound source
Auto-release: Streamline your workflow with program-dependent auto-release
Auto anti-breeze technology: Prevents failure due to sudden volume drop
True bypass: True bypass for inputs and outputs allows seamless A/B comparison of mixes
Mono/Dual/Stereo Link: Each channel can be operated independently or linked via VCA bus
Variable Sidechain Filtering: Fine tune your compressor's response with three additional sidechain filters. Prevents over compression and allows you to control the frequency band where the 88C effect is effective

■Specifications/Operating environment
・Dimensions & Power Requirements
Height: 76mm
Width: 182mm
Depth: 203mm
Weight: 1.32Kg
Heat Dissipation：<5watts
Voltage: USB3
Current: <900mA

・Audio Specification
Headroom: +21.6dBu @1kHz (<0.5% THD)
Distortion (THD+N): 0.004% @ 1kHz (measured at +10dBu, 20Hz to 40kHz filter)
General Noise: -89dBu (<-117dBu Bypassed)
Frequency Response: 20Hz to 20kHz: +/-0.02dB
Dynamic Range: >110dBMaximum
Input Level: +21dBu
Input Impedance: ?24kΩ
Output Impedance: ?50Ω

Input/Output Metering
Signal: -30dBu
Clip: +20dBu
Crosstalk
Inter-channel Crosstalk: >-100dBr

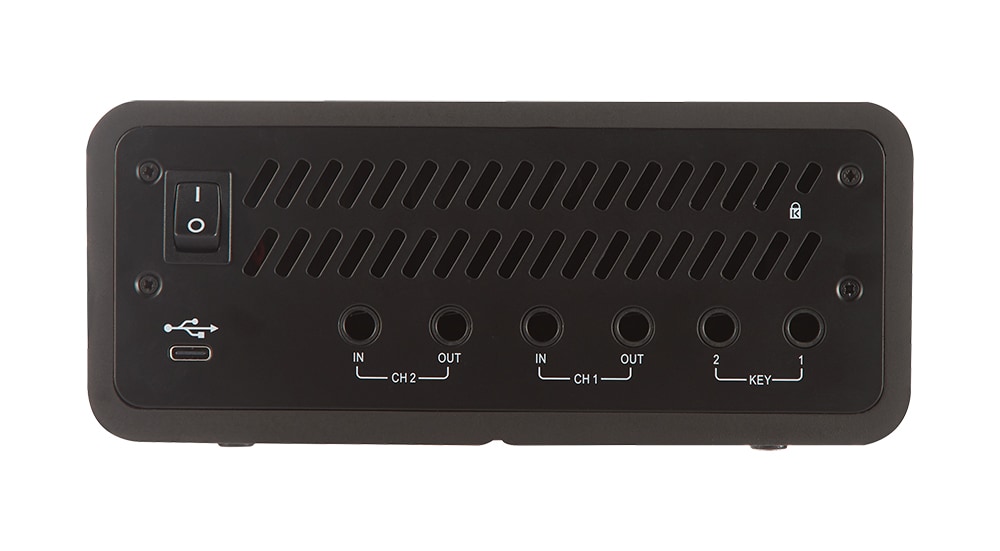

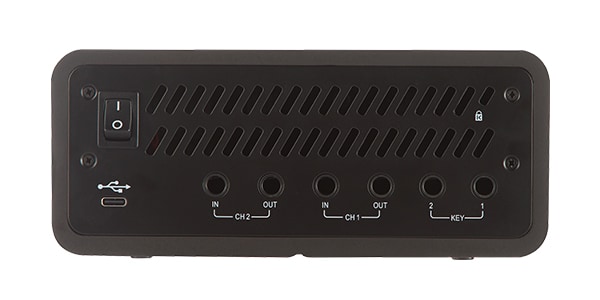

・Unit Connection Tables
Power: USB3 Type-C
2x ChannelInputs: 1/4″ TRS Jack sockets
2x Channel Outputs: 1/4″ TRS Jack sockets
2x Key Inputs: 1/4″ TRS Jack sockets

・Unit Connection Tables
All 1/4″ Line Inputs & Outputs on the unit have the same wiring
Tip：Hot
Ring：Cold
Sleeve：Ground
