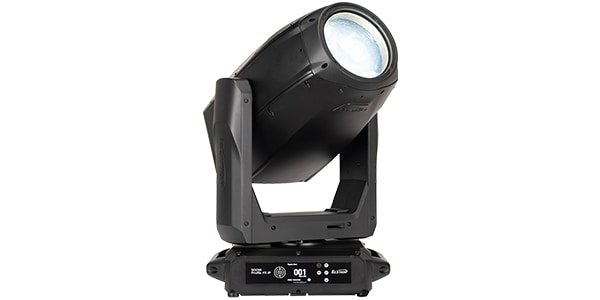

ELATION / REBEL Profile

ELATION / REBEL Profile

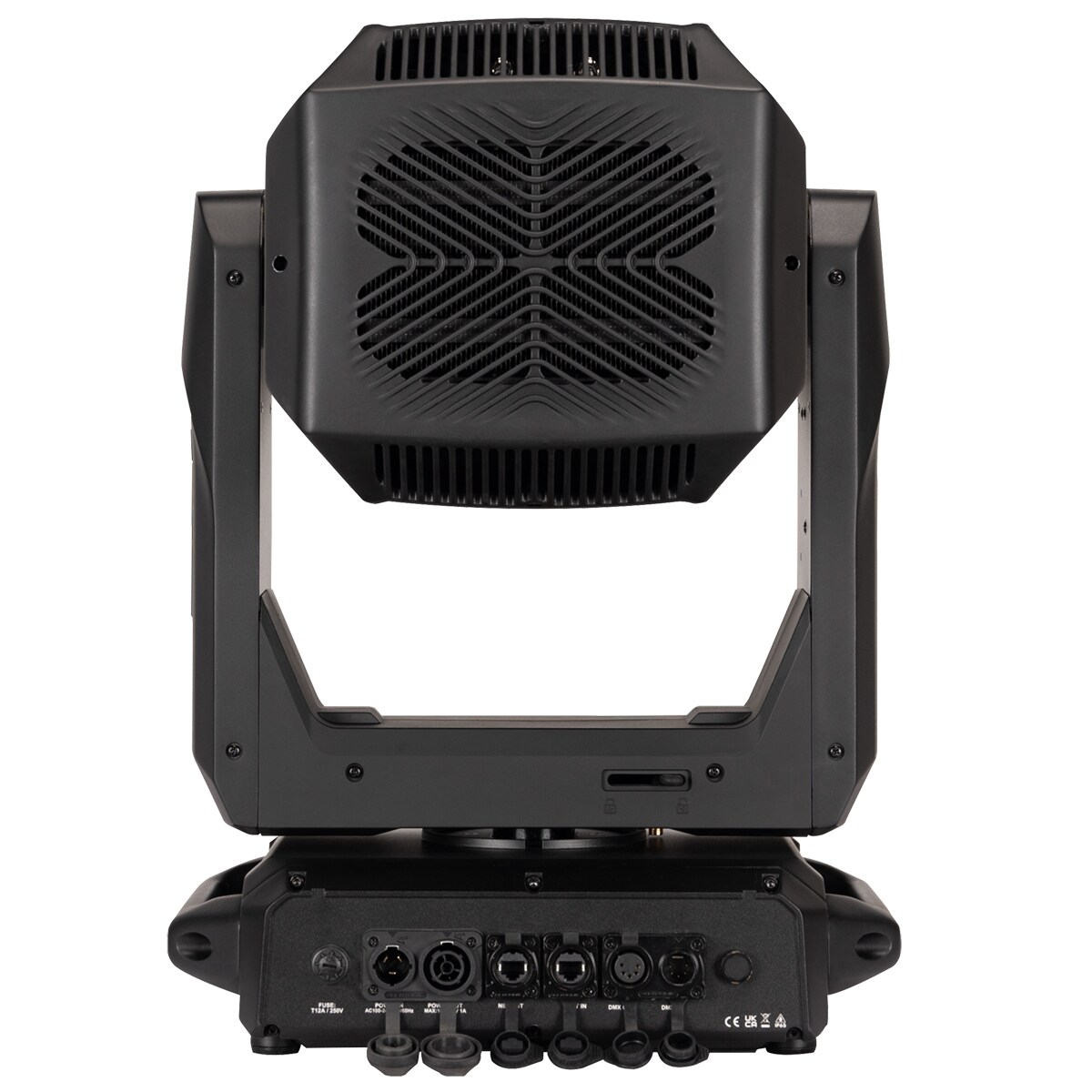

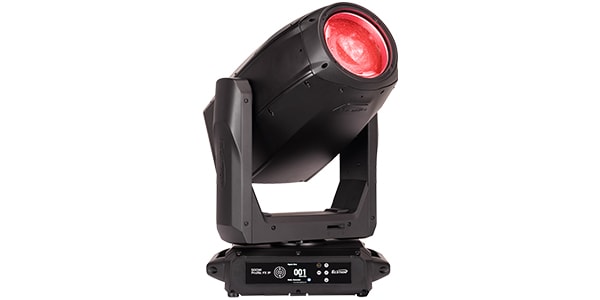

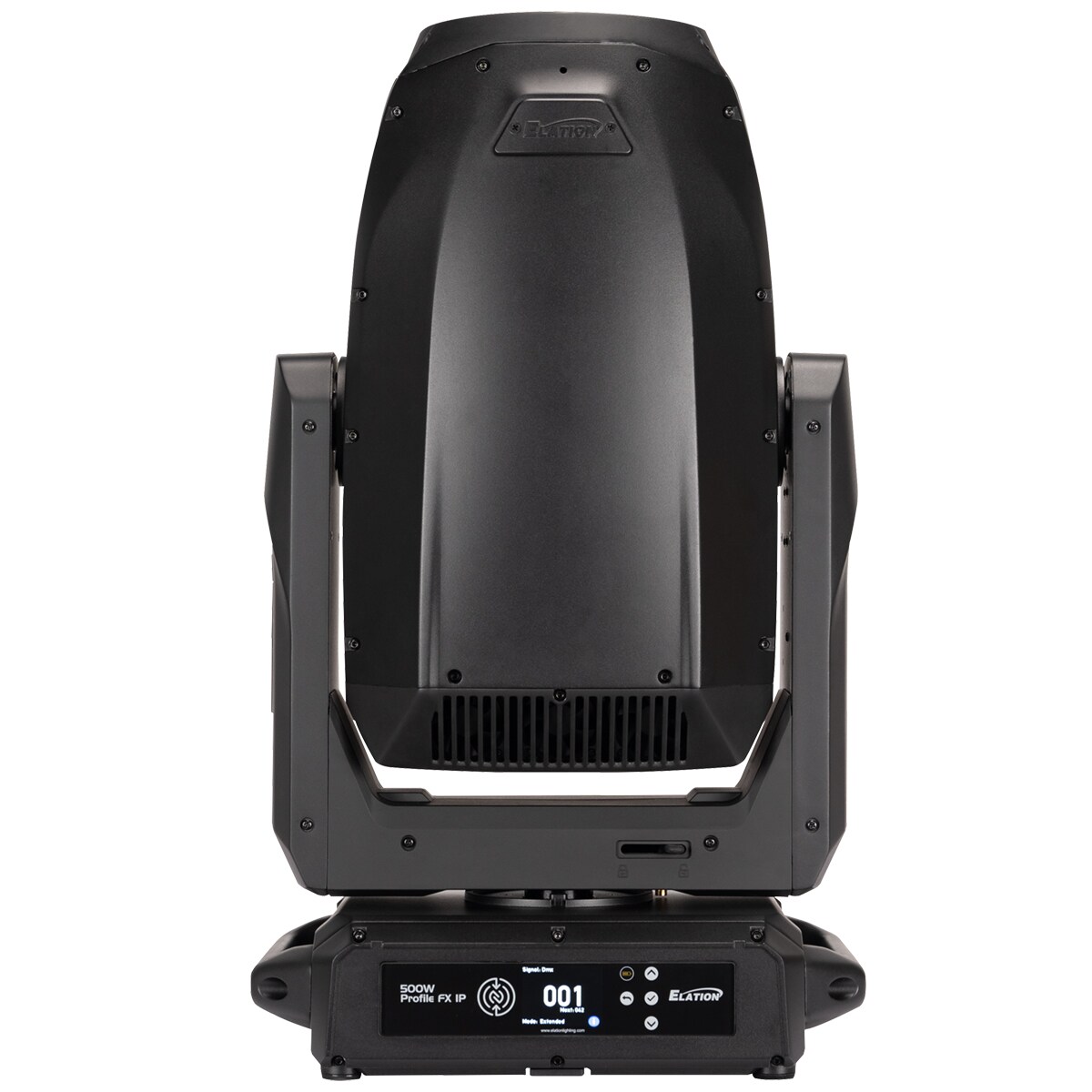

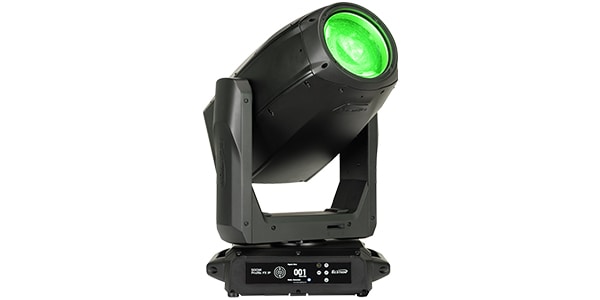

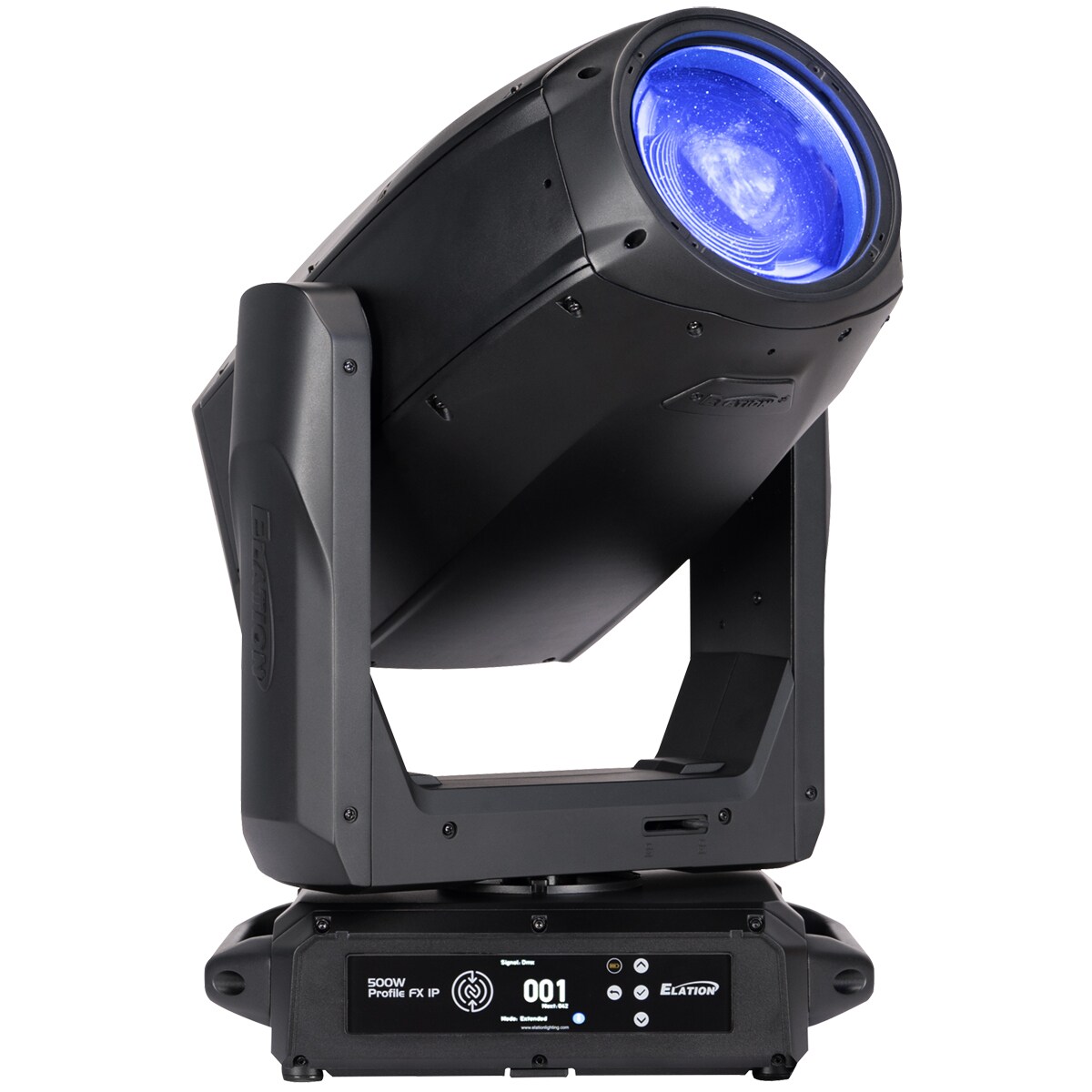

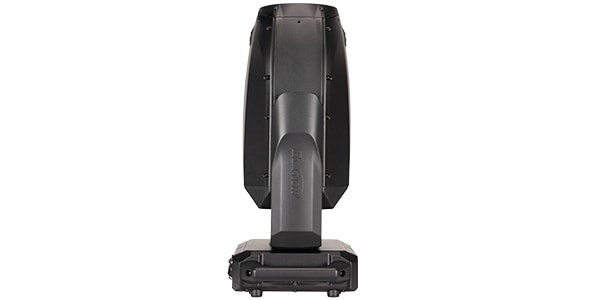

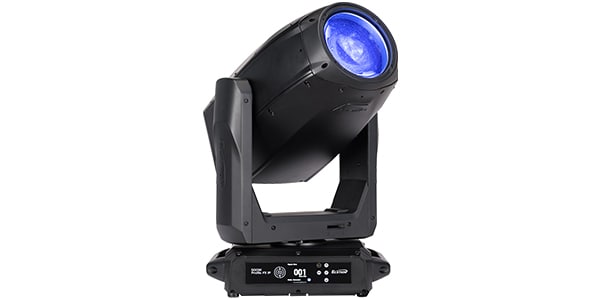

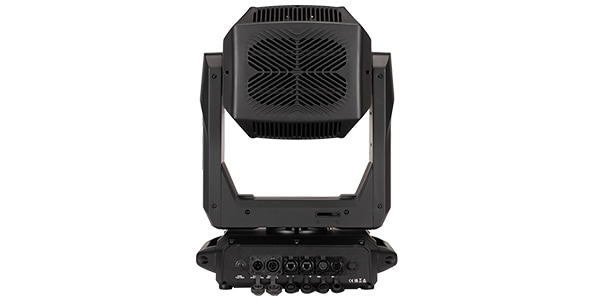

  • ELATION / REBEL Profile画像1
  • ELATION / REBEL Profile画像2
  • ELATION / REBEL Profile画像3
  • ELATION / REBEL Profile画像4
  • ELATION / REBEL Profile画像5
  • ELATION / REBEL Profile画像6
  • ELATION / REBEL Profile画像7
  • ELATION / REBEL Profile画像8
  • ELATION / REBEL Profile画像9
  • ELATION / REBEL Profile画像10
  • ELATION / REBEL Profile画像11
  • ELATION / REBEL Profile画像12
  • ELATION / REBEL Profile画像13
  • メーカーサイトManufacturer Site
Profile type moving head compliant with IP65. Powered by a Peak Field 500W 6,500K LED engine, it provides a high output of 22,000 lumens. Features include 15 glass gobos, animation wheel, dual prisms, dual frost, and fast iris. Indexable framing system allows precise control and zoom range from 3.5° to 51°. This allows for a variety of lighting designs.
■ Light source
- 500W 6,500K White Peak Field LED Engine
- Average LED lifespan 20,000 hours (*Note 1)

■ Photometry data
- 22,000 lumens total output
- CRI 70+ (80 or 90 with HCRI filter)
- 2:1 hotspot ratio
- Zoom range 3.5° - 51°
- beam angle
- field angle

■ Effect
- Motor driven zoom
- 4 rotating full blackout framing blades
- ±60° framing module index
- Full 360° interactive animation wheel
- 4-sided round and 6-sided linear rotating prism
- 2 variable frost filters (light and wash)
- Motor driven iris with variable pulse effect
- Variable 16-bit dimming curve
- High speed electronic shutter and strobe
- DMX controllable LED refresh rate
- Pan angle: 540°
- Tilt angle: 270°
- Continuous 360° pan rotation

■ Color
- CMY color mixing
- Linear CTO color correction (2400K)
- 7 dichroic colors (including CRI 80, CRI 90, UV)

■ Gobo
- 2 gobo wheels
- 7 rotating glass gobos
- 8 static glass gobos

■ Control/Connection
- 2 DMX channel modes
- Supports DMX, RDM, Art-NET, sACN protocols
- 5 button touch control panel
- Full color 180° inverted LCD menu display
- Power saving mode (hibernation mode)
- IP65 locking 5-pin XLR connector input/output
- IP65 locking RJ45 Ethernet connector input/output
- IP65 locking power connector input

■ Size/weight
- Length: 398mm
- Width: 281mm
- Height: 666mm
- Center spacing: mm
- Weight: 29.9kg

■ Electricity
- AC 100-240V 50/60Hz
- Maximum power consumption: 1026W
- -20°C to 45°C (-4°F to 113°F)
- 3509 BTU/hr (±10%)

■ Accessories
- Omega brackets (2 pieces)
- safety cable
- IP65 compatible locking power cable

■ Approval/Evaluation
- CE | cETLus | FCC | UKCA | IP65

*Note 1 Test room conditions. May vary depending on several factors, including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycles), controls and dimming.
