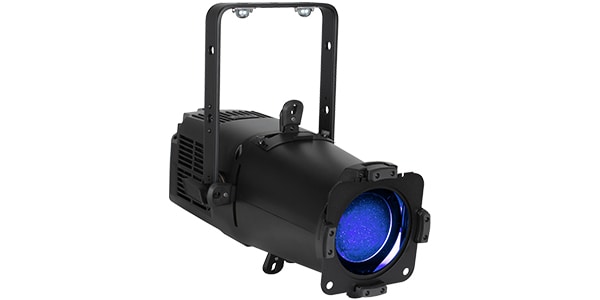

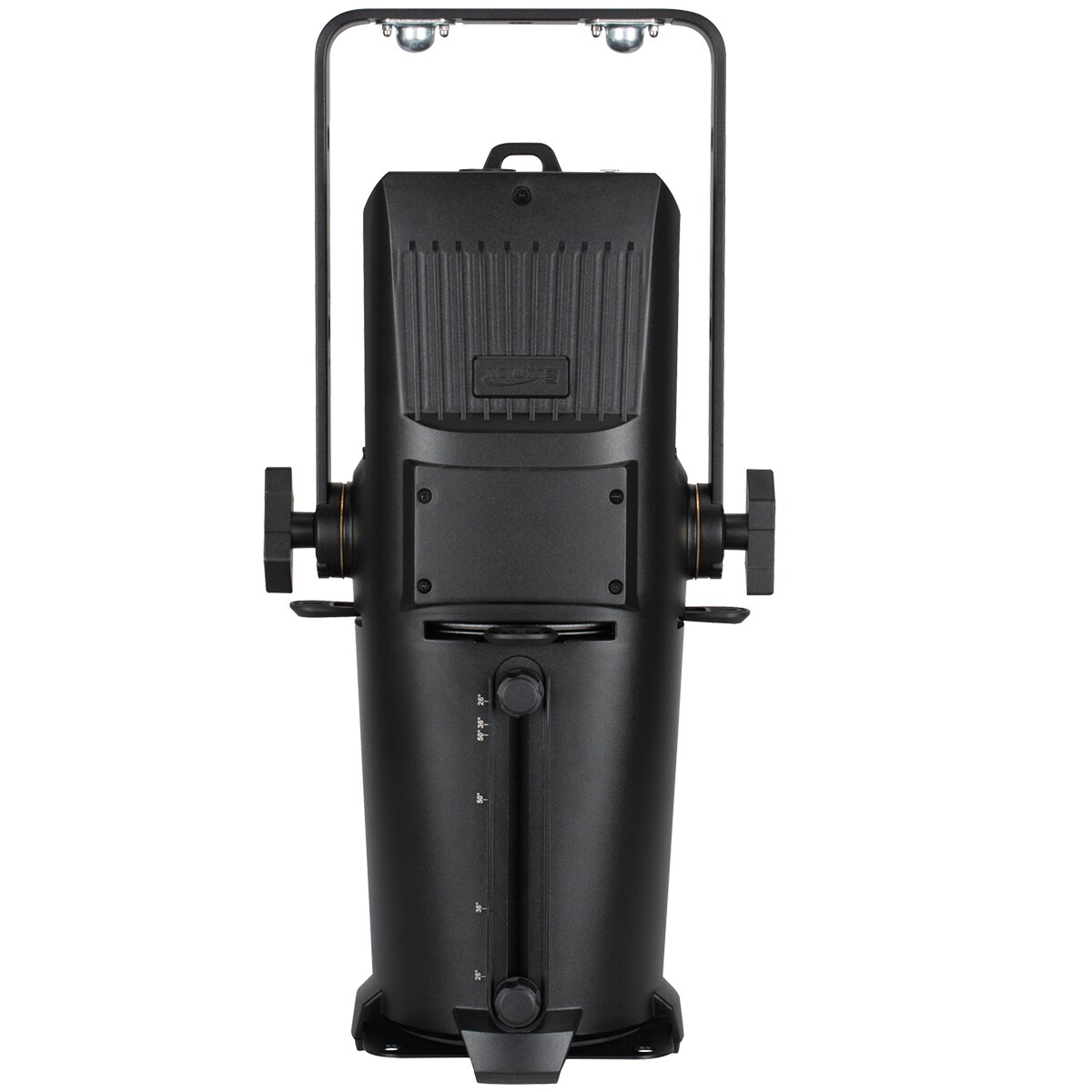

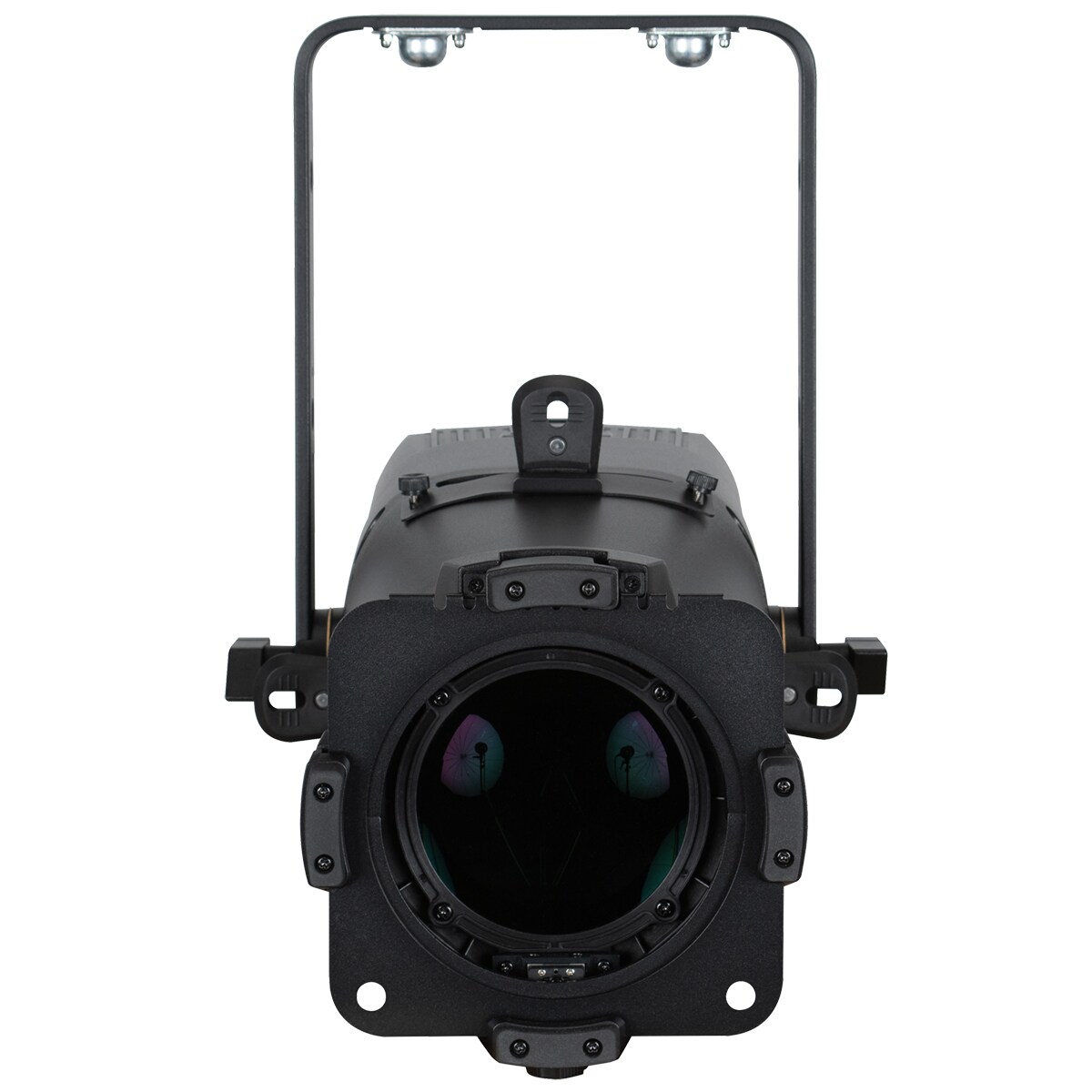

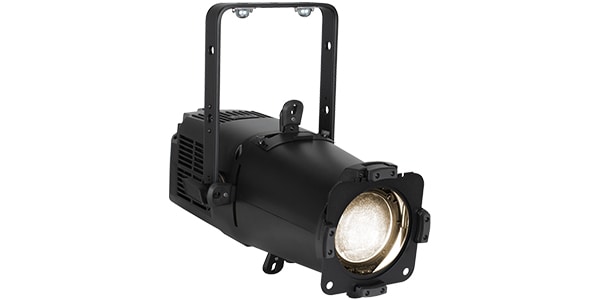

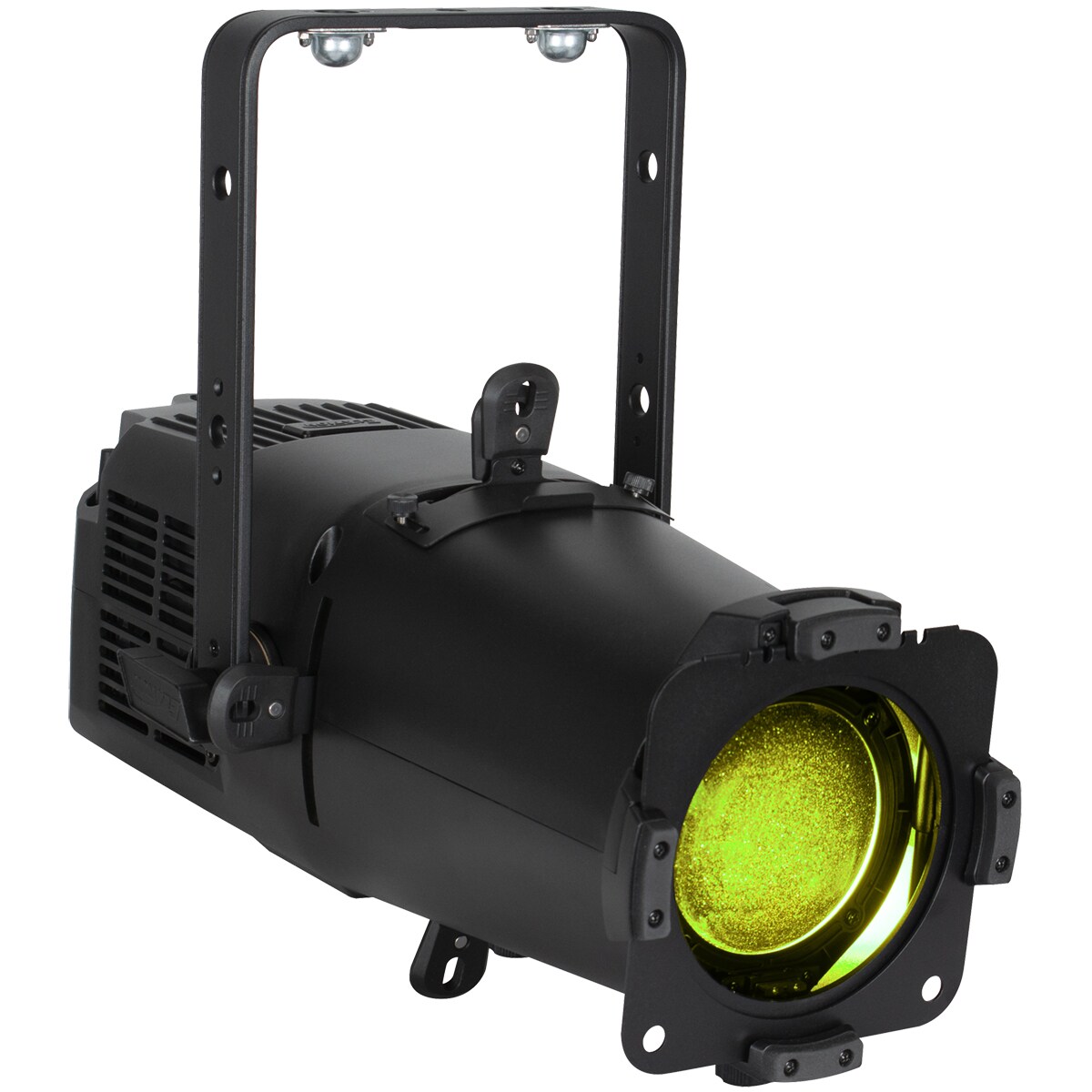

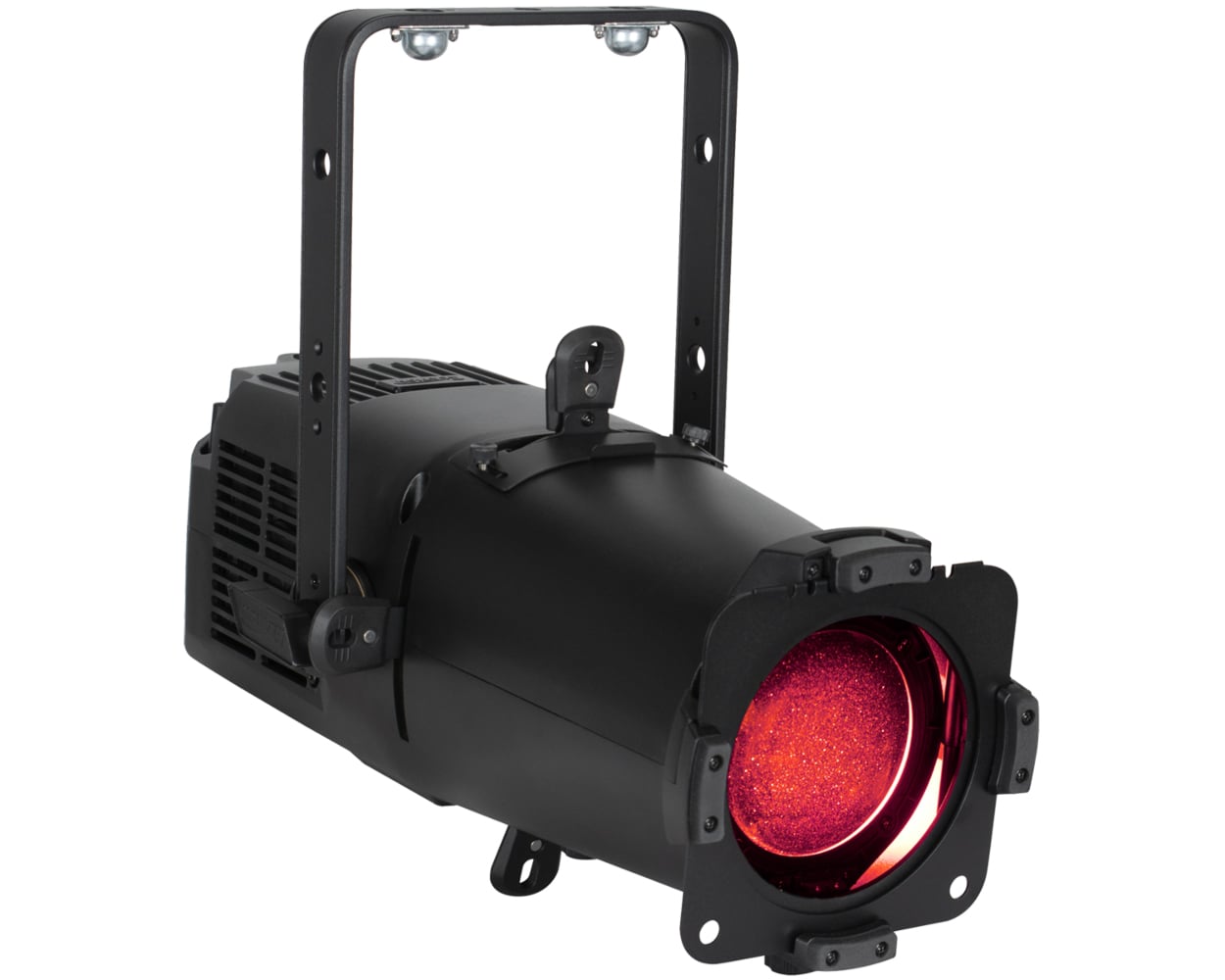

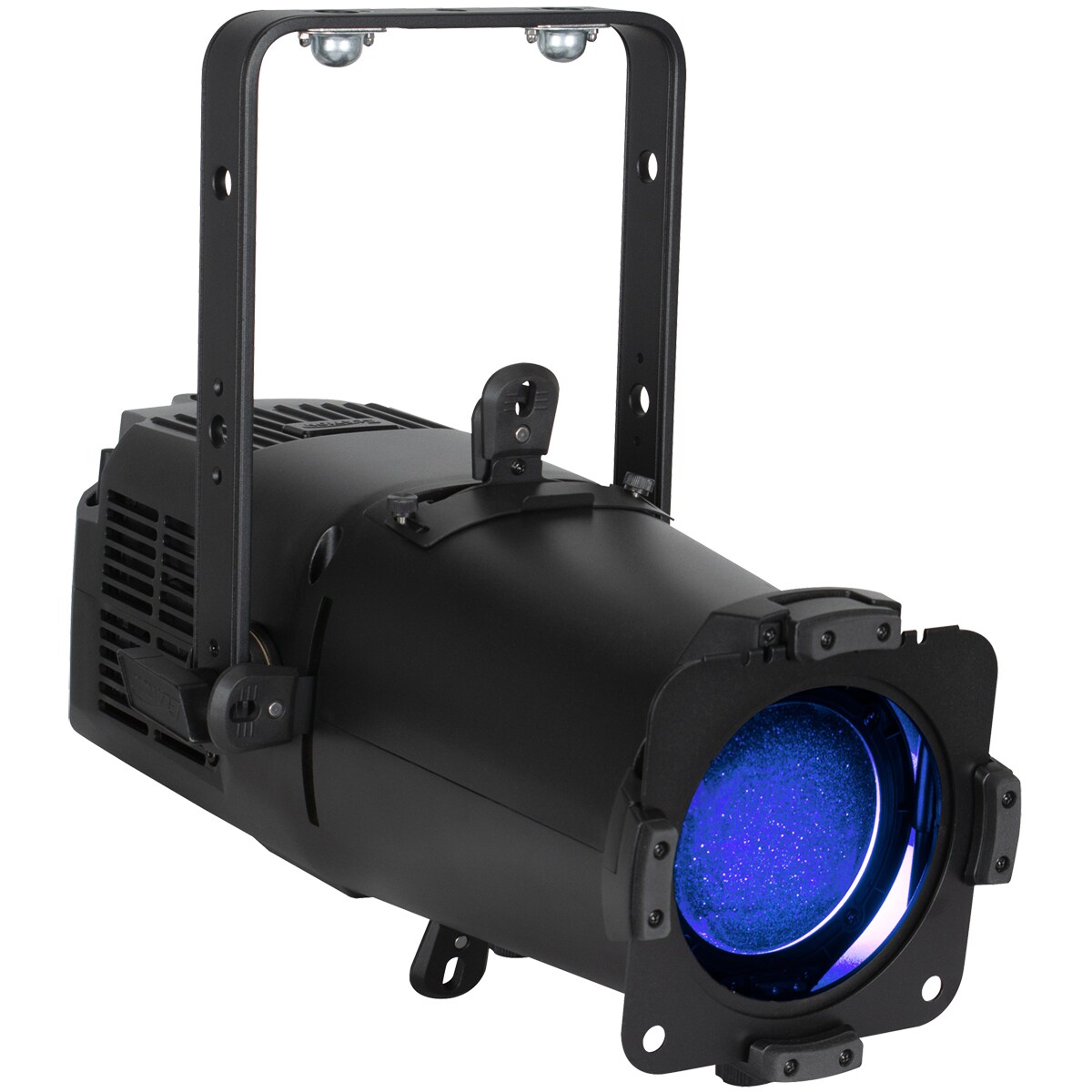

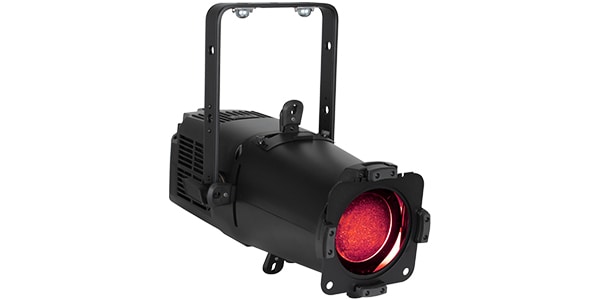

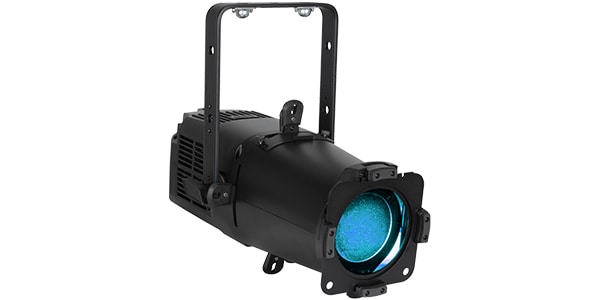

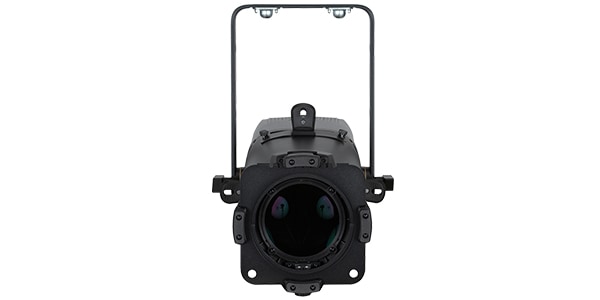

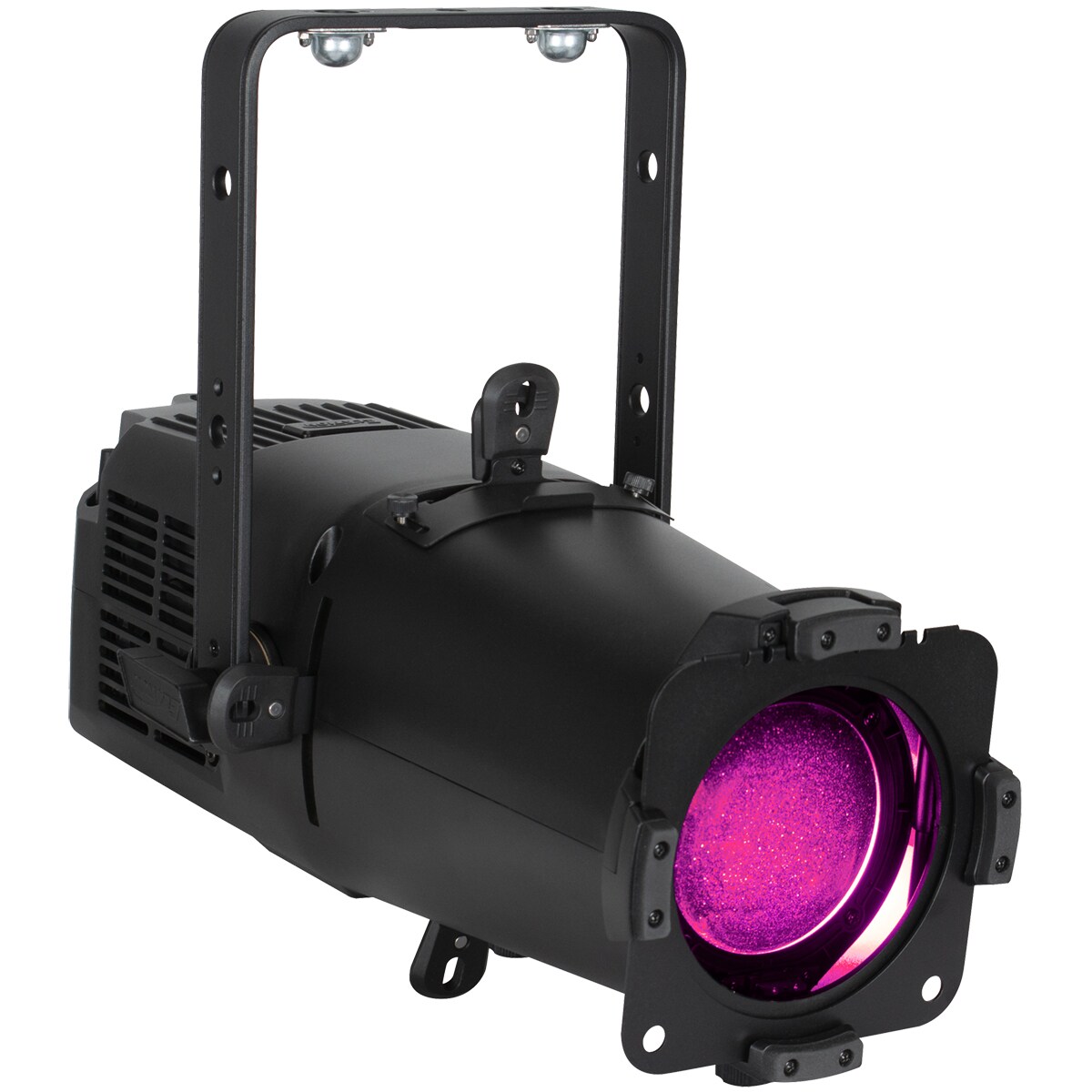

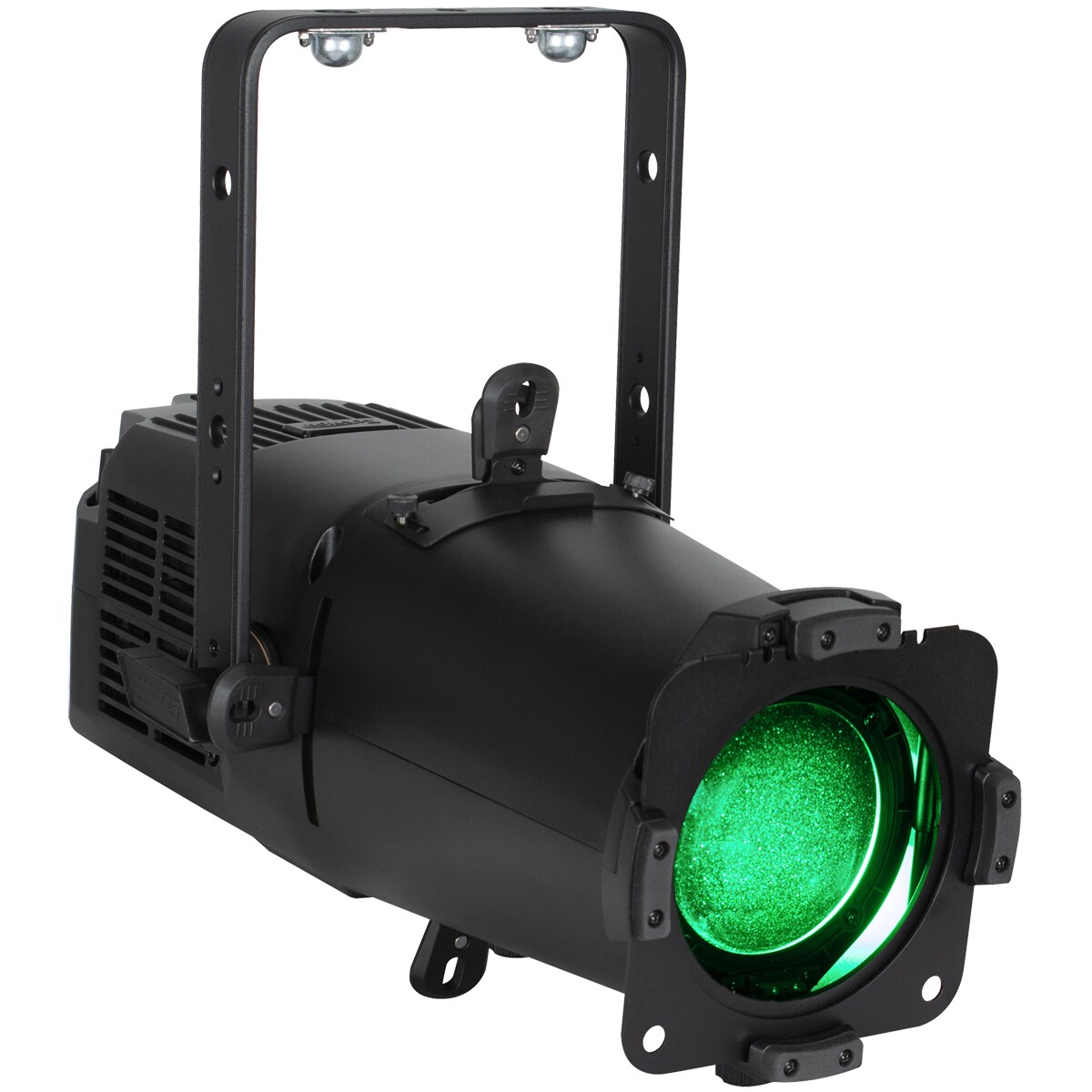

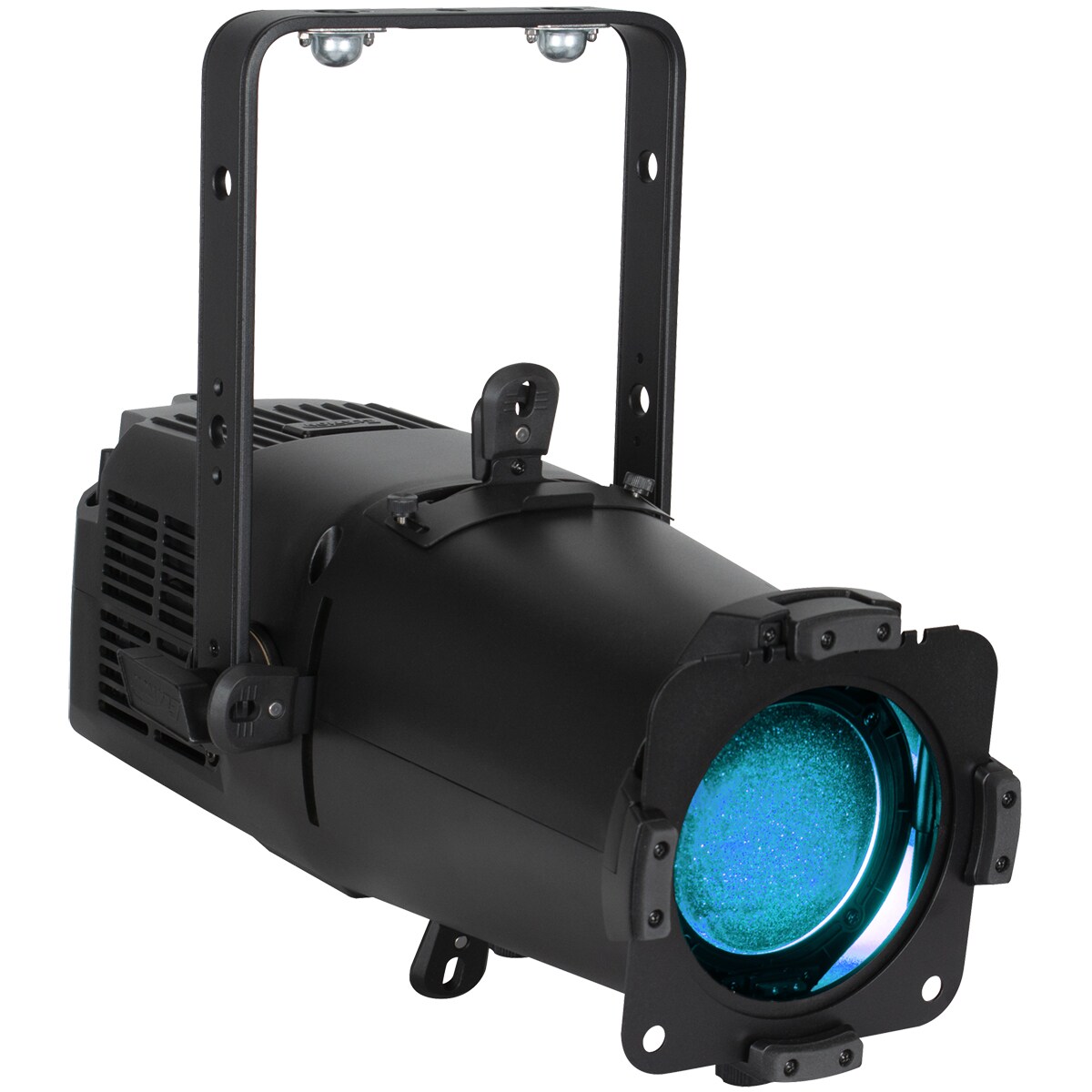

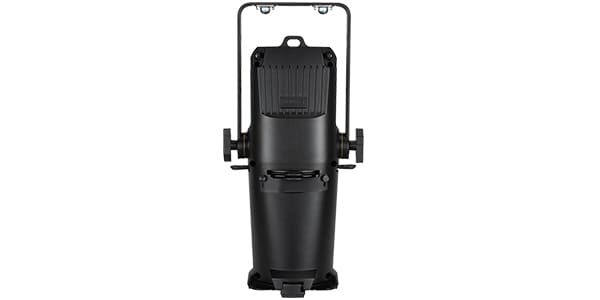

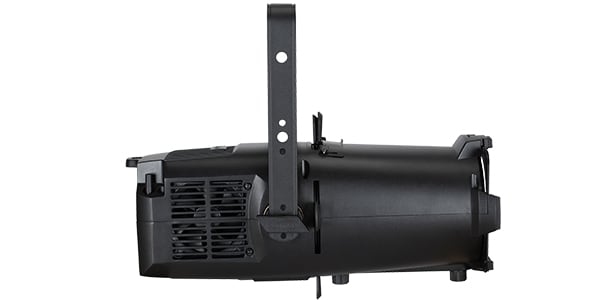

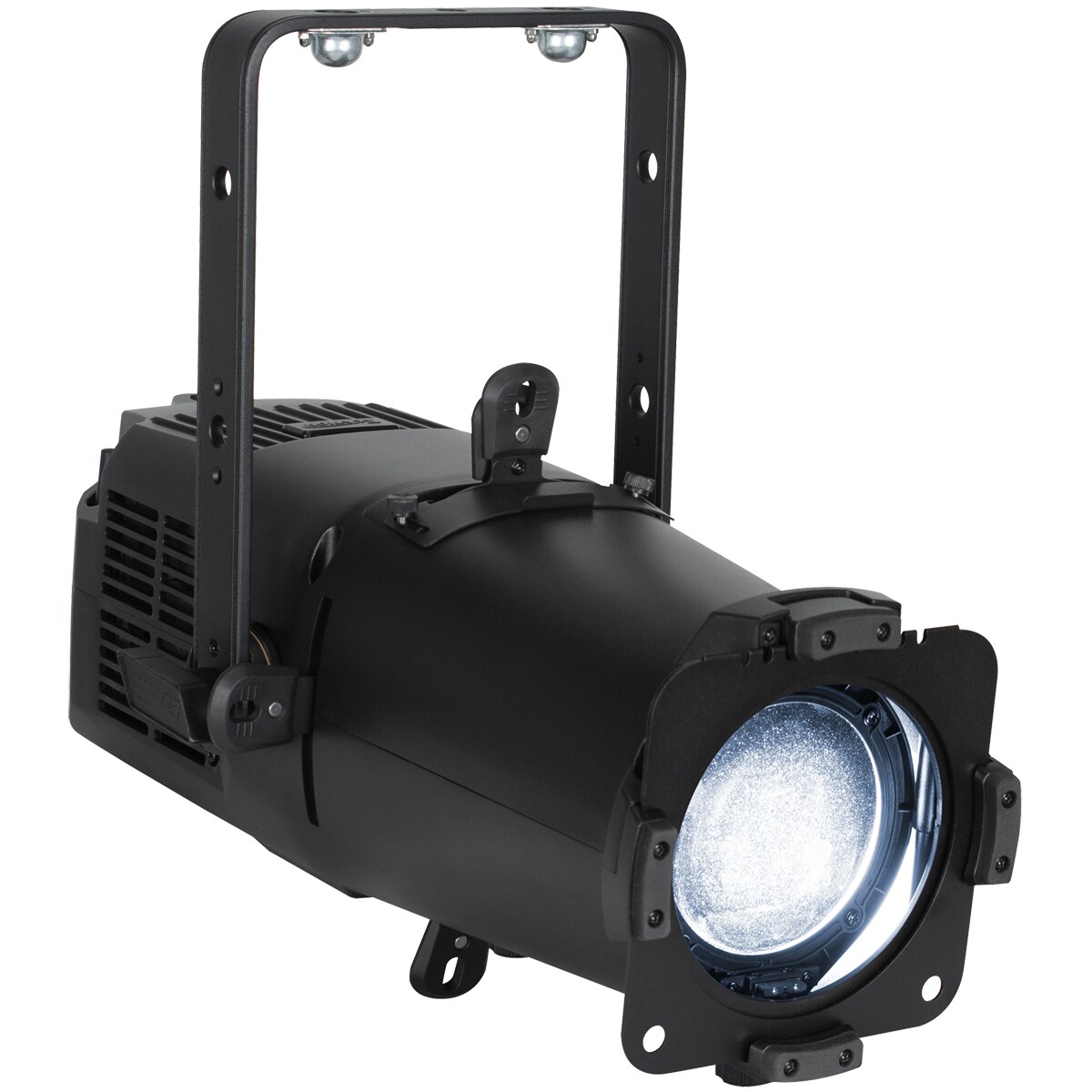

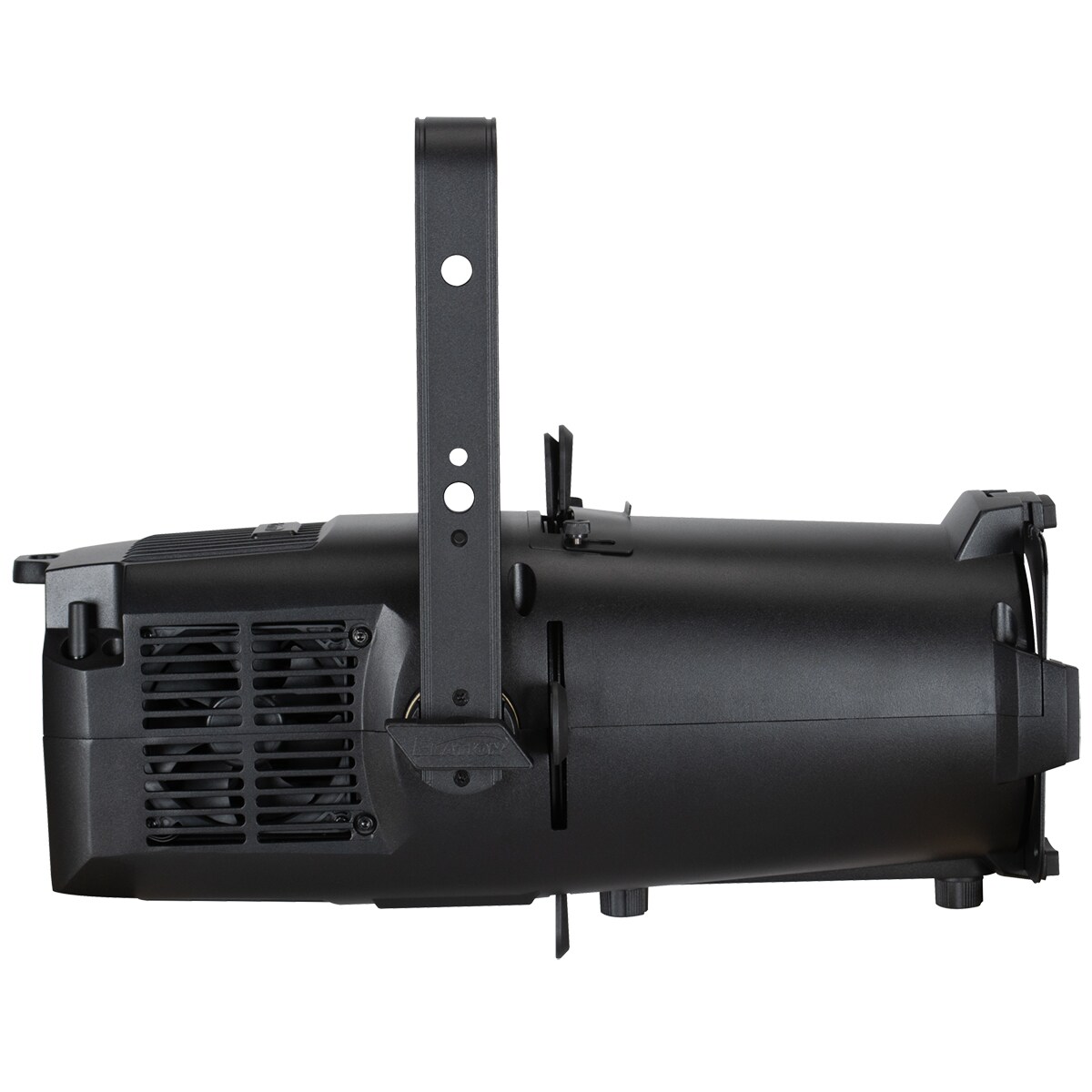

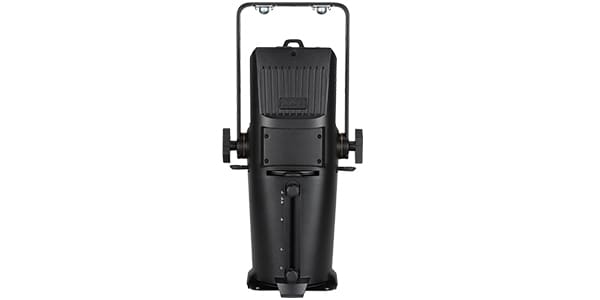

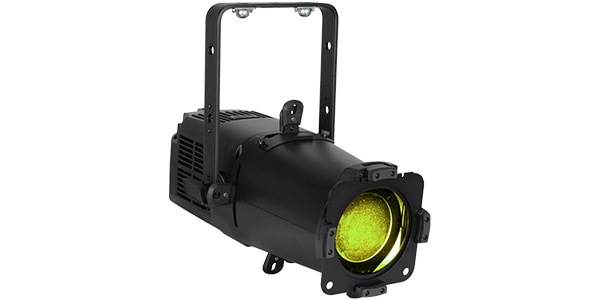

ELATION / KL Profile Compact

Equipped with Elation's ColourTune technology, this profile spot can achieve excellent color accuracy with CRI 94.9 and TLCI 95. 25-50 degree manual zoom and high quality lens coating ensure sharp projection without color shift or aberration. It has a silent mode and is ideal for use in theaters and live events.

■ Light source
- 225W 6,000K RGBMA LED engine
- Average LED lifespan 30,000 hours (*Note 1)

■ Photometry data
- Total lumen output: 5,880 (integrating sphere)
- CRI 94.9
-TLCI 95
- Zoom range: 25°~50°

■ Effect
- Manual zoom & focus
- 4 manual framing shutters
- Variable strobe speed: 1-20Hz
- Dim-to-Warm/Red Shift emulation
- Variable 16-bit dimming mode and curve

■ Color
- ColourTune technology software
- High brightness and high fidelity output options
- RGBMA color file
- CMY emulation
- 16-bit fully variable CCT 2400K~8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book

■ Gobo
- 1x size 'M' gobo (metal gobo holder included)

■ Control/Connection
- 10 DMX channel modes (1, 3, 5, 6, 7, 10, 11, 19, 9, 15)
- Manual and DMX controlled dimming and color
- Single touch bar encoder

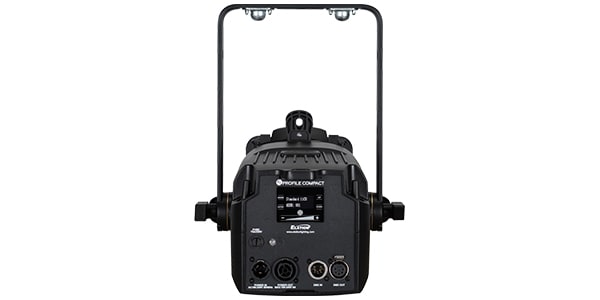

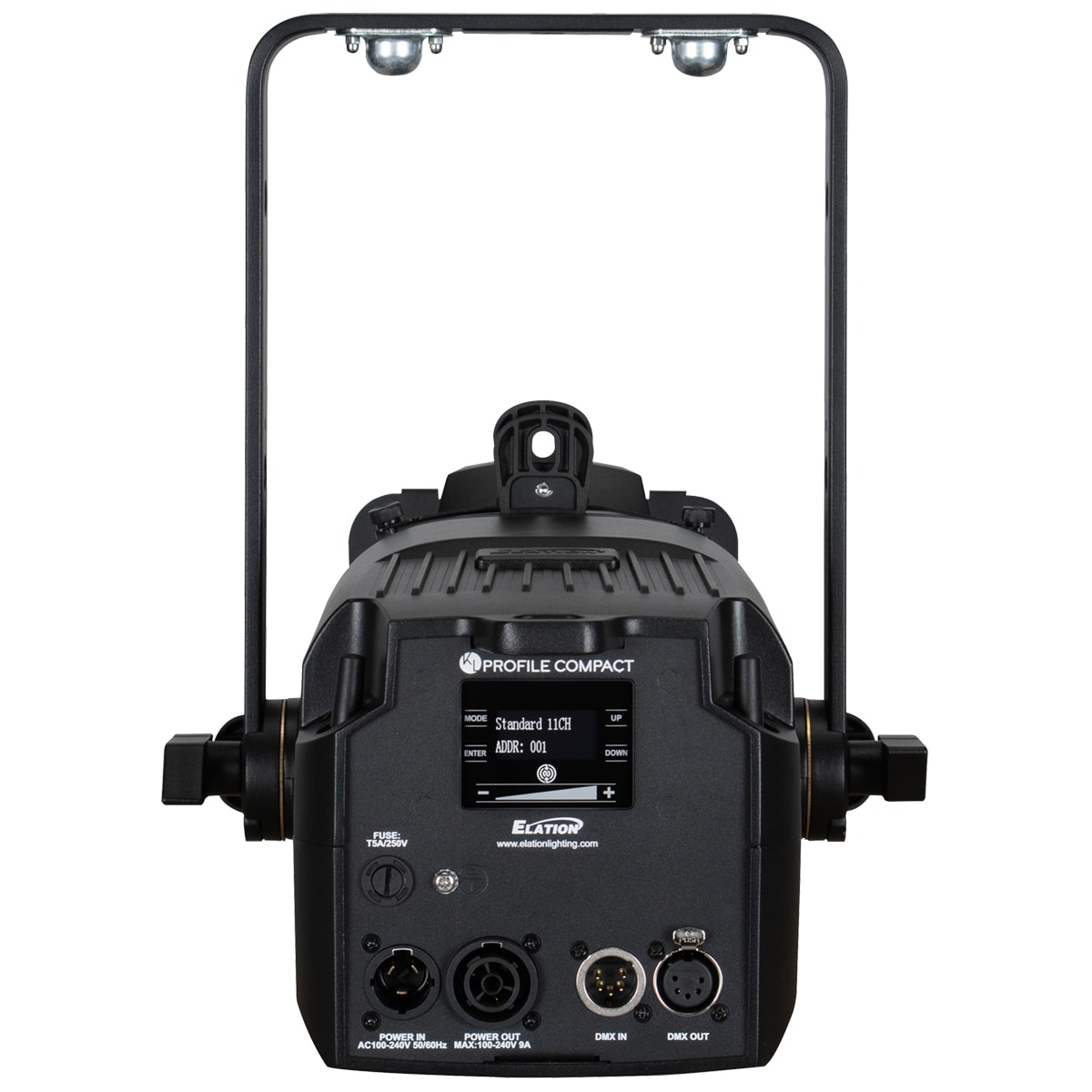

- 4-button control panel, LED display
- RDM (Remote Device Management)
- NFC configuration
- IP65 5-pin DMX and IP65 locking power cable input/output

■ Size/weight
- Length: 472mm
- Length (yoke 0°): 536mm
- Width: 262mm
- Height (equipment body): 256mm
- Height (Yoke 90°): 394mm
- Weight: 7.0kg
- 6.25 inch front accessory slot

■ Power supply
- AC 100-240V - 50/60Hz
- Maximum power consumption: 290W
- Power slew capacity: 9A
- Temperature range: 5°F to 113°F (-15°C to 45°C)
- BTU/hour (±10%): 988.9

■ Accessories
- gel frame
- Size 'M' metal gobo holder
- Safety wire
- IP65 locking power cable

■ Approval/Evaluation
- CE | cETLus | FCC | UKCA | IP20

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
