AMERICAN DJ / EVS3 FLEX45

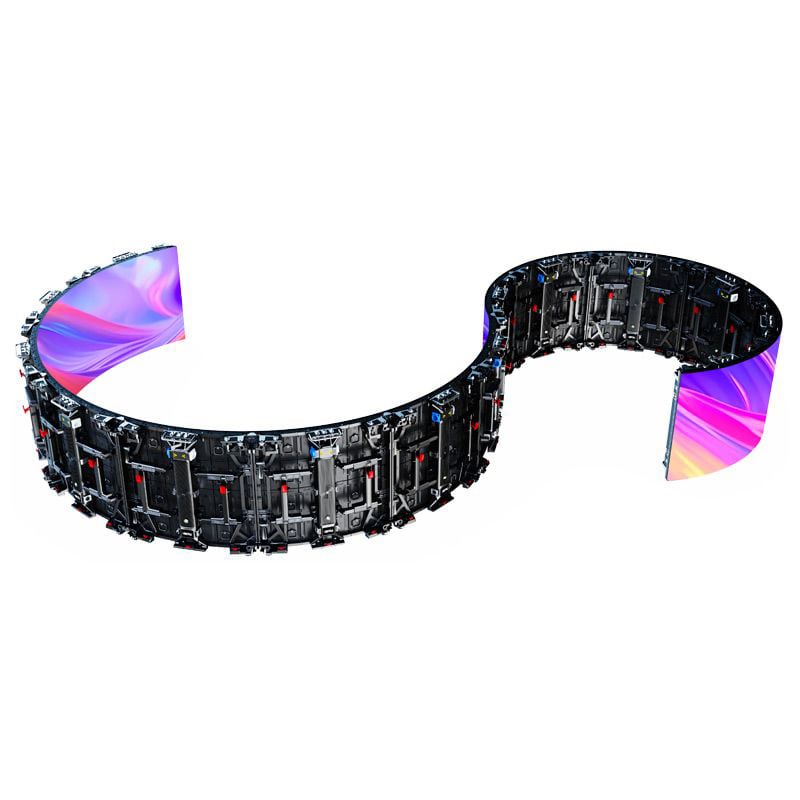

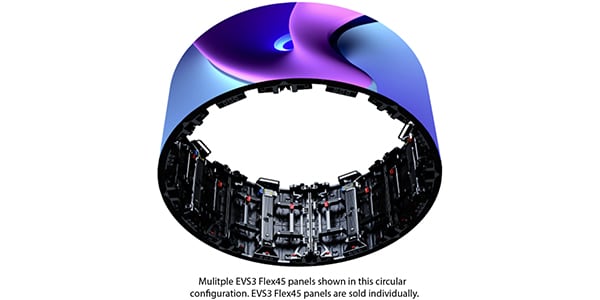

The EVS3 Flex45 LED video panel features a 3.91mm pixel pitch and is equipped with a 3-in-1 RGB SMD2121 LED configuration. It also has the flexibility to be bent concave or convex up to 45°.

■Main features
Pixel pitch: 3.91mm (0.15 inch)
LED: Kinglight Copper, 3-in-1 SMD 2121
Drive IC: ICN2153AP
Pixel density: 65536 per square meter
Size: 19.68"" x 19.68"" x 2.96"" (500 x 500 x 75mm)
Module quantity: 4
Module resolution: 128x32 pixels
Panel resolution: 128x128 pixels
Weight: 15.6 lbs (7.06 kg)

■Extended functions
Modular Memory (MOM): Enhancements for Seamless Operation
Corner protectors: protect corners during transportation, installation, and removal

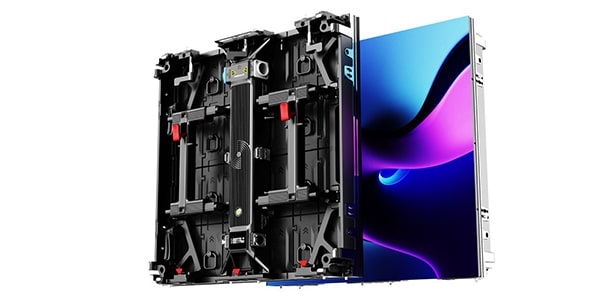

Backside repairability: Easy video module replacement to ensure continuous performance
Retractable carrying handle

■Mechanical evaluation
Surface smoothness: Gap <0.5mm provides smooth visual experience

■Optical evaluation
Brightness: 800 NITS for crisp and clear images
Viewing Angle: 160° horizontal/140° vertical @ 9.75 feet (3 meters) for wide coverage
Grayscale: ≥14 bit accurate color reproduction
Display colors: 256 colors provide vivid images
Brightness adjustment: Customizable in 100 levels from 0 to 100%
Contrast ratio: 5000:1 for improved contrast
Processing: 16-bit to ensure smooth performance
Operating life / MTBF: 50,000 hours / 5,000 hours can be used for a long time

■Power supply
Operating power: 100~240V 50-60Hz worldwide compatible
Maximum power consumption: 120W per panel for energy savings
Average power consumption: 48W per panel for efficient operation
Connection power/data: Power-Power Lock input/output; Data Lock input/output for easy installation

■Control system
Control mode: Nova Star sync system, intuitive control via DVI
Frame update frequency: 50-75Hz for smooth playback
Scan mode: seamless scanning at 1/16
Refresh rate: 3840Hz for flicker-free video
Input support: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity
Control distance: Ethernet cable <120m or optical fiber >120m for flexible installation
Supports VGA mode: supports various resolutions
Brightness correction: Precise adjustment by pixel, module, or cabinet

■Environment
Operating temperature: -4°F to 104°F (-20°C to +40°C) for stable performance under diverse conditions
Operating humidity: Stable operation at 10-90% (non-condensing)
Storage temperature: -40°F to 176°F (-40°C to +80°C) for safe storage
Storage humidity: 10-90% (no condensation) for long-term storage

■Optional accessories
EVSF45FC (EVS358): Flight case – Holds 8 EVS3 Flex45 video panels
FLEX45RB: Rigging Bar – Up to 20 EVS3 Flex45 video panels can be installed vertically

■Processor and playback software
Novastar VX4S, Novastar MCTRL-300, Novastar Nova Pro HD: Video processor
Arkaos Media Master, Arkaos GrandVJ 2.0: Video software

■Cable
Intercabinet data link cables, indoor power locking link cables, and indoor power locking main power cables for efficient connectivity

■Authentication
Comply with safety standards with cETLus (under review)

■IP evaluation
Protection level: IP20 (front and back) provides stable performance in indoor environments

■Product usage precautions
This product was developed for temporary use only! Not suitable for permanent installation.
