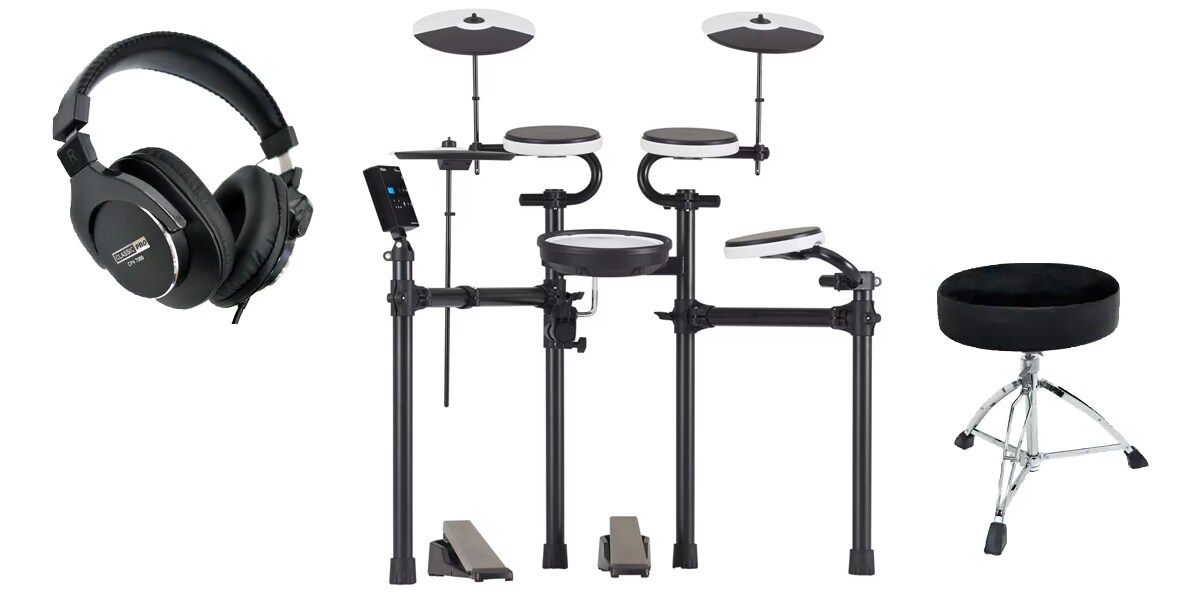

ROLAND / TD-02KV Headphone Set

This compact electronic drum set offers professional sound, expressiveness, and playability. This model features a mesh head snare for greater setup flexibility.

■Electronic Drums
■TD-02 Series
■Kit Configuration
・Drum Sound Module: TD-02 x 1
・Snare: PDX-8 x 1
・Toms: PD-4 x 3
・Hi-Hat: CY-5 x 1
・Hi-Hat Control Pedal: FD-1 x 1
・Crash: CY-5 x 1
・Ride: CY-5 x 1
・Kick: KT-1 x 1
・Drum Stand: 4-Column Rack Type x 1
・Drum Throne x 1 (PLAYTECH/DTC5000X)
・Headphones x 1 (CLASSIC PRO/CPH7000)

■ Number of Drum Kits: 16
■ Coach Functions (5 Types)
・Time Check (Easy)
・Time Check (Hard)
・Quiet Count
・Auto Up/Down
・Change Up
■ Metronome
・Tempo: 20-260
・Rhythm Types: 5
・Sounds: 15
■ Display: 16-Character, 2-Line Character LCD (Backlit)
■ Connections
・OUTPUT/PHONES Jack: Stereo Miniature Type
・MIX IN Jack: Stereo Miniature Type
・USB COMPUTER Jack: USB Type B
・TRIGGER INPUT Jack: 25-Pin D-Sub Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
・Bluetooth® Adapter Slot: Bluetooth Audio MIDI Dual Adapter (Model Number: BT-DUAL)
■USB COMPUTER Connector
・Speed ​​= Full-speed USB (Generic), Hi-speed USB (Vendor)
・Driver Mode = Generic/Vendor
・Supported Communication Methods = USB-MIDI/USB-Audio
■USB Audio
・Sampling Frequency (Original) = 44.1 kHz
・Sampling Frequency (Using Sampling Rate Converter) = 96 kHz 48kHz
・Recording = 2 channels
・Playback = 2 channels
■Power Supply: AC Adapter (DC12V)
■Current Consumption: 200mA
■Dimensions (Required Floor Space): Width: 1,200mm, Depth: 1,100mm, Height: 1,200mm, Weight: 14.3kg
■Accessories
・Setup Guide
・""Safety Precautions"" leaflet
・AC Adapter
・Dedicated Connection Cable
・Drum Key
・Warranty Card
■Optional Items
・Additional Crash Cymbal (Crash 2): OP-TD1C
・Kick: KD Series
・Personal Drum Monitor: PM Series
・V-Drum Accessory Package: DAP-2X
・V-Drum Mat: TDM Series
・Noise Eater: NE Series
・Bluetooth Audio MIDI Dual Adapter (Model Number BT-DUAL)
*To use USB audio, you must switch to vendor mode and use the vendor driver. * MDH-Standard is required to install PDX-6 and PDX-8.
