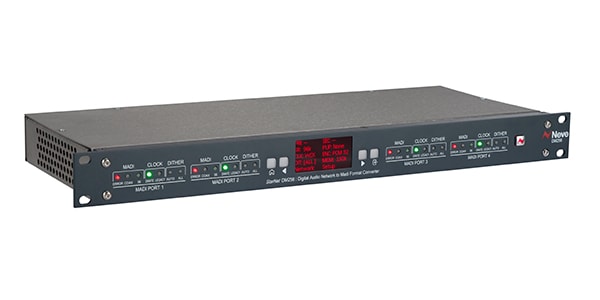

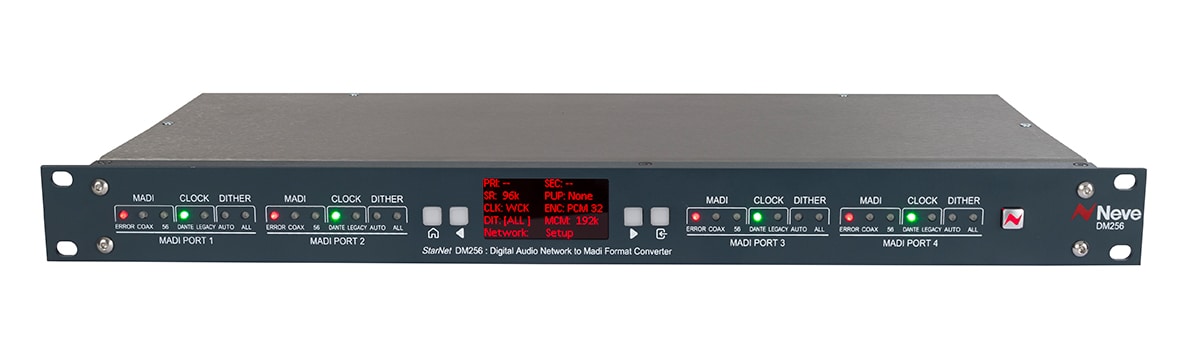

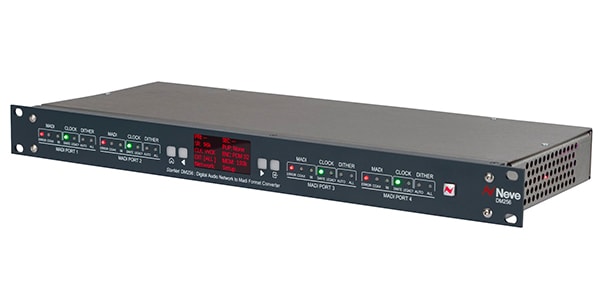

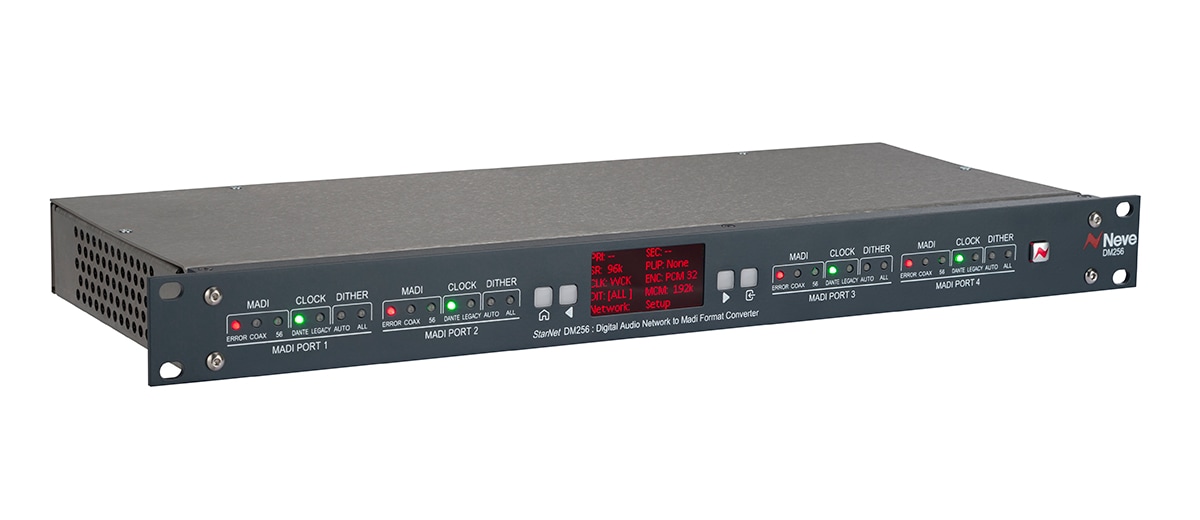

AMS Neve / StarNet DM256

StarNet DM256 is a compact and professional unit. Redefining format conversion in recording studios and live sound. Comes with a reliable Sound House 3-year warranty!

■Dante-MADI converter

Unleash unparalleled power
The StarNet DM256 converts up to 256 channels of DanteR and 256 channels of MADI bidirectionally. Integration of Dante IP core technology enables massive I/O counts with a single Ethernet connection, setting a new benchmark in audio technology.

Digital Symphony
Boasting one of the largest digital I/O counts, the StarNet DM256 is capable of 256 channels of MADI input/output with four MADI ports. These ports feature duplex MADI SC optical connections, as well as dual BNC coaxial connections, and comply with professional MADI standards.

Precision on every beat
The StarNet DM256 incorporates a state-of-the-art low-drift crystal oscillator and PLL, making it the ultimate master clock in any professional studio environment. Dante connectivity includes dual Ethernet ports for redundancy. Daisy chain connection is also possible in switch mode.

Excellent control and monitoring
Featuring Maximum Channel Mapping (MCM), the StarNet DM256 ensures seamless multiplexing of MADI I/O assignments per port, maintaining session integrity when switching sample rates. The OLED screen on the front panel provides at-a-glance access to important network settings, sample rate, bit depth, and more.

Long life
StarNet DM256 has an external PSU design for efficient heat dissipation. Dissipates heat efficiently and protects internal components. This design consideration underscores Neve's commitment to providing robust and reliable audio solutions.

■Features
・Convert up to 256 channels of Dante to 256 channels of MADI
・Uses Dante IP core technology
・Equipped with 256 channels of MADI IN/MADI OUT, supporting a huge number of digital I/Os
・MADI port supports dual MADI SC optical connection and dual BNC coaxial connection
・Uses the latest low-drift crystal oscillator clocking system and PLL.
・Ideal master clock for any professional studio environment
・Dante connection with dual Ethernet ports
- Redundancy in switch mode and daisy chain connection possible
・Automatic multiplexing of MADI I/O with MCM (Maximum Channel Mapping)
・Multiplexing of MADI I/O assignments per port
- Supports 32-bit integer bit depth with multiple dithering options to prevent truncation distortion
Front-mounted OLED screen displays necessary information for easy monitoring and control
・External PSU design ensures efficient heat dissipation and protects internal components

■Specifications/Operating environment

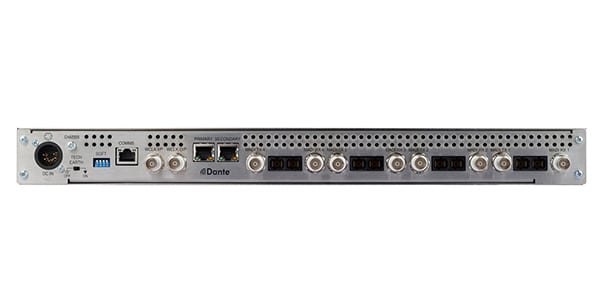

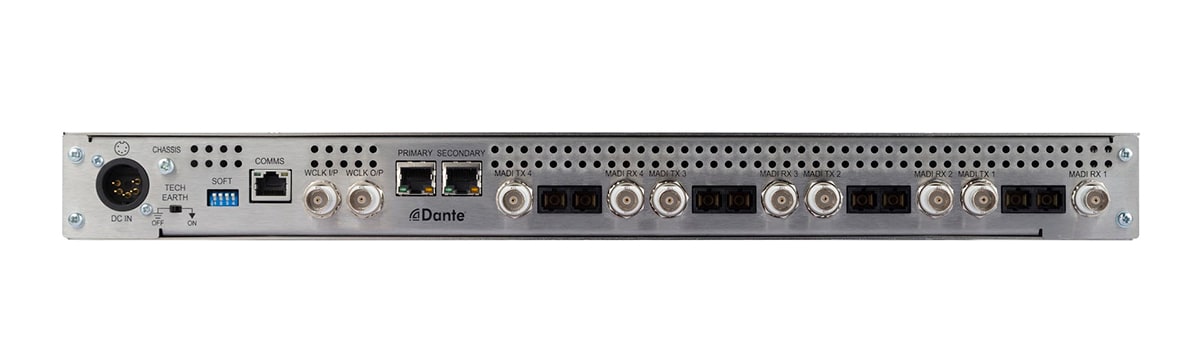

Connection port
・4x MADI Duplex SC optical ports
・8x MADI BNC connectors (4x receive, 4x transmit)
・2x Dante Ethernet ports for primary and secondary connections (Audio-over-IP)
・Word clock synchronization input/output
・1x Ethernet port for communication

External power supply unit
・90-240V
・0.14A @240V, 0.33A @90V
・313W

Dimensions and weight
・Width: 483mm
・Height: 24mm
・Depth: 185mm
・Weight: 2.1Kg
