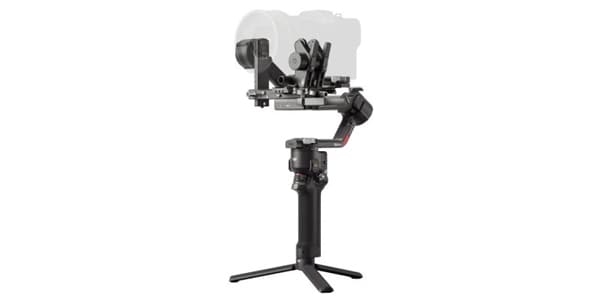

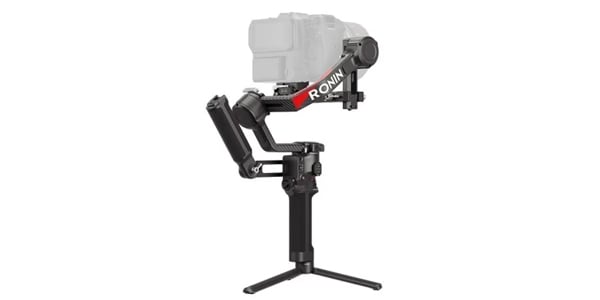

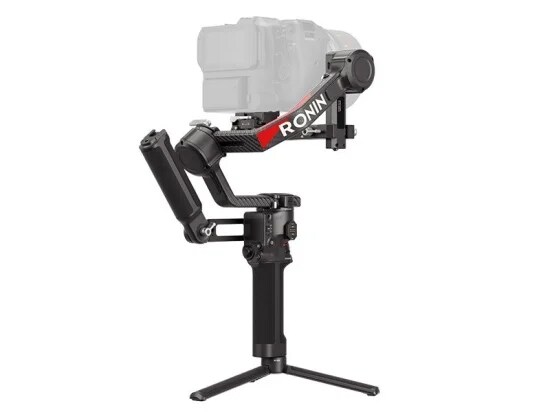

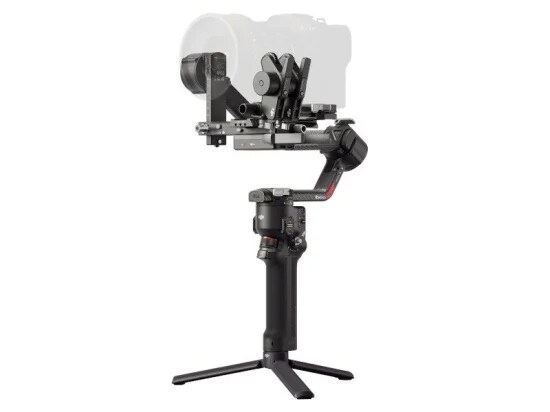

DJI / DJI RS 4 Pro Combo

DJI RS 4 Pro is seamlessly integrated with the lens control system DJI Focus Pro, DJI Transmission, and an extensive control ecosystem. Together, these devices enable film and TV production using a full-scale production solution that combines high stability, transmission performance, monitoring, focus adjustment, and ease of use.

■Professional camera stabilizer
[Peripheral equipment]
""Accessory port""
・Ronin series accessories (RSA)/NATO port
・1/4-20 mounting hole
・Cold shoe
・Video transmission port (USB-C)
・RSS camera control port (USB-C)
・Focus motor port (USB-C)

【battery】
・Model: BHX711-3000-7.2V
・Type: LiPo 2S
・Capacity: 3000mAh
・Electricity: 21 Wh
Maximum operating time: 12 hours (measured with the gimbal horizontal and stationary. Operating time will be less if the gimbal is moving.)
Charging time: Approximately 2.5 hours (measured with a charger that supports 18W fast charging. We recommend using a charger that supports PD fast charging protocol.)
Recommended charging environment temperature: 5℃~40℃

【connection】
Bluetooth 5.1
Charging port (USB-C)

[Ronin app requirements]
・iOS 11.0 or later
・Android 8.0 or later

[Touch screen compatible languages]
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

[Operating performance]
""Loading capacity (test value)"" 4.5 kg

""Maximum controllable rotation speed""
・Pan: 360°/sec
・Tilt: 360°/sec
・Roll: 360°/sec

""Mechanical range of motion""
・Pan axis: 360° continuous rotation
・Roll axis: -95° to +240°
・Tilt axis: -112° to +214°

[Mechanical and electrical properties]
""Operating frequency"" 2.400 to 2.4835 GHz
""Bluetooth transmission power"" <8 dBm
""Operating environment temperature"" -20℃~45℃

【weight】
Gimbal: Approx. 1066 g
Grip” approx. 203 g
Extension grip/tripod (plastic): Approx. 183 g
Upper and lower quick release plates: approx. 98 g

【size】
Folded: 245 x 255 x 75 mm
(Length x Width x Height. Excluding camera, grip, and extension grip/tripod)
Unfolded state: 370 x 191 x 189 mm
(Length x Width x Height. Height includes grip and excludes extension grip/tripod)

■DJI Ronin Video Transmitter■
""connection""
・Power/communication port (USB-C)
・HDMI port (Mini HDMI)
・RSS camera control port ""USB-C""

""Expansion port""
cold shoe

""Operating frequency""
・2.400~2.4835 GHz
・5.725 to 5.850 GHz (only 2.4 GHz band can be used in Japan)

""Weight"" 126 g

""Size"" 82 x 63 x 24 mm (length x width x height)

""Transmission power (EIRP)""
・2.400~2.4835 GHz:
< 25 dBm (FCC)
< 20 dBm (CE/SRRC/MIC (Japan))
・5.725~5.850 GHz:
< 25 dBm (FCC/SRRC)
< 14 dBm (CE)

""battery""
・Capacity: 2970mAh
・Compatible charger: 5 V/2 A
・Charging time: Approximately 2.5 hours
・Operating time: Approximately 3.5 hours

""Transmission range""
200 m (SRRC/FCC)
100m(CE)
Measured values ​​in an environment free of radio wave interference and obstructions.

""Delay"" 60 ms

""Operating current/voltage"" 900 mA / 3.7 V

""Operating environment temperature"" 0℃~45℃

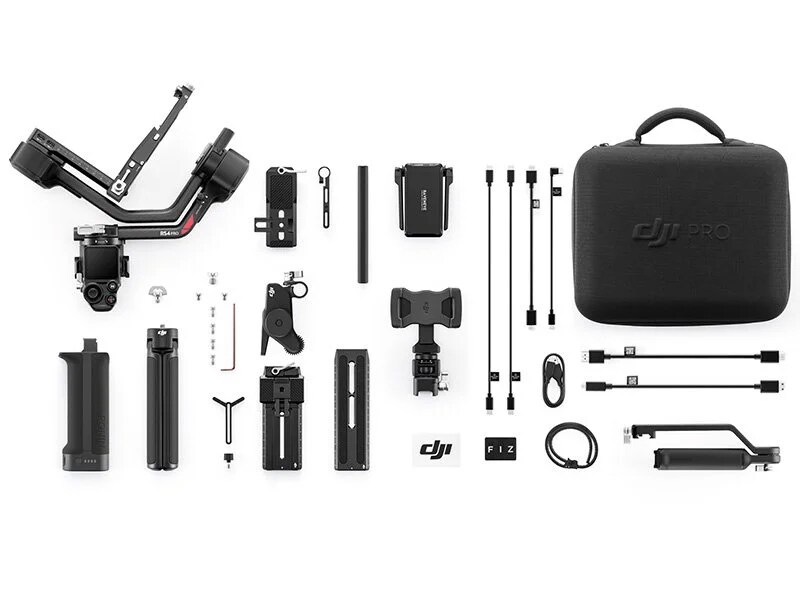

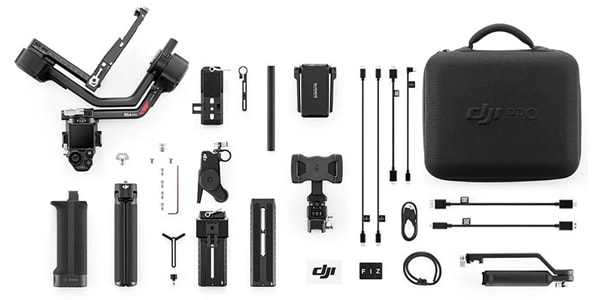

[Set contents]
""Gimbal"" x 1
""BG30 battery grip"" x 1
""Quick release plate (for Arca-Swiss/Manfrotto)"" x 1
""Extension grip/tripod (metal)"" x 1
""Briefcase handle"" x 1
""Lens attachment support (for extension)"" x 1
""Multi-camera control cable (USB-C, 30 cm)"" x 2
""USB-C charging cable (40 cm)"" x 1
""Screw kit"" x 1
""Carry case"" x 1
""USB-C power cable (20 cm)"" x 1
""Mini-HDMI to Mini-HDMI cable (20 cm)"" x 1
""Mini-HDMI to HDMI cable (20 cm)"" x 1
""Mini-HDMI to Micro-HDMI cable (20 cm)"" x 1
""Ronin Video Transmitter"" x 1
""Focus Pro Motor"" x 1
""Focus Pro Motor Rod Mount Kit"" x 1
""Focus Gear Strip"" x 1
""Lower quick release plate (for extension)"" x 1
""Smartphone holder"" x 1
""
This product is warranted only against initial defects.
Separate manufacturer warranty plans are available, so please contact us.
