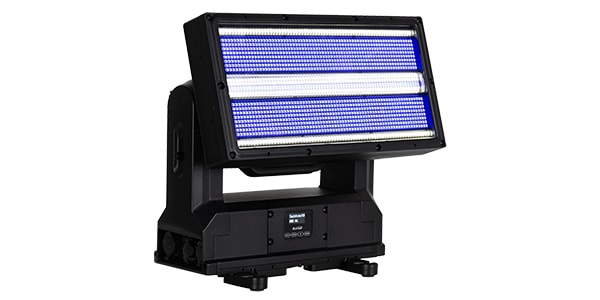

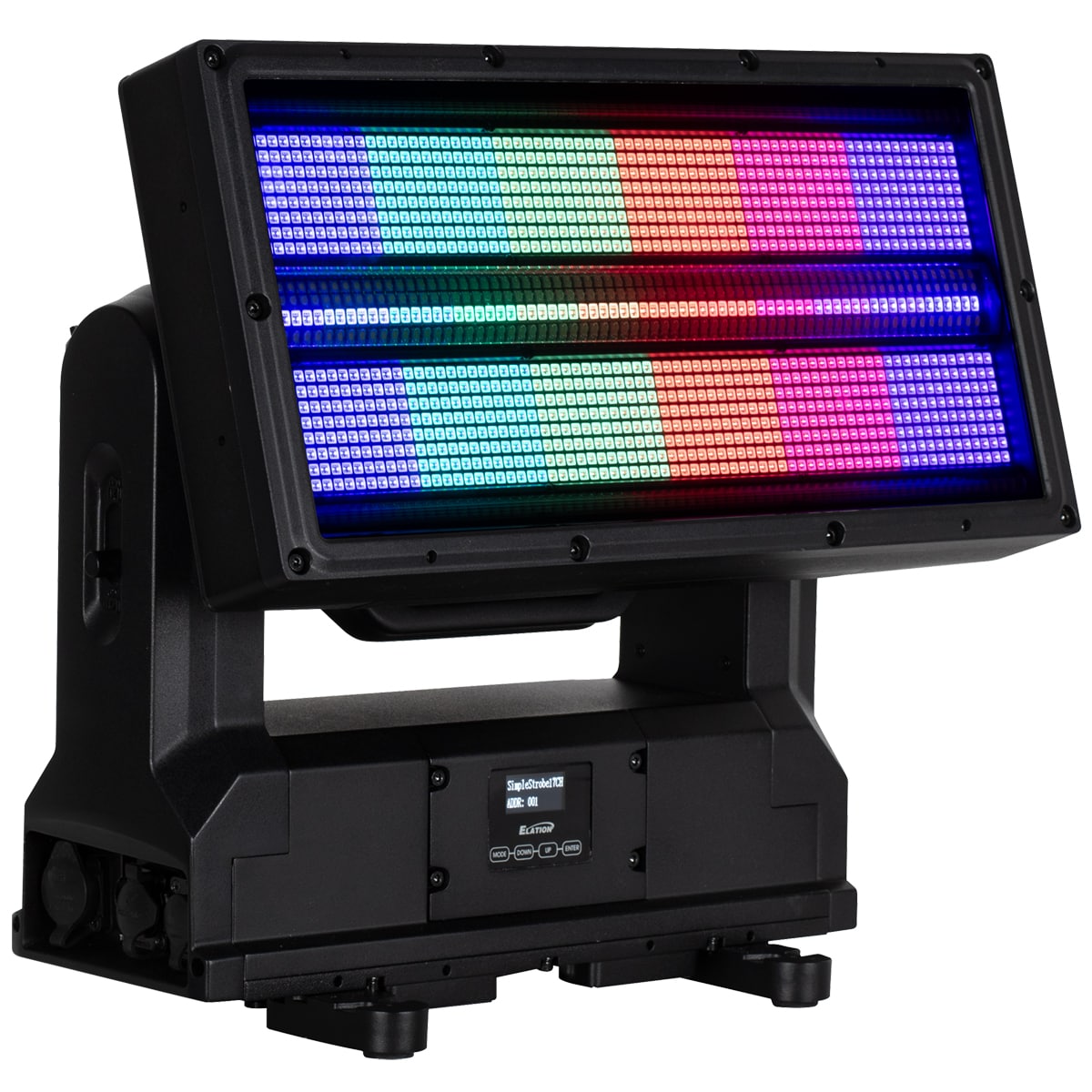

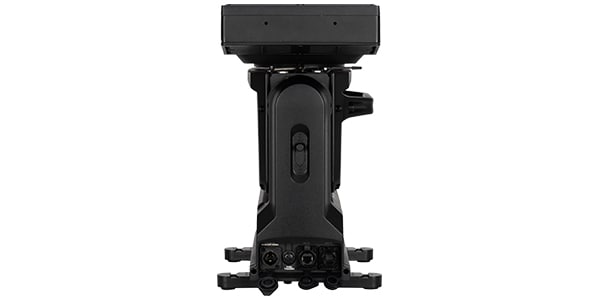

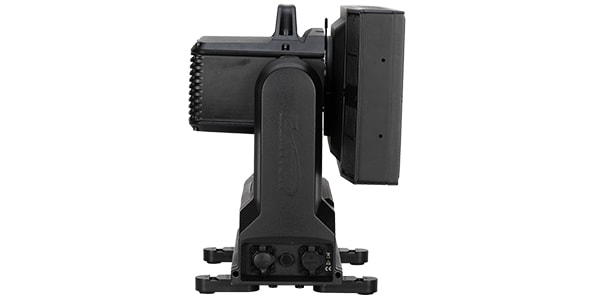

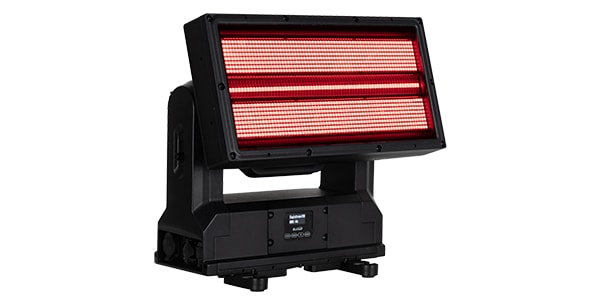

ELATION / Pulse Panel FX

ELATION's IP65 compliant audience blinder and strobe.

■Light source
- (1248) 1.5W RGB LED
- (432) 5W CW Strobe LED
- Average LED life: 50,000 hours*
*May vary depending on environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.

■Photometry data
- Total lumen output:
- Measuring sphere:
- All LEDs: 78,265 lumens
- CW LED: 108,574 lumens
- RGB LED: 44,090 lumens
- CRI: >70
- Beam angle: 68°
- Field angle: 112°

■Effect
- 24 zone RGB plate LED (6 x 4)
- 48 zone CW strobe LED (12 x 4)
- 12 zones RGB strobe line LED (12 x 1)
- 1-20Hz strobe rate
- Library of customizable RGB and CW strobe effects
- Variable dimming mode and curve
- Pan/Spin Angle: 540°/360°
- 360° continuous pan/spin motion
- Tilt angle: 180°
- Setting to lock pan/spin motion

■Color
- RGB color matrix

■Control/Connection
- 12 DMX channel modes (8ch, 16ch, 27ch, 50ch, 62ch, 65ch, 175ch, 90ch, 93ch, 183ch, 161ch, 156ch)
- Ability to assign fixture control and LED control to separate universes

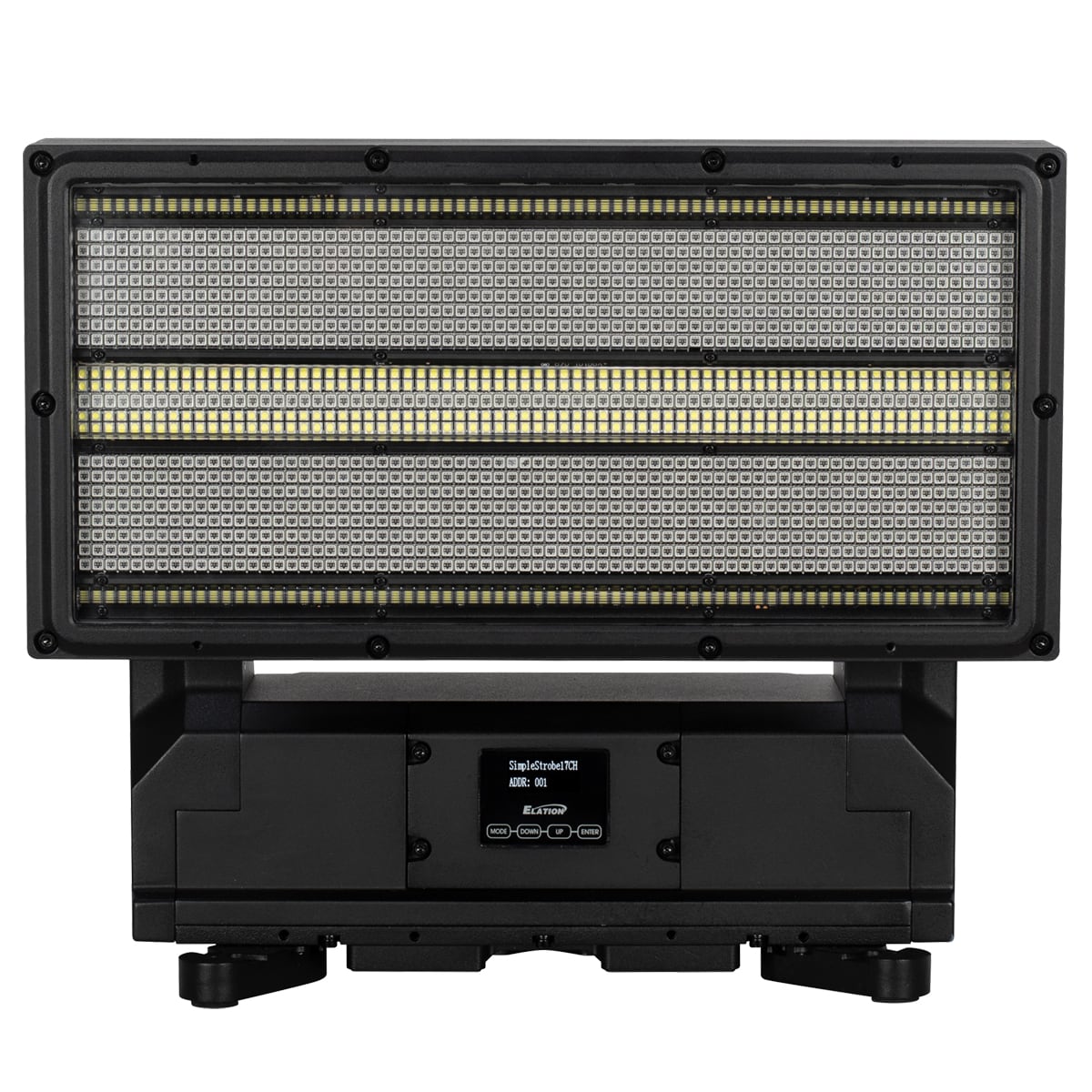

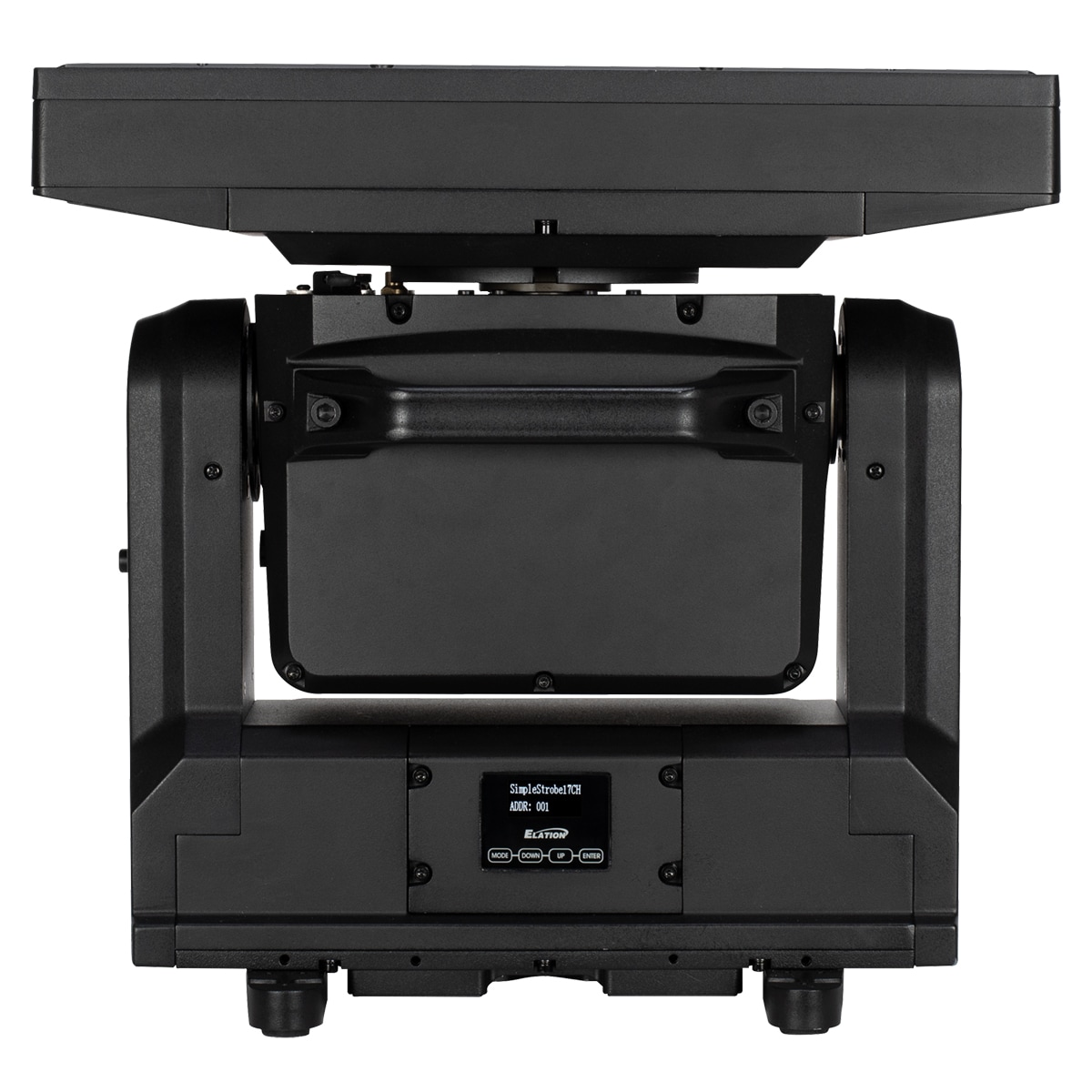

- 4-button control panel, LED display
- Aria x2 wireless device management
- RDM (Remote Device Management)

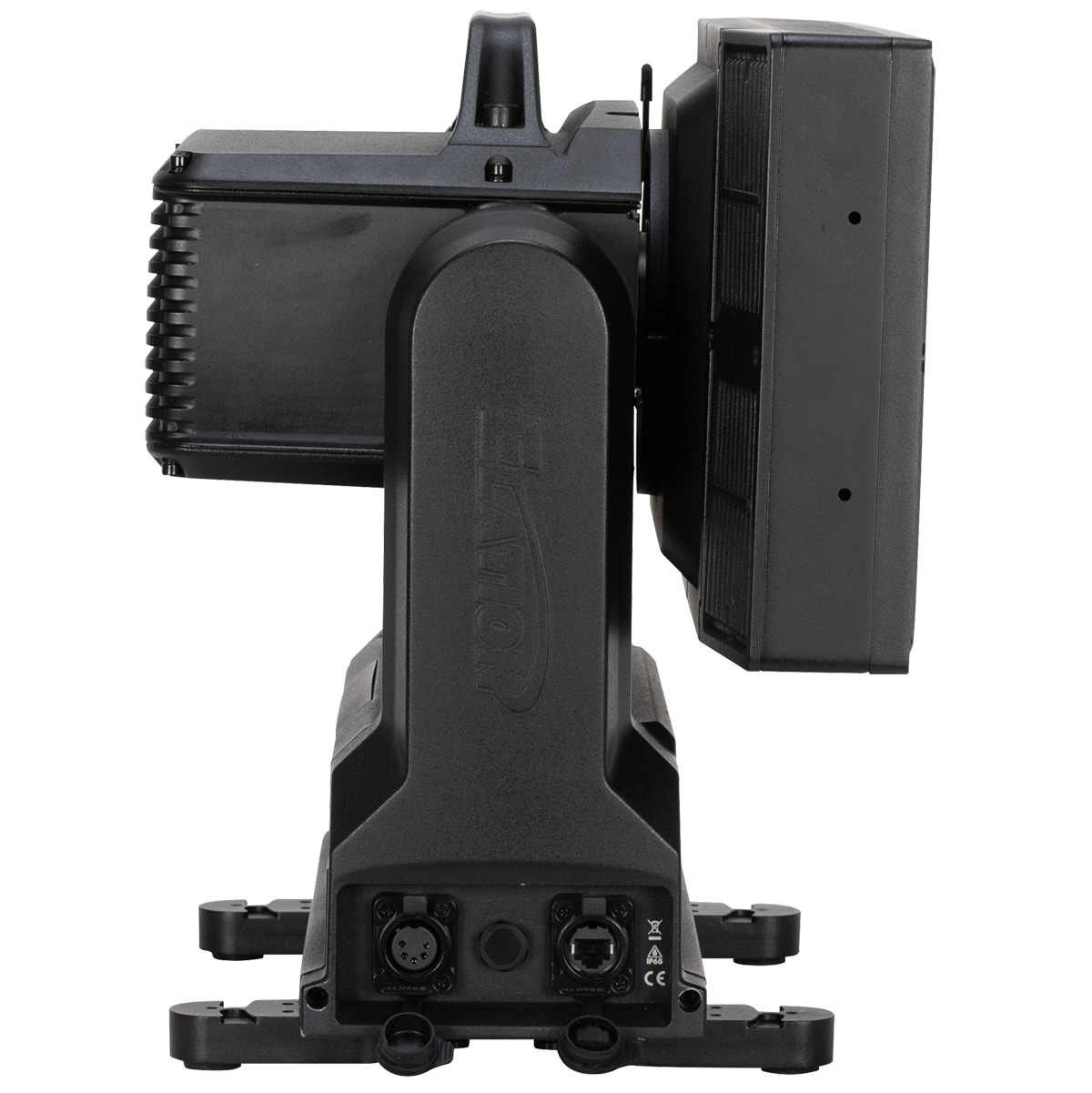

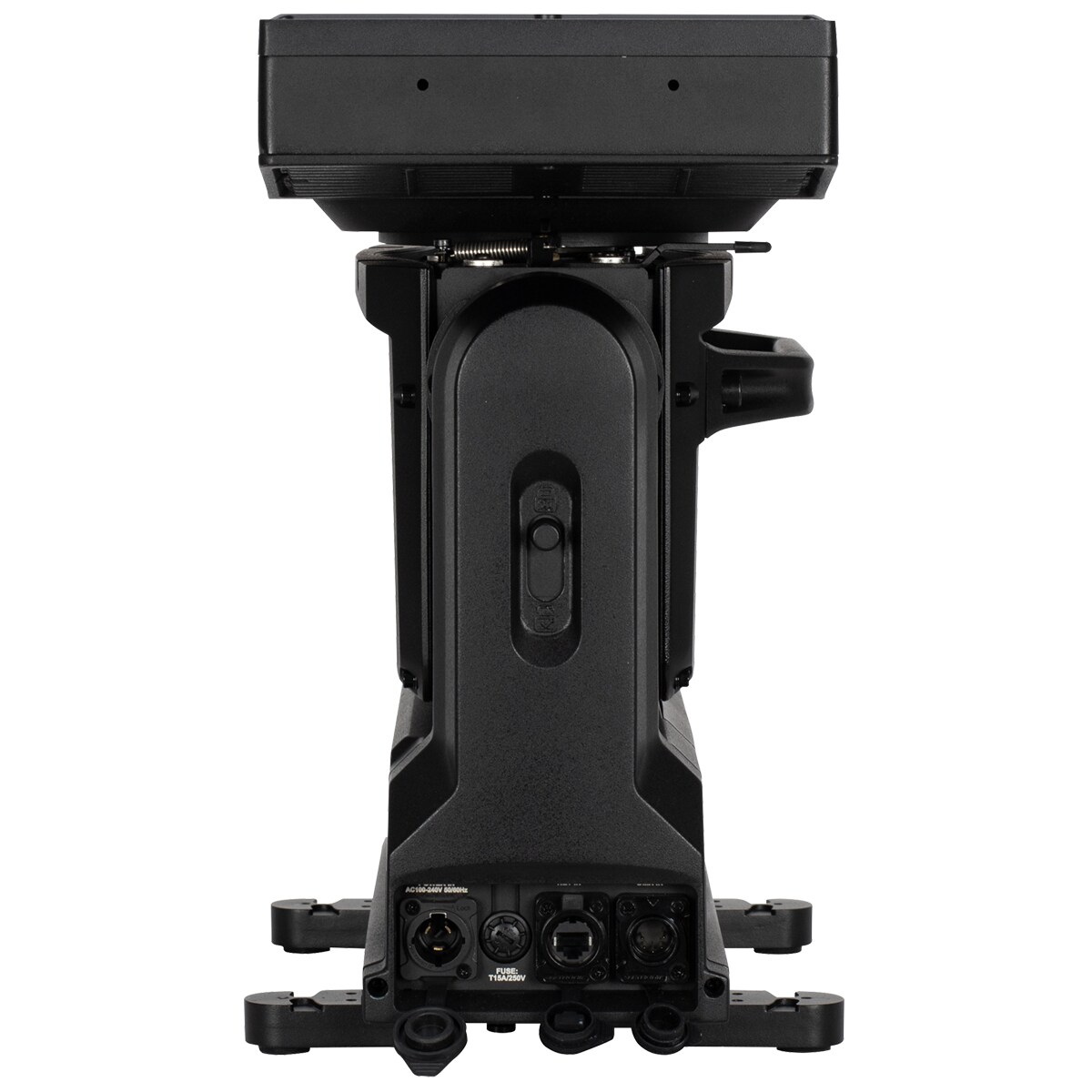

- IP65 5-pin XLR DMX input/output
- IP65 RJ45 Ethernet input/output (Art-Net, sACN, KlingNet)
- IP65 lock power cable included

■Dimensions/Weight
- Length: 210mm
- Width: 420mm
- Vertical height: 396mm
- Center spacing: 520mm
- Weight: 17.5kg

■Electrical/thermal specifications
- AC 100-240V - 50/60Hz
- Maximum power consumption: 1750W
- Operating temperature range: -20°C to 45°C
- BTU/hr (±10%): 5967.5

■Accessories
- safety cable
- IP65 locking power cable
- Omega bracket

■Approval/Evaluation
- CE | cETLus | IP65 | FCC | UKCA

Specifications and documentation are subject to change without notice.
