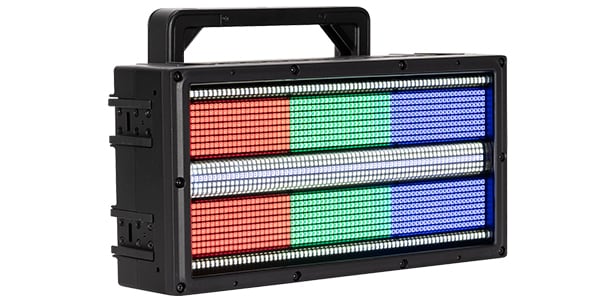

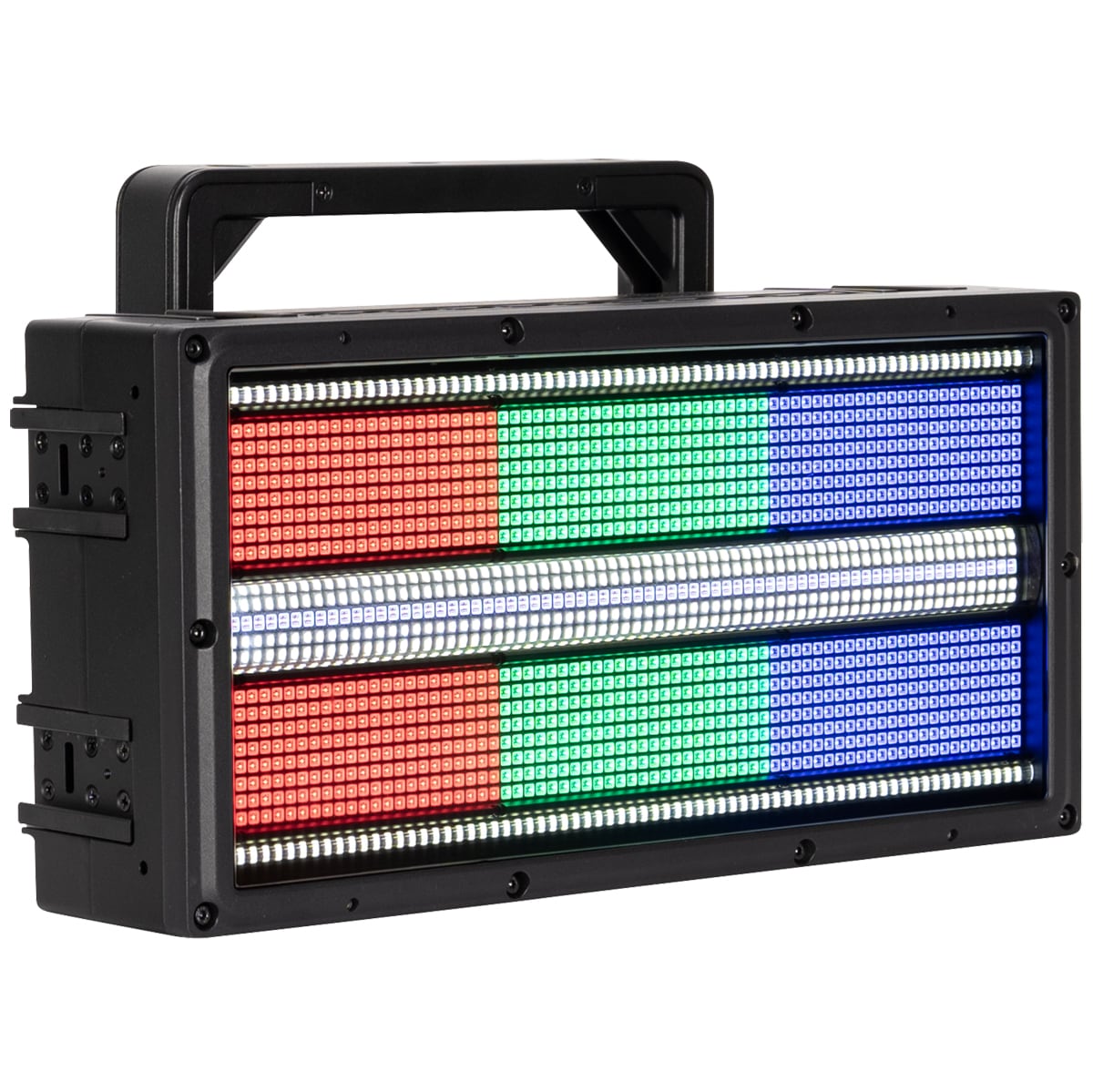

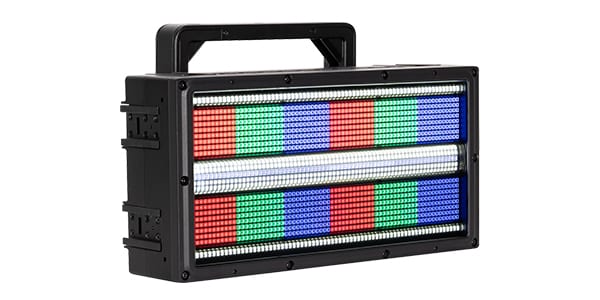

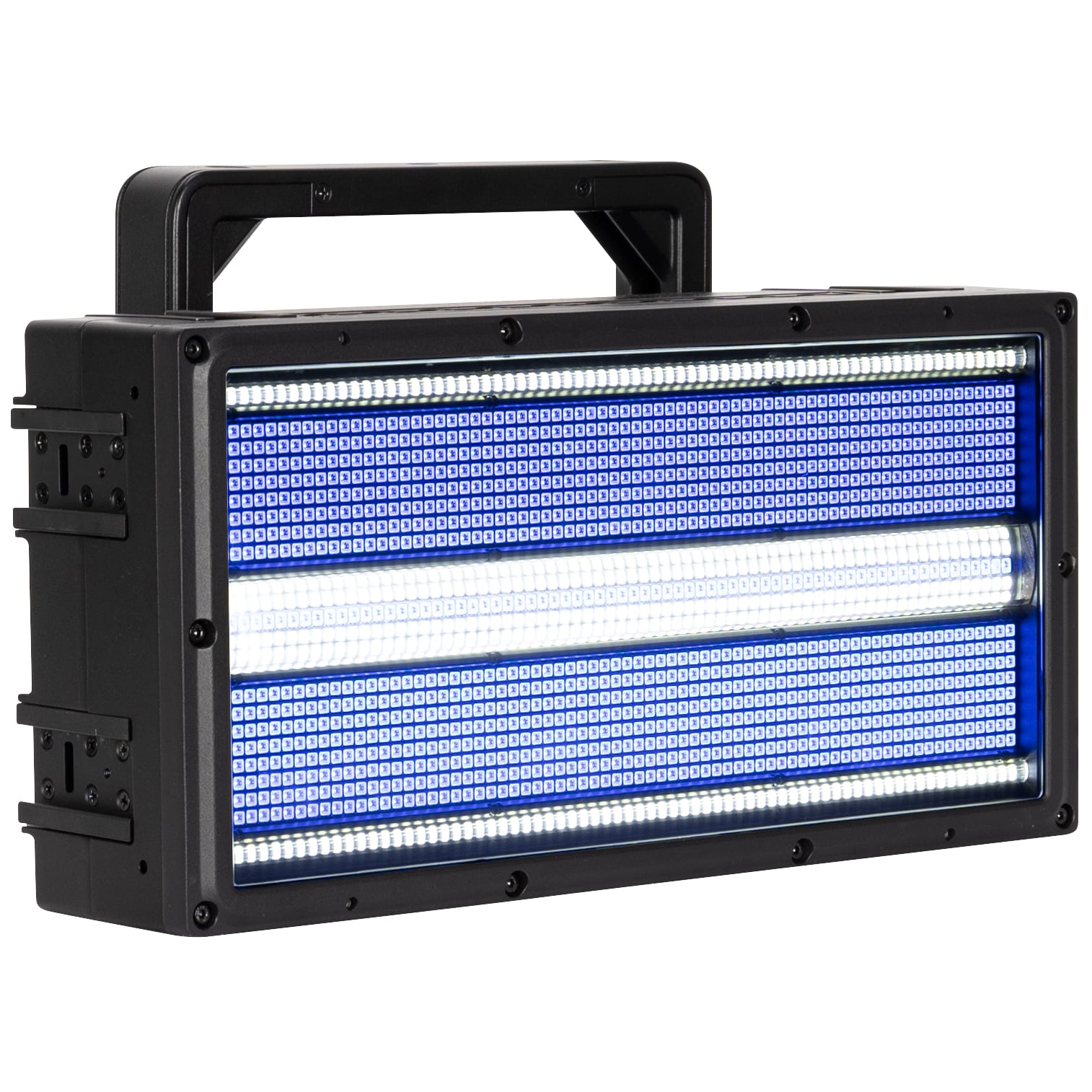

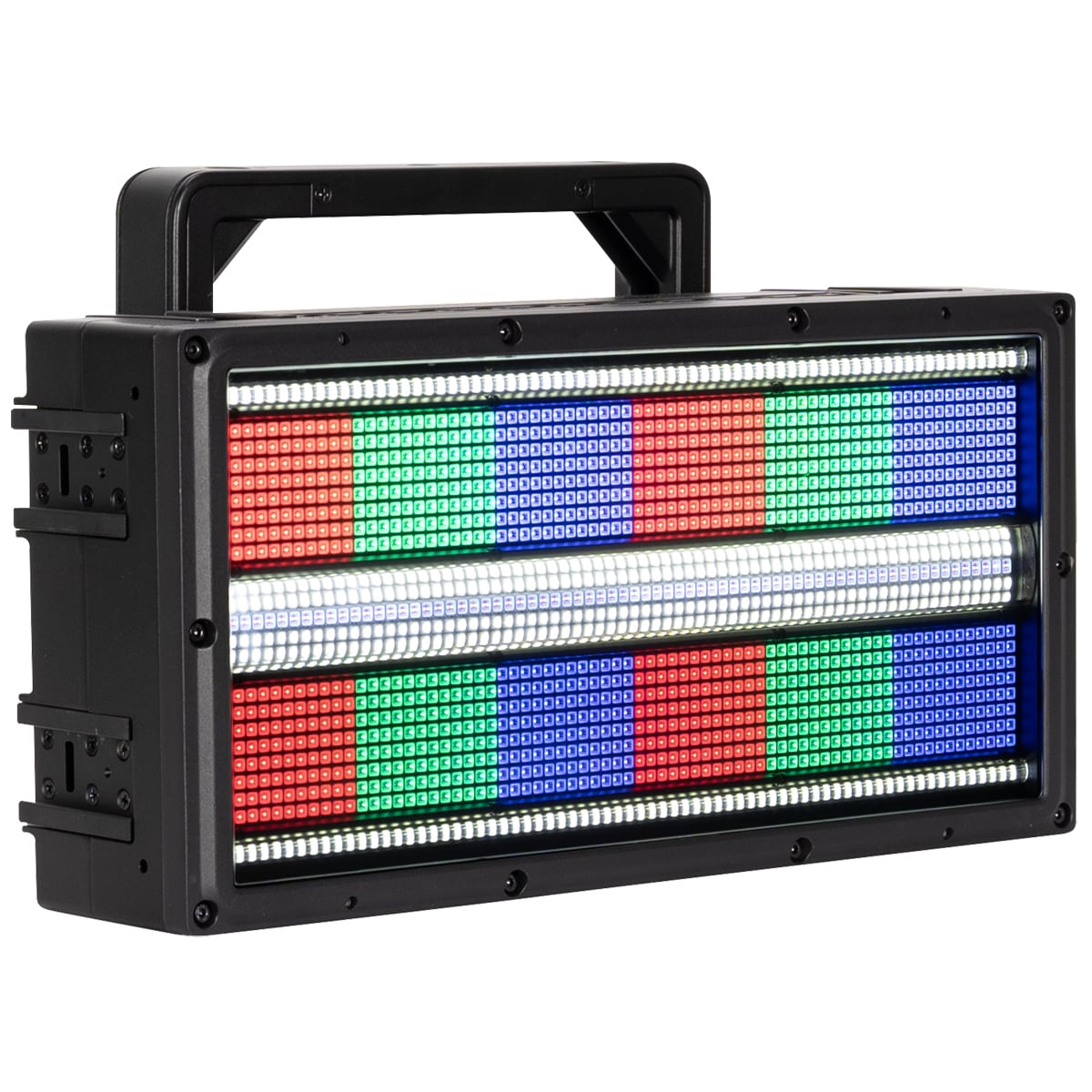

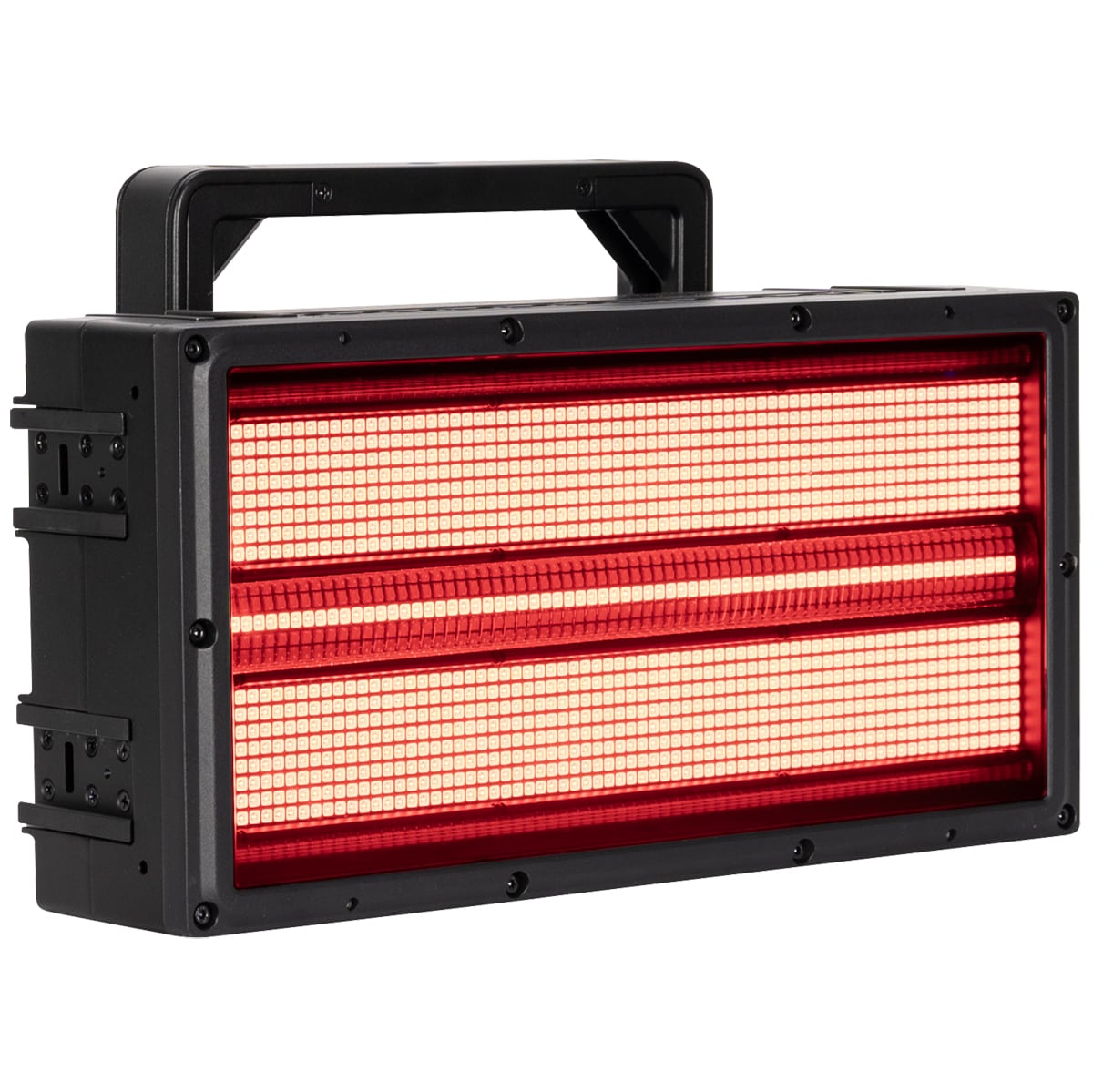

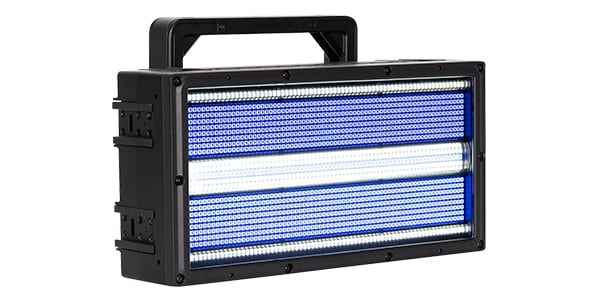

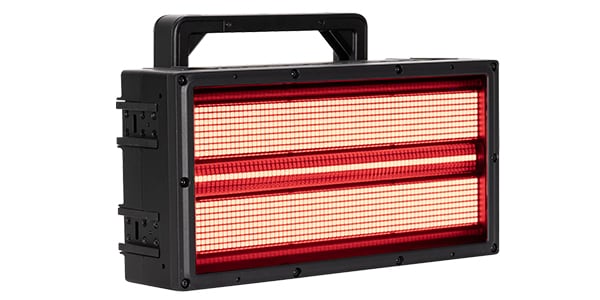

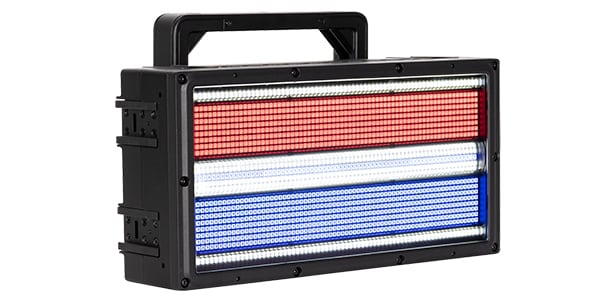

ELATION / Pulse Panel

ELATION's IP65 compliant audience blinder and strobe.

■Light source
- (1248) 1.5W RGB LED
- (432) 5W CW Strobe LED
- Average LED life: 50,000 hours*
*May vary depending on environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.

■Photometry data
- Total lumen output:
- Measuring sphere:
- Total LED: 77,919 lumens
- CW LED: 110,709 lumens
- RGB LED: 49,868 lumens
- CRI: >70
- Beam angle: 68°
- Field angle: 112°

■Effect
- 24 zone RGB plate LED (6 x 4)
- 48 zone CW strobe LED (12 x 4)
- 12 zones RGB strobe line LED (12 x 1)
- 1-20Hz strobe rate
- Library of customizable RGB and CW strobe effects
- Variable dimming mode and curve

■Color
- RGB color matrix

■Control/Connection
- 9 DMX channel modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)
- 4-button control panel, LED display
- Aria x2 wireless device management
- RDM (Remote Device Management)
- IP65 5-pin XLR DMX input/output
- IP65 RJ45 Ethernet input/output (Art-Net, sACN, KlingNet)
- IP65 lock power cable included

■Dimensions/Weight
- Length: 420mm
- Width: 299mm
- Height: 210mm
- Weight: 13.4kg

■Electrical/thermal specifications
- AC 100-240V - 50/60Hz
- Maximum power consumption: 1400W
- Operating temperature range: -20°C to 45°C
- BTU/hr (±10%): 4774

■Accessories
- safety cable
- IP65 locking power cable
- Fixture interconnect splice x 2

■Optional items
- S?L/PULSE HD Yoke (SPHDY)
- Fixture Interconnect Splice Package (FISP06)
- Interconnect clamp adapter (FICA01)
- #P000004165 (188mm Omega bracket)

■Approval
- CE | cETLus | IP65 | FCC | UKCA

Specifications and documentation are subject to change without notice.
